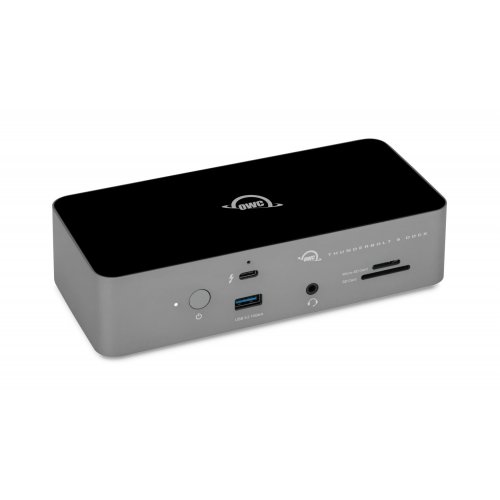

OWC TB5 Thunderbolt 5 Dock w/ Thunderbolt 5 Cable

About: OWC TB5 Thunderbolt 5 Dock w/ Thunderbolt 5 Cable

Whether you’re a tech enthusiast or creator working on your latest masterpiece, the Thunderbolt 5 Dock is the perfect all-in-one solution to streamline your setup and maximize your productivity. With the unrivaled speed of Thunderbolt 5, you’ll transfer data faster and gain more time for creating, editing, and producing. You’ll also unleash the full potential of everything you connect — from legacy devices to the latest Thunderbolt 5 SSDs — all while using just one Thunderbolt port on your Mac, iPad, PC, Chromebook, or tablet.

Seamlessly connect a myriad of devices — memory cards, NAS storage, Thunderbolt and DisplayPort displays, desktop peripherals and more — with universal USB/USB-C compatibility. Experience sharper, smoother visuals on up to three 8K displays. With 11 versatile ports to boost your multitasking efficiency, you’ll do everything faster and easier, keep your workspace tidy, and keep your notebook charged with up to 140W of power.

• One Cable = 11 Ports: Expand the functionality of your port limited computer simply by connecting it to this dock with the included Thunderbolt cable.
• Optimized Performance: Unleash the full potential of your devices by maximizing the highest bandwidth available from three Thunderbolt 5 ports.
• One for All: Use your existing and the latest gear and machines whether they are Thunderbolt 5/4/3, USB4, or USB-C.1
• Faster Networking: Vastly improve remote collaborations, cloud services, NAS file transfers, and online gaming with a 2.5x faster connection vs standard Ethernet.2
• Easier Offloads: Quickly offload photos and videos from cameras, drones, and audio recording devices with microSD and SD 4.0 UHS-II reader slots instead of using separate external readers.
• More Devices: Create three separate daisy chains of devices – even bus powered – and remove devices from one chain without affecting the other chains.
• Charged and Ready: With up to 140 watts of power, keep your notebook powered and fully charged to be ready for mobile use.
• Greater Visual Clarity: Enhance your efficiency with sharper details by connecting up to three 8K displays.3
• Simplified Audio: Plug headphones or a microphone into the 3.5mm audio in/out jack to easily handle conferencing, recording, or listening needs.
• Silently Cool: Fanless aluminum enclosure for quiet and cool operation.

Unlock Your Potential with Maximum Bandwidth

The terrific trio of Thunderbolt 5 ports aren’t just there to be an impressive spec. They’re the key to unlocking your full potential by maximizing available bandwidth in both upstream and downstream directions to your devices.

You'll say wow — or something stronger — when you transfer massive media files by connecting two USB4 CFexpress Type B card readers (each delivering up to 3330MB/s read speeds) alongside an OWC ThunderBlade X12 or an OWC Envoy Ultra with over 6000MB/s write speeds. A setup like this lets you take advantage of the incredible bandwidth of Thunderbolt 5 and use read and write speeds over 6000MB/s to dramatically reduce backup times from your media cards.

Connect up to three Thunderbolt 8K HDR monitors at 60Hz with DSC (or 30Hz without DSC) on Windows, and up to two Thunderbolt 6K displays on Macs. Now you’ll have the expansive ultra-high-resolution screen real estate you need for detailed work.

A Supporting Cast at Your Fingertips

A truly great presentation isn’t just about the featured performers. The smallest role is often the make-or-break difference to achieving critical acclaim and the OWC Thunderbolt 5 Dock delivers an award-winning worthy supporting cast of useful features:

• Must Have USB Ports: Connect your peripherals with two USB-A 10Gb/s ports and one USB-A 5Gb/s port. Whether it's external drives, keyboards, or mice, you’ll enjoy high-speed data transfers across the board.
• Manage Multiple Memory Cards: Quickly offload your photos and videos with the high-speed microSD and SD 4.0 UHS-II slots.
• Network Reliably Faster: The 2.5GbE port provides a stable and swift connection for remote collaborations and cloud services to ensure you won't hinder projects with slow data transfers between your local devices and unreliable internet connections.
• Record or Listen: Whether producing a hit track or podcasting to the people, your headphones or microphone easily plug into the audio jack.

Maximum Speed Yesterday, Today and Tomorrow

You can use the OWC Thunderbolt 5 Dock with more than incredibly fast Thunderbolt 5 machines and devices. With 100% USB-C compatibility, you can use it with millions of Macs, iPads, PCs, Chromebooks, Android tablets, and Surface devices and enjoy their maximum possible performance. Whether you have a new Thunderbolt 5 computer or device or want your connectivity to be future-proofed, the OWC Thunderbolt 5 Dock is the universally compatible high-performance connection solution For All Computerkind.

Built for Speed: Thunderbolt 5 Dock

• Thunderbolt 5: 80Gb/s bi-directional data with up to 120Gb/s video stream performance
• Thunderbolt 4: 40Gb/s
• Thunderbolt 3: 20Gb/s up to 40Gb/s
• USB4: 40Gb/s up to 80Gb/s
• USB-C: up to 20Gb/s

Thunderbolt 5 is up to 2x faster than Thunderbolt 4 & USB4

Create A Tablet ProStation

While iPad Pros and other tablet computers offer awesome content creation potential, they’re handcuffed by limited internal storage, display size, and often a single Thunderbolt (USB-C) port. Instead of lugging around a bulky notebook or worse, being chained to a non-portable desktop workstation, capture what you need on the fly with a tablet. Back at a desk, transform that tablet into a “prostation” with an external display, keyboard, mouse, and external drive all connected to the OWC Thunderbolt 5 Dock.

Certified Satisfaction

All our Thunderbolt connectivity solutions undergo rigorous development testing processes, including intensive mandatory Thunderbolt certification. This hyper-focused attention to detail ensures the OWC Thunderbolt 5 Dock will reliably deliver the functionality you expect from your Thunderbolt and USB-C devices.

Disconnect In One Click

Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.

Apple SuperDrive Ready

OWC's free Dock Ejector software also includes a special driver that enables your OWC Thunderbolt 5 Dock to play and burn CDs and DVDs with the Apple SuperDrive. Just connect the SuperDrive to an open USB-A port on the OWC Thunderbolt Dock for bus power to watch a DVD movie, listen to music CDs, create a backup disk, and install software.

OWC Thunderbolt Cable Included

OWC Thunderbolt 5 Dock comes with a certified 1.0M OWC Thunderbolt 5 (USB-C) Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt 5 (USB-C) Cables are the perfect choice.

Specifications

• IEEE Specification Support
  • 802.1AB
  • 802.1Qav
• Device Ports
  • (1) Host Port - Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
  • (3) Thunderbolt 5 (USB-C) Ports
  • (2) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
  • (1) USB 3.2 Gen 1 Type-A Port up to 600MB/s
  • (1) 2.5 Gigabit Ethernet (2.5GbE) RJ45 Port
  • (1) 3.5mm Stereo Audio Input/Output Combo Port
• Memory Card Slots
  • (1) microSDXC (UHS-II [312 MB/s])
  • (1) SDXC (UHS-II [312 MB/s])
• Power Delivery
  • Thunderbolt 5 host port provides up to 140W of power to the host computer.
  • Thunderbolt 5 device ports (for external drives and other devices) provide 15W of power.
  • USB3.2 device ports (for external drives and other devices) provide 7.5W of power.
• Display Support
  • Up to three 8K displays @ 60Hz,
    • or two 8K displays @ 120Hz
• Display Support by Port
  • Thunderbolt 5: up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1
• Ethernet Speeds (RJ45)
  • 10Gb/s (10GBASE-T)
  • 5Gb/s (5GBASE-T)
  • 2.5Gb/s (2.5GBASE-T)
  • 1Gb/s "Gigabit" (1000BASE-T)
  • 100Mb/s (100BASE-T)
• Data Rate
  • Thunderbolt 5: up to 80Gb/s bi-directional bandwidth and up to 120GB/s for video intensive applications
• Chipset / Controller
  • Thunderbolt: Barlow Ridge (JHL-9480)
  • USB: VIA Lab (VL822-Q7T) and Fresco Logic (FL5801)
  • Ethernet: RealTek (RTL-8156B)
  • SD Reader: GL-3231S
• Host Interface Requirements
  • Thunderbolt 5
  • Thunderbolt 4
  • Thunderbolt 3 (Mac Only)
  • USB4
  • USB-C
• Mac OS Compatibility
  • macOS 15.x Sequoia
  • macOS 14.x Sonoma
• PC OS Compatibility
  • Windows 10 64-bit Edition
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
• Other OS Compatibility
  • Chrome OS
• Driver Required: Yes
  • OWC Dock Ejector for macOS and Windows: Quickly unmount storage connected to the dock. Dock Ejector for macOS contains optional driver to enable Apple Super Drive, Apple USB Keyboard, and charging device support.
  • OWC Innergize for macOS and Windows: For management of OWC Atlas cards via the built-in SD card reader.
  • My OWC for iOS: Access to manuals
• Other Requirements
  • Thunderbolt 5 Mac systems require macOS 15.3.x or later
  • Thunderbolt 5 PC systems require Windows 11 or later
  • Thunderbolt 3 support is Mac only and requires macOS 15.x or later.
  • Chromebook or Surface systems require the latest version of Chrome OS.
  • iPad systems require the latest version of iPad OS
  • Linux systems require the latest version of Ubuntu.
• Supports OWC ClingOn: Yes
• External Power Adapter: Yes
• Power Supply: External UL-listed universal auto-switching power supply
• AC Input: 100-240V, 50-60Hz
• DC Output: +21V, 8.58A
• Wattage: 140W
• Security Slot: Yes
• Power Button: Yes
• Housing Color: Space Gray
• Housing Material
  • Chassis: Aluminum
  • Covers: Polycarbonate
• Certifications
  • CE
  • FCC
  • ICES
  • RCM
  • VCCI
  • UKCA
• RoHS Compliant: Yes
• Reach Certification: Yes
• Ambient Temperature
  • Operating: 32°F to 86°F (0°C to 30°C)
  • Non-Operating: -4°F to 140°F (-20°C to 60°C)
• Altitude
  • Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
  • Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
• Humidity
  • Operating: 8% to 90% non-condensing
  • Non-Operating: 5% to 95% non-condensing
• Dimensions (HxLxW) 1.7 x 3.1 x 7 inch (4.2 x 7.8 x 17.8 cm)
• Weight: 1.17 lbs (530.0g)
