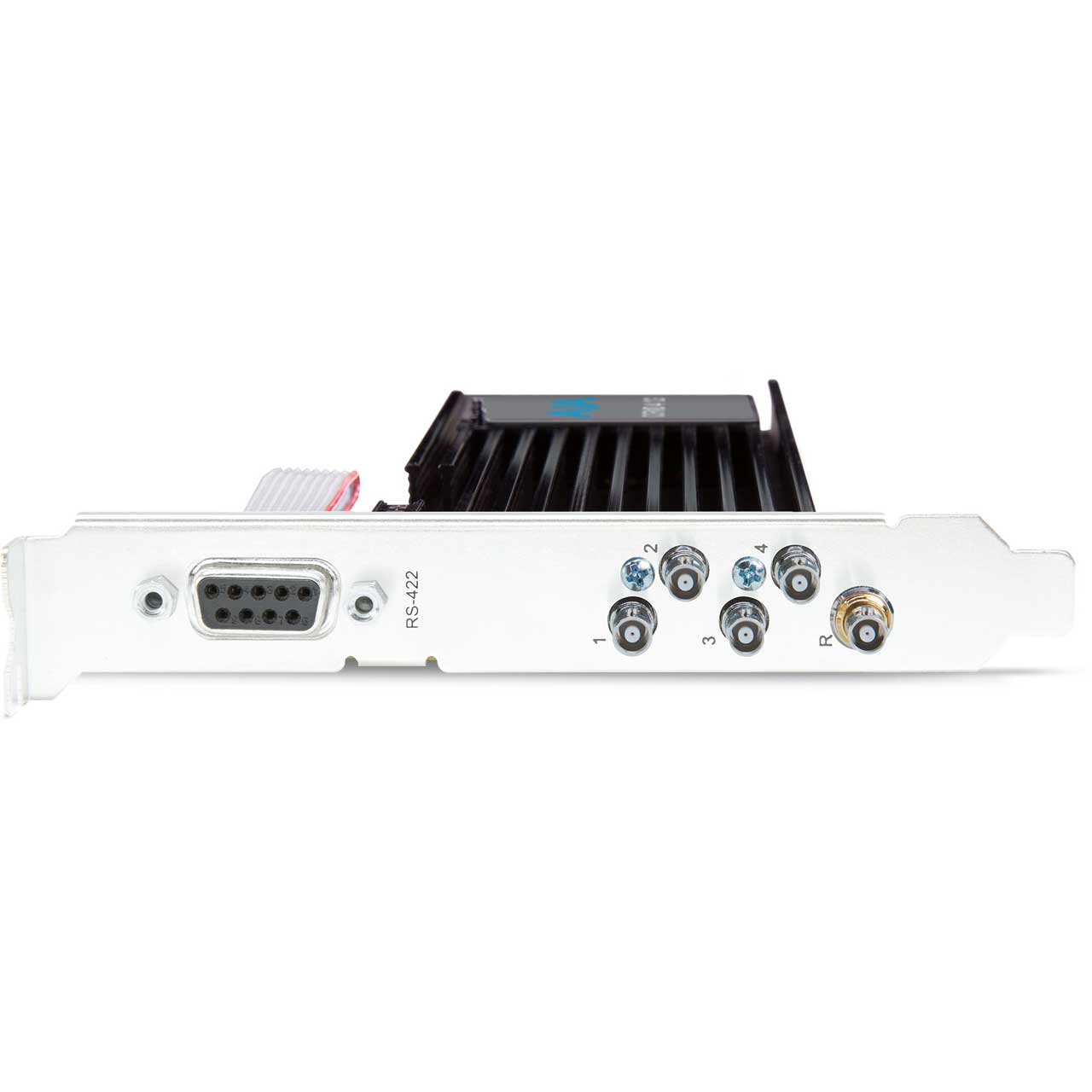

AJA Corvid 44 12G Compact 12G-SDI Power
Model: CRV44-12G-01
About: AJA Corvid 44 12G Compact 12G-SDI Power
Overview:
Take command of the most challenging projects using the immense power of Corvid 44 12G, AJA’s blazingly fast, compact 8-lane PCIe 3.0 I/O card with four bidirectional 12G-SDI HD-BNC connections, designed for today’s most demanding video and audio workflows. Corvid 44 12G is available in several configurations, including full-height or low-profile, with passive or active cooling.
Whether you are working with HFR 8K/4K/UltraHD, 2K/HD, SD, Deep Color and/or HDR, experience the quality and peace of mind that Corvid 44 12G brings to your projects. Supporting 10-bit 4:2:2 and 4:4:4, at up to 12-bit color spaces, Corvid 44 12G offers ingest and output over 12G-SDI, which is also backwards compatible with 6G-SDI, 3G-SDI, and 1.5G-SDI. The bidirectional 12G-SDI ports provide immense flexibility for capture and simultaneous pass-through for a range of solutions.
Features
- 8K/UltraHD2/4K/UltraHD/2K/HD/SD, including multi-channel 4K up to 50/60p
- 4x bidirectional 12G-SDI HD-BNC connections with 16-channel embedded audio per connection for a total of 64-channel/32-channel support for 8K workflows
- RGB 4:4:4 12-bit (4K/UltraHD), and YCbCr 4:2:2 10-bit HFR support
- Up to 12-bit LUT support (.cube)
- Dynamic FPGA Firmware Reconfiguration
- 4K Closed Caption Support
- VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
- PQ, HLG and Dolby Vision Support
- HDR Metadata Capture and Auto Playback Detection
- Reference/LTC Input on card (Analog black burst or Tri-level)
- Full height and half height models
- RS-422 on internal header or bracket with full height model
- LTC input on internal header
- Active or passive heatsink
- Includes support for the Apple silicon
Video Formats:
(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
UPC: 812321032086
Reviews: AJA Corvid 44 12G Compact 12G-SDI Power
Warranty: AJA Corvid 44 12G Compact 12G-SDI Power
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
