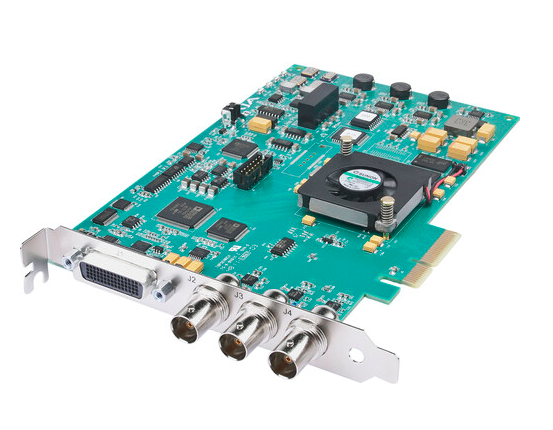

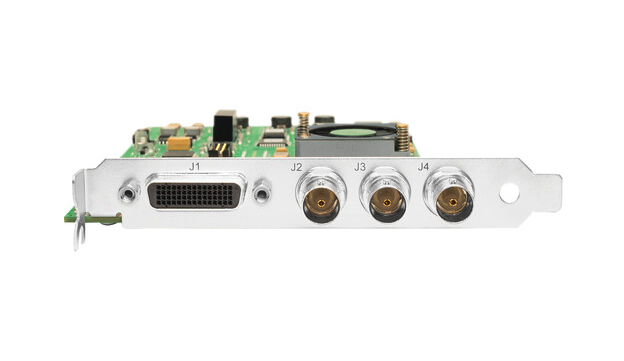

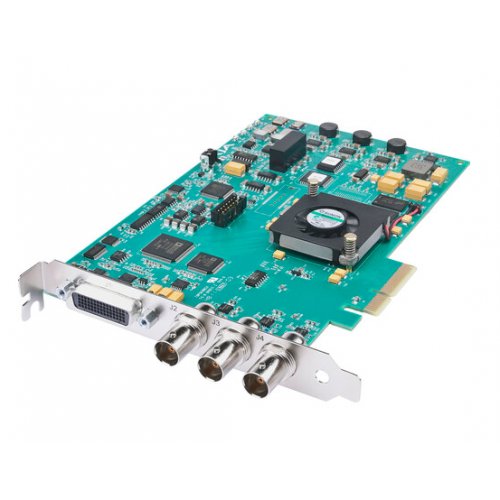

AJA KONA-LHE+R0-S00 KONA LHe Plus OEM HD/SD PCIe Card (Board Only)
Model: KONA-LHE+R0-S00
About: AJA KONA-LHE+R0-S00 KONA LHe Plus OEM HD/SD PCIe Card (Board Only)
AJA KONA LHe Plus is a versatile PCIe capture and playback card designed for professional video and audio workflows. Supporting both analog and digital I/O, it facilitates seamless integration of legacy and modern equipment, making it ideal for broadcast, post-production, and live event applications.
Features
- Supports uncompressed 10-bit or 8-bit video in HD/SD formats
- One 1.5G-SDI input and two 1.5G-SDI outputs, independently configurable for HD or SD
- 12-bit analog component HD input and output for connecting devices like analog VTRs and game consoles
- Analog composite, S-Video, and SD/HD component video I/O via included breakout cable
- 2-channel AES digital audio and 8-channel SDI embedded digital audio I/O
- 2-channel balanced analog audio I/O
- Hardware-based 10-bit HD to SD down-conversion available during capture or playback
- Genlock input for synchronization with external devices
- RS-422 machine control for frame-accurate ingest and layoff
- Compatible with leading software applications on macOS and Windows, including Adobe Premiere Pro, Apple Final Cut Pro, and Avid Media Composer
- Optional KL-Box-LH breakout box for extended connectivity and rack-mounted setups
Specifications
| Video Formats | HD: 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30, 1080PsF 23.98/24/25/29.97/30, 720p 50/59.94/60; SD: 625i 50, 525i 59.94 |
|---|---|
| Video Input | 1 x 1.5G-SDI (SMPTE 292M), YCbCr 4:2:2 10-bit; Analog: Composite/S-Video (Y/C), Component (YPbPr, RGB) |
| Video Output | 2 x 1.5G-SDI (SMPTE 292M), YCbCr 4:2:2 10-bit; Analog: Composite/S-Video (Y/C), Component (YPbPr, RGB) |
| Audio Input/Output | 2-channel balanced analog XLR; 2-channel AES/EBU XLR; 8-channel embedded SDI |
| Down-Conversion | 10-bit hardware-based HD to SD down-conversion |
| Machine Control | RS-422, 9-pin connector |
| Genlock | Analog Color Black or Composite Sync |
| Compatibility | macOS and Windows |
| Dimensions | Standard PCIe form factor |
| Weight | Approximately 1.4 lbs (0.64 kg) |
UPC: 812321030716
Reviews: AJA KONA-LHE+R0-S00 KONA LHe Plus OEM HD/SD PCIe Card (Board Only)
Warranty: AJA KONA-LHE+R0-S00 KONA LHe Plus OEM HD/SD PCIe Card (Board Only)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
