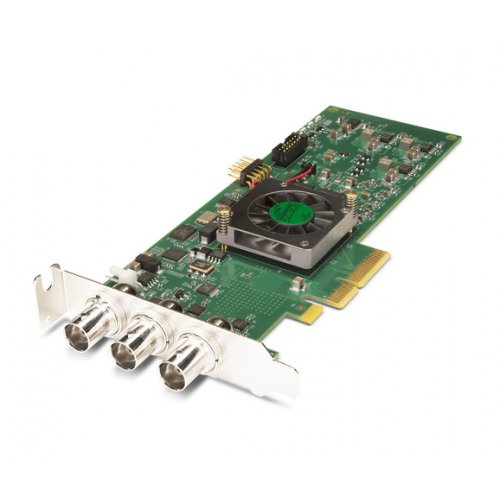

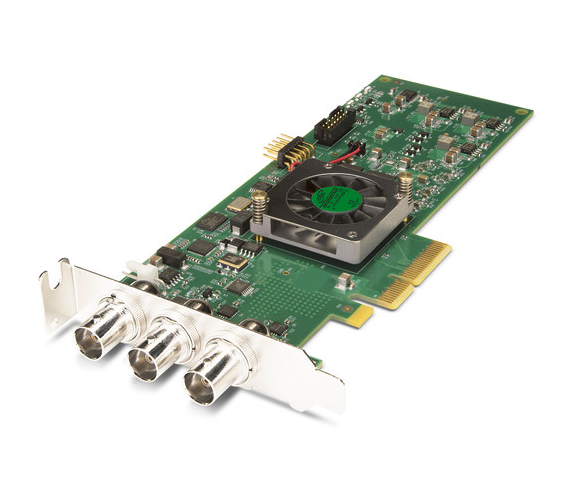

AJA KONA 1-S 2K 3G SDI PCIe Capture and Playback Card (Short)
Model: KONA 1-S
About: AJA KONA 1-S 2K 3G SDI PCIe Capture and Playback Card (Short)
AJA KONA 1 is a robust and cost-effective single-channel 3G-SDI 2K/HD 60p I/O card designed for broadcast, post-production, and ProAV applications. It offers seamless integration with a wide range of software applications, providing high-quality video and audio capture and playback solutions.
Features
- Single-channel 3G-SDI capture and playback supporting 2K/HD/SD up to 60p

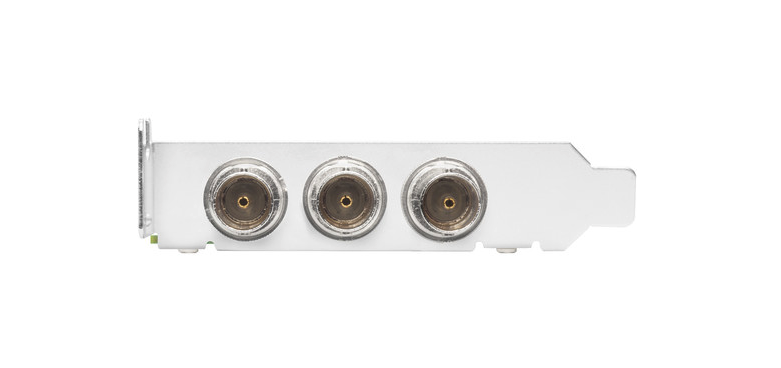

- Two full-size 3G-SDI connections (1 input, 1 output) with 16-channel embedded audio
- Supports RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit workflows
- 10-bit LUT support (.cube) for precise color management
- VPID signaling for SDR/HDR transfer characteristics, colorimetry, and luminance via SDI
- HDR support including PQ, HLG, and Dolby Vision
- RS-422 support on a 9-pin external connector for device control
- Reference/LTC input on card for synchronization (analog black burst or tri-level)
- Compatible with applications from Adobe, Avid, Apple, OBS Project, and Telestream
- Includes support for the Apple M1 chip
- Three-year warranty
Specifications
| Video Formats | 2K (2048 x 1080p) at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 2K (2048 x 1080PsF) at 23.98, 24, 25 fps HD (1080i) at 50, 59.94, 60 fps HD (1080p) at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps HD (1080PsF) at 23.98, 24, 25, 29.97, 30 fps HD (720p) at 50, 59.94, 60 fps SD (625i) at 50 fps SD (525i) at 59.94 fps |
|---|---|
| Video Input | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz embedded audio |
| Video Output | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz embedded audio |
| Reference/LTC Input | 1 x BNC, analog color black or HD tri-level sync, LTC |
| Serial Control | 1 x RS-422 9-pin D-connector |
| Interface | 2-lane PCIe 2.0 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Relative Humidity | 10-90% non-condensing |
| Dimensions (H x W x D) | 0.9 x 7.4 x 4.8 inches (2.2 x 18.8 x 12.1 cm) |
| Weight | Approximately 0.3 lb (135 g) |
