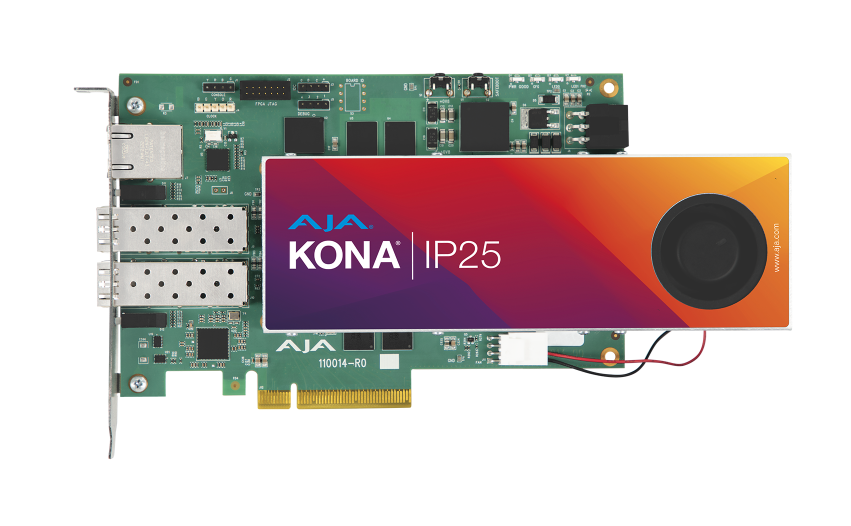

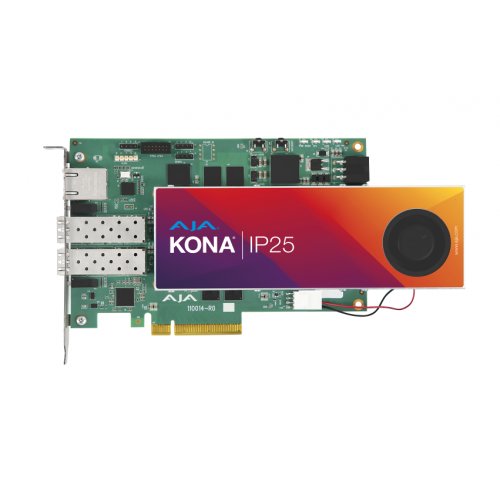

AJA KONA-IP25 SMPTE ST 2110 Uncompressed IP I/O PCIe Card
Model: KONA-IP25
About: AJA KONA-IP25 SMPTE ST 2110 Uncompressed IP I/O PCIe Card
AJA KONA IP25 is a high-performance 8-lane PCIe Gen 4.0 video and audio I/O card designed to facilitate uncompressed bi-directional SMPTE ST 2110 IP workflows. Equipped with dual 25 GbE SFP cages, it supports multiple uncompressed video streams up to UltraHD 4K at 60 frames per second, making it an ideal solution for broadcast, post-production, and live event applications.
Features
- Dual 25 GbE SFP cages supporting 10GbE and 25GbE SFPs
- Supports SMPTE ST 2110-10/20/21/30/40 standards for system timing, uncompressed video, traffic shaping, PCM audio, and ancillary data
- Handles multiple uncompressed video streams up to UltraHD 4K60
- Supports up to 16 channels of embedded audio per stream
- On-board processing for SMPTE ST 2110 configuration, control, and timing, reducing host system load
- In-band (media network via SFPs) and out-of-band (control network via RJ45) control options
- Compatible with leading NLE, compositing, and streaming applications via AJA’s desktop software
- HDR support for SDR/HDR transfer characteristics, colorimetry, and luminance via SDP file
- Downstream keyer supporting graphics up to UltraHD with alpha channel over video, matte, or framebuffer
- Linux, Windows, and macOS compatibility
- Three-year warranty
Specifications
| Video Input/Output | Dual 25 GbE SFP cages; supports 10GbE and 25GbE SFPs |
|---|---|
| Audio Channels | Up to 16 channels of embedded audio per stream |
| Supported Resolutions | UltraHD 4K up to 60 fps; 2K and HD resolutions |
| Control Interface | In-band via SFPs; out-of-band via 1GbE RJ45 port |
| Form Factor | 8-lane PCIe Gen 4.0 card |
| Power Consumption | 40W typical, up to 50W maximum |
UPC: 812321032949
Reviews: AJA KONA-IP25 SMPTE ST 2110 Uncompressed IP I/O PCIe Card
Warranty: AJA KONA-IP25 SMPTE ST 2110 Uncompressed IP I/O PCIe Card
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and AJA do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
