Sonnet DuoModo xMac mini Module

About: Sonnet DuoModo xMac mini Module

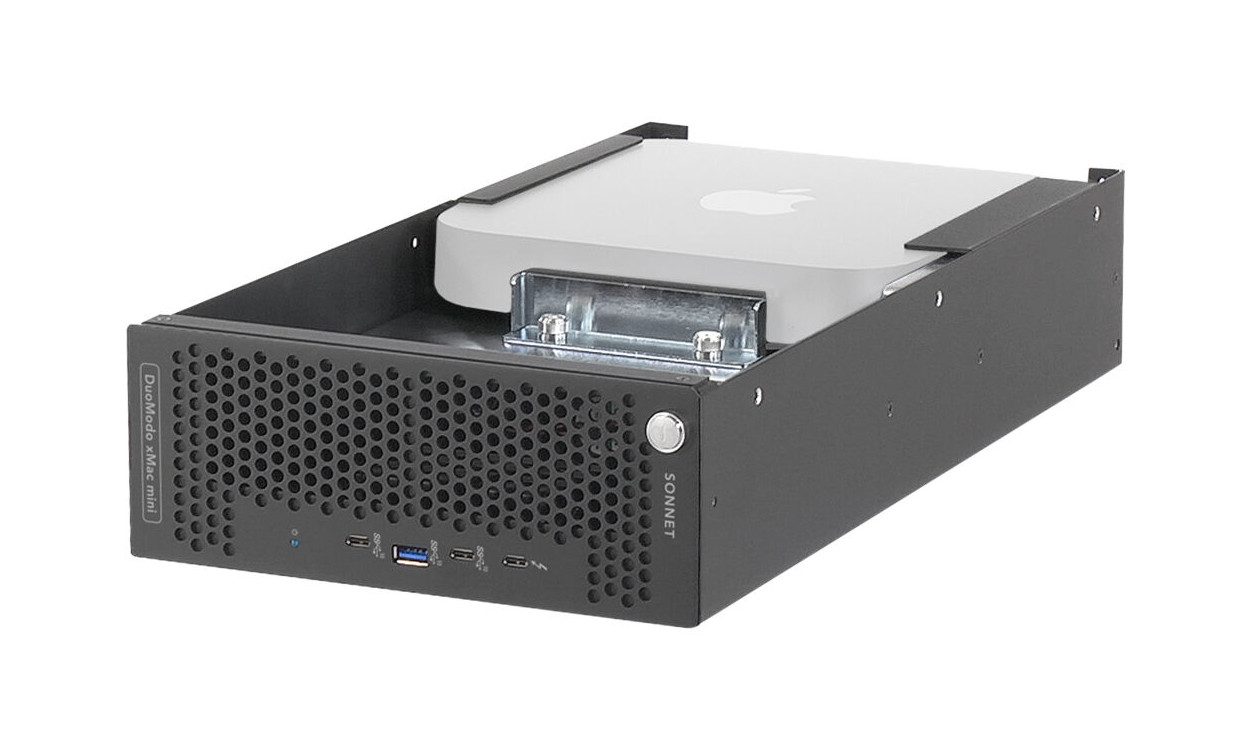

The DuoModo xMac mini Module is the ultimate Mac mini upgrade. The module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt 3 storage dock that adds NVMe storage expansion capability and additional ports for connecting peripherals.

Features

• Add a Mac mini
  • Securely Holds an Intel or M1/M2 series Mac mini in Horizontal or Vertical Orientation
  • Open Access to the Computer’s Ports in Back
  • Rugged Steel Frame Protects Installed Mac mini
• Built-in Thunderbolt Dock with SSD Sockets and Front Panel Ports
  • Four Front Panel Ports
    • One Thunderbolt 3 (40Gbps) Port
    • Two USB 3.2 (10Gbps) Type-C Ports
    • One USB 3.2 (10Gbps) Type A Port
  • Internal Connections
    • Two M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
    • One Internal USB 3.2 (10Gbps) Type A Port
    • Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
• Internal USB Type A Port
  • Internal USB Type A Port Included for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive
• Quiet Fan
  • Temperature-controlled, Variable-speed Fan Offers Quiet Operation
• Why Sonnet?
  • 2-year Product Warranty
  • Free Lifetime Customer Technical Support
  • Designed and Made In the USA

Front Panel Connectivity - 40Gbps Thunderbolt and 10Gbps USB ports

The front panel features one passthrough 40Gbps Thunderbolt 3 port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.

Versatile Internal Expansion - M.2 SSD Storage + Internal USB Type A Port

On top of the dock are two M.2 NVMe SSD sockets for one or two M.2 2280 NVMe PCIe SSDs (sold separately). The dock also features an internal USB Type A port that's perfect for connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive.

Quiet Operation

The DuoModo xMac mini Module includes a temperature controlled, variable-speed fans that automatically and quietly provide cooling for the Thunderbolt 3 dock, any installed SSDs, and the module’s power adapter.

Add Your Module to a DuoModo Enclosure - Choose Your Enclosure

• Single-Module Desktop Enclosure - (Houses a Single DuoModo Module on the Desktop)
• Dual-Module Desktop Enclosure - (Houses Two DuoModo Modules on the Desktop)
• Dual-Module Rackmount Enclosure - (Houses Two DuoModo Modules in a Rack)
• Popular Pre-configured DuoModo Systems (Enclosures with Pre-installed Modules) also Available

Specifications

• Compatibility
  • Mac Compatibility
    • Mac mini (M2/M2 Pro)
      • macOS 13 - macOS 14
    • Mac mini (M1)
      • macOS 11 - macOS 14
    • Mac mini (2018) - Last version with Intel CPU
      • macOS 10.14 - macOS 114
    • Mac mini (Late 2014) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
      • macOS 10.12 - macOS 12
    • Mac mini (Late 2012) with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
      • macOS 10.12 - macOS 10.15
• Hardware
  • Form Factor - Expansion system module
  • Front Panel Connectors
    • One Thunderbolt (USB Type-C) port
    • Two USB 3.2 (10Gbps) Type-C ports
    • One USB 3.2 (10Gbps) Type A port
  • Internal Connectors
    • One Thunderbolt (USB Type-C) port to Mac mini
    • One USB 3.2 (10Gbps) Type A port for thumb drive or dongle
    • Two M-keyed (NVMe) M.2 sockets (each connected at PCIe x2)
  • SSDs(2)
    • One or two M.2 2280 NVMe PCIe SSDs (with or without heat sink)
    • For a list of supported SSDs, see the following PDF
  • Power Supply
    • Universal 96W, 100-240V AC, 50-60Hz
    • C14-type power connector
  • Operating Temperature - 0ºC to 35ºC (32ºF to 95ºF)
  • Dimensions (WxDxH) - 3.3 x 16.4 x 8.5 in. (8.4 x 41.6 x 21.7 cm)
  • Weight - 4.95 lbs (2.25 kg)
  • Compliance
    • RoHS 3 (Directive 2015/863)
    • IEC62368-1 and IEC62368-2 Safety

Package Contents

• xMac mini Module
• Region-specific power cable for US, Australia, Europe, Japan, Switzerland, or UK
• 0.5-meter Thunderbolt 3 cable
• Documentation
