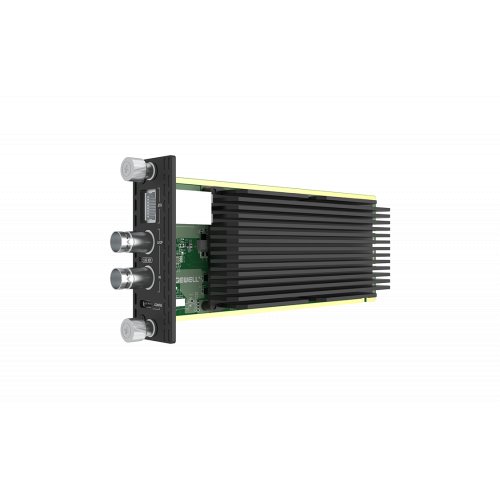

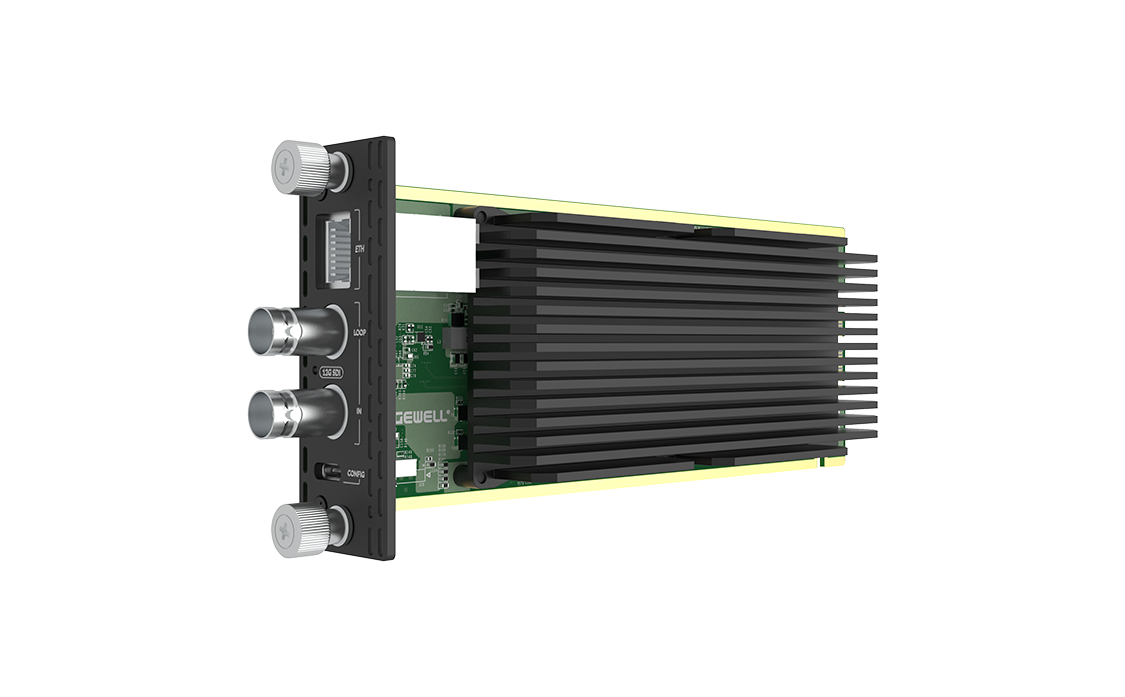

Magewell Pro Convert 12G SDI 4K Plus Module

About: Magewell Pro Convert 12G SDI 4K Plus Module

Converts a 12G-SDI input signal into NDI® High-Bandwidth with loop-through

• A hot-swappable module to be installed in Modator Chassis
• Supports inputs up to 4Kp60 with 16 channels of embedded audio
• Centrally manageable via the Modator Chassis and Magewell Control Hub

Pro Convert 12G SDI 4K Plus Module Specifications

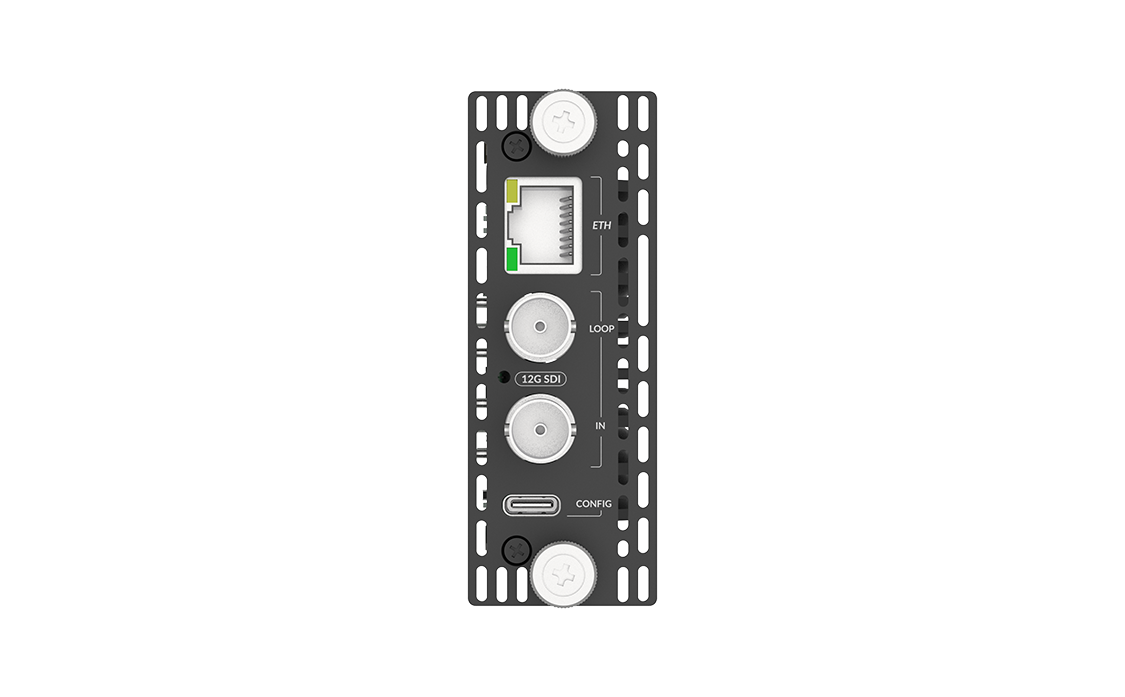

Interfaces

• 1x RJ45 1000Mbps Ethernet port
• 1x USB Type-C port for configuration
• 1x 12G SDI input port
• 1x 12G SDI loop port
• 1x Modator interface for connecting to Modator 2U (hot-swappable)

Input & Loop through Features

• Max video input & loop through: 4096x2160 60fps. Supported typical resolutions include:
  • 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
  • 2048x1080i/1920x1080i 47.95/48/50/59.94/60
  • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
  • 720x576 50i (PAL SD)
  • 720x480 59.94i (NTSC SD)
• Supports RGB/RGBA/YUV/YUVA signals with 8/10/12-bit color depth
• Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
• Supports RGB, YUV BT.601/709/2020 video input
• 16-channel SDI embedded audio inputs
• SD/HD/3G/6G/12G-SDI BNC input & loop through
• Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
• Receive 12G-SDI transmitted up to 35m (110ft), 6G-SDI 75m (248ft)

NDI® Encoding Features

• Encoding NDI High Bandwidth real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
• Output the same resolution as input or any custom resolution. Typical outputs include:
  • 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
  • 2048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/60
  • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
• Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
• Supports HDR HLG
• Encoding 16-channel NDI-embedded audio
• Supports NDI 6.2

Web UI

• Register with Magewell Control Hub for remote centralized management
• Supports configuring and managing via Web UI
• Provide comprehensive information regarding the device and signals in real-time
• Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
• Supports updating firmware
• Supports USB NET
• Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
• Provides HTTP APIs

PTZ Control

• Control PTZ cameras using protocols of Visca UDP via NDI

LED Indicators

• Input signal:
  • On: locked
  • Off: unlocked

Physical Specifications

• Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
• Weight: ≈311g

Power Consumption

• Max power consumption: 7.76W

Working Environment

• Operating temperature: 0 to 50 deg C
• Storage temperature: –20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing
