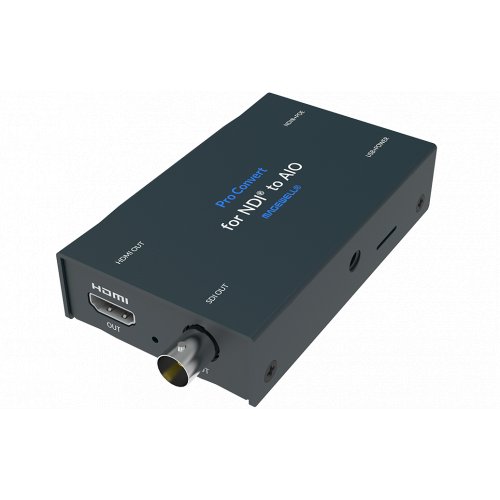

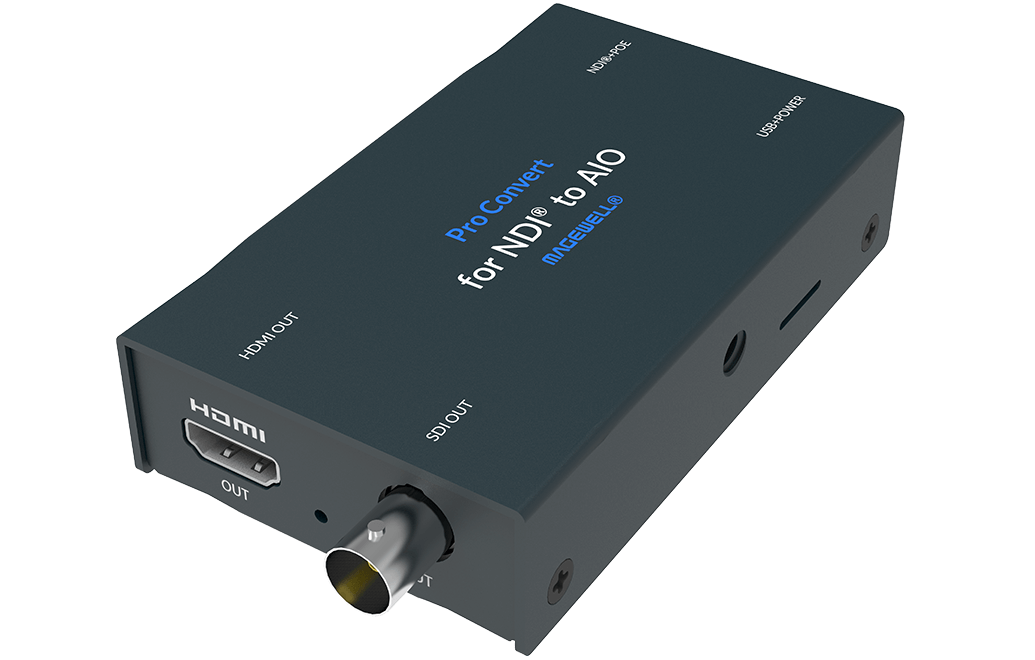

Magewell Pro Convert NDI to AIO

About: Magewell Pro Convert NDI to AIO

Converts a live NDI® stream into HDMI and SDI

• Connects baseband presentation or distribution equipment into IP-based media networks
• Supports NDI technology including Full NDI and NDI|HX mode
• Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

Output Features

• Support for up to 1920x1080 60fps HDMI and SDI output
• Support for 48KHz, 16-bit 8-channel audio streams

Decoding Features

• Support for decoding up to 2K 60fps NDI streams
• Support for decoding full NDI® and NDI®|HX
• Support for NDI 5.x
• Discover NDI devices across network segments
• Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

Features & Advantages

• Very low latency
• Advanced configuration and device status through intuitive Web GUI or on-board controls
• HTTP-based APIs for custom integration
• Image flip for inverted projector installations
• Safe area controls

Pro Convert AIO RX Specifications

Supported Web Browser

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

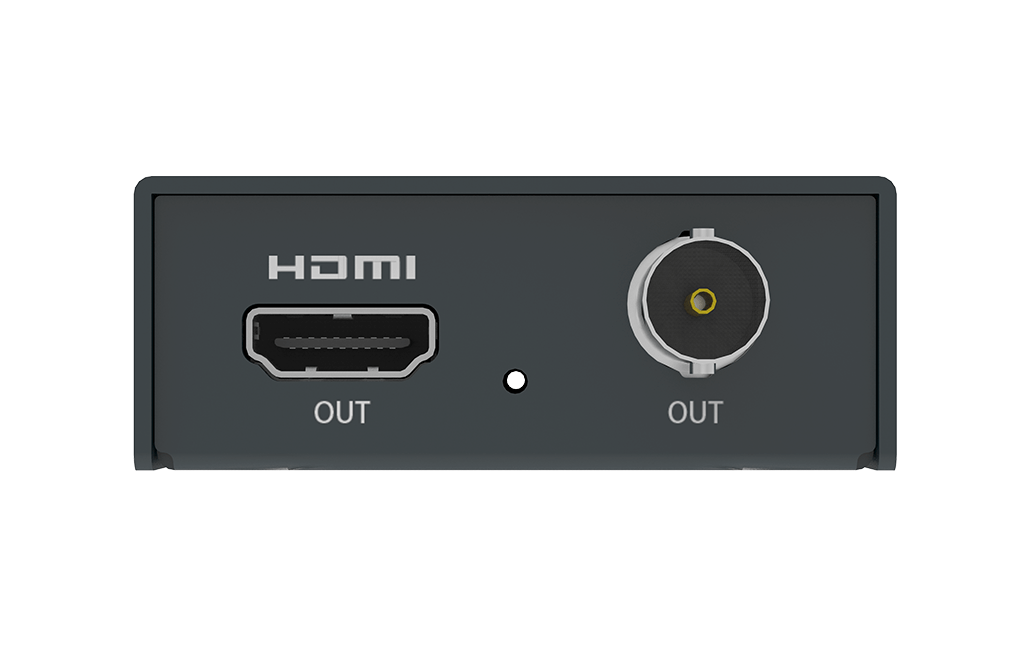

Output Interfaces

• 3G SDI
• HDMI 1.4

Storage Interface

• SD Card (functions to be developed)

Screw Mounting Hole

• ¼–20 mounting hole

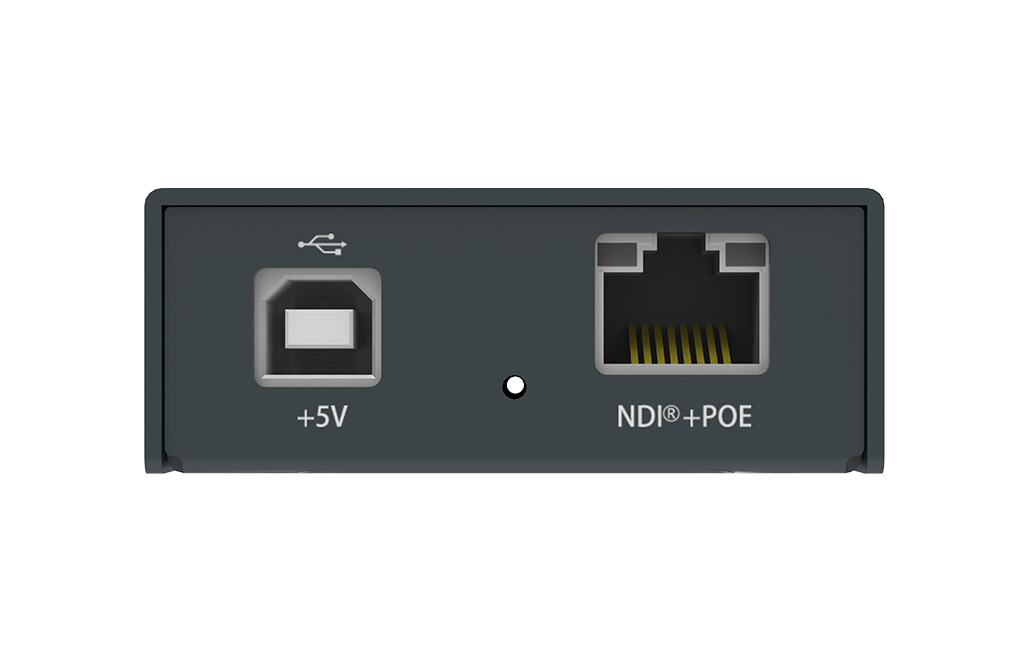

Network Interface

• 10/100/1000Mbps Ethernet
• IEEE 802.3af PoE

USB Interface

• USB2.0 Type B
  • 5V/2.1A power supply
  • USB RNDIS/ECM

Set Buttons

• Preset
  • Long press：set the output video format to auto
  • Short press：rotate the preset output resolution list
• Source
  • Short press：rotate the NDI® source detected on the LAN

HDMI Output Features

• Support RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 color sampling
• Support up to 48KHz 16bits 8-channel audio streams
• Support outputting video streams at the optimal resolution for NDI® source automatically
• Support the following output format
  • SD：480i59.94/576i50/480p59.94/576p50
  • HD：720p24/25/29.97/30/50/59.94/60; 1080p24/25/29.97/30; 1080i50/59.94/60
  • FHD：1080p50/59.94/60

SDI Output Features

• Support SD/HD/FHD standards
• Support YUV 4:2:2 color sampling
• Support up to 48KHz 16bits 8-channel audio streams
• Support outputting video streams at the optimal resolution for NDI® source automatically
• Support the following output format
  • SD：480i59.94/576i50/480p59.94/576p50
  • HD：720p24/25/29.97/30/50/59.94/60; 1080p24/25/29.97/30; 1080i50/59.94/60
  • FHD：1080p50/59.94/60

NDI® Source Name

• Support setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
• Support setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade

• Support manual update using Web UI

LED Indicator

• Status LEDs indicate the working state of the device:
  • Power supply: on/off
  • Output signal: Output connected and signal detected/undetected

Form Factor

• 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

• USB 2.0 A to B Cable
• 5V/2.1A power adaptor
• L-bracket

Power Consumption

• 5V max current: TBD
• Max power consumption: TBD

Working Environment

• Operating temperature: 0 to 45 deg C
• Storage temperature: –20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
