Magewell Director Plus All-In-One Production & Streaming System

About: Magewell Director Plus All-In-One Production & Streaming System

Portable, professional, and powerful, Director Plus redefines all-in-one live production and presentation workflows. Built for content creators, event teams, and corporate productions, Director Plus delivers broadcast-quality performance without bulky gear, complex setups or the high costs of traditional production systems.

• Flexible connectivity for AV sources, IP streams, media files and the third-party app
• Enhanced networking with 5G, Wi-Fi 6E, and 2.5GbE
• End-to-end 4K production from source ingest to streaming and recording
• Intuitive control for seamless workflow integration

Ultra-Rich Signal Flexibility

Supporting 4K production workflows, Director Plus features four HDMI inputs, two USB AV inputs, ten simultaneous live IP sources including SRT, RTMP, RTSP, NDI® High Bandwidth and NDI HX sources, HTML webpages, multimedia sources as well as third-party apps, giving you unmatched flexibility to mix cameras, computers, remote feeds, and media files in any layout. Resize, reposition, and customize every element to craft engaging, professional scenes in seconds.

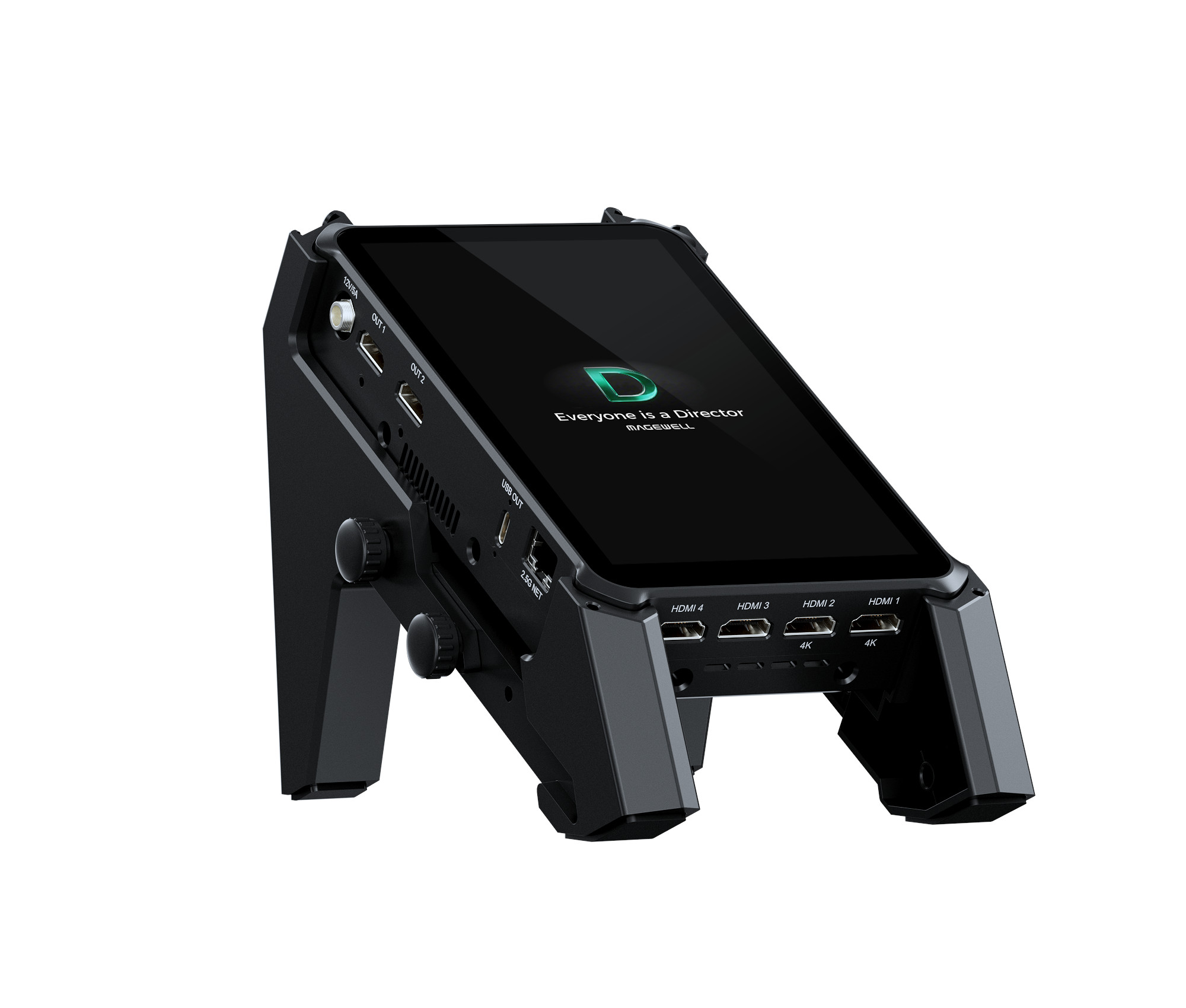

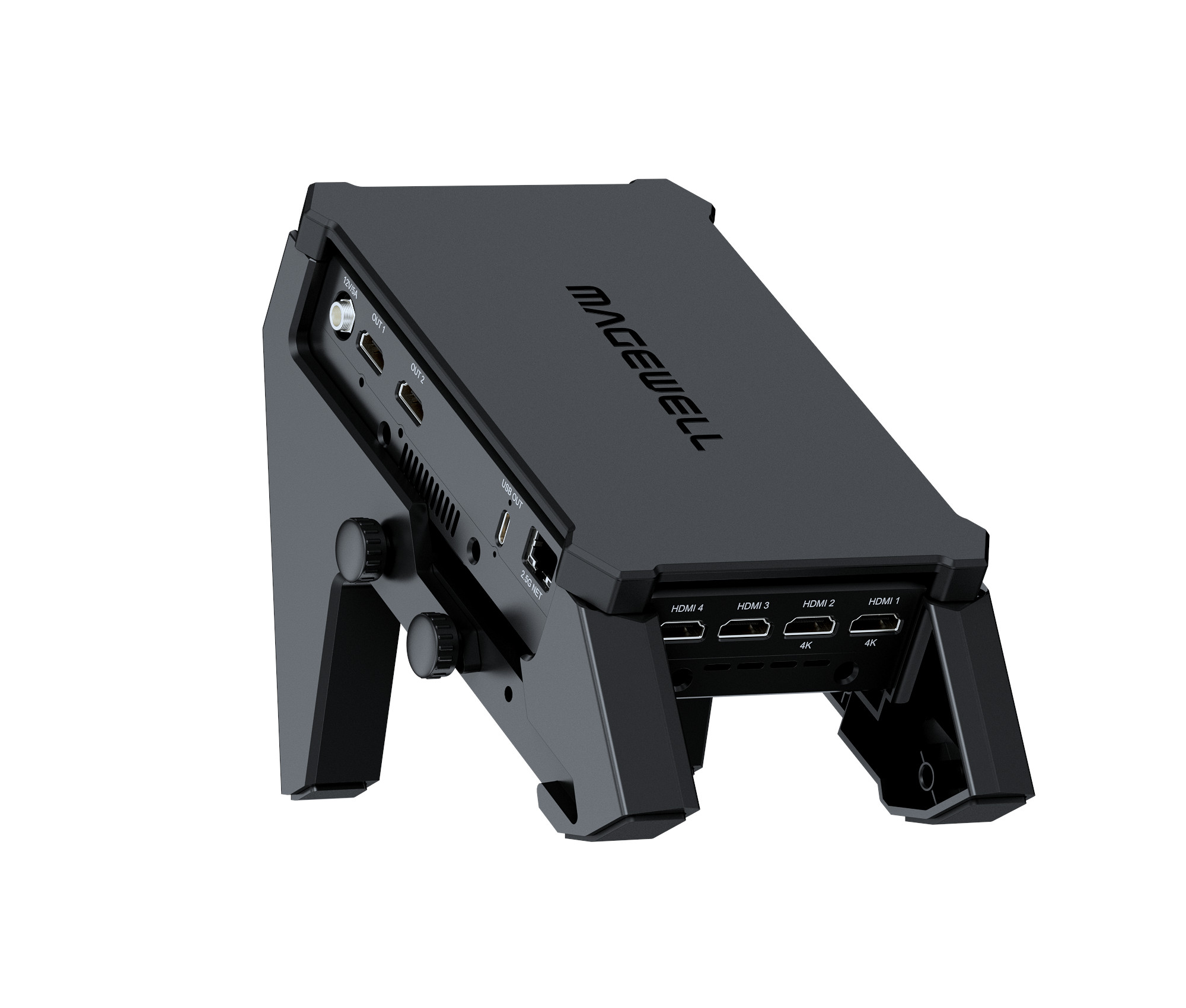

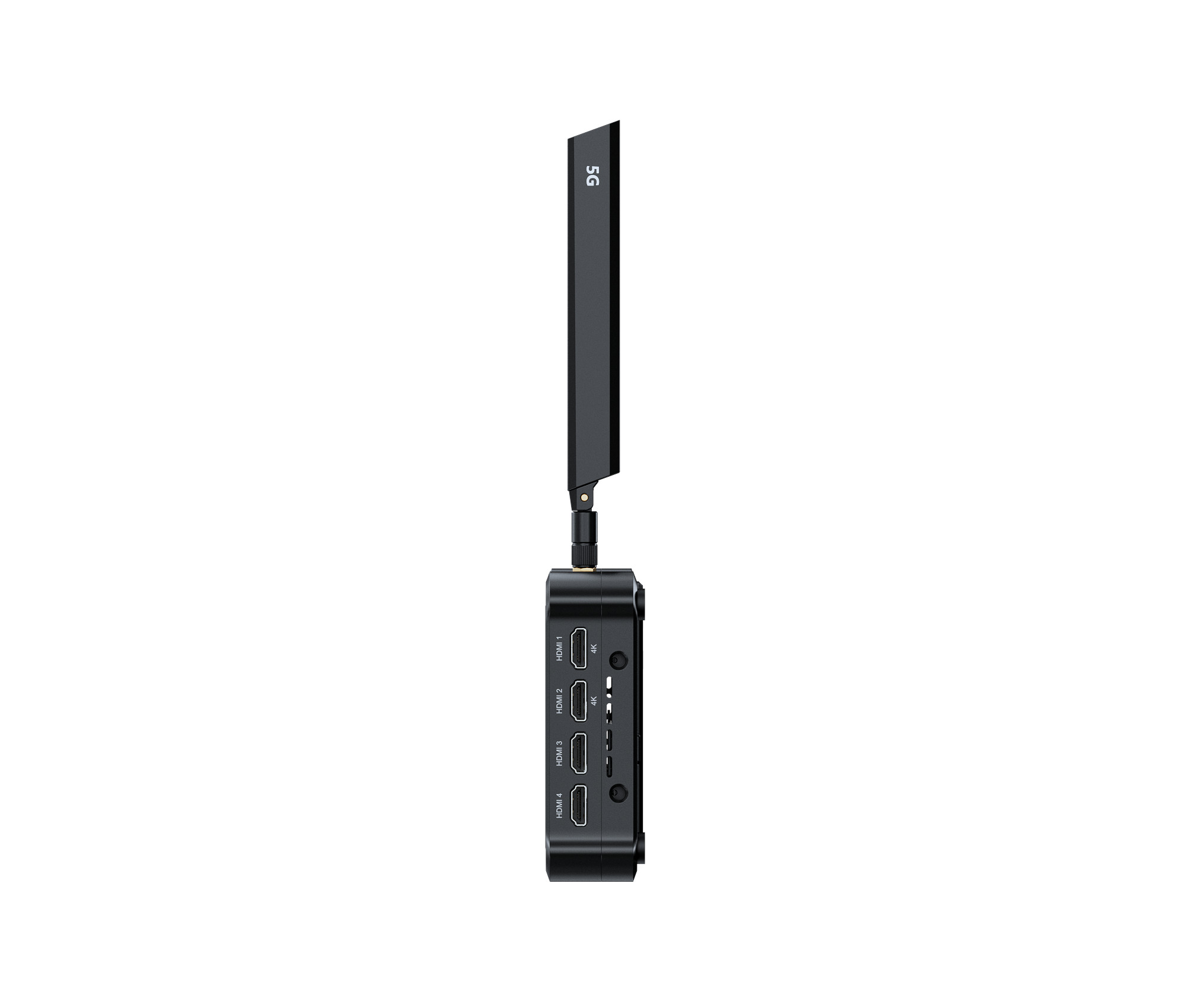

• 4x HDMI inputs
• 2x USB AV inputs
• 10x live IP sources
• 3x third-party apps

Stay Connected in Any Network

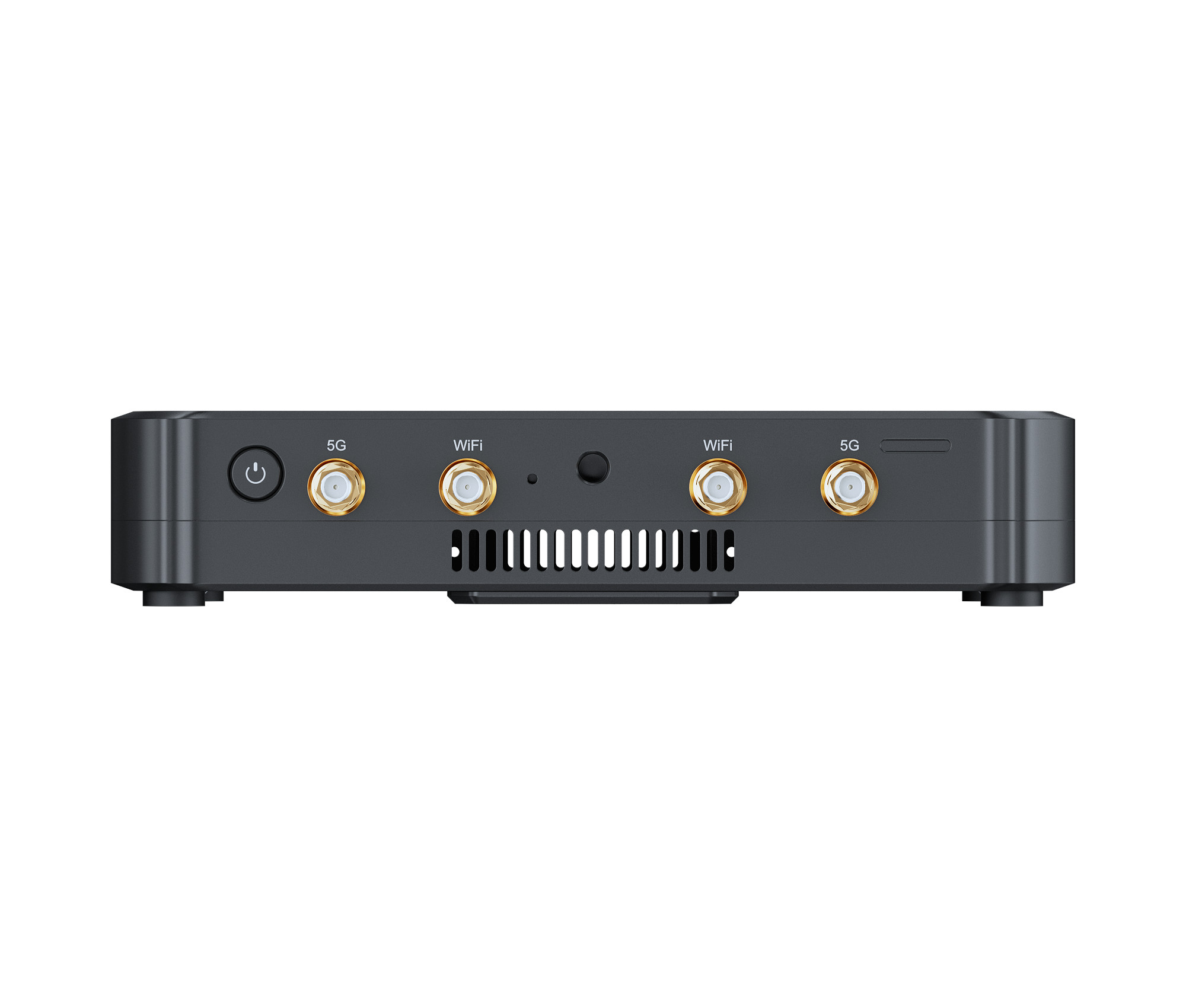

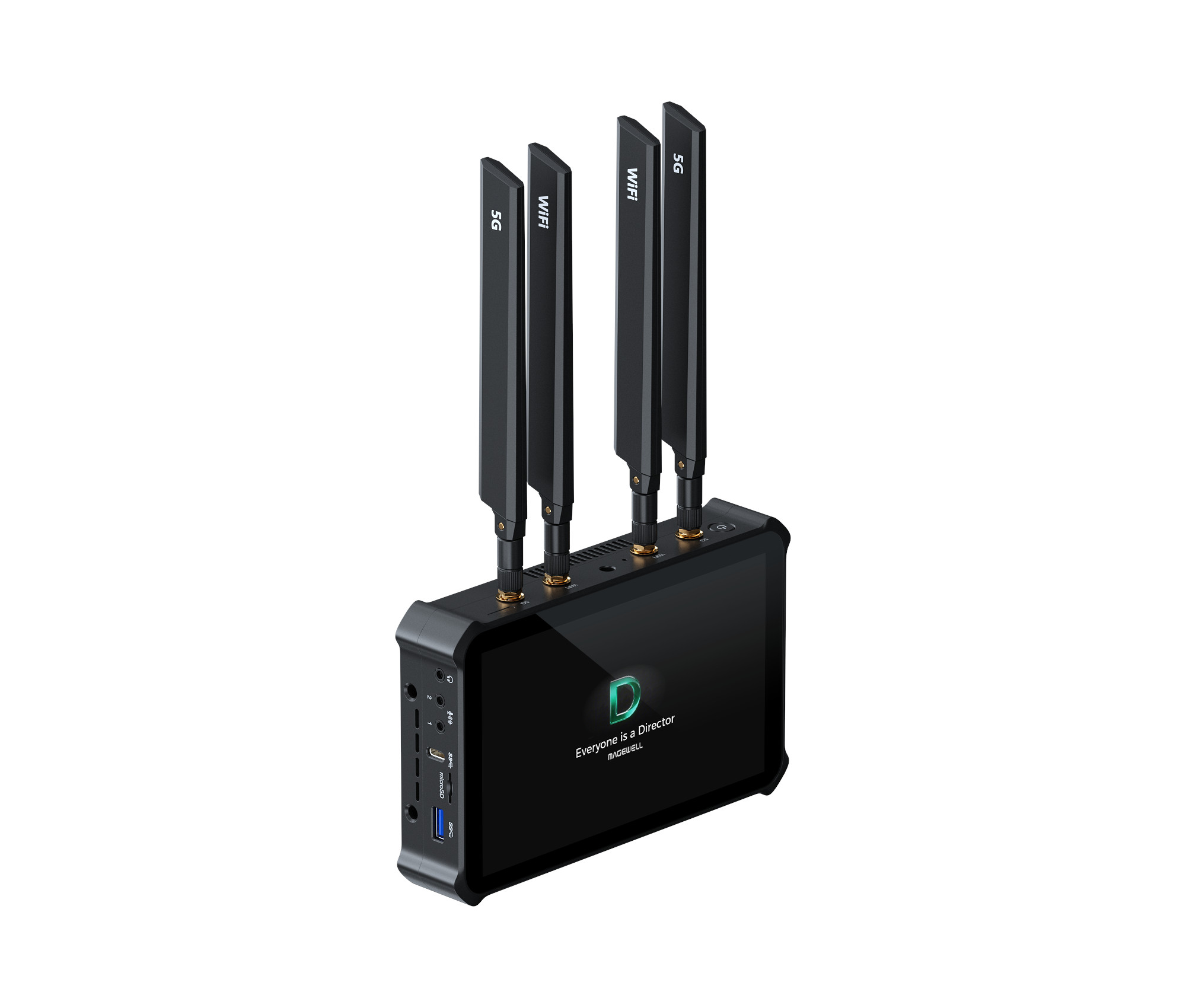

Equipped with 5G modem, Wi-Fi 6E, 2.5G Ethernet, dedicated 5G and WiFi antennas plus integrated bonding support, Director Plus maintains strong, consistent streaming even in weak or unstable network environments. From outdoor shoots to busy live events, Director Plus keeps you reliably linked, delivering smooth streaming and stable control for professional, trouble-free production.

• 5G modem: Ultra-Low Latency 5G Mobile Streaming
• Wi-Fi 6E: Next-Gen Wi-Fi, Minimal Interference
• Dedicated Antennas: High-Gain External Antennas for Maximum Signal Strength
• 2.5G Ethernet: 2.5-Gigabit Wired for Stability
• Bonding: Multi-Link Bonding Unbreakable Streaming

Pro-Grade Streaming and Recording

Director Plus can encode video up to 2160p60 and bitrates up to 120Mbps. Productions can be streamed to popular platforms such as YouTube Live, Facebook Live, and custom destinations, with support for simultaneous streaming to up to four platforms. Content can also be recorded to local storage, SD card, or USB SSD. Four-channel independent ISO recording gives users full flexibility in post-production for replays, editing, and content repurposing.

Complete Control, Your Way

Director Plus offers intuitive and flexible operation through a built-in touchscreen, Director Utility app, web GUI, third-party controllers, APIs and other control options. It supports both standalone operation and team collaboration, adapting smoothly to any production and presentation workflow with ease and efficiency.

• Built-in touchscreen
• Free Director Utility mobile app
• Browser-based web UI
• Elgato Stream Deck controllers
• API for third-party developers
• Remote control via OSC protocol
• Control Hub software

Specifications

• Inputs
  • 6 wired AV signals from HDMI and USB ports
  • 10 simultaneous live IP sources (SRT, RTMP, RTSP, NDI® High Bandwidth, NDI HX2, NDI HX3)
  • Media files (video, image, music, etc.)
  • Webpage Inputs
  • Up to 3 third-party apps from a whitelist
• Content Creation Features
  • Shows can be created in landscape (16:9) or portrait (9:16) mode
  • Supports free composition and switch while also providing layout templates for easy creation
  • Powerful production tools including chroma keying, graphics, telestration and more
  • Display multiple GFXs, including titles, lower thirds, a scoreboard, timer, stopwatch, etc.
  • Supports autoplay and VFA (Video-follow-audio) auto switch
• Streaming
  • Natively supports streaming to YouTube, Twitch and Facebook Live
  • Stream via SRT, RTMP, RTMPS, RTSP and NDI HX3
  • Supports customizing encoding parameters and selecting the encoding source for ISO streaming
  • Supports streaming to four destinations simultaneously
• Recording and screenshot
  • Supports saving recording files to local storage, SD card, or USB SSD
  • Supports splitting recording files by time or size
  • Supports ISO recording, to record four of different sources simultaneously, or record multi-channel images with different quality for one source

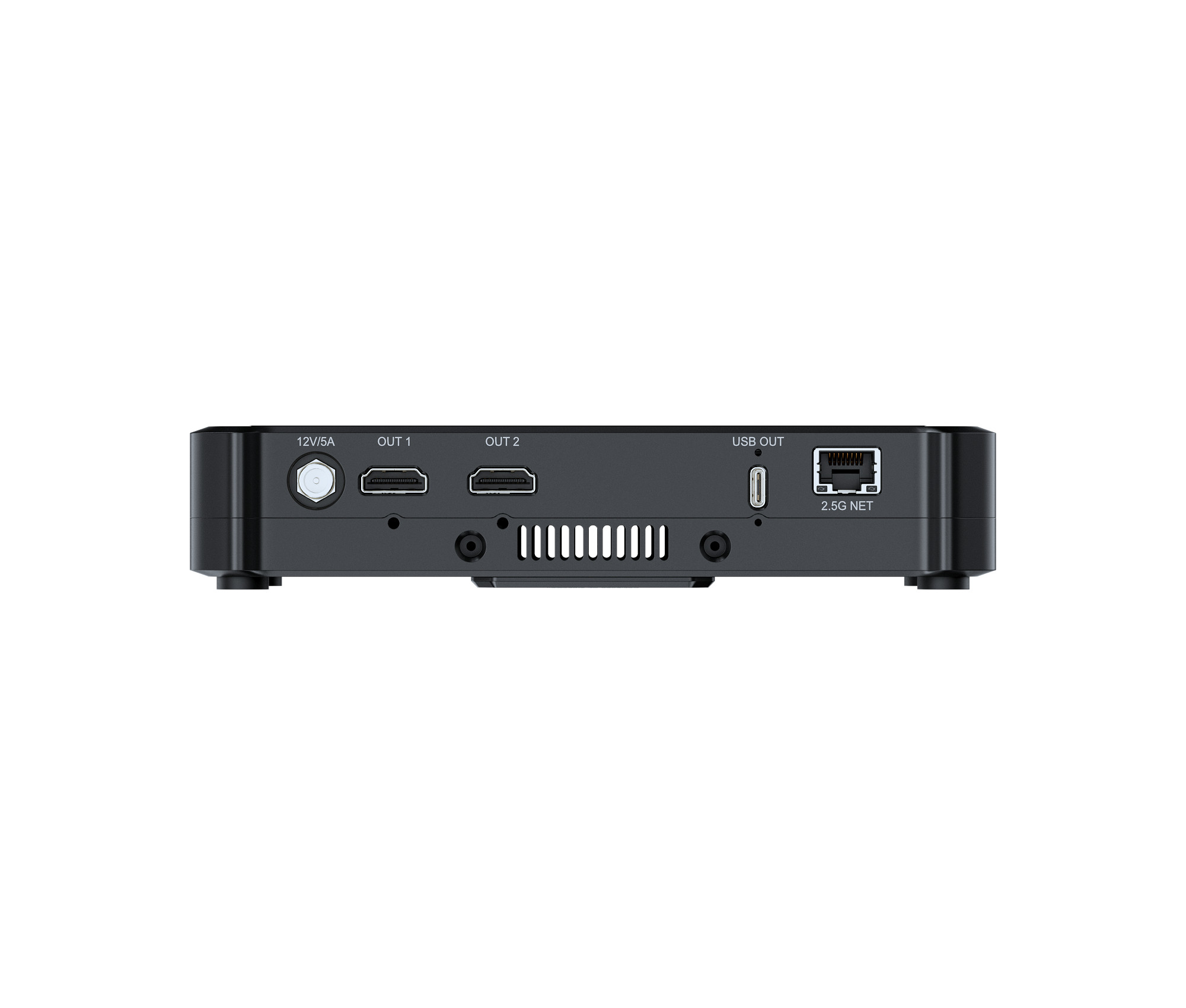

• Outputs
  • HDMI OUT: Program, Preview, Multi-View, Duplicate Screen, HDMI 1/2/3/4, Webcam 1/2, Stream, App
  • USB-C OUT: Program, Preview, Multi-View, Duplicate Screen, HDMI 1/2/3/4, Webcam 1/2, Stream, App
• Included Software
  • Director Utility App for extra IP input and device control
• Network
  • Supports network bonding
    • Ethernet: 1x RJ45 port, 10/100/1000/2500 Mbps Base-T
    • WiFi: 2.4G/5G/6G, Station and Hotspot modes supported
    • Cellular: 1x 5G SIM card slot & USB modem supported
• Others
  • 7" AMOLED capacitive touchscreen
  • Warranty: 2 years for the whole device, 1 year for the screen
• Dimensions (LxWxH): 7.29 x 4.61 x 1.52in (185.2 x 117.2 x 38.5mm)
• Weight (without antennas): 1.94 lbs (≈882g)
