ChamSys GA10D DIN DMX to Analog 0-10V
Model: GENETIX-GA10D
About: ChamSys GA10D DIN DMX to Analog 0-10V

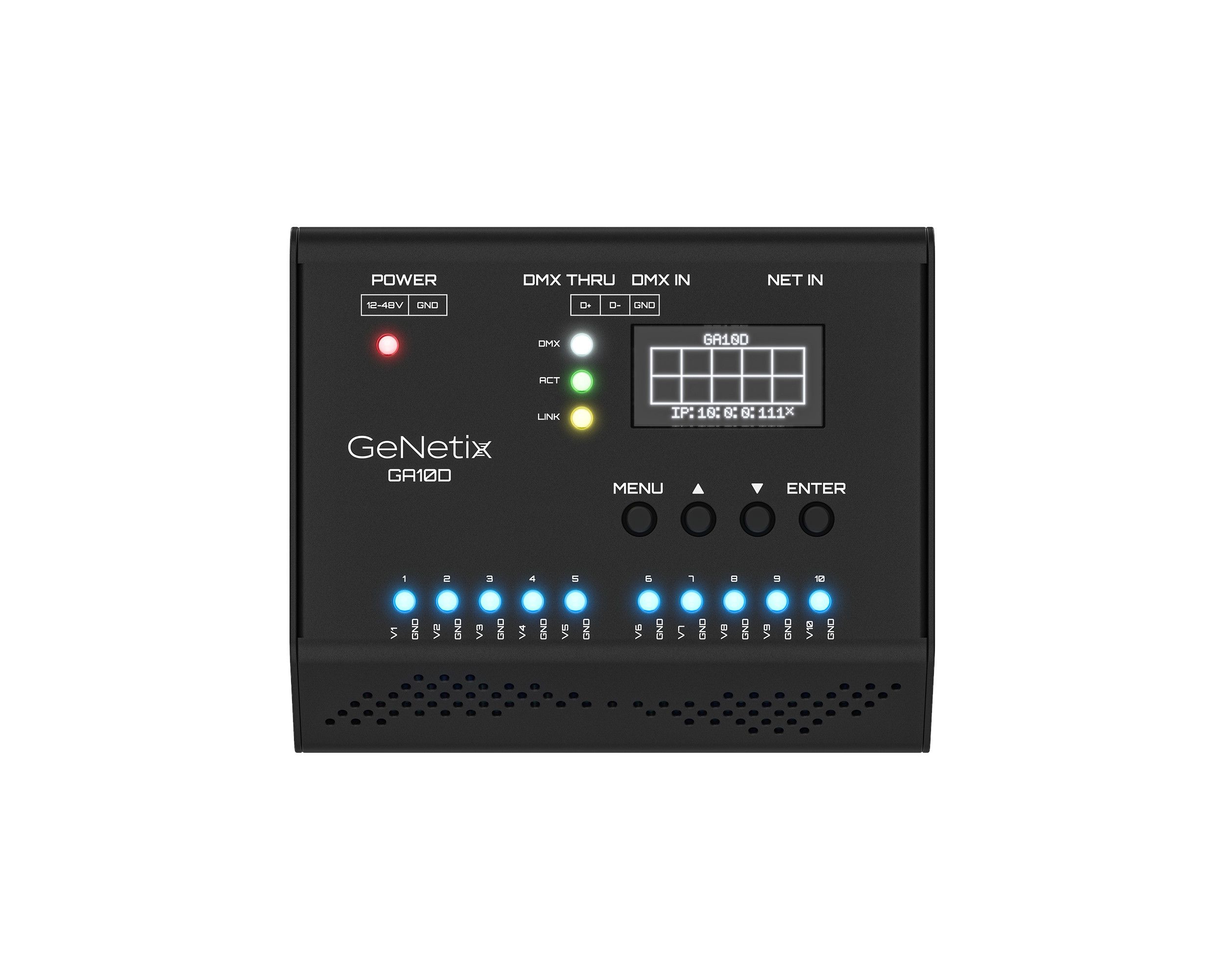

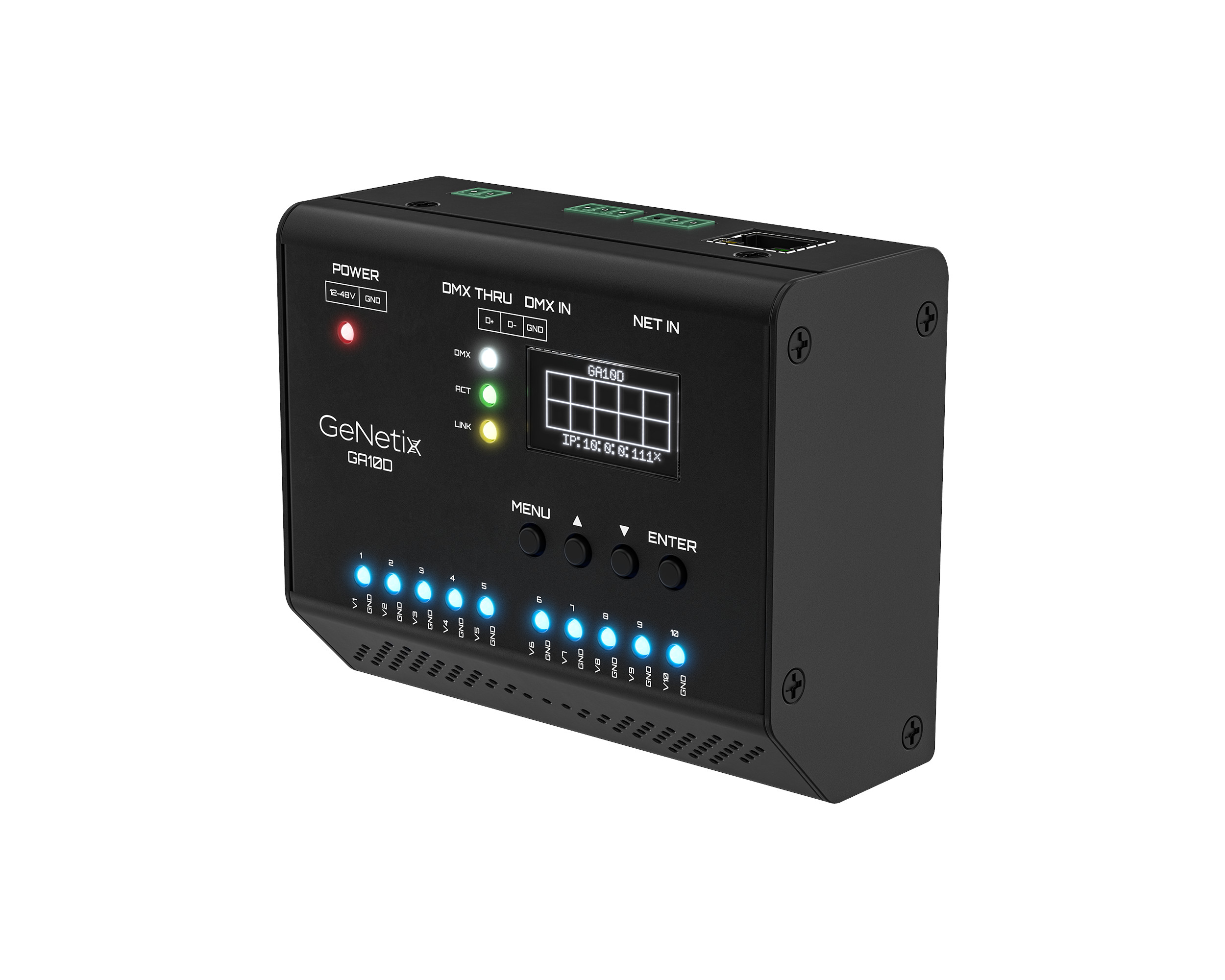

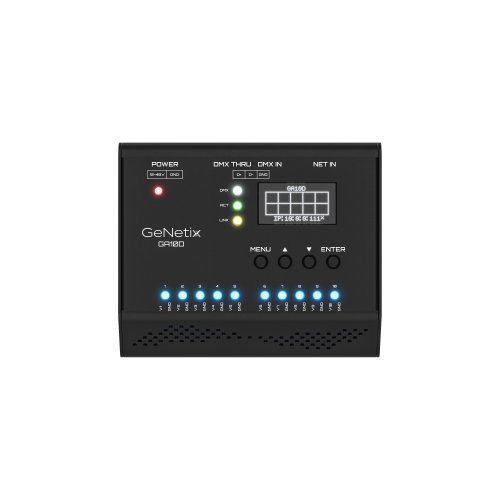

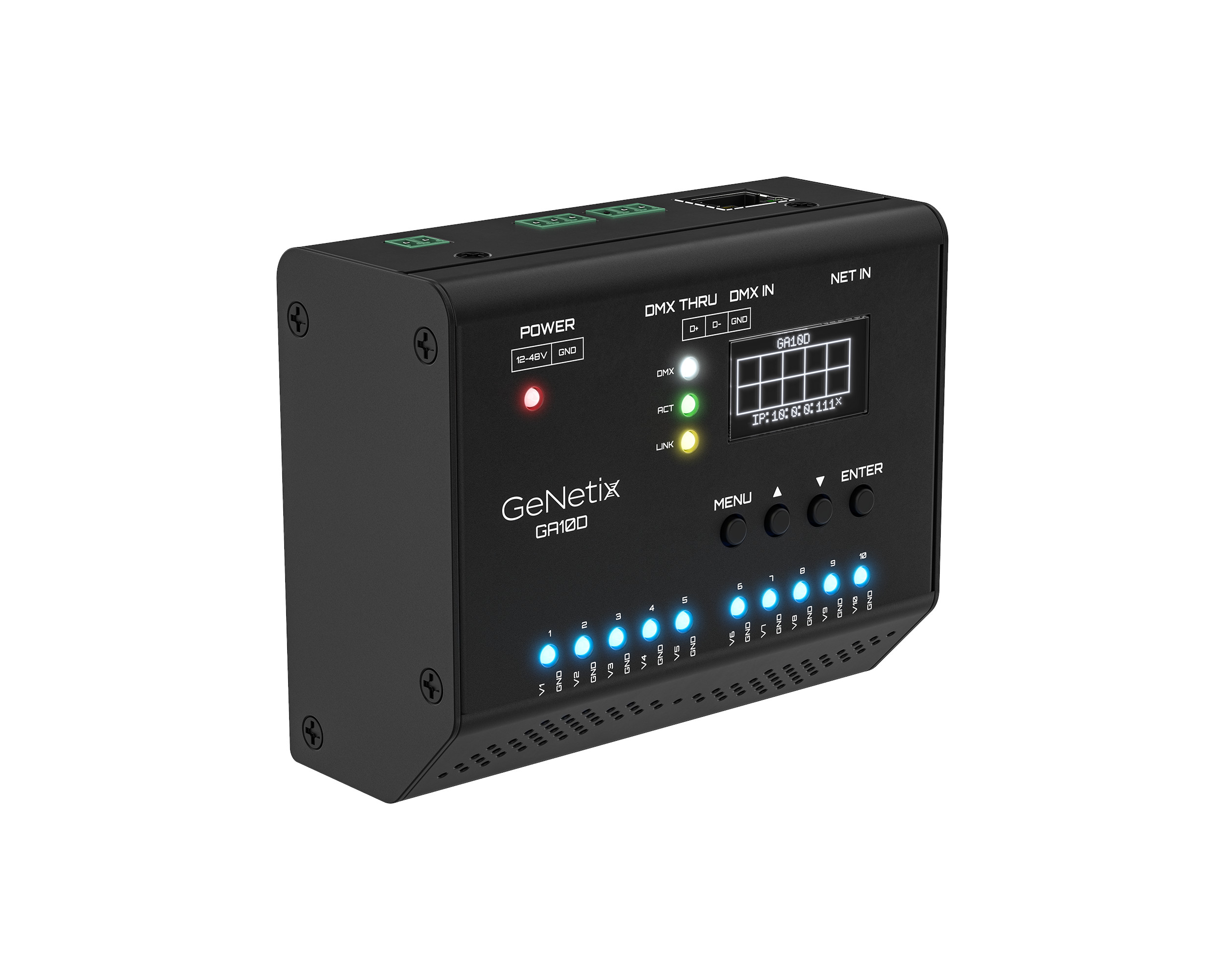

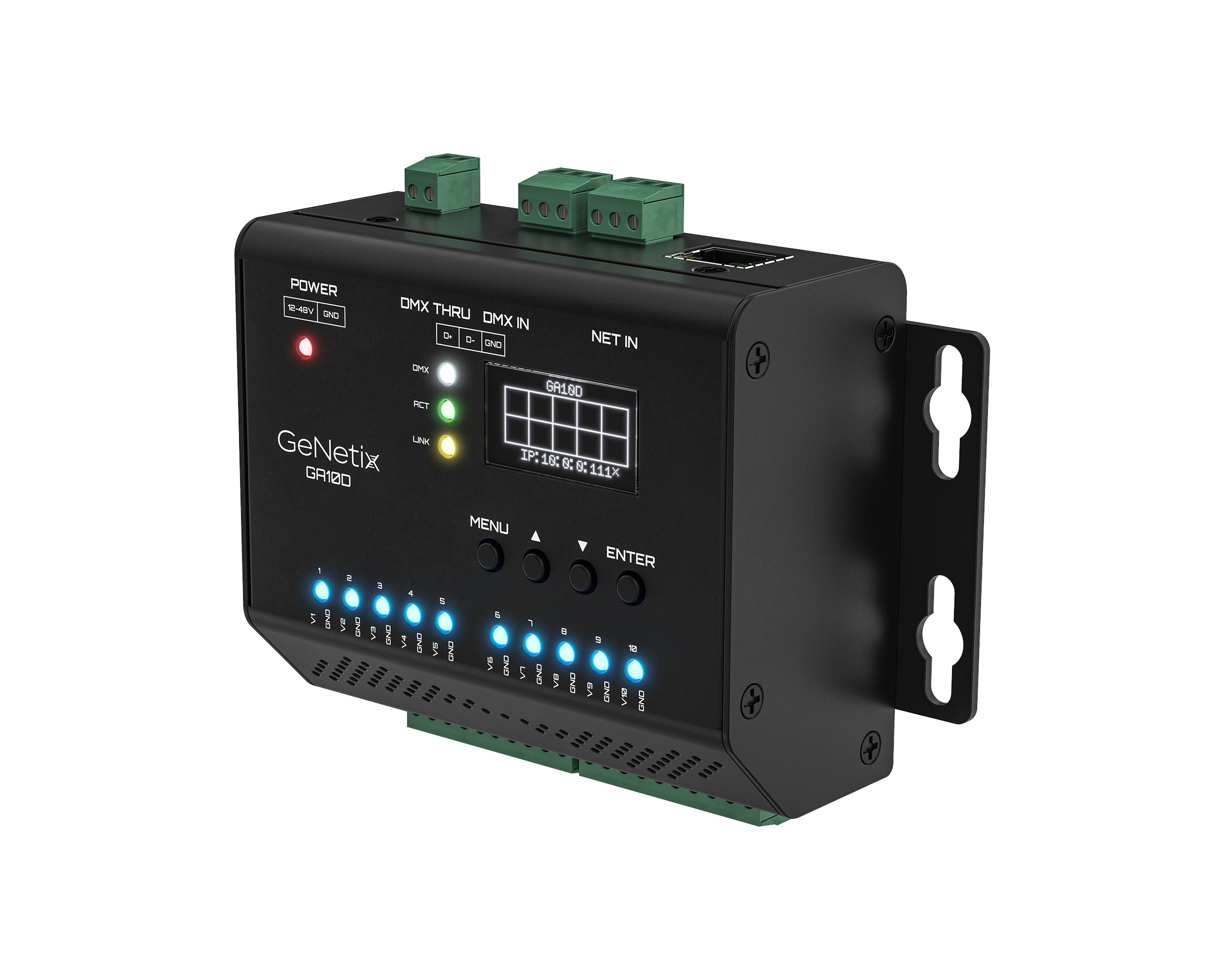

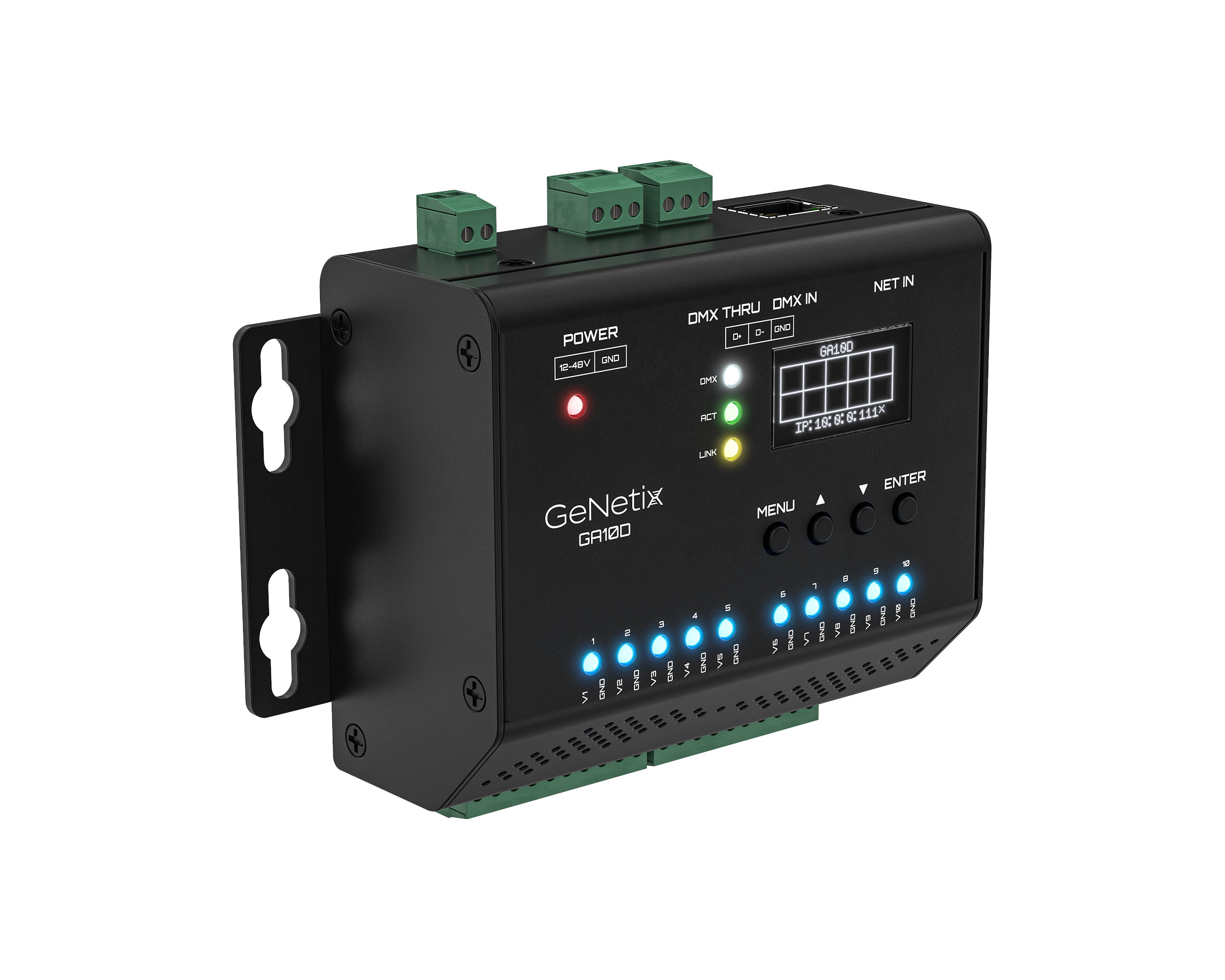

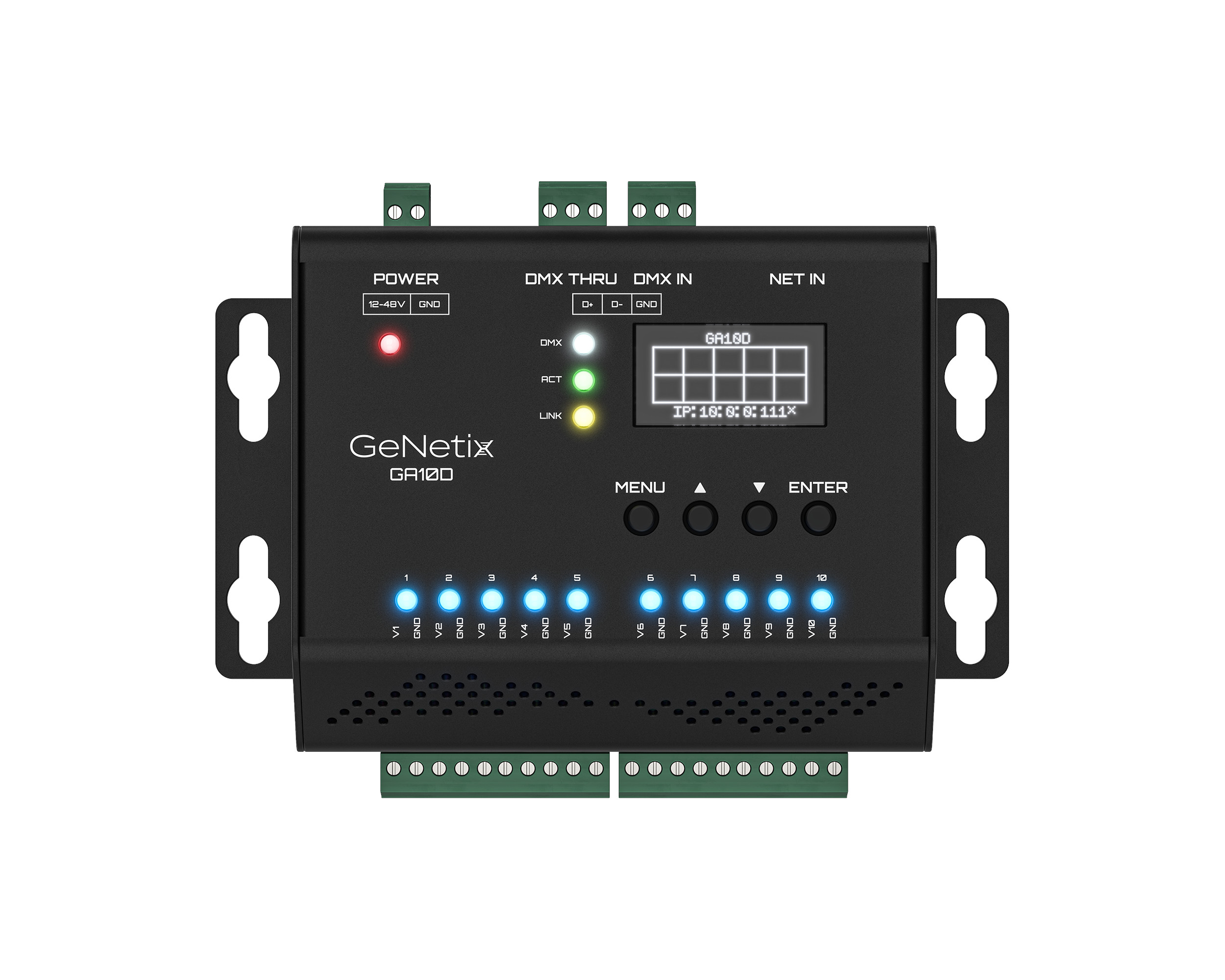

GeNetix GA10D is a DIN rail mountable 10-Port DMX/Art-Net/sACN to Analog 0-10V Converter fitted with phoenix screw terminals for DMX in/through and 0-10V out from terminal block connectors, offering a design ideally suited to the needs of permanent installations. GA10D is powered via an external 12-48V power supply (purchased separately) and features an onboard menu display with push button navigation for unit configuration, along with LEDs that provide visual indication of output port status.
- 10 0-10v Analogue Outputs
- Powered via External 12-48v Power Supply
- DMX, Art-Net and sACN Input
- DIN Rail Mountable
Specifications
- Hardware
- Phoenix Screw Terminal 0-10v Outputs: 10
- DMX In and Through option: Yes
- Art-Net/sACN/DMX In option: Yes
- DIN Rail Mounted: Yes
- Powered via External 12-48v Power Supply: Yes
- Output port Rating: 20mA per port
- Software
- Inbuilt Webserver: Yes
- Dimensions (WxDxH): 4.09 x 3.42 x 2.55 inch (104 x 87 x 65 mm)
- Weight: 0.88 lbs (0.4kg)
What's Included

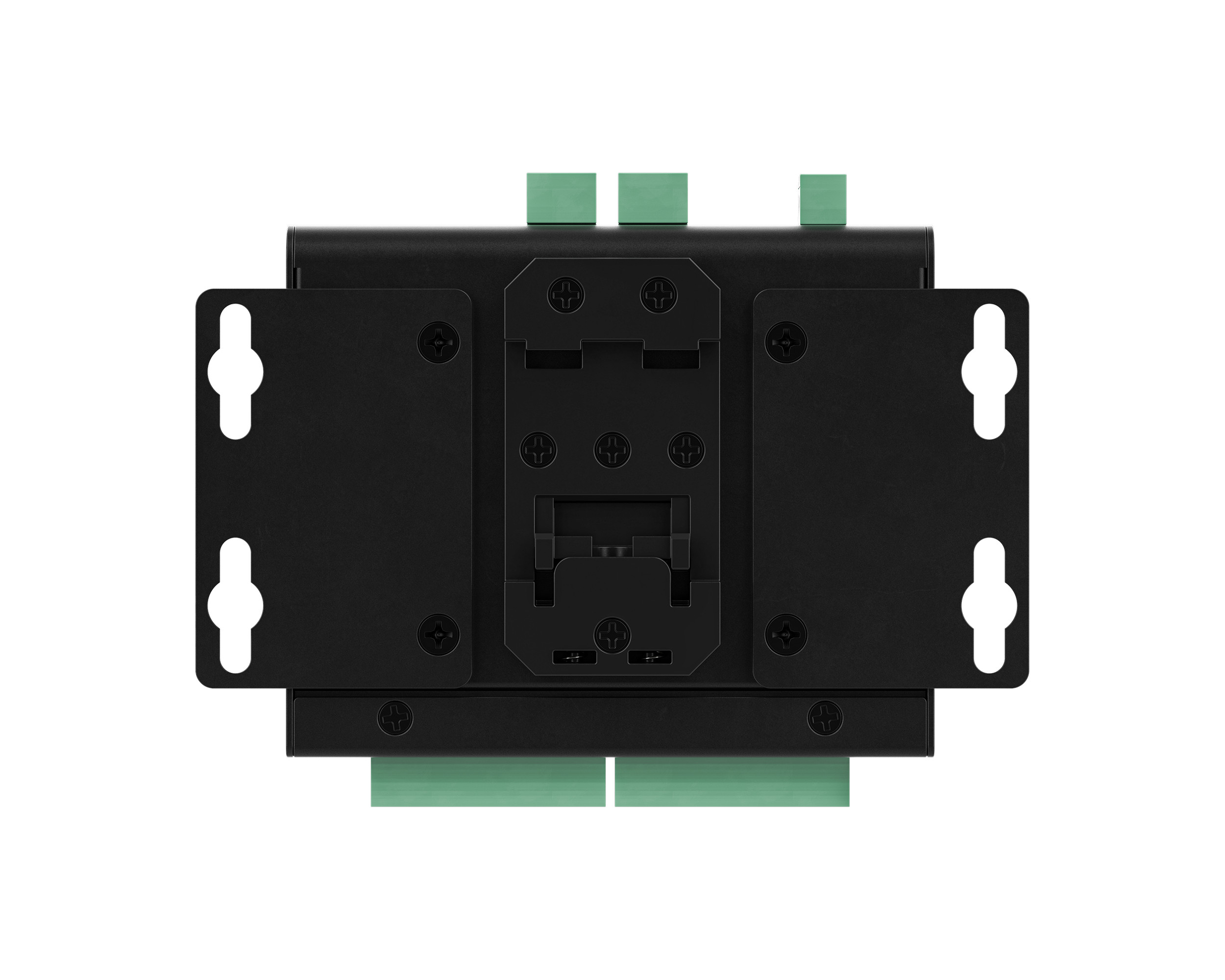

- 1x DIN Rail Mount Clip
- 1x Quick Start Guide
