ChamSys QuickQ Studio+ Lighting Control Console

About: ChamSys QuickQ Studio+ Lighting Control Console

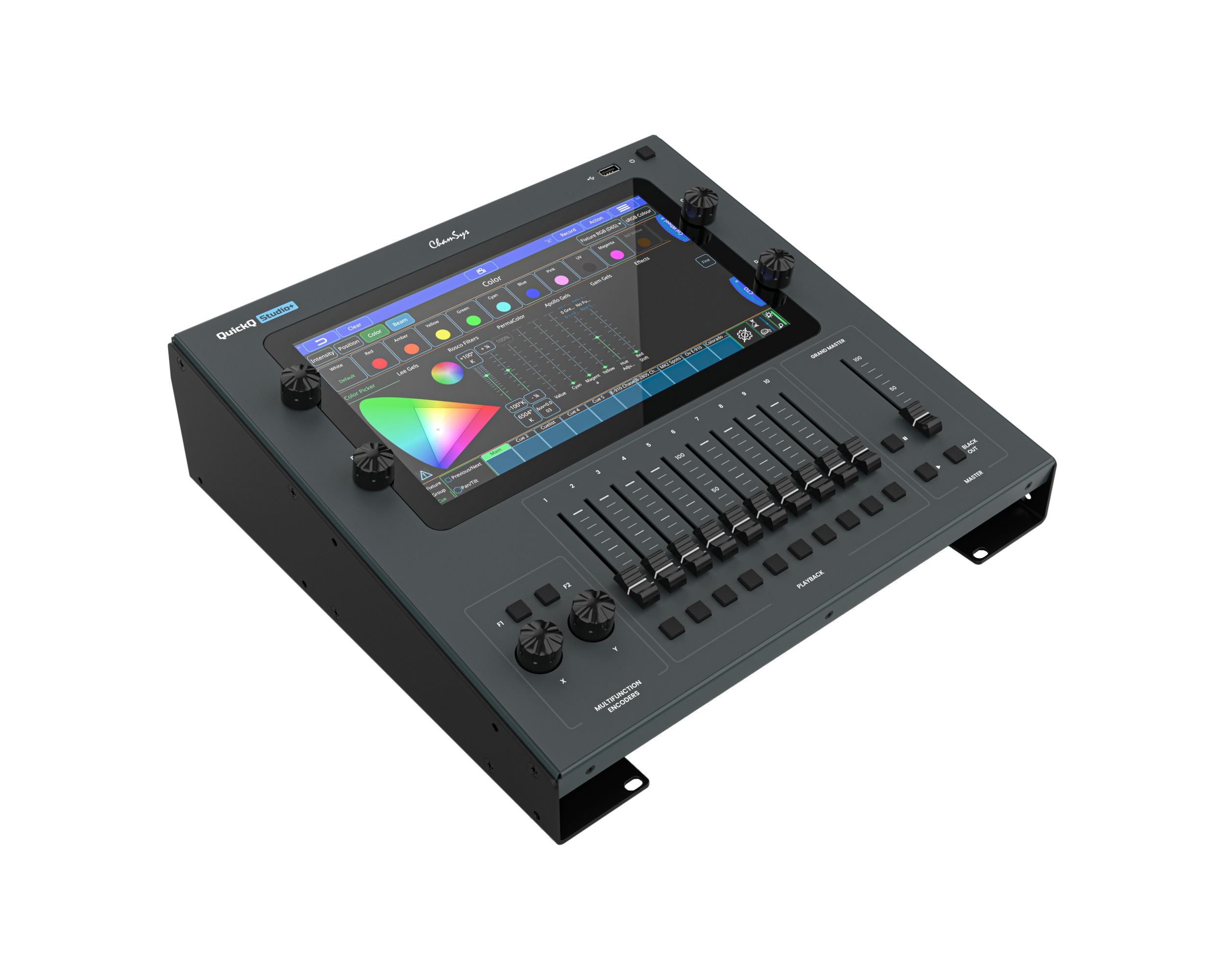

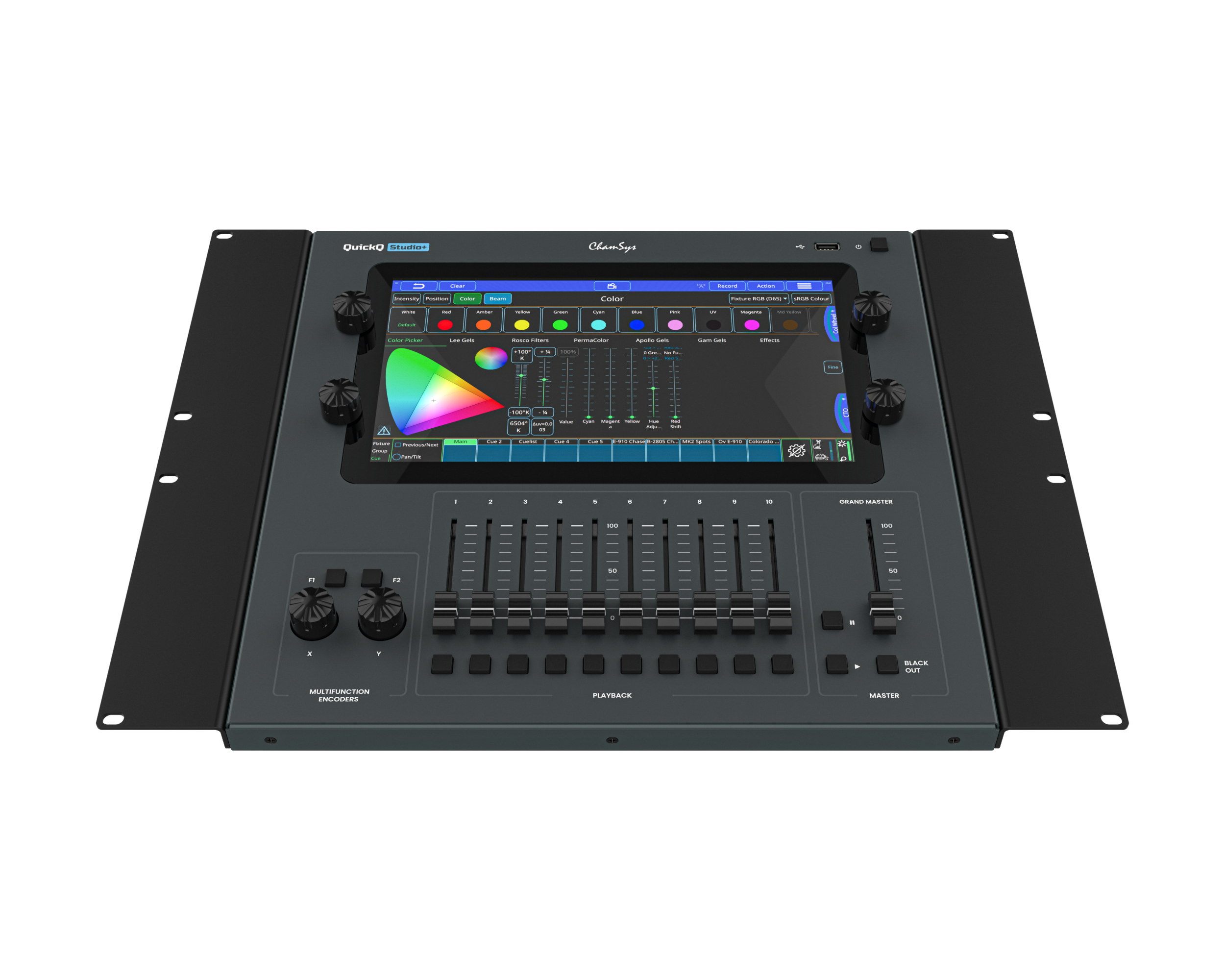

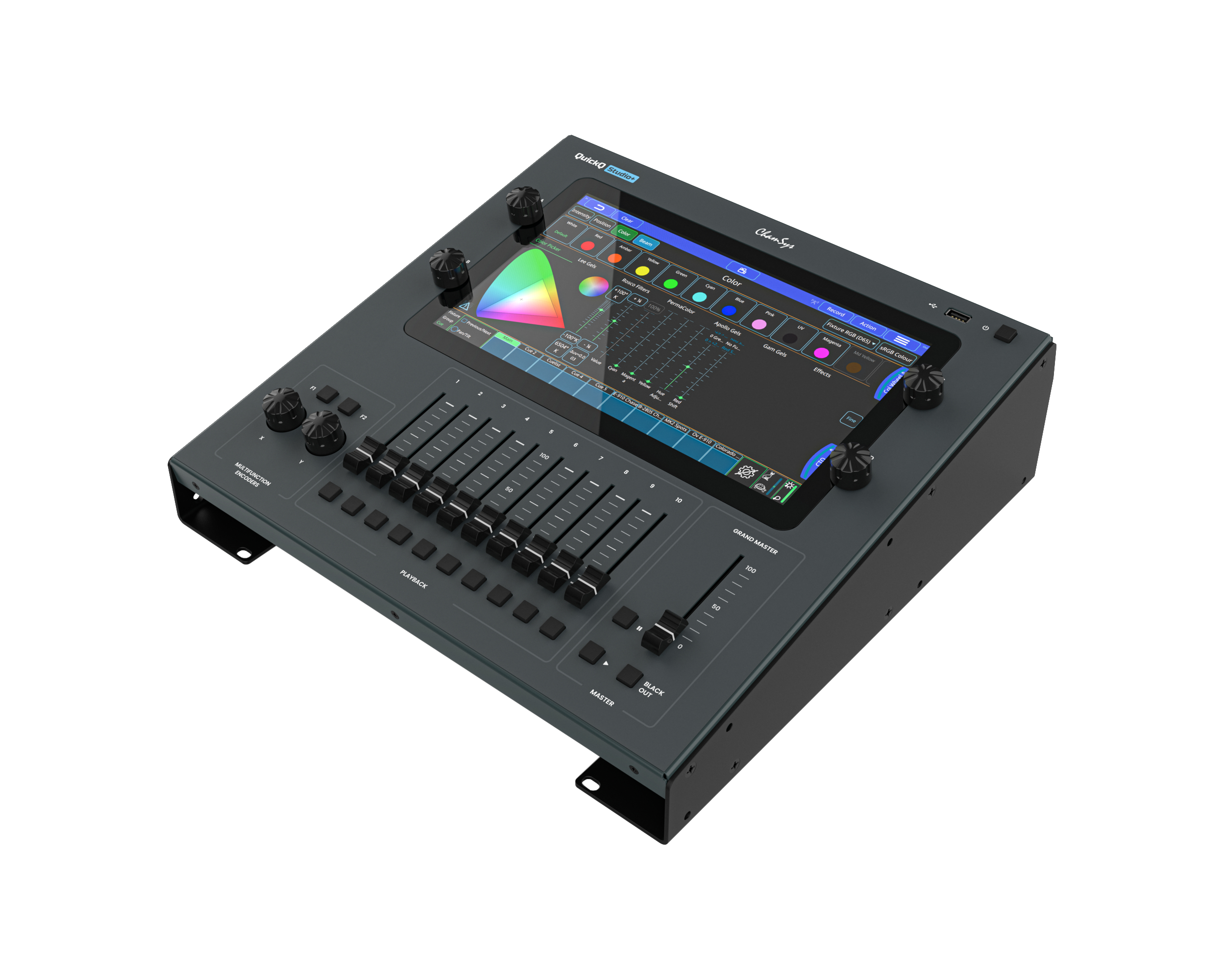

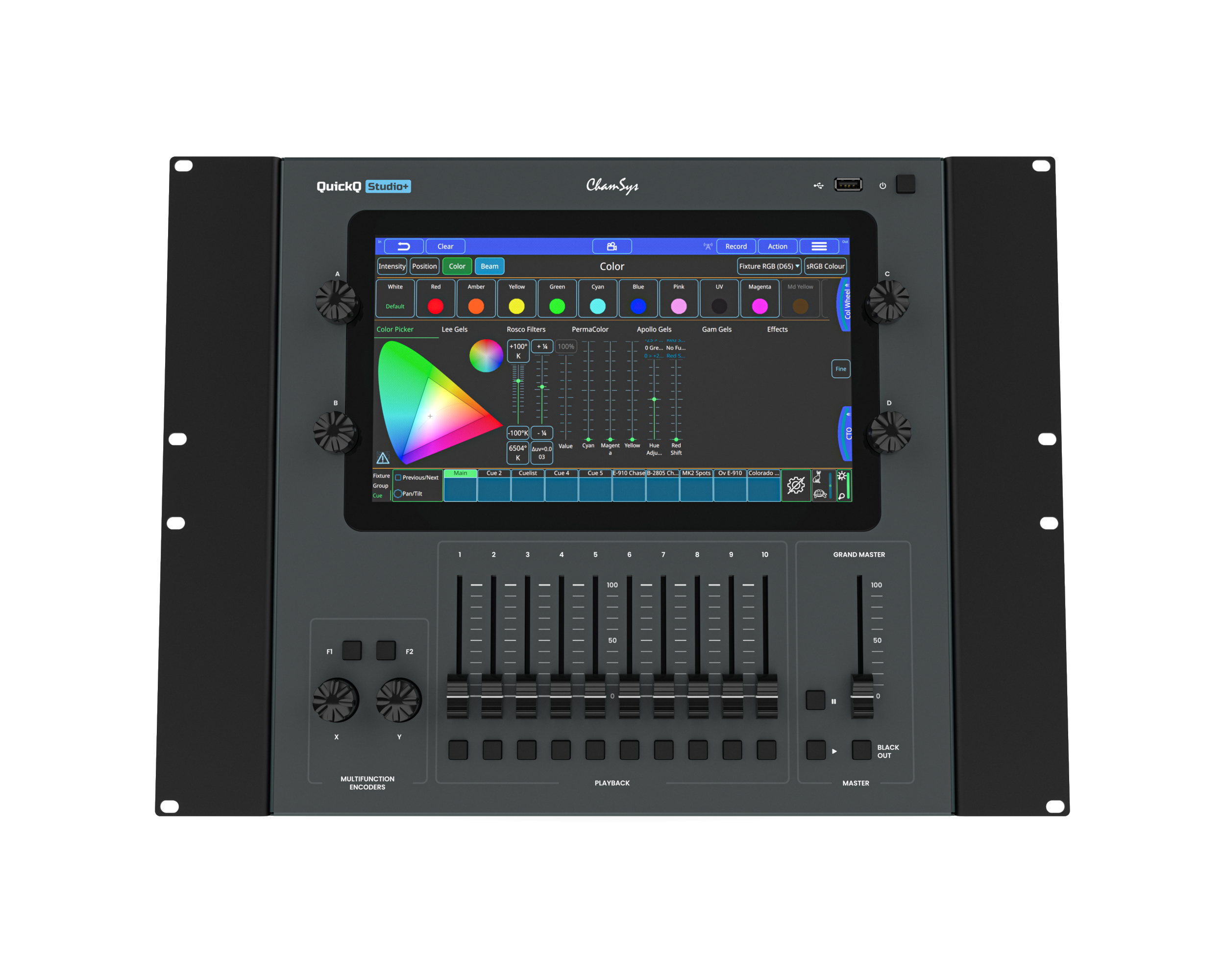

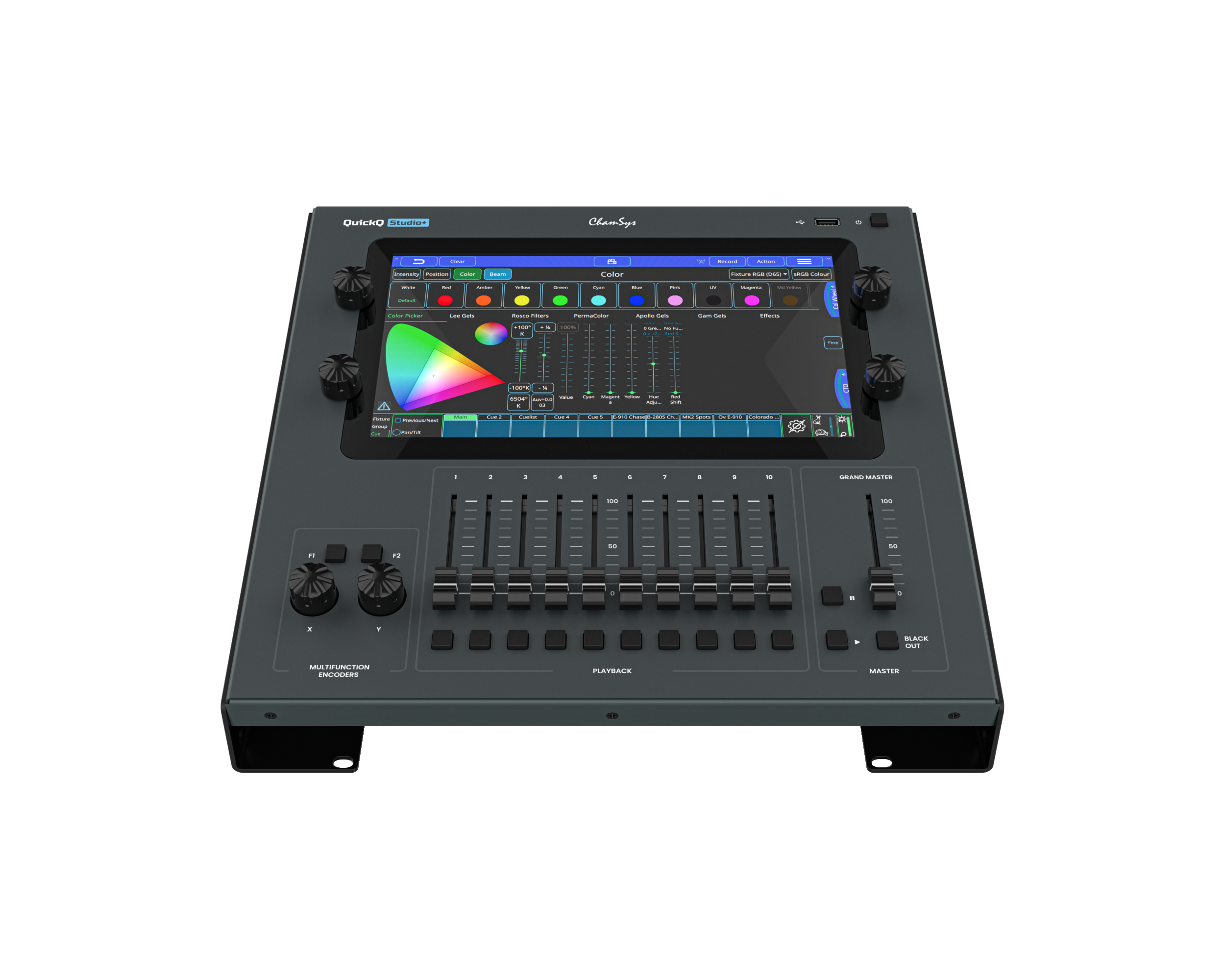

QuickQ Studio+ is part of the ChamSys QuickQ range of user-friendly and affordable lighting control consoles. Designed specifically for installations, studios, houses of worship, and education spaces, the QuickQ Studio+ outputs two universes of control via direct DMX or four universes via Art-Net/sACN, in a new compact 19″ rack-mount console format. Featuring reversible rack ears, the console can be installed in a standard 8U rack or configured as a desktop console to suit a wide range of applications.

• 4 Universe output via Art-Net/sACN
• 2 RDM Enabled DMX Outputs
• 19″ Rack (8U )mountable Console with reversable ears to make into desktop console
• User Interface Modelled on smartphone icon interfaces for ease of use
• In-Built Wi-Fi for easy connection to the remote app on iOS & Android devices
• Intuitive interface allowing simple control of all fixture attributes
• Dual Network ports allowing separation of Lighting and Control Data

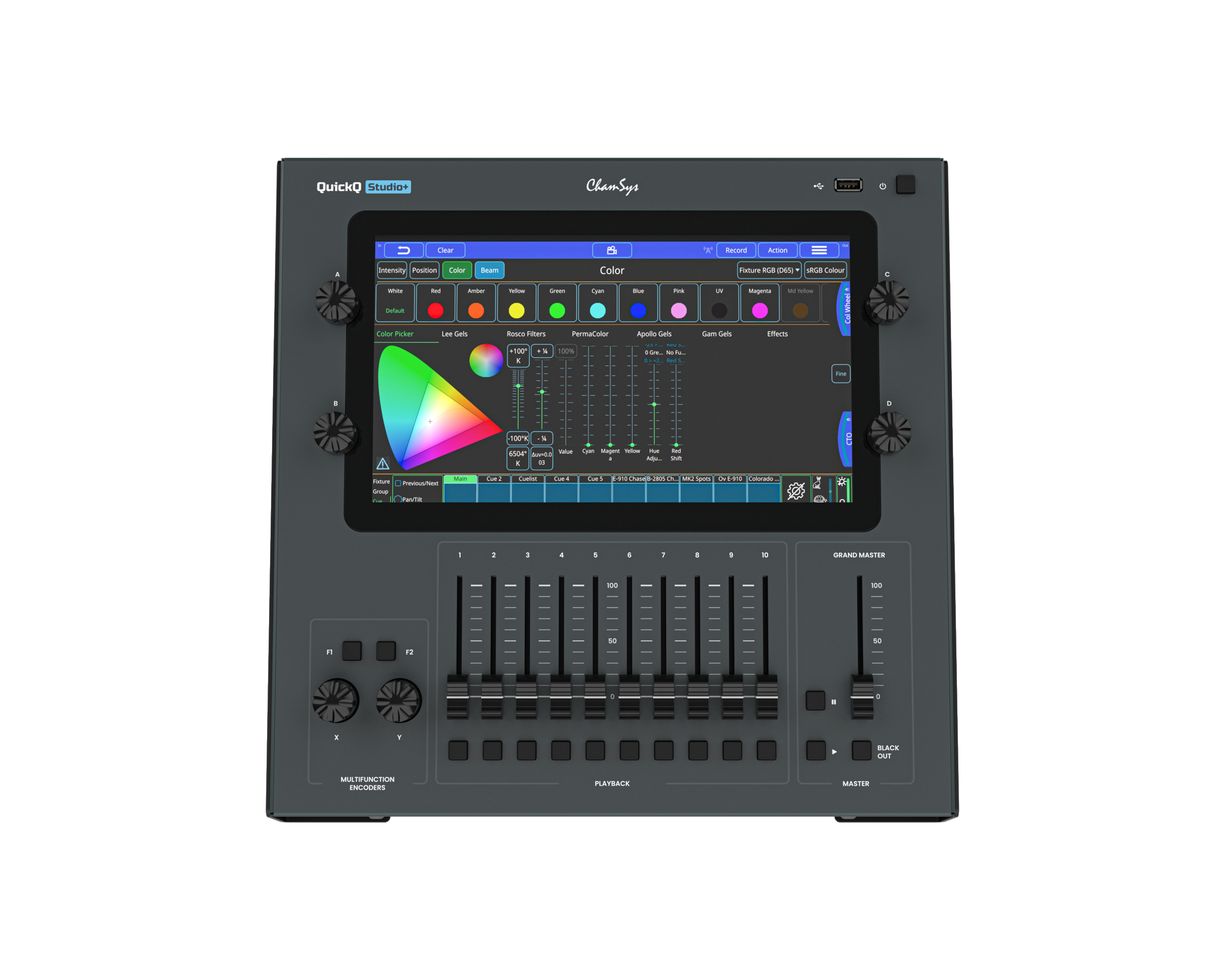

The console features a large 11.6-inch multi-touch display utilising a smartphone-like interface for setup, programming, and playback. Dual network ports allow separation of lighting and control data, while the two RDM-enabled DMX ports enable automatic detection and patching of RDM-compliant fixtures. An internal Wi-Fi antenna provides simple connection to the free QuickQ app for iOS and Android devices, allowing remote control and monitoring from anywhere on the network.

QuickQ Studio+ combines intuitive touchscreen operation with dedicated physical controls, including playback faders, attribute encoders, and multifunction controls for colour, intensity, and position adjustment. The interface has been specifically designed for users of all experience levels, providing simple access to powerful lighting control without requiring extensive training.

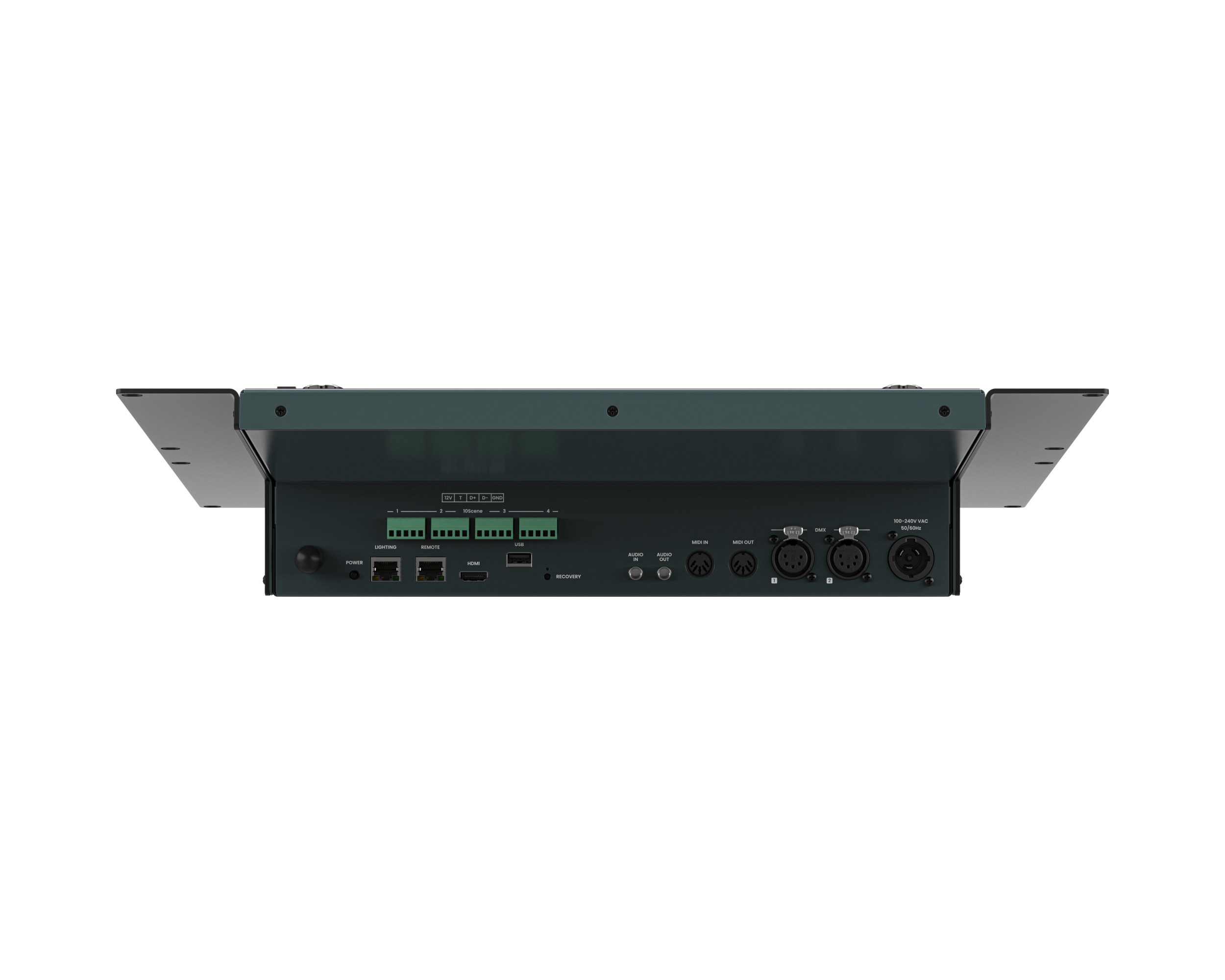

Additional features including scene trigger ports, MIDI connectivity, audio inputs and outputs, and external monitor support make QuickQ Studio+ ideal for both permanent installations and studio environments.

The console has a free-to-download offline programming software available for Mac and Windows. Shows can be created offline, saved to a USB Flash drive, and loaded directly onto the console.

QuickQ uses ChamSys’ extensive and continuously updated personality library with over 60,000 fixture personalities.

QuickQ shows can be loaded onto any MagicQ system, providing compatibility with and future progression onto the more advanced MagicQ range of consoles.

Specifications

• Hardware
  • Rack Size: 8U
  • Universes supported: 4
  • Direct DMX Outputs 5-Pin XLR: 2
  • Master Playback Faders: 10
  • Bump Buttons: Yes
  • Attribute Encoders: 4
  • Multifunction Encoders: 2 (Colour/Intensity/Position control options)
  • Inbuilt 11.6” Multi-touch Display: Yes
  • External Monitor: 1920 x 1080 HDMI
  • Inbuilt Wi-Fi: Yes
  • Network Port: 2
  • USB Ports: 2
  • Audio Input: 1
  • Audio Output: 1
  • 10Scene Ports: 4
  • MIDI Ports in/out: Yes
  • Max Power Consumption (mains): 60w
• Software
  • Max Number of DMX Channels: 2048
  • Max Number of Fixtures Supported: 2048
  • Max Number of Cue Stacks: 2000
  • Max Number of Chases: 2000
  • Midi & Midi Timecode Supported: Yes
  • OSC Supported: Yes
  • RDM Autopatch for fast show patching
  • Fixture library of over 60,000 fixture files
  • Built in FX generator
  • Colour picker and Gel inbuilt Gel library
  • Offline designer software available for Windows and Mac
• Physical
  • Dimensions (WxDxH)
    • Table Top: 14.4 x 13.8 x 4.5 inch (365 x 355 x 115mm)
    • Rack Mount: 18.9 x 13.8 x 4.5 inch (480 x 355 x 115mm)
  • Weight: 9.92 lb (4.5kg)

What's Included

• 1x USB Desk light
• 1x Dust cover
• 1x True1 power cable
