AJA openGear 12G-SDI to/from SDI Muxer/DeMuxer

About: AJA openGear 12G-SDI to/from SDI Muxer/DeMuxer

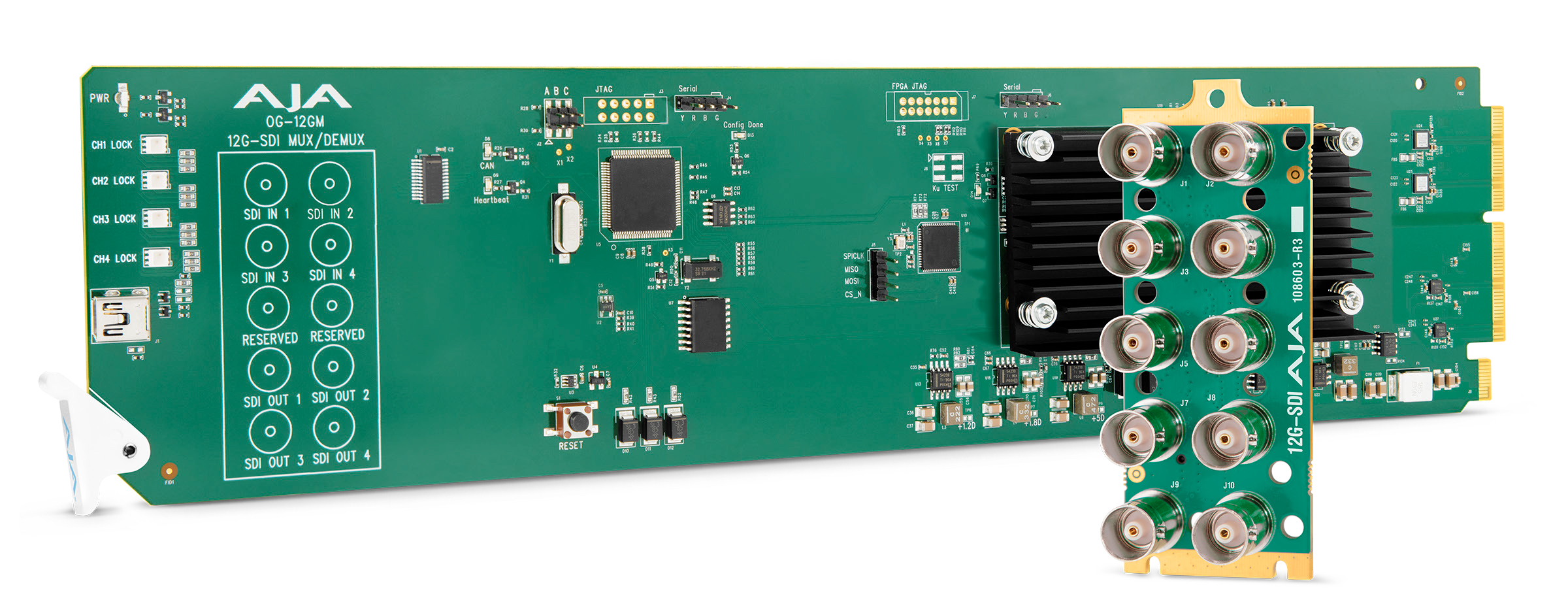

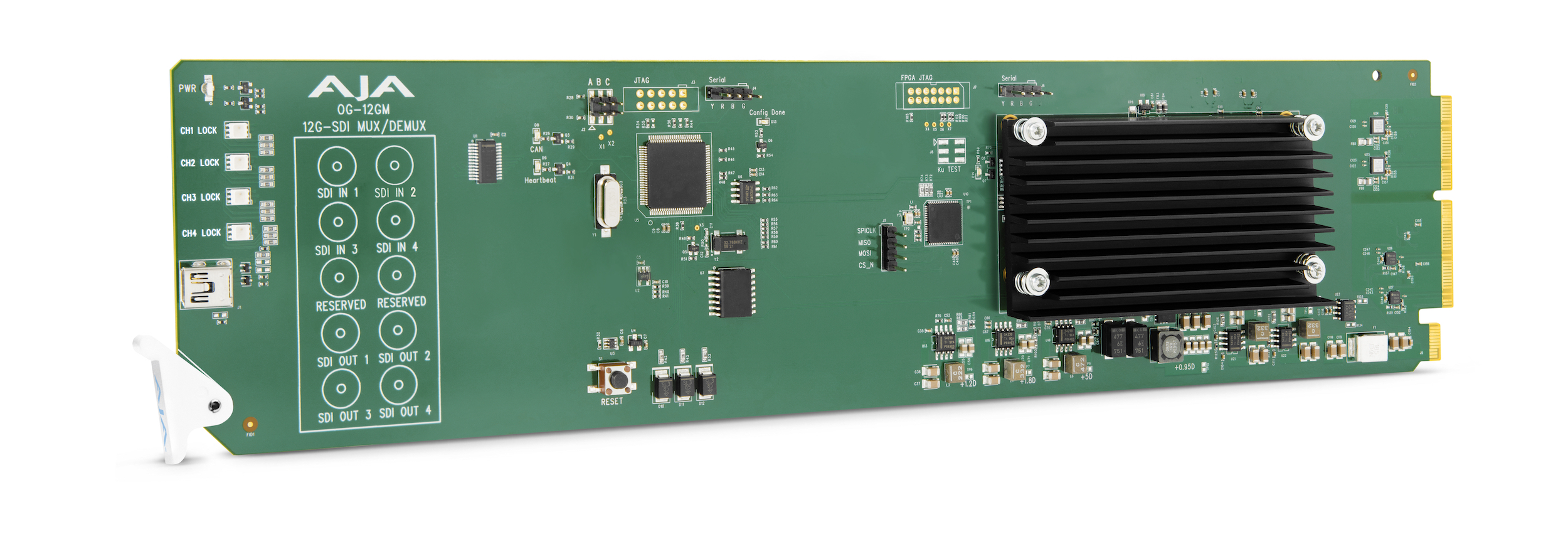

OG-12GM is a compact SDI transport openGear card that enables 12G-SDI to quad link 3G-SDI and quad link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates, as well as dual link conversions. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows, macOS and Linux, offering remote control and monitoring over a PC or local network.

Features

• openGear compatible card
• SDI Transport Converter for 12G, 6G, 3G and 1.5G-SDI
• Supports single link, dual link, or quad link SDI on inputs and outputs
• 12G-SDI to/from quad link 3G-SDI or dual link 6G-SDI
• 6G-SDI to/from quad link 1.5G-SD or dual link 3G-SDI
• 3G-SDI to/from dual link 1.5G-SDI
• Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping
• 3G-SDI Level A to/from 3G-SDI Level B-DL
• Simple Frame Rate Conversion (FRC)
• HDR signaling metadata pass-through and optional override
• Pass-through of Single Link 12G, 6G, 3G, 1.5G and 270M SDI video
• Distribution Amplifier support (1x4)
• Input signal diagnostics and timing analyzer for quad link signals
• Automatic or manual control
• Detailed timing analysis for validating alignment of quad link SDI inputs
• Passes SDI embedded audio, 24-bit, up to 16-Channels
• Remote Ethernet configuration through Ross DashBoard software
• Power: 13 watts
• Hot-swappable
• Rear I/O card included
• Two slots required for each card
• Compatible with OG-X-FR and OG-3-FR openGear frames
• Five year warranty

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

DashBoard Software

DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

Specifications

• Video Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080p 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10, 12-bit
• Video Input Digital
  • 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link 12G/6G/3G/1.5G/SD-SDI
    • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5
    • Single Link 3G-SDI Level A, B-DL, SMPTE 425
    • Quad Link HD-SDI (4x 1.5G)
    • Single Link 4K/UltraHD/HD/SD
• Video Output Digital
  • 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link 12G/6G/3G/1.5G/SD-SDI
    • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5
    • Single Link 3G-SDI Level A, B-DL, SMPTE 425
    • Quad Link HD-SDI (4x 1.5G)
• Supported Conversions and Functions
  • Quad 3G-SDI Level A to Single 12G-SDI
  • Quad 3G-SDI Level B-DL to Single 12G-SDI
  • Single 12G-SDI to Quad 3G-SDI Level A
  • Single 12G-SDI to Quad 3G-SDI Level B-DL
  • Quad 1.5G-SDI to Single 6G-SDI
  • Single 6G-SDI to Quad 1.5G-SDI
  • Quad 3G-SDI Level A to Quad 3G-SDI Level B-DL
  • Quad 3G-SDI Level B-DL to Quad 3G-SDI Level A
  • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
  • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
  • Pass through of Single Link 12G, 6G, 3G, 1.5G, and 270M SDI video
  • Distribution Amplifier support (1x4)
  • Input signal diagnostics
  • Input timing analyzer for quad link signals
• Cable Equalization
  • (Belden 1694A coax)
    • 12 Gbps, 70m
    • 6 Gbps, 100m
    • 3 Gbps, 140m
    • 1.5 Gbps, 200m
    • 270 Mbps, 300m
• Audio Input/Output Digital
  • Passes SDI embedded audio, 24-bit, up to 16-channels
• User Interface
  • openGear DashBoard network control software via Windows, macOS, or Linux
• Size
  • openGear standard form factor, front slot and rear card
• Two slots required for each card
• Weight
  • 0.5 lb (0.3 kg)
• Power
  • openGear frame compatible, 13 watts max per card
• Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
