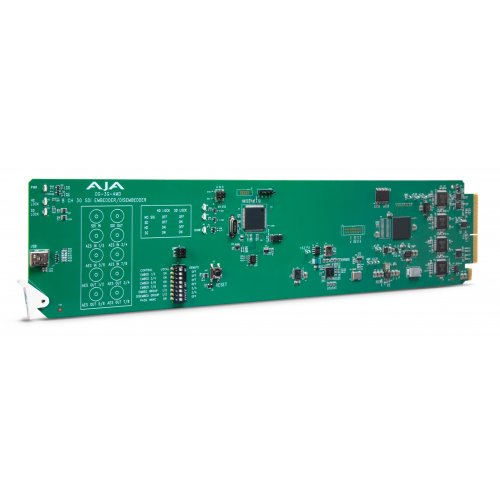

AJA openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder

Model: OG-3G-AMD

AJA openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: AJA openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder

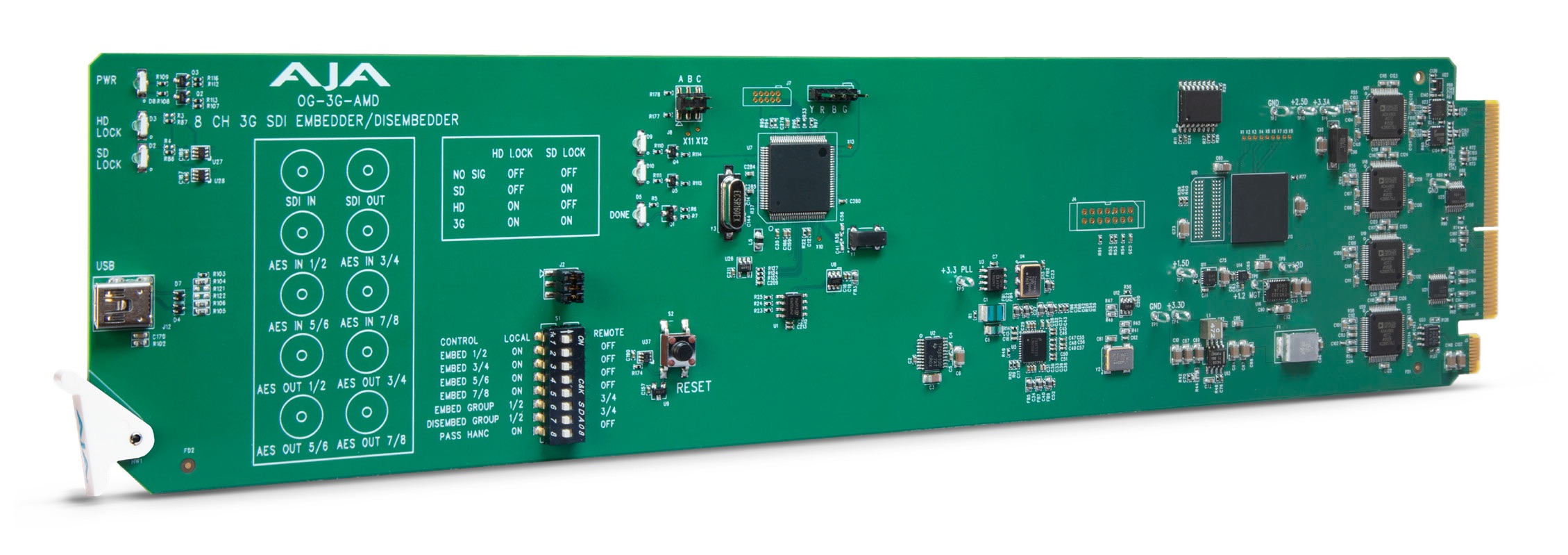

The OG-3G-AMD is a state of the art, openGear compatible, 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Simple user controls allow channel enabling and mapping. A 10x BNC rear openGear connector module is included.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features

  • Video Formats: 3G-SDI
  • 3G-SDI Embedder / Disembedder in one board
  • Input: 1x 3G-SDI BNC
  • Outputs: 1x 3G-SDI BNC
  • 4x AES BNC (2 channels per input)
  • Local and Remote modes
  • Incoming embedded audio passed, removed, or overridden
  • Configure via openGear DashBoard, or DIP switch
  • Power: 5.0 watts
  • Hot swappable
  • Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
  • Five year warranty

Connectivity

The OG-3G-AMD provides a 3G-SDI input and 3G-SDI output with four AES BNC connectors in each direction. OG-3G-AMD automatically detects and configures to the input video standard. AES inputs are sample rate converted (SRC) to 48kHz synchronous to the video input. Audio disembedding is always functional providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either embed input AES audio or pass 3G-SDI input audio. Simple user controls using DashBoard software allows channel enabling and mapping.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

DashBoard Software

DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

Specifications

  • Video Formats
    • 1x 3 Gb SDI (level A or B)
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 50, 59.94, 60
    • 1x 1.5 Gb SDI
      • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
      • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
      • (HD) 1920 x 1080i 50, 59.94, 60
      • (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1x 270 Mb SDI
      • (SD) 625i
      • (SD) 525i
  • Video Input Digital
    • 1x 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital
    • 1x 3G-SDI BNC, SMPTE-259/292/424
  • Audio Input Digital
    • 4x BNC, AES3id
  • Audio Output Digital
    • 4x BNC, AES3id
  • Audio Data Formats
    • AES3 2003
    • SMPTE ST 337
  • Digital Audio Converters
    • 24-bit
  • Embedded Audio
    • SDI embedded audio, 24-bit, 16-Channel*
    • SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous
    • SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous
    • Incoming embedded audio can be passed, removed, or overridden
      • *2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio
  • Embed Path Audio Latency
    • (Time measured between audio input and video output connector):
      • 1500 usec (SRC ON)
      • 400 usec (SRC OFF)
  • Disembed Path Audio Latency
    • (Time measured between video input and audio output connector):
      • 210 usec
  • User Interface
    • openGear DashBoard network control software via Windows, macOS or Linux
    • External DIP switch
  • Size (w x d x h)
    • openGear standard form factor, front slot and rear card. Two slots required for each card.
  • Weight
    • 0.5 lb (0.3 kg)
  • Power
    • openGear frame compatible, 5.0 watts max per card
  • Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
