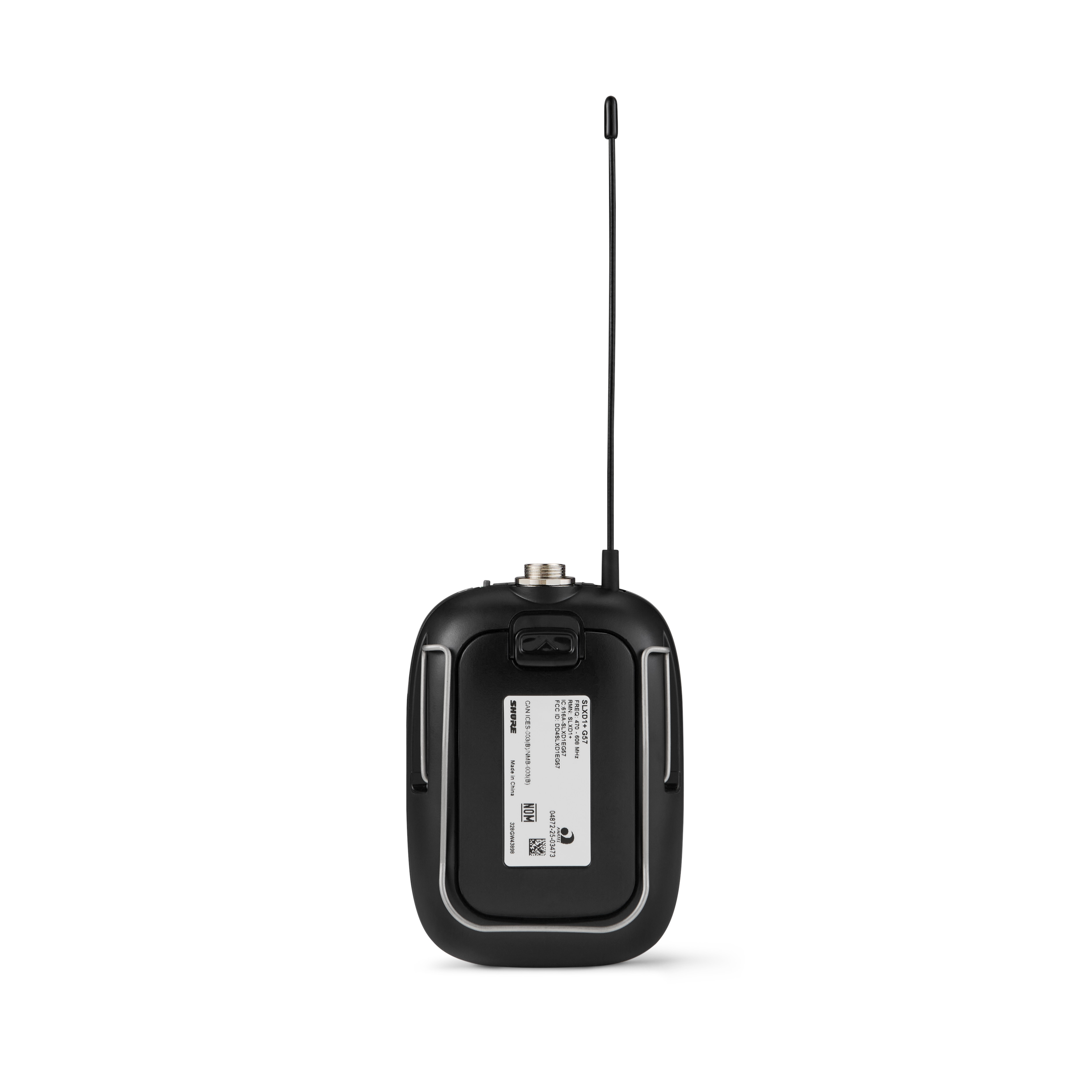

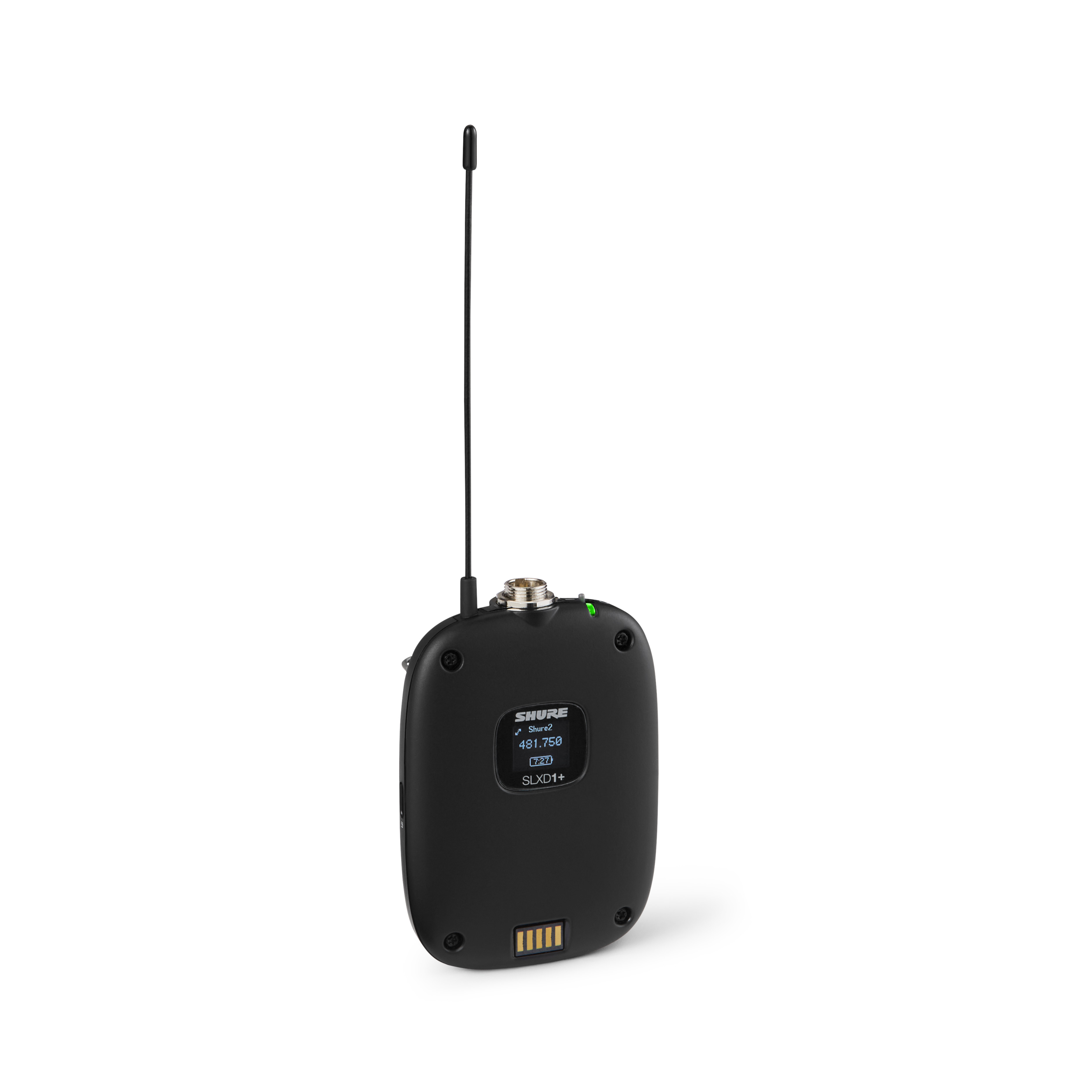

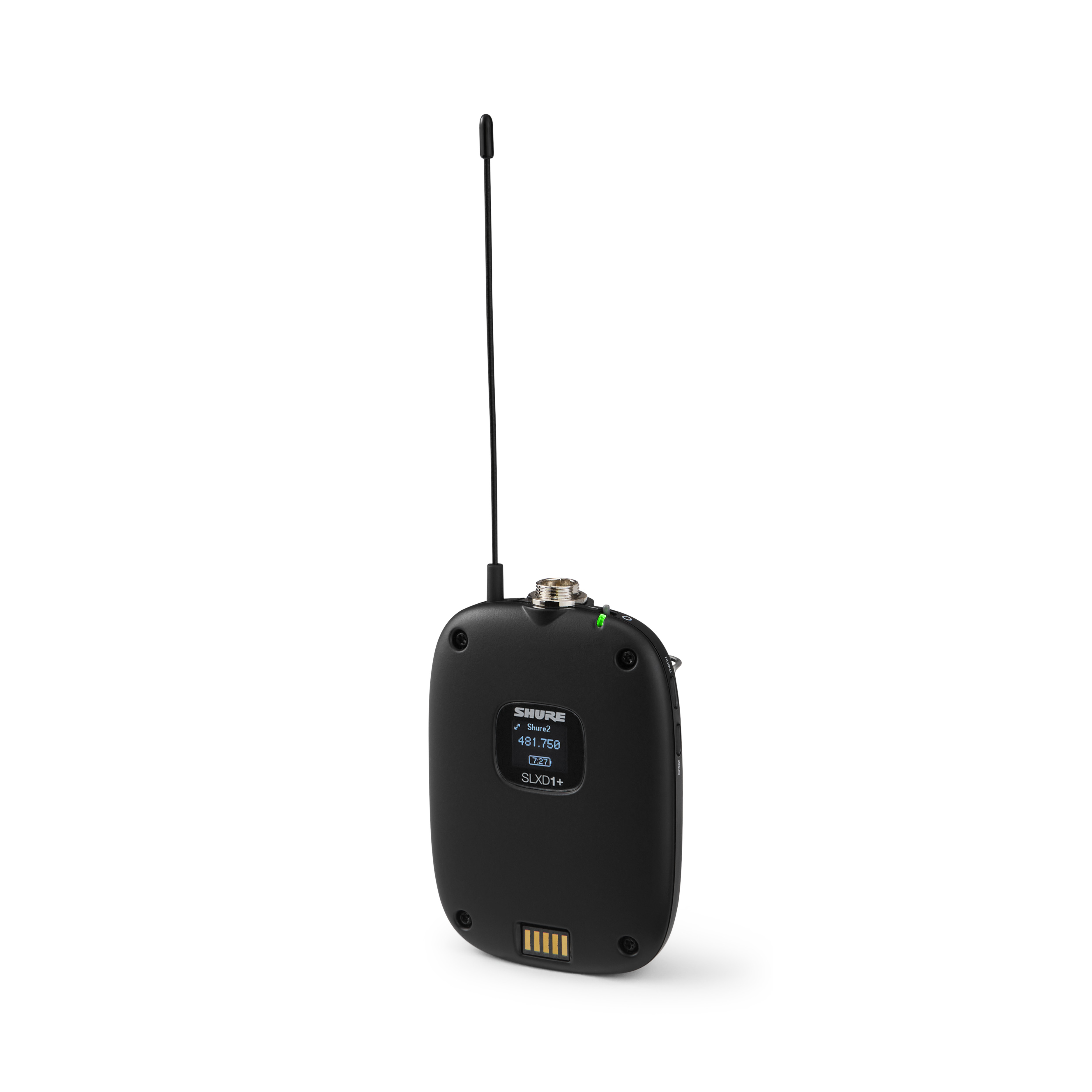

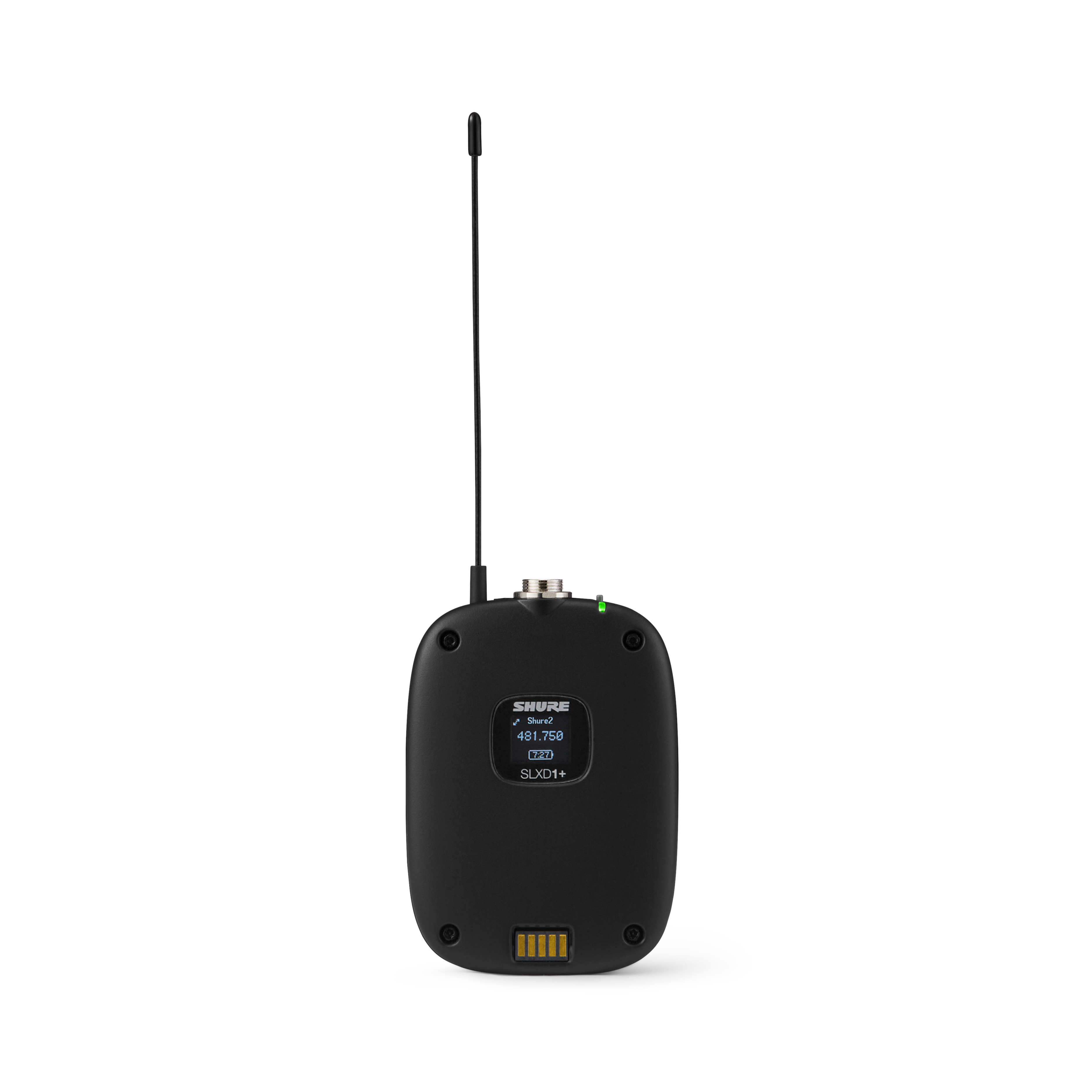

Shure SLXD1+ Wireless Bodypack Transmitter

About: Shure SLXD1+ Wireless Bodypack Transmitter

The SLXD1+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Trusted by Professionals, Engineered for Everyone.

• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Ergonomic and durable plastic construction

Specifications

• AUDIO INPUT

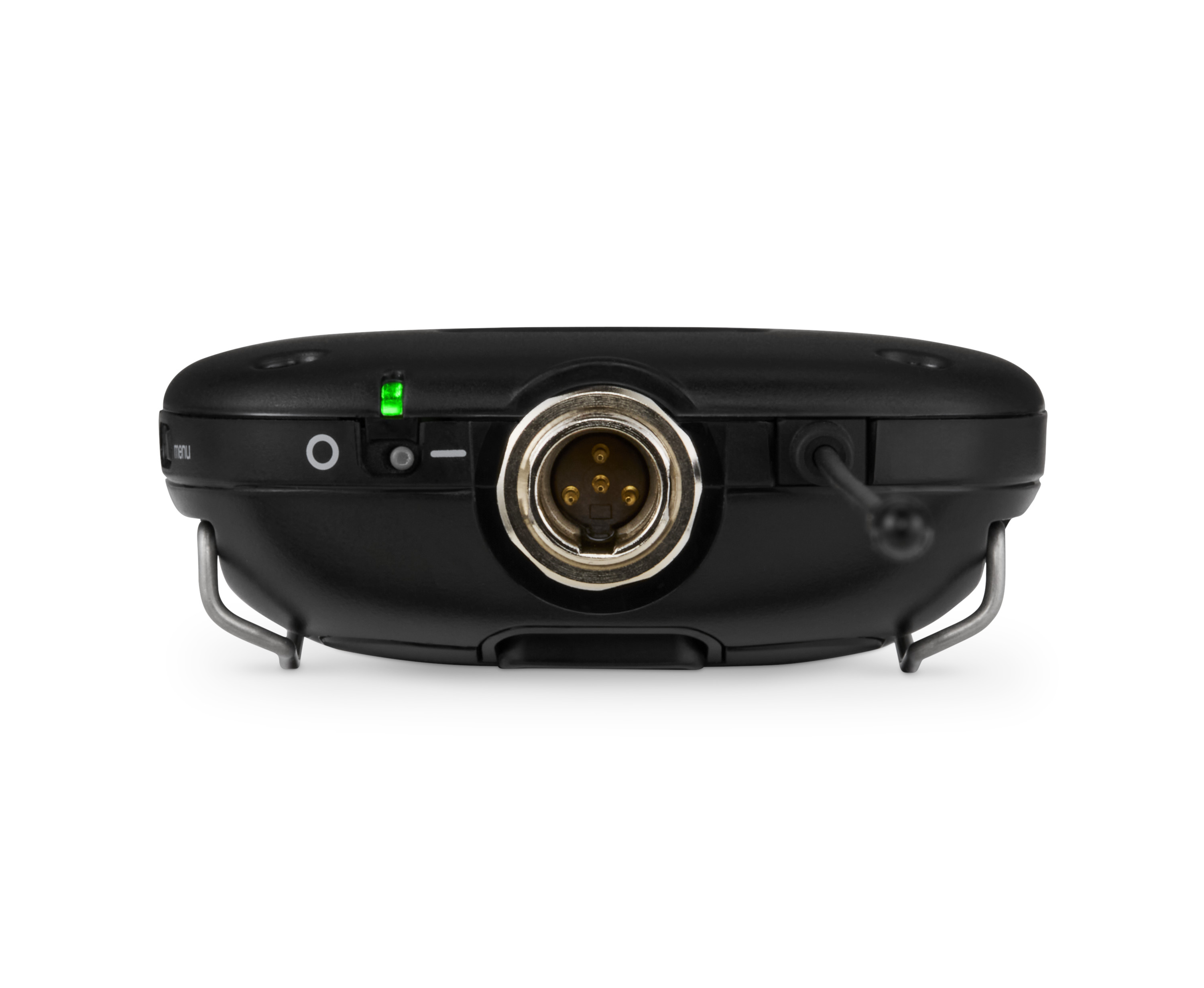

  • Connector: 4-Pin male mini connector (TA4M)
  • Configuration: Unbalanced
  • Impedance: 1 MΩ
  • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
  • Preamplifier Equivalent Input Noise (EIN): –118 dBV
• RF OUTPUT
  • Antenna Type: 1/4 Wave
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Propietary Digital
  • Power: 1 mW/10 mW
    • Varies by region
• Housing: PC/ABS

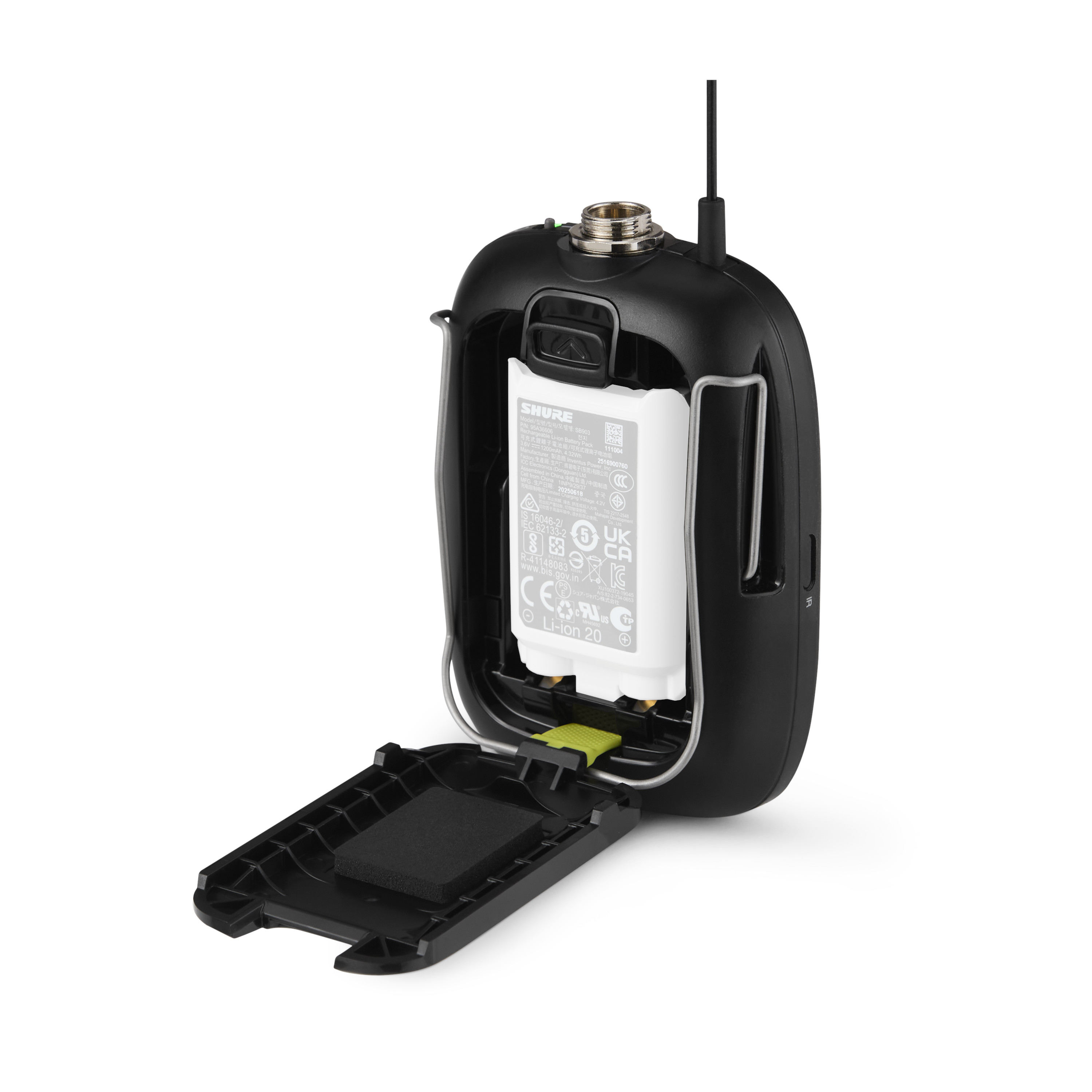

• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions (HxWxD): 3.86 x 2.68 x 1.0 in (98 x 68 x 25.5 mm)
• Weight: 0.2 lbs (89 g)
