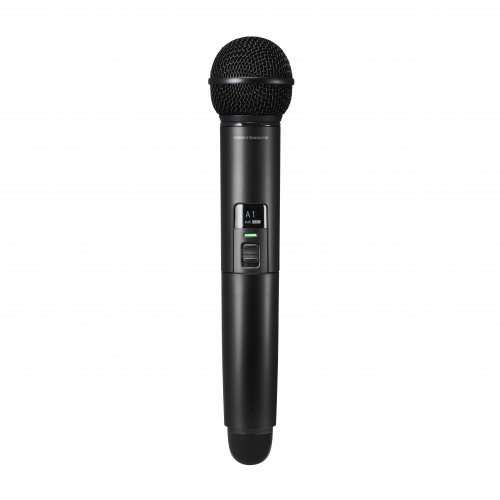

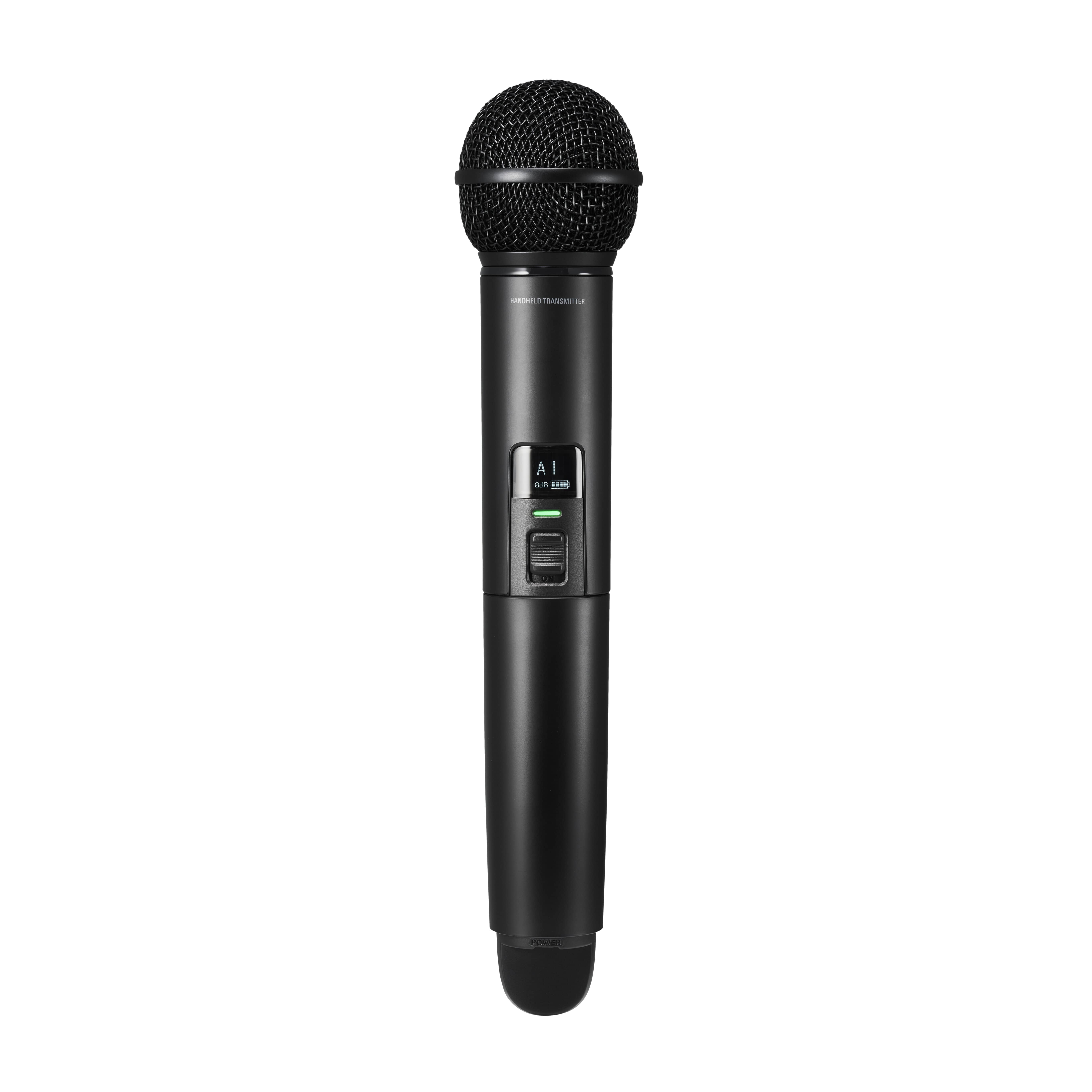

Audio Technica ATW-T1402 System 20 PRO Handheld Microphone Transmitter
Model: ATW-T1402
About: Audio Technica ATW-T1402 System 20 PRO Handheld Microphone Transmitter
ATW-T1402 System 20 PRO handheld microphone transmitter.
- Two antennas built into the transmitter
- High sound quality (24-bit/48 kHz)
- Compatible with NiMH batteries for all-day use
- Slide-to-mute switch
- OLED display
Specifications
- Overall System
- Operating Frequencies - 2,402～2,480MHz
- Dynamic Range - 120dB (A-weighted), typical
- Total Harmonic Distortion - < 0.05%, typical
- Operating Range - 60m (open environment w/ no interfering signals)
- Maximum Simultaneous Use (recommended)
- Standard: 10 channels
- HD mode: 20 channels
- It depends on the region and environment.
- System Frequency Response - 20 to 20,000Hz
- Varies depending on the microphone to be installed.
- Delay
- Standard: 2.8ms
- HD mode: 6.7ms
- Audio Sampling Rate
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
- Encryption Method - AES128
- ATW-T1402 Handheld Transmitter
- Modulation mode - GFSK
- RF output - 10mW EIRP
- RF sensitivity - -90dBm, typical
- Whip antenna - True diversity
- Microphone type - Dynamic
- Microphone Directional Characteristics - Hypercardioid
- Battery - DC3V (2 AA batteries)
- Operating temperature - 5ºC to +40ºC
- Battery Life
- AA alkaline batteries: Approx. 18 hours
- AA nickel-hydrogen batteries: Approx. 16 hours and 30 minutes
- AA lithium batteries: Approx. 35 hours
- Dimensions 265.0mm x φ53.7mm
- Weight - 300g (without batteries)
- Included accessory
- Microphone holder AT8456a
- Conversion screw adapter (3/8 - 5/8)
UPC: 4961310161521
