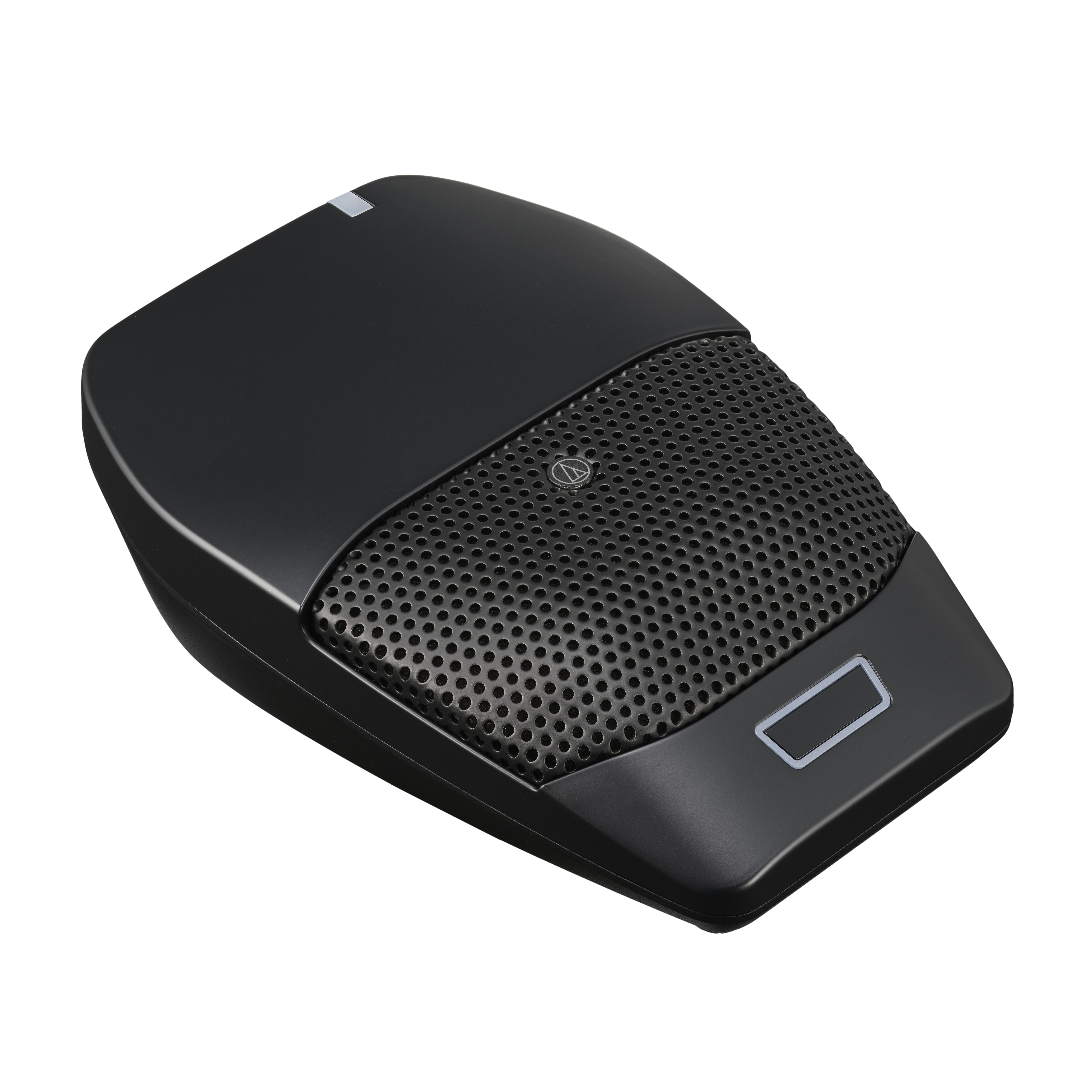

Audio Technica ATW-T1406 System 20 PRO Boundary Microphone Transmitter

About: Audio Technica ATW-T1406 System 20 PRO Boundary Microphone Transmitter

ATW-T1406 System 20 PRO boundary microphone transmitter.

• Cardioid polar pattern
• Long-lasting internal lithium-ion batteries for all-day transmitter use
• Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)

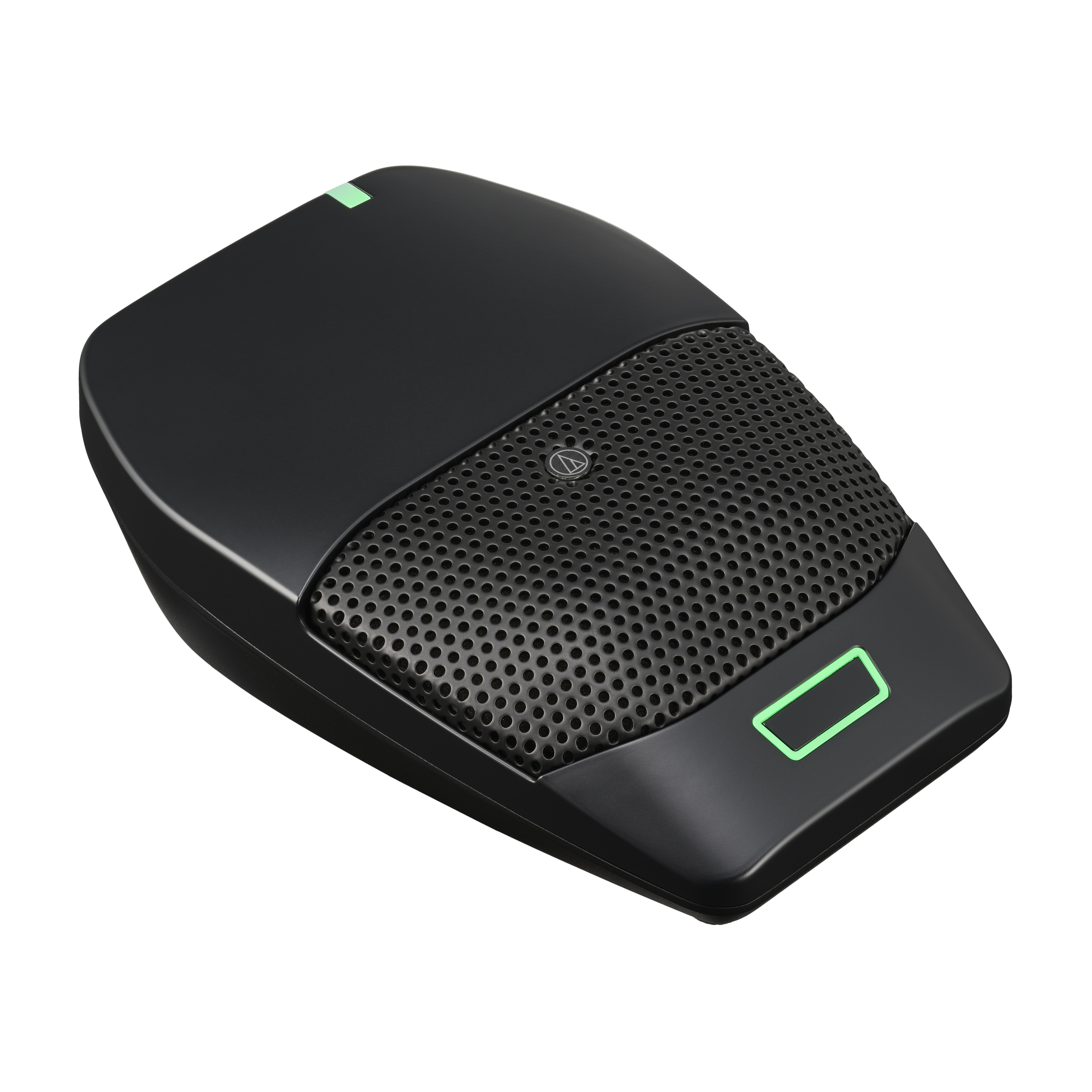

• Two LED options: standard mode and conference mode
• OLED display

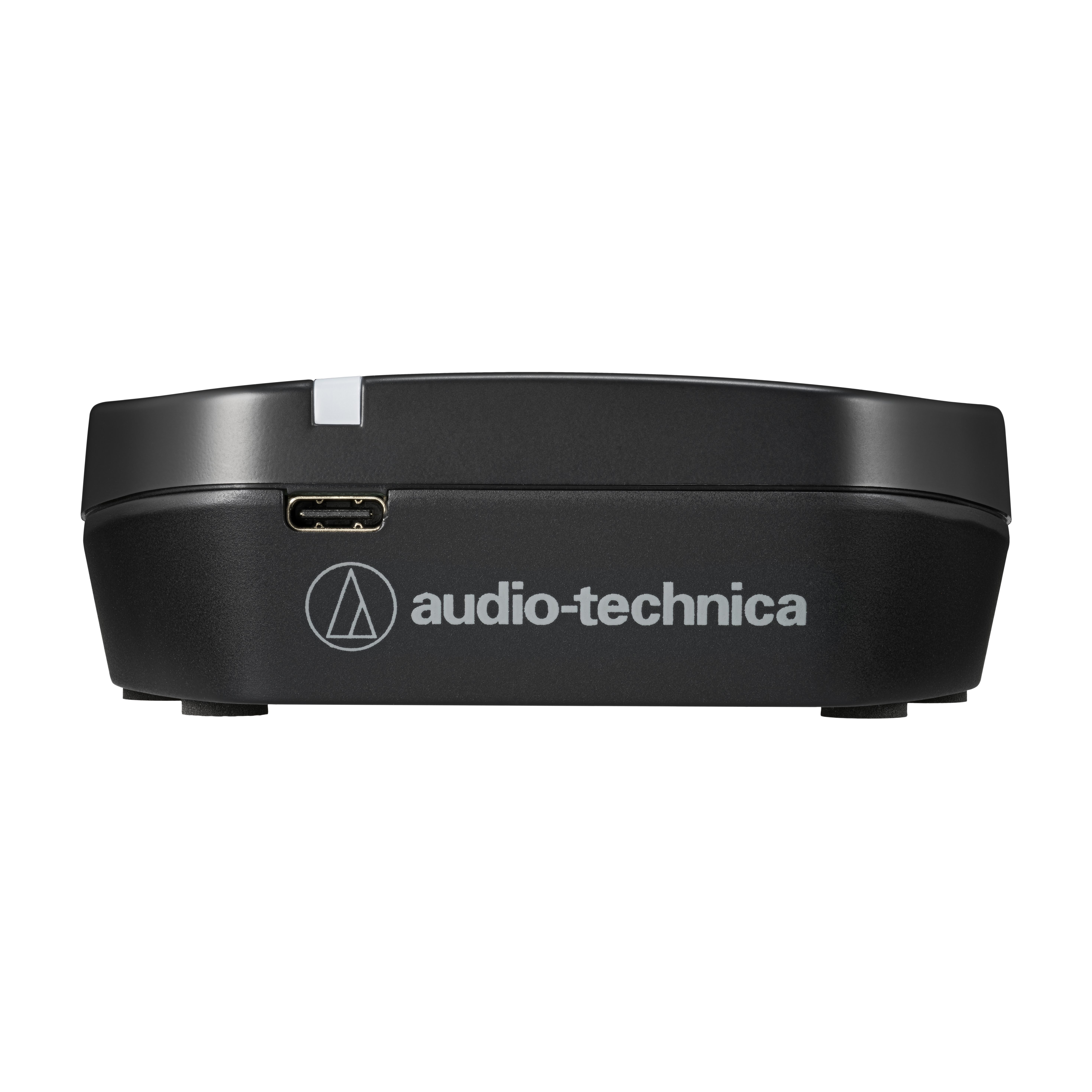

• USB Type-C connector for charging (transmitter can be used while charging)

Specifications

• Overall System
  • Operating Frequencies - 2,402～2,480MHz
  • Dynamic Range - 120dB (A-weighted), typical
  • Total Harmonic Distortion - < 0.05%, typical
  • Operating Range - 60m (open environment w/ no interfering signals)
  • Maximum Simultaneous Use (recommended)
    • Standard: 10 channels
    • HD mode: 20 channels
      • It depends on the region and environment.
  • System Frequency Response - 20 to 20,000Hz
    • Varies depending on the microphone to be installed.
  • Delay
    • Standard: 2.8ms
    • HD mode: 6.7ms
  • Audio Sampling Rate
    • Standard: 24bit/48kHz
    • HD mode: 24bit/48kHz
  • Encryption Method - AES128
• ATW-T1406 Boundary Mic Transmitter
  • Modulation mode - GFSK
  • RF output - 10mW EIRP
  • RF sensitivity - -90dBm, typical
  • Whip antenna - True diversity
  • Maximum input sound pressure level - 139dB SPL
  • Microphone type - Capacitor
  • Microphone Directional Characteristics - Cardioid
  • Operating temperature - 5ºC to +40ºC
  • Built-in battery - 3.7V lithium-ion battery (5.5Wh, 1460mAh)
  • Battery Life - Approx. 12 hours
  • Charging time - Approx. 3 hours and 10 minutes
  • USB Charging Port - USB Type-C (USB 2.0)
  • Dimensions - 90.5mm x 129.4mm x 31.9mm (W x D x H)
  • Weight - 510g (including battery)

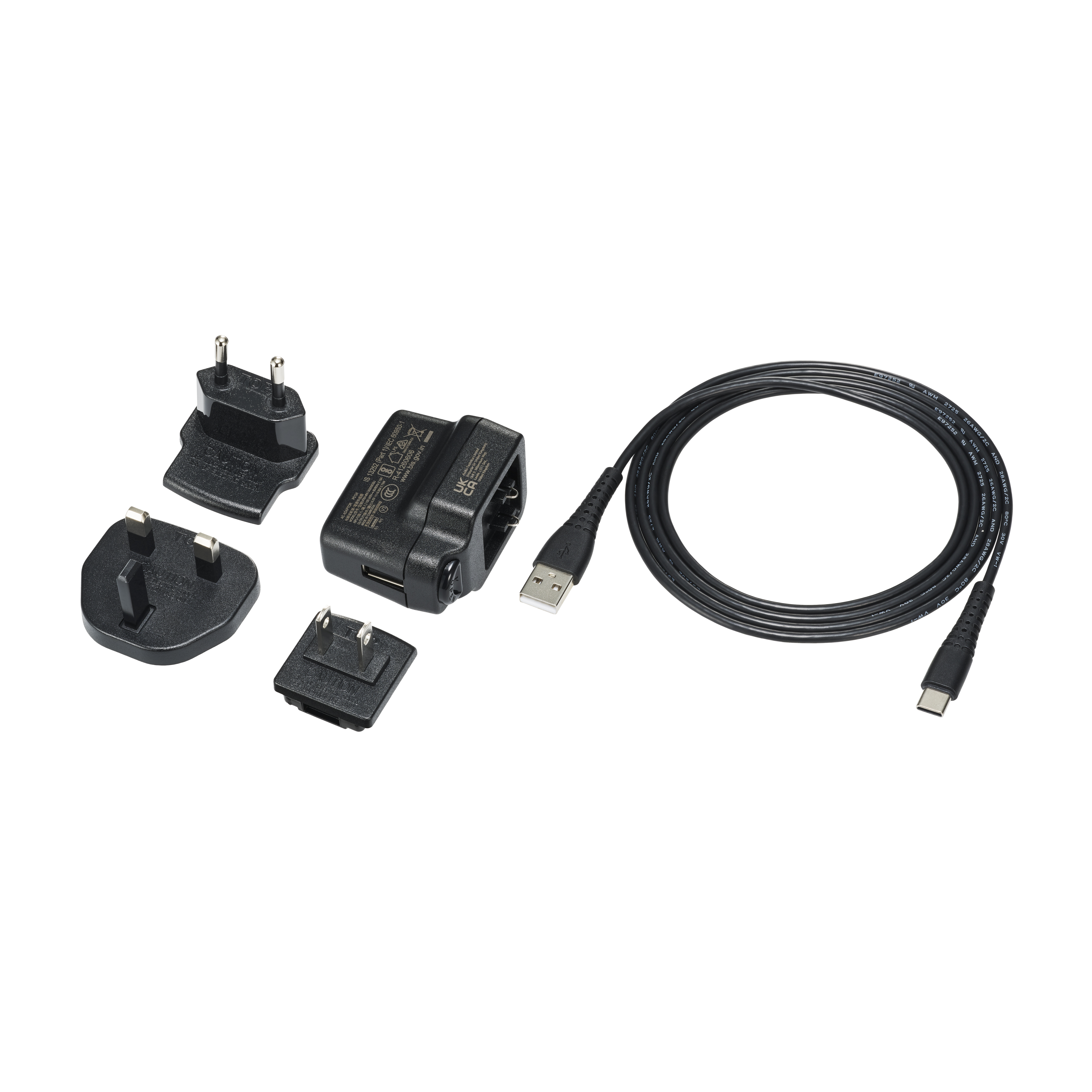

  • Included accessory
    • USB power adapter
    • Blade tip for USB power adapter
    • USB cable (1.5 m)
