Audio Technica ATW-R1440 System 20 PRO 4-Channel Receiver
Model: ATW-R1440
About: Audio Technica ATW-R1440 System 20 PRO 4-Channel Receiver
ATW-R1440 System 20 PRO 4-channel receiver.

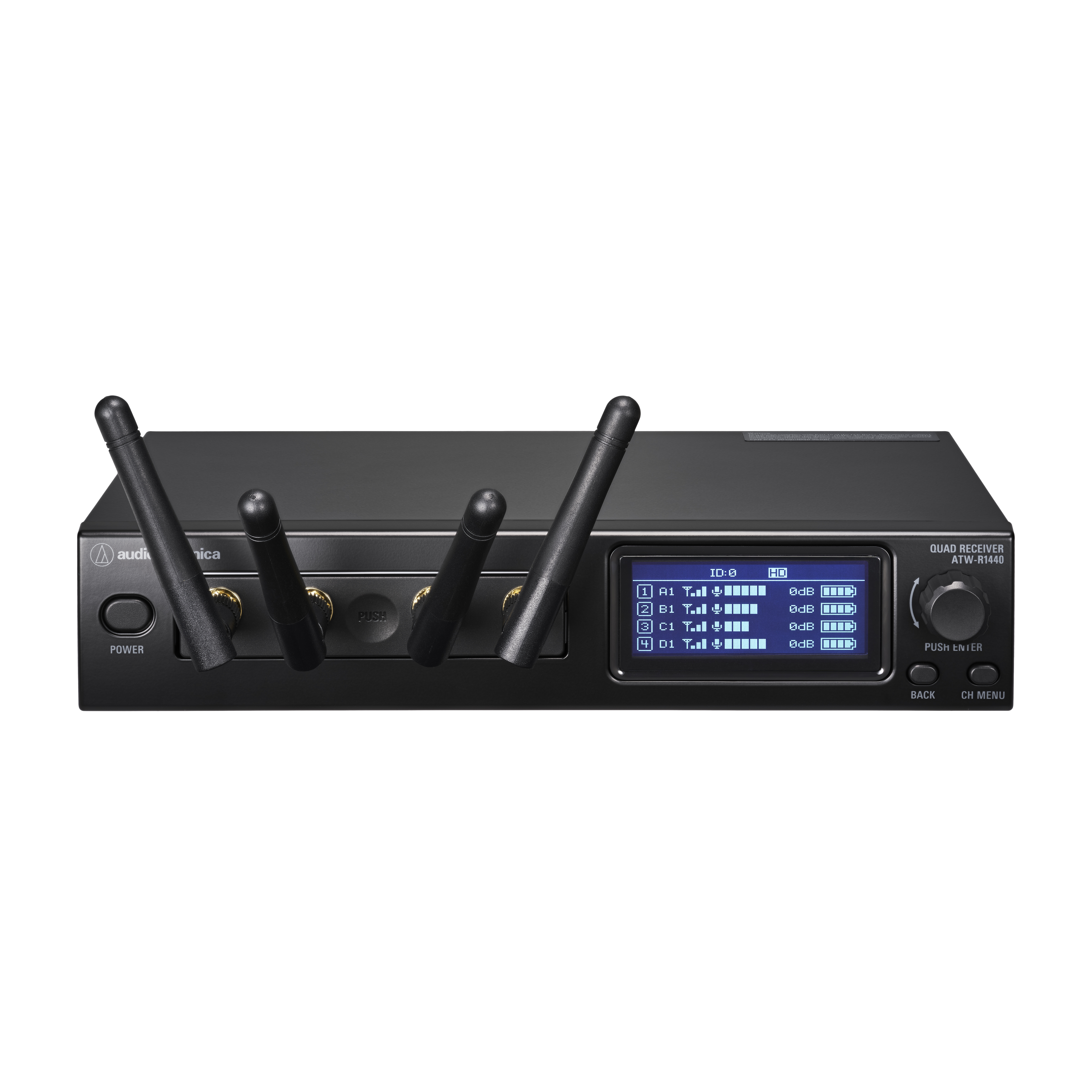

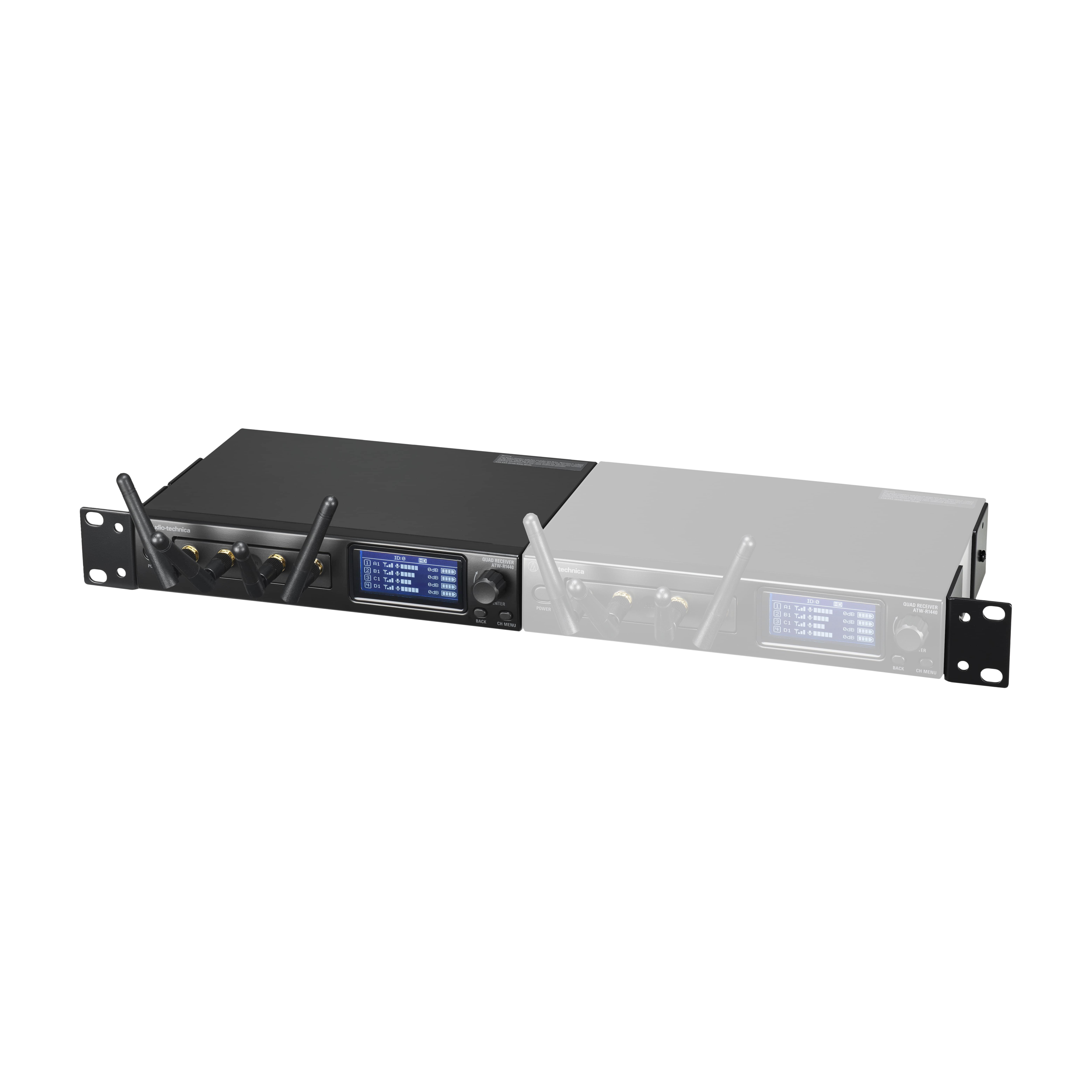

- Half-rack chassis capable of receiving up to four transmitters
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Switch between Standard (10 channels) and HD (20 channels) modes

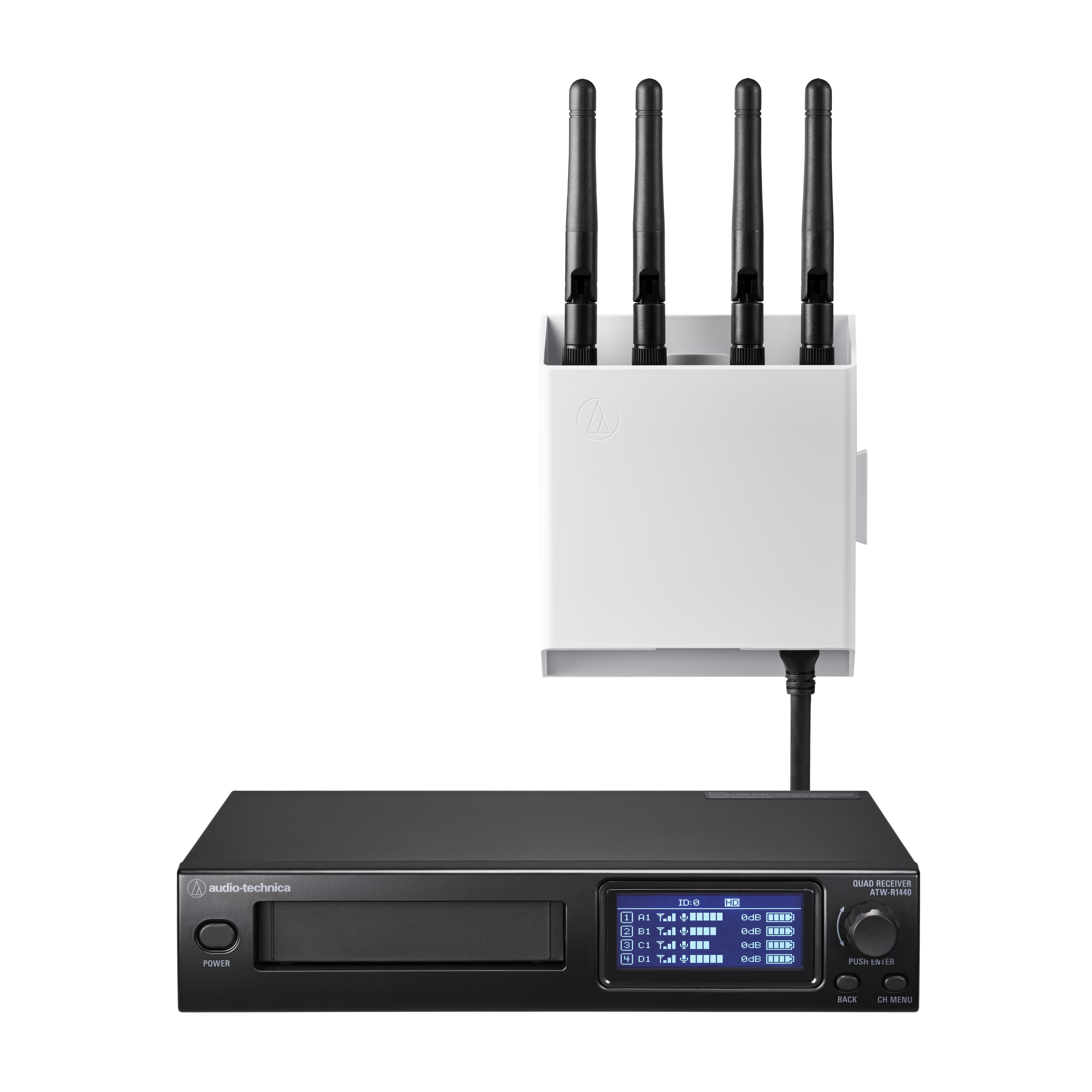

- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
- Auto-lock function prevents unintended operations
Specifications
- Overall System
- Operating Frequencies - 2,402～2,480MHz
- Dynamic Range - 120dB (A-weighted), typical
- Total Harmonic Distortion - < 0.05%, typical
- Operating Range - 60m (open environment w/ no interfering signals)
- Maximum Simultaneous Use (recommended)
- Standard: 10 channels
- HD mode: 20 channels
- It depends on the region and environment.
- System Frequency Response - 20 to 20,000Hz
- Varies depending on the microphone to be installed.
- Delay
- Standard: 2.8ms
- HD mode: 6.7ms
- Audio Sampling Rate
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
- Encryption Method - AES128
- ATW-RU14 Receiver Unit
- Modulation mode - GFSK
- RF output - 10mW EIRP
- RF sensitivity - -90dBm, typical
- Whip antenna - λ/2 Dipole Antenna, Diversity
- External connection port - RJ45
- Power supply - DC12V (RC14)
- Operating temperature - 0ºC to +40ºC
- Dimensions - 86.0mm x 70.2mm x 18.7mm (W x D x H)
- Weight - 77g

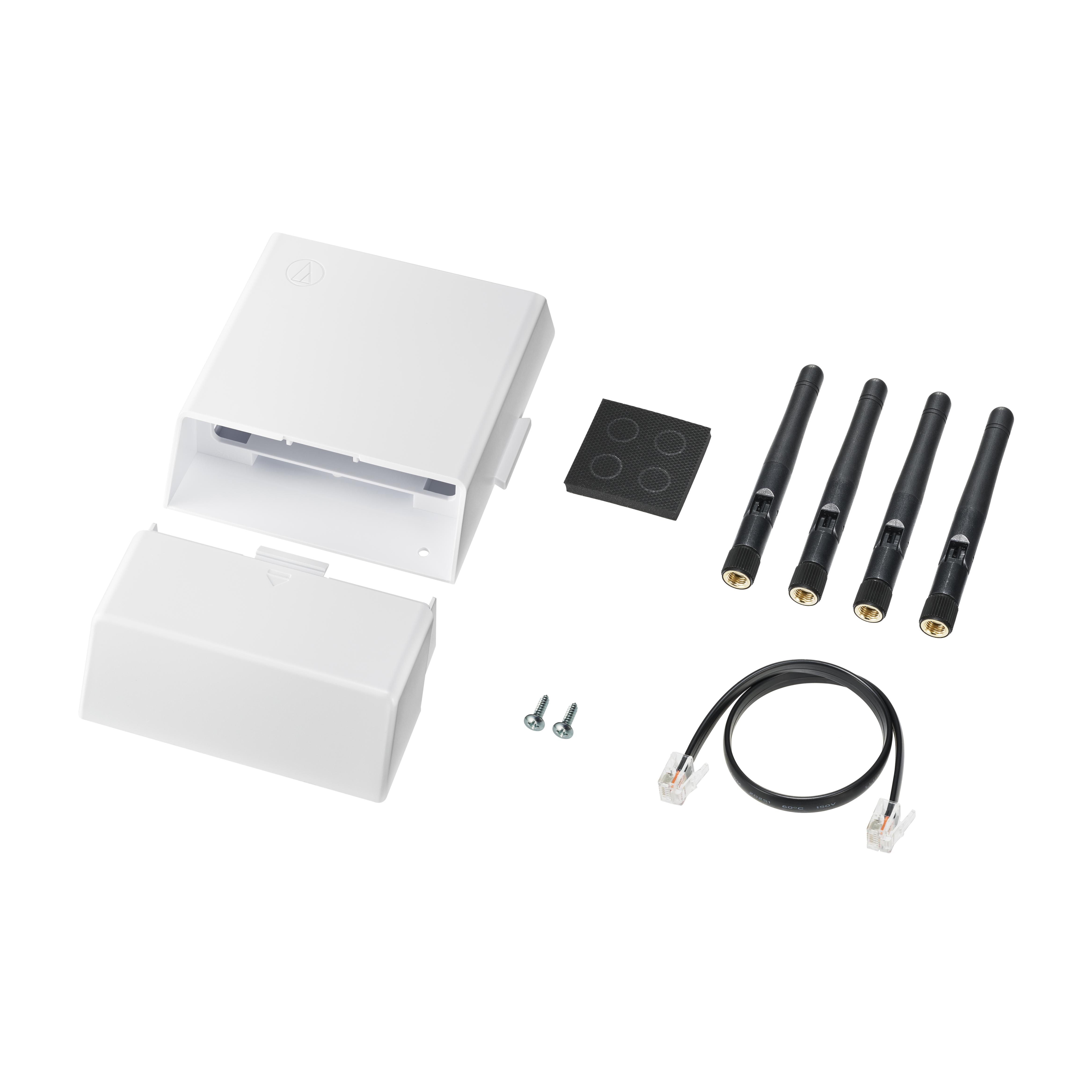

- Included accessory
- Unit holder
- Holder cover
- 2x Wood screws
- 4x Antenna

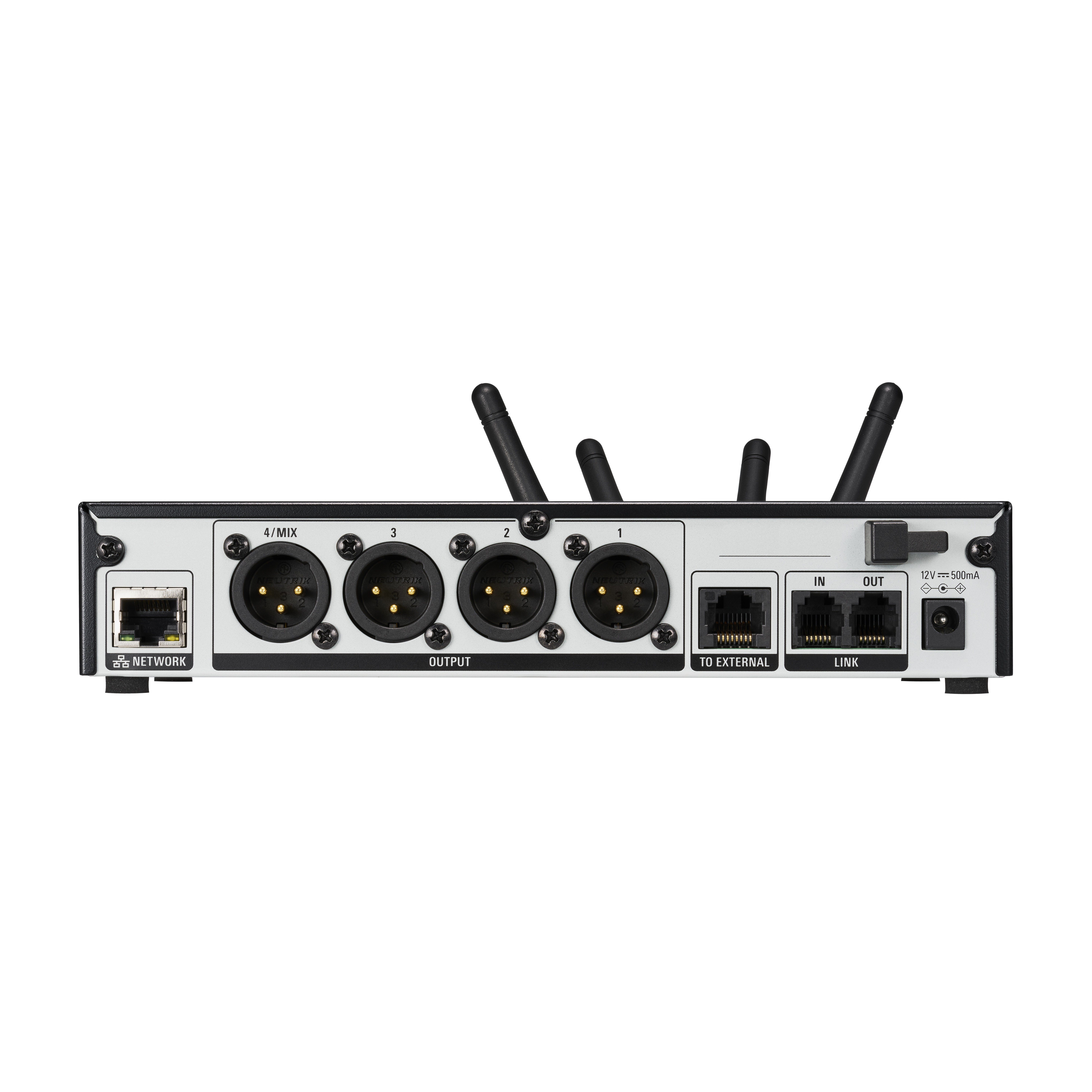

- ATW-RC14 Rack Chassis
- Receiver unit external connection port - RJ45
- NETWORK port - RJ45: RJ45: RJ45 Fast Ethernet
- LINK IN/OUT port - RJ12
- Output Level
- LINE max: +22dBu (+20dBV)
- LINE Unity: -20dBu (-22dBV)
- MIC max: -12dBu (-10dBV)
- MIC Unity: -50dBu (-52dBV)
- Power consumption - - 3.7W
- Power supply - DC12V 0.5A (AC adapter)
- Operating temperature - 0ºC to +40ºC
- Dimensions - 209.8mm x 165.6mm x 42.5mm (W x D x H)
- Weight - 740g
- Included accessory

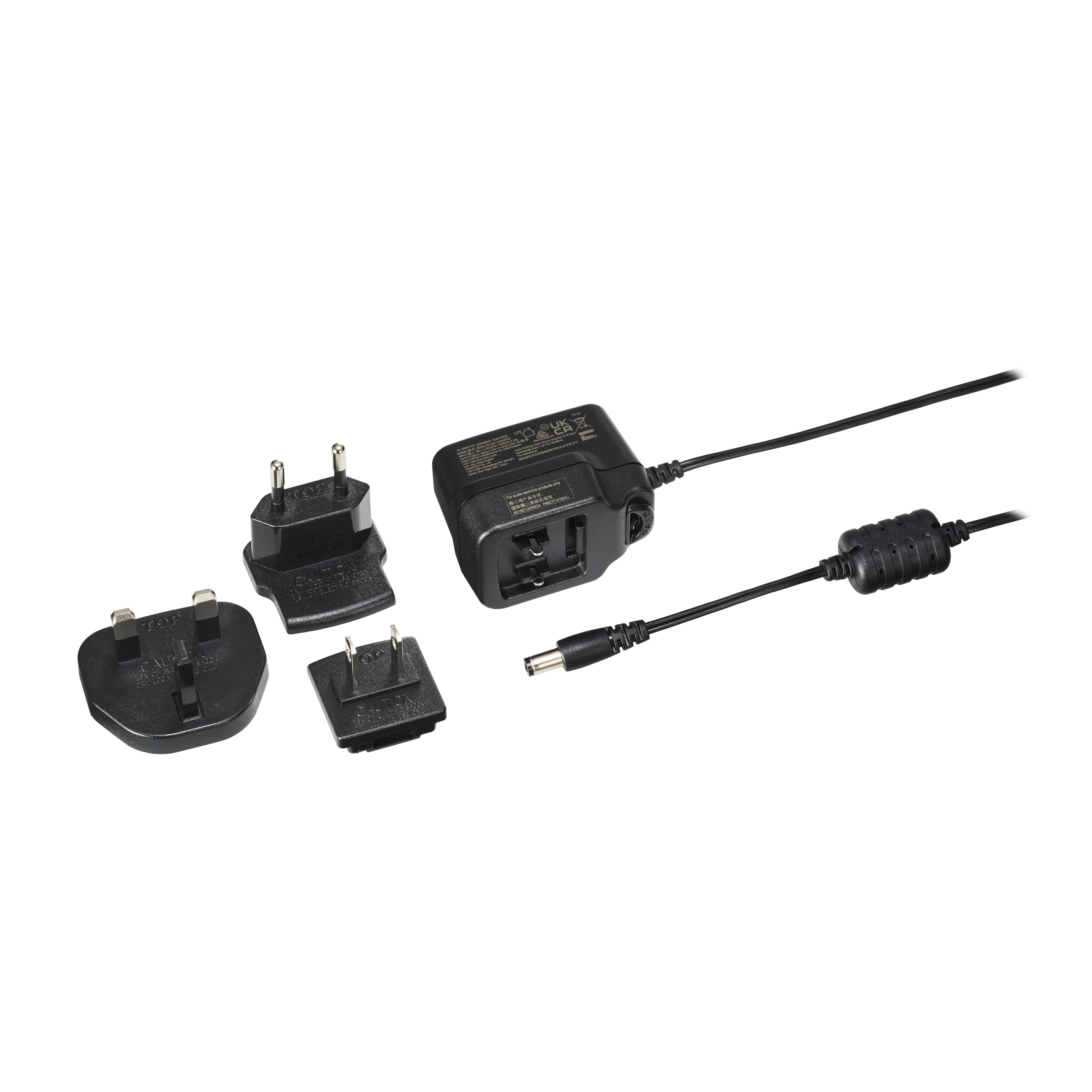

- AC adapter and blade tip

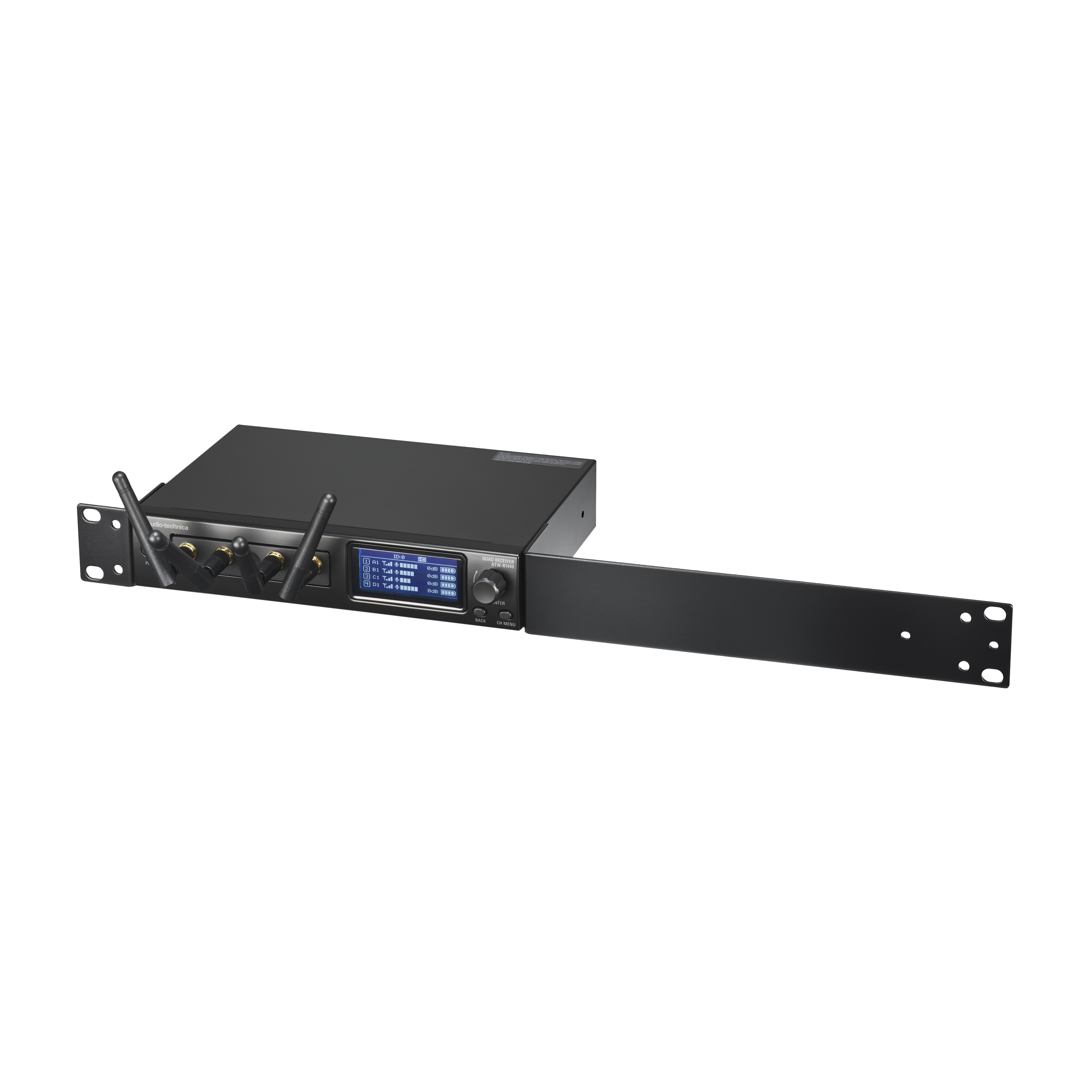

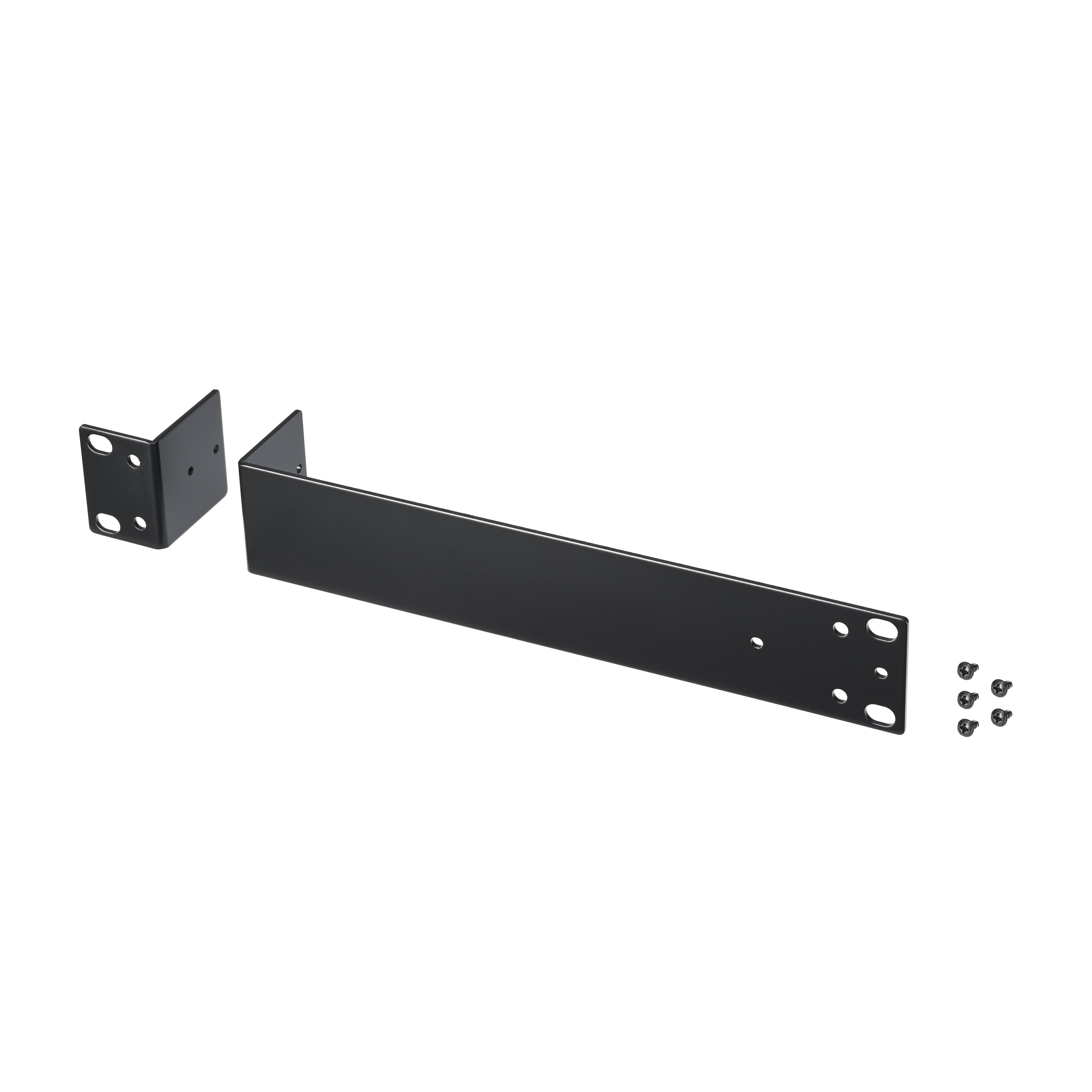

- Rack mount adapter (short)
- Rack mount adapter (long)
- 5x Fixing screws
- Connecting cable (30cm)
- 4x Rubber feet
UPC: 4961310161484
