Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter
Model: ATW-T1401
About: Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter
ATW-T1401 System 20 PRO body-pack transmitter.
- Two antennas built into the transmitter
- High sound quality (24-bit/48 kHz)
- Compatible with NiMH batteries for all-day use
- Slide-to-mute switch

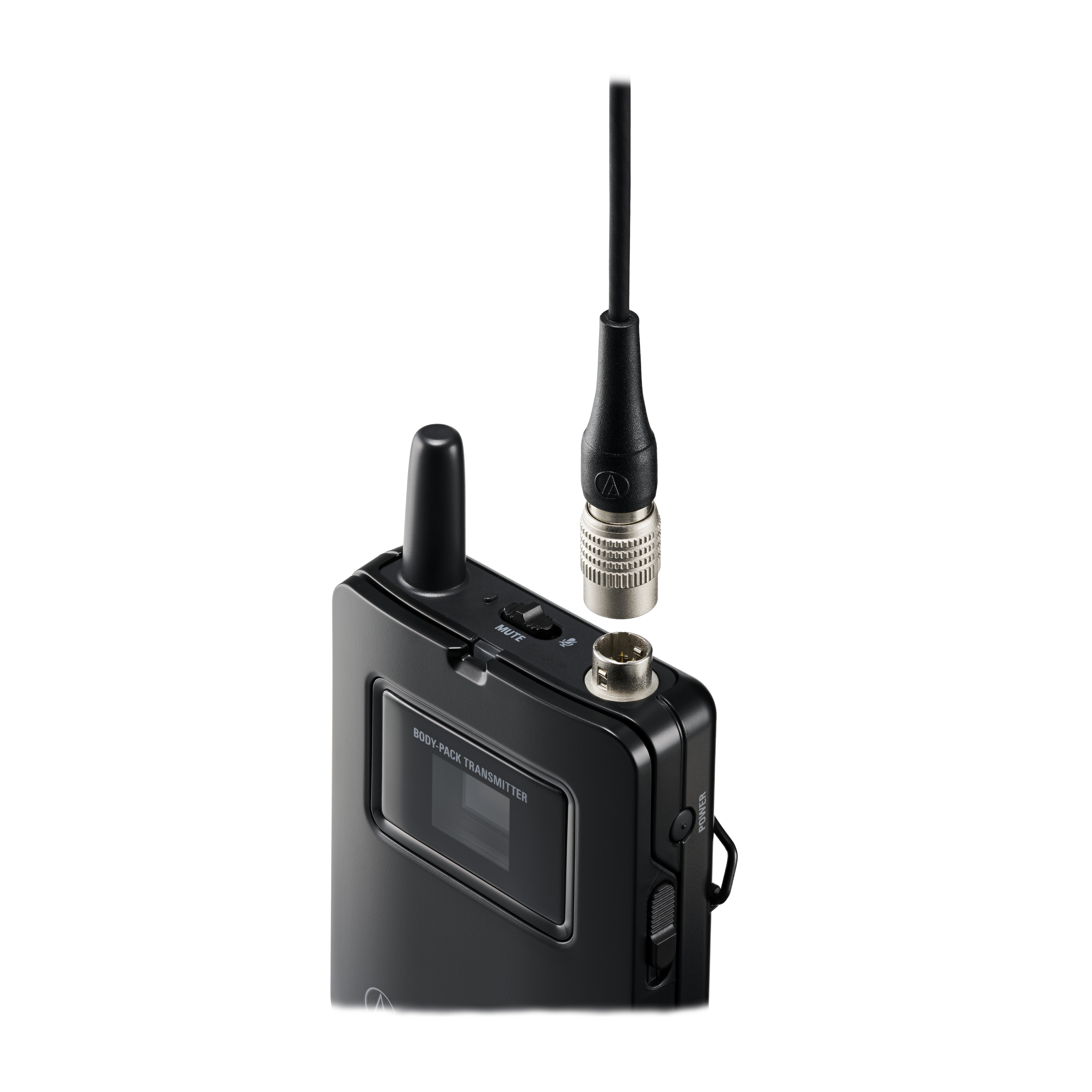

- Water- and sweat-resistant cW-style locking 4-pin connector for use with a variety of Audio-Technica microphones

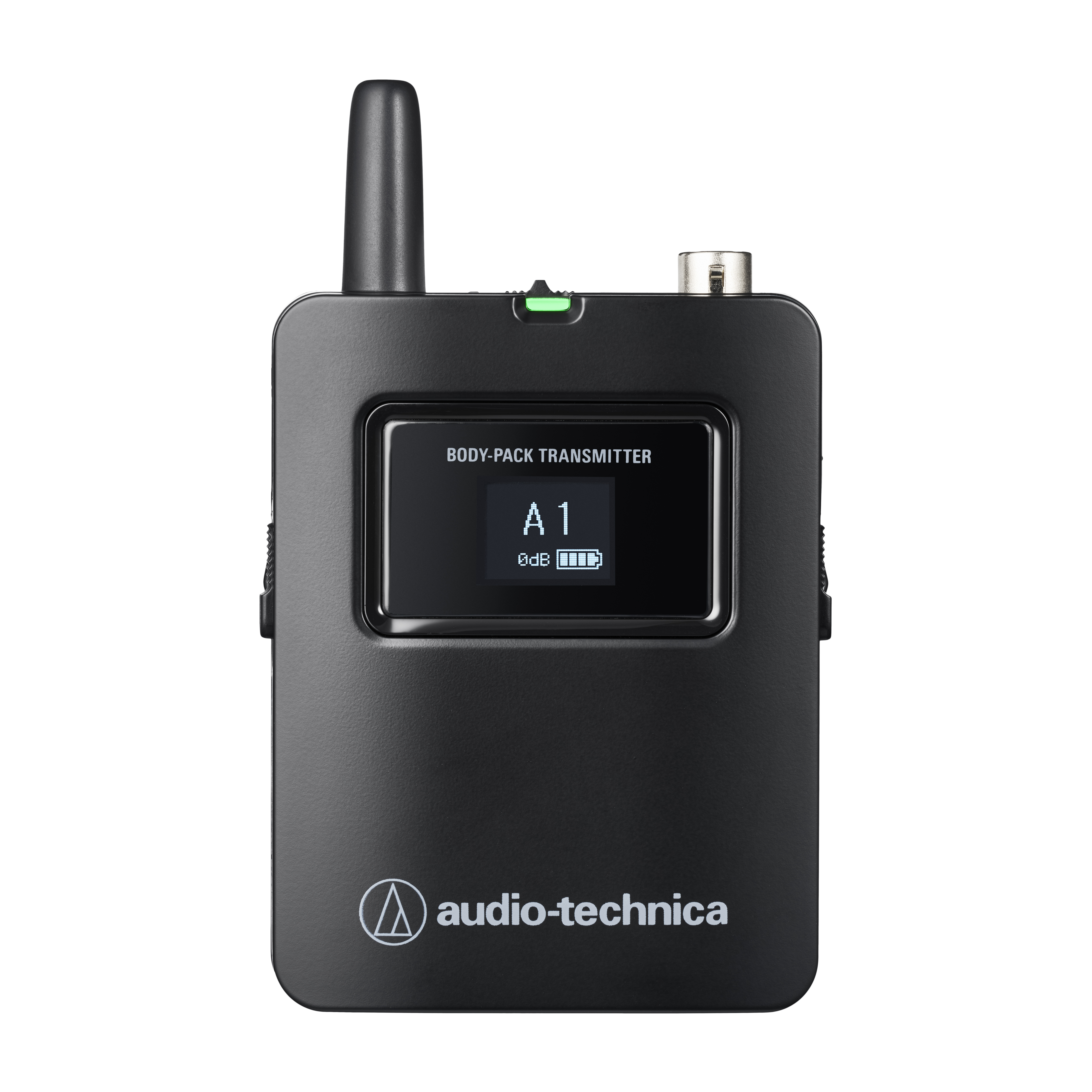

- OLED display
Specifications
- Overall System
- Operating Frequencies - 2,402～2,480MHz
- Dynamic Range - 120dB (A-weighted), typical
- Total Harmonic Distortion - < 0.05%, typical
- Operating Range - 60m (open environment w/ no interfering signals)
- Maximum Simultaneous Use (recommended)
- Standard: 10 channels
- HD mode: 20 channels
- It depends on the region and environment.
- System Frequency Response - 20 to 20,000Hz
- Varies depending on the microphone to be installed.
- Delay
- Standard: 2.8ms
- HD mode: 6.7ms
- Audio Sampling Rate
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
- Encryption Method - AES128
- ATW-T1401 Body-Pack Transmitter
- Modulation mode - GFSK
- RF output - 10mW EIRP
- RF sensitivity - -90dBm, typical
- Whip antenna - True diversity
- Input connection - Four pin locking connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +10V

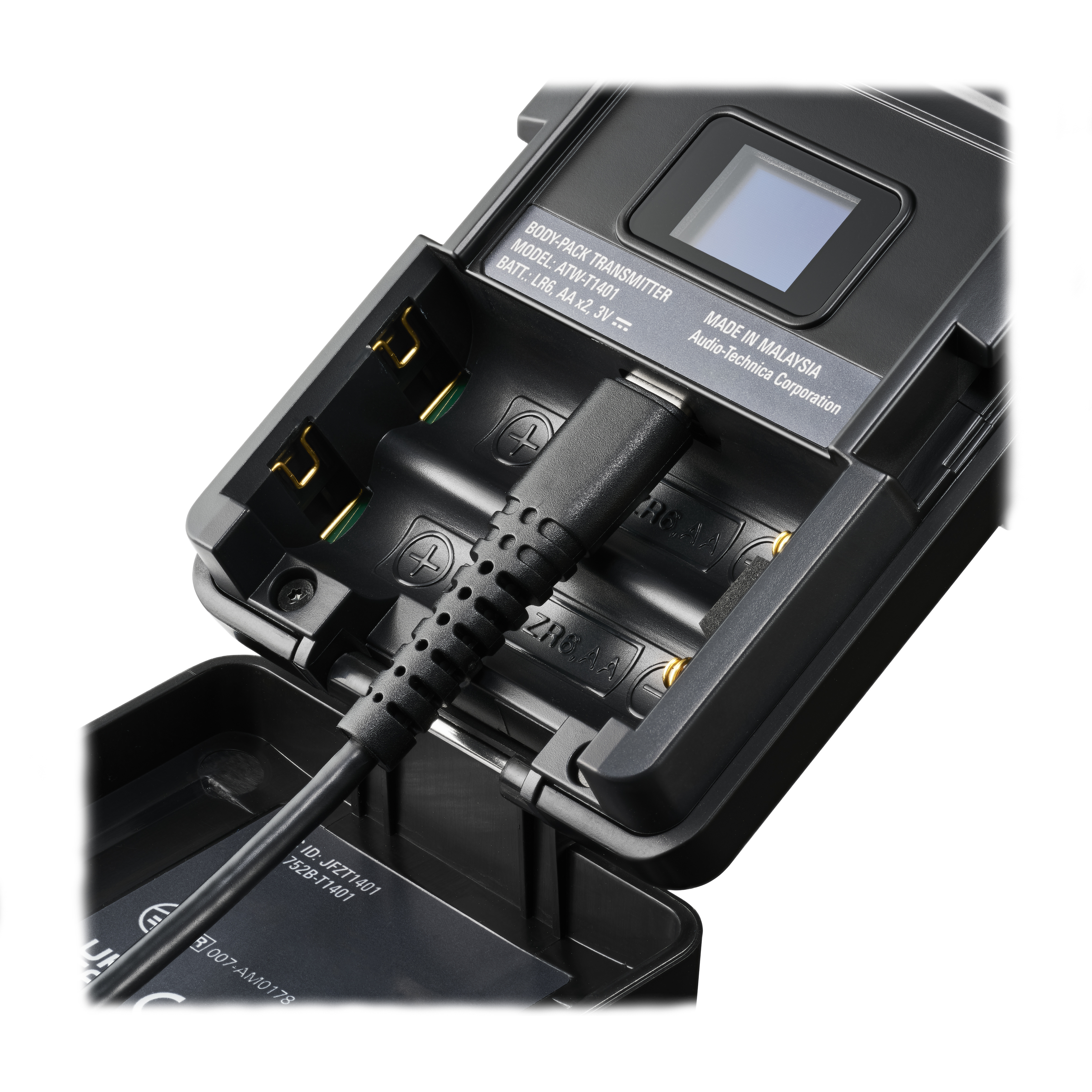

- Battery - DC3V (2 AA batteries)
- Operating temperature 5ºC to +40ºC
- Battery Life
- AA alkaline batteries: Approx. 15 hours
- AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes
- AA lithium batteries: Approx. 29 hours
- Dimensions - 63.7mm x 22.7mm x 107.4mm (W x D x H)
- Weight - 80g (without batteries)
UPC: 4961310161507
Reviews: Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter
There are currently no product reviews.
Warranty: Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
One Year, parts and labour against manufacturer defects (Import Series and 3000 Series Wireless - Two Years; Artist Elite, 4000/5000 Series Wireless, 40 Series, many Broadcast Series, Midnight Blues and Value Cable - Five Years; Premium Cable - Lifetime).
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Audio Technica do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
