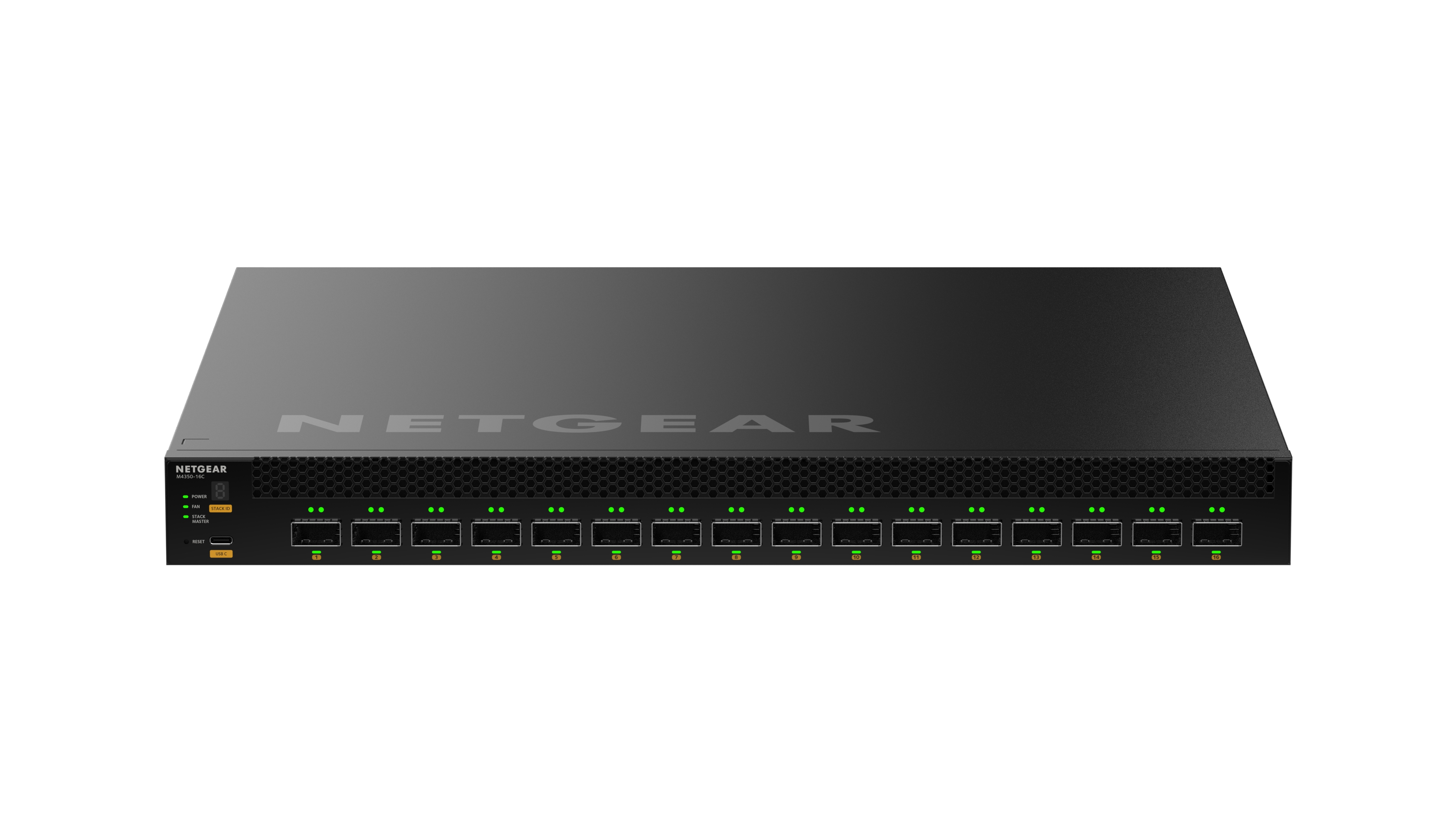

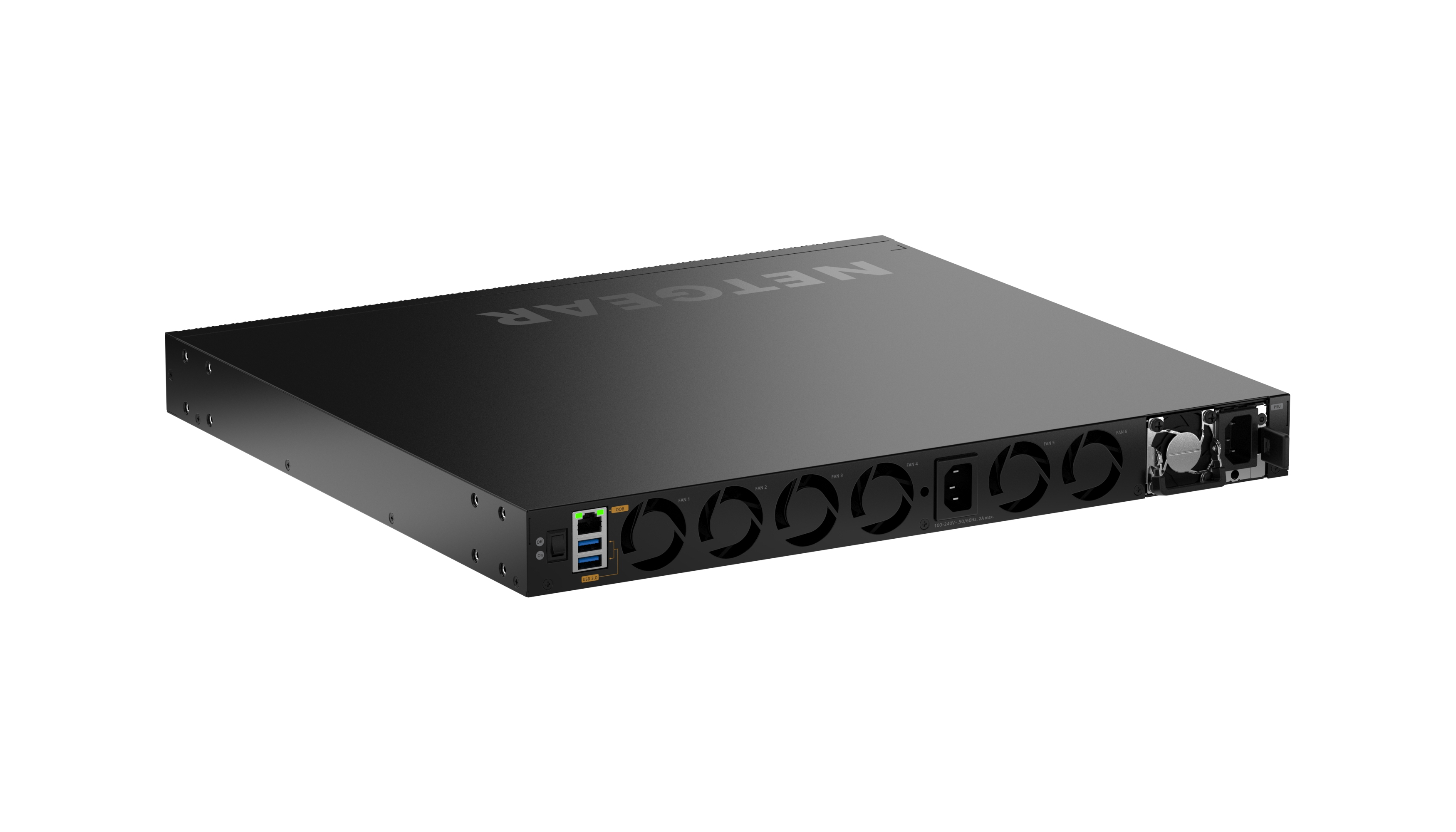

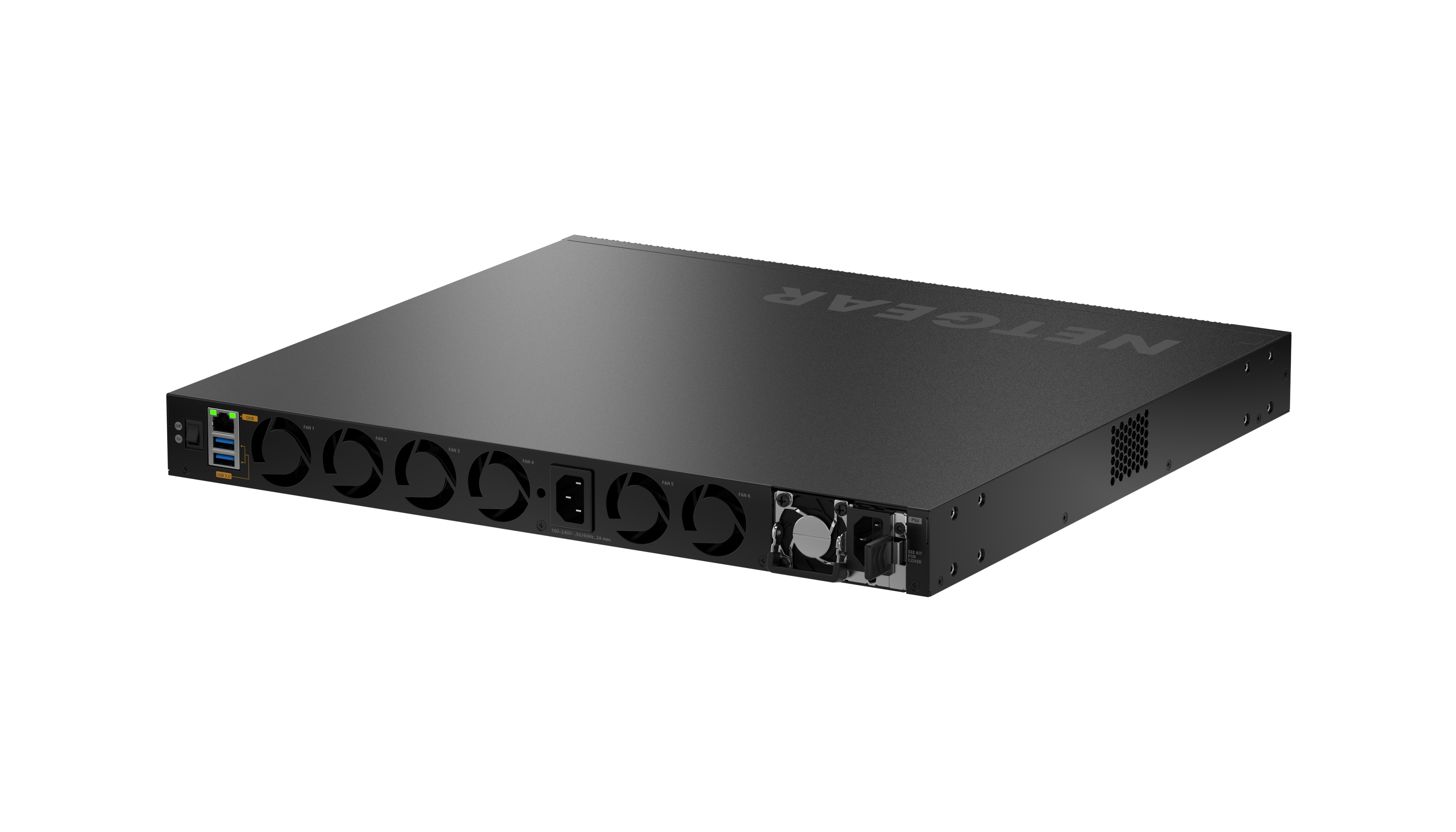

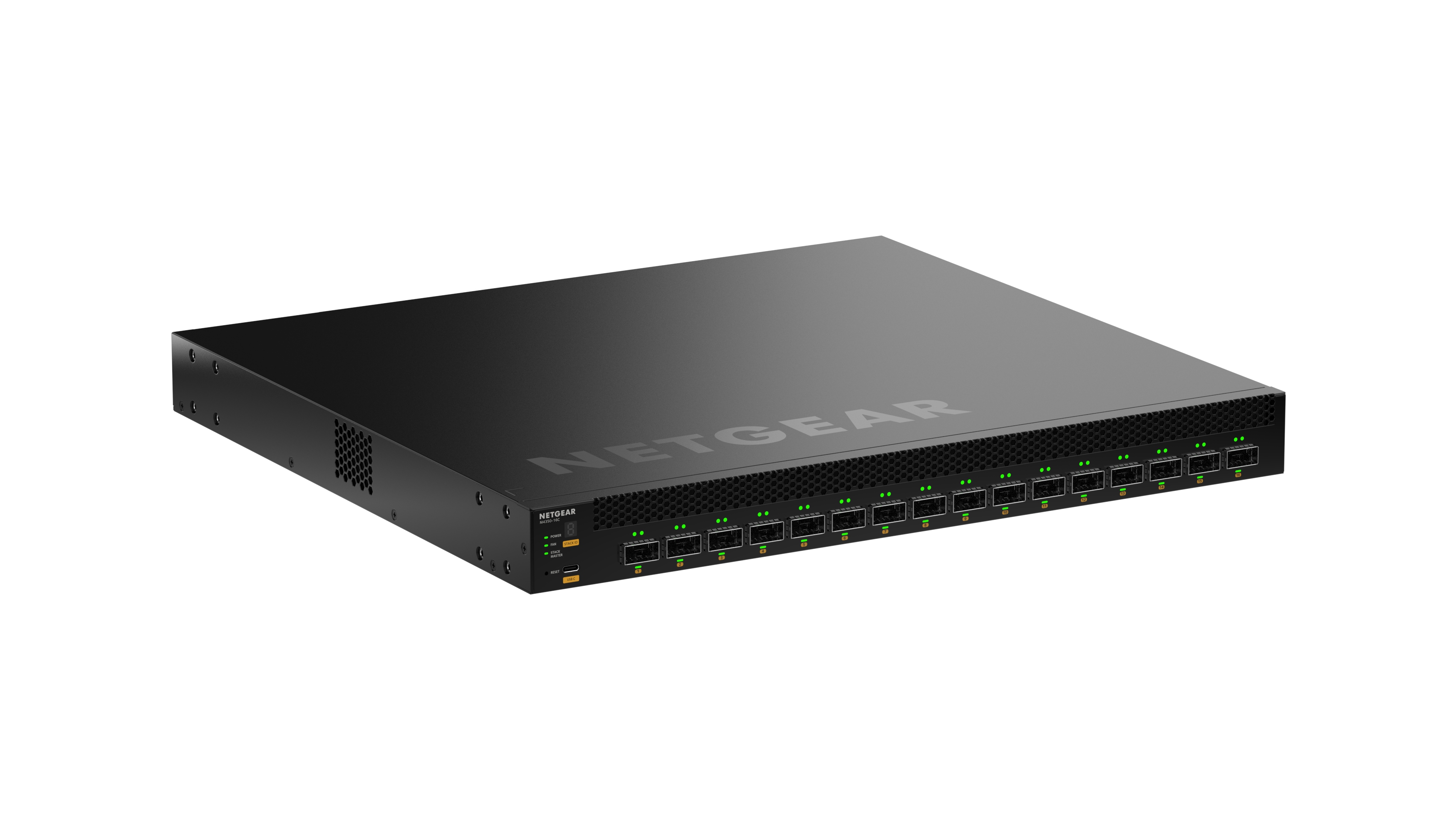

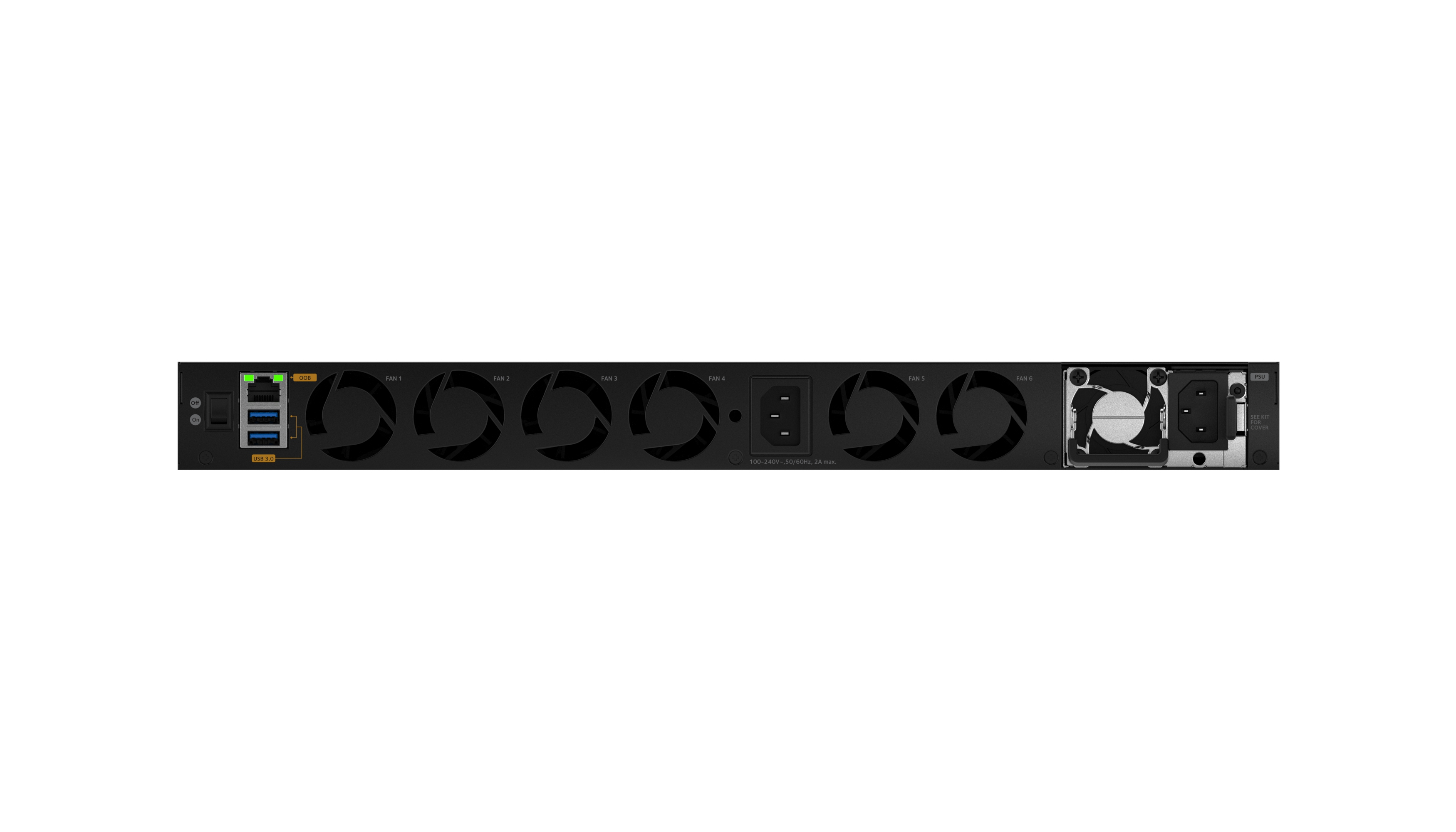

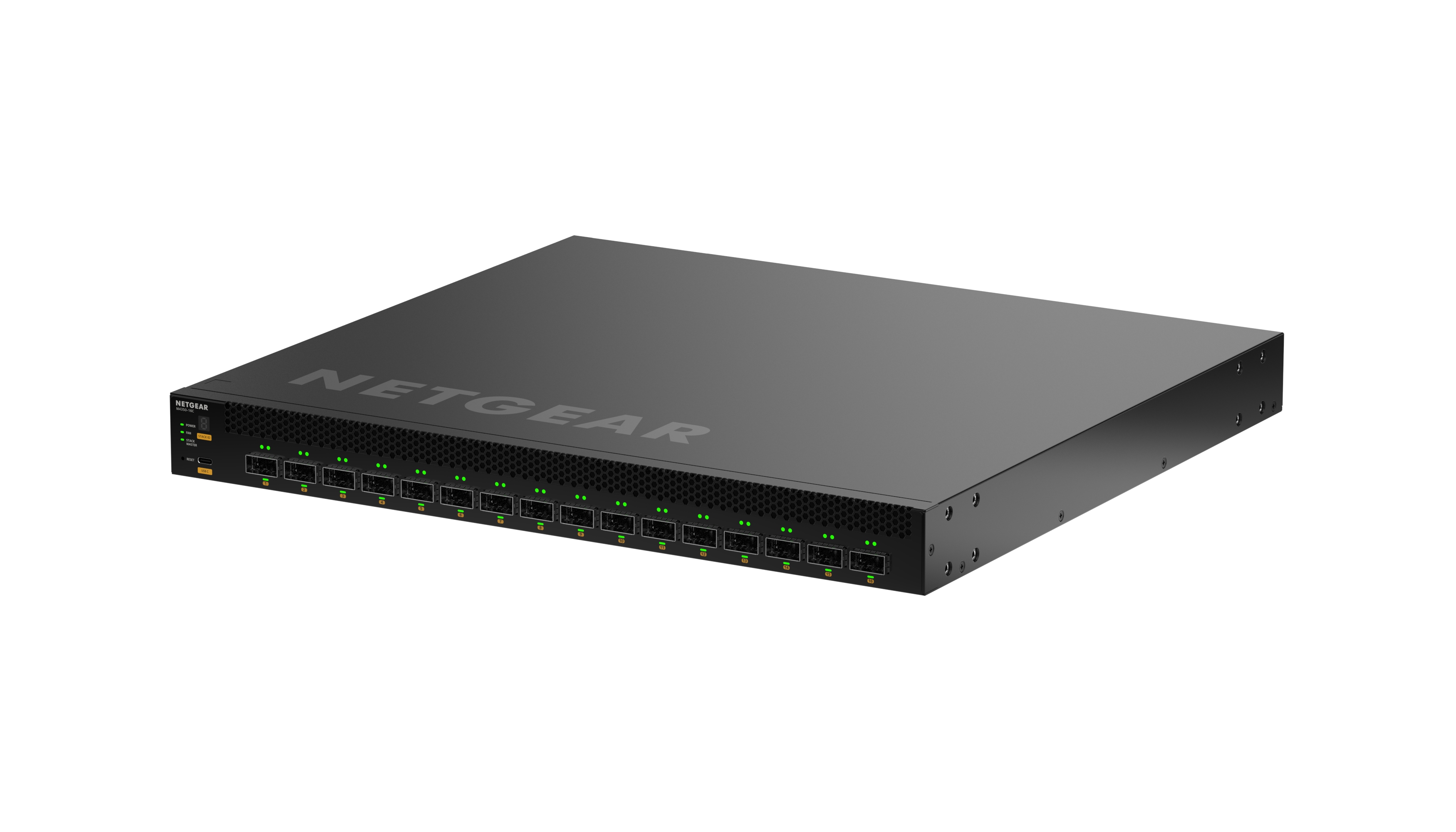

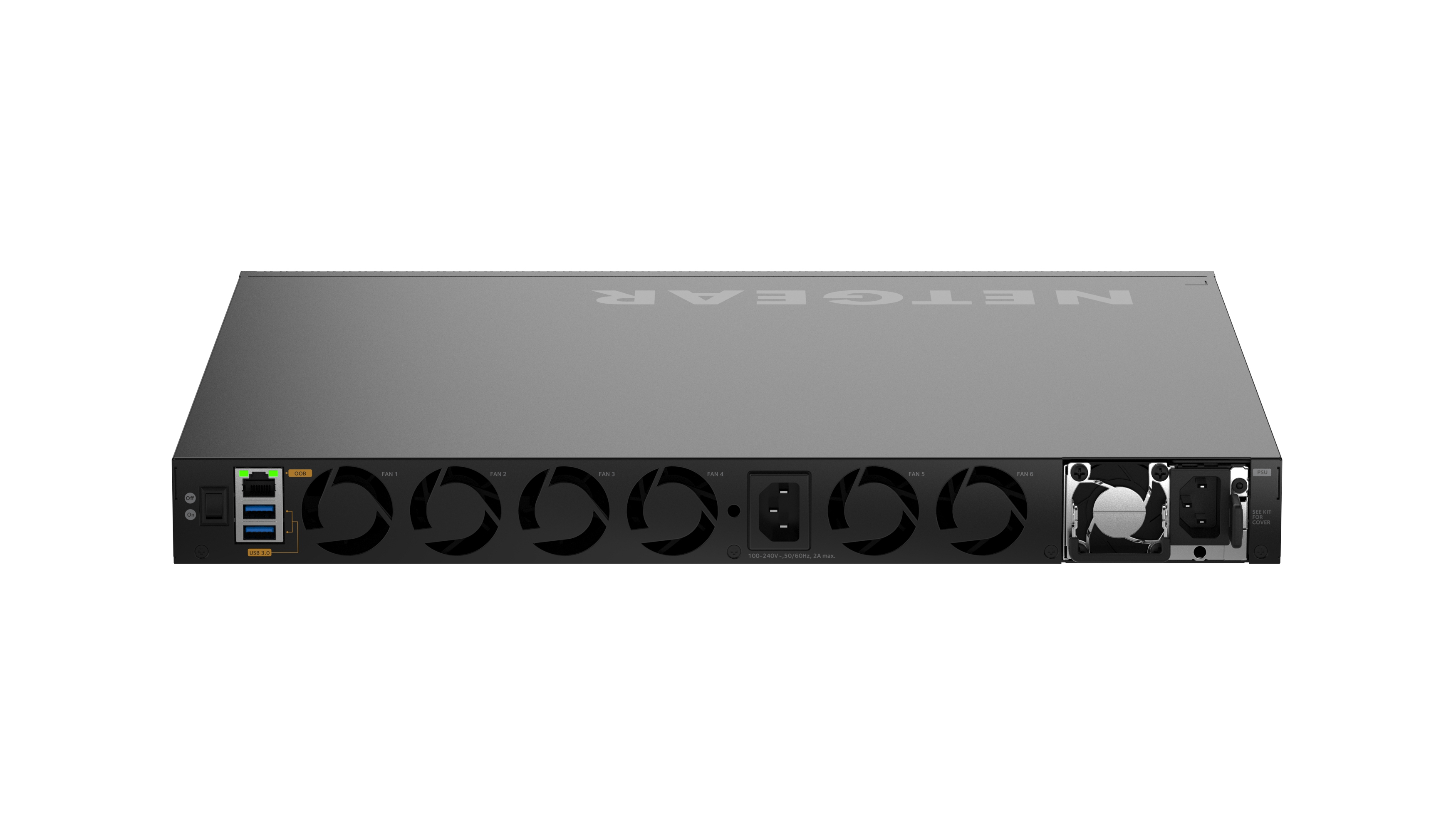

Netgear M4350-16C 16x100G Port Managed Switch w/QSFP28

About: Netgear M4350-16C 16x100G Port Managed Switch w/QSFP28

CSM4316 16x 100G QSFP28 Ports Fully Managed Switch

• 420W internal power supply
• 1 slot for modular power supply (1+1 redundancy)
• Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus, NETGEAR AV OS, and Engage Controller speed up AV installations
• SMPTE ST 2110 Grandmaster Clock and Boundary Clock support for AES67 and ST2059-2 applications
• Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS and Engage Controller

POWER AND THROUGHPUT

Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

M4350 AV OVER IP SIMPLIFIED

• Groundbreaking AV GUI: A simplified user interface makes it easy to assign configuration profiles to each port.
• Multicast in an Instant: NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
• Sleek, Quiet Design: Less fan noise, and mounting ears included for rack mounting.
• Automatic Configuration: Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

Specifications

• Primary Port Speed: 100 Gigabit
• Number of Ports: 16 (16 x 100G QSFP28)
• IGMP Support: Enhanced (NETGEAR IGMP Plus)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes, included.
• Acoustics: Quiet Mode 30.4dB@25ºC
• Power Consumption
  • Maximum: 161.9W/552.40Btu/hr
  • Standby (no port connection): 69.1W/235.43Btu/hr
• PSU Compatible Models
  • APS600Wv3A
  • APS1200Wv2
  • APS2000Wv2
• Dimensions (WxDxH): 17.32 x 15.75 x 1.7 in (440 x 400 x 43.2 mm)
• Weight: 17.7 lbs (8.03kg)

What's in the Box

• 1x M4350-16C (CSM4316)
• 1x Power cord(s)
• 1x Console USB Type-C cable
• 1x Rack-mounting standard bracket set
• 1x Set of longer brackets for recessed mounting
• 4x Rubber footpads for tabletop installation
• 1x Installation guide
