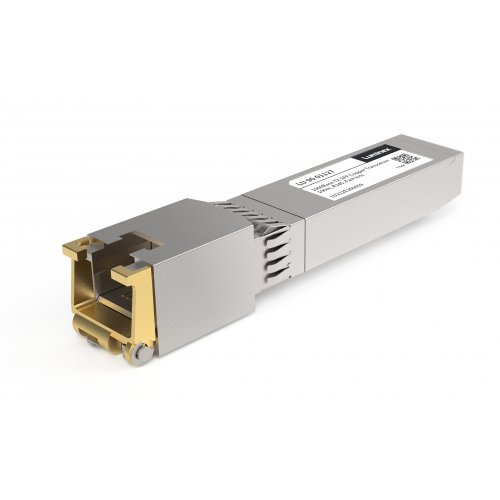

Luminex 1000Base Copper Transceiver

Model: LU9001127

Luminex 1000Base Copper Transceiver
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

Single Mode$184.50
Multi Mode$184.50
Copper$342.00


About: Luminex 1000Base Copper Transceiver

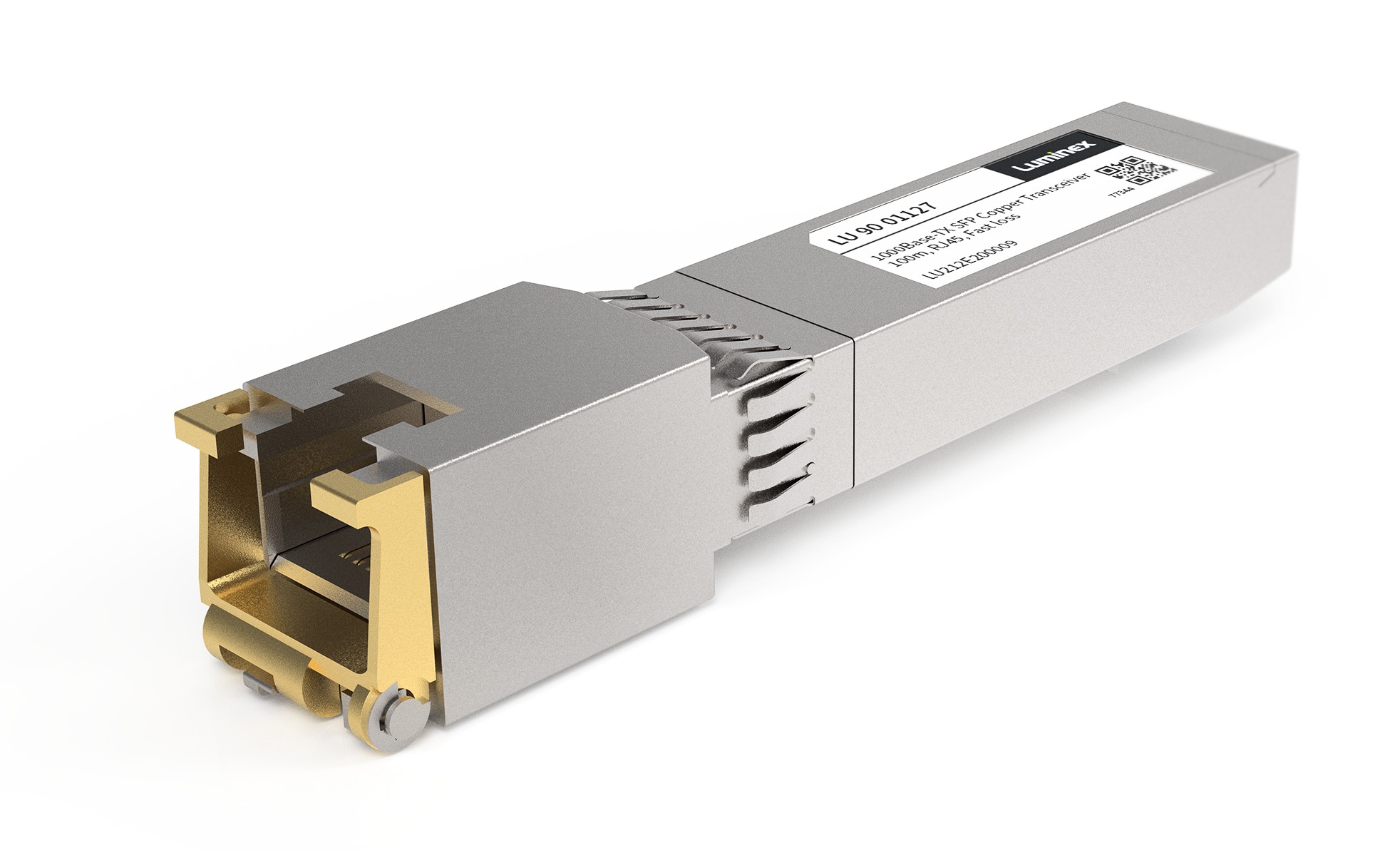

Luminex 1000Base-T SFP Copper Transceiver 100m, RJ45, Fast loss

This MSA compliant SFP transceiver provides 10/100/1000Base-T throughput to up to 100m over a copper connection with RJ45 connector. The module supports 10/100/1000 Base auto negotiation.

This easy to install and hot pluggable/swappable transceiver is built to MSA standards and is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.

Its wide temperature range ensures reliable operation in the most diverse applications.

Features

  • INF-8074 compliant
  • Copper media type
  • TAA compliant
  • RJ45 connector
  • Hot pluggable
  • Remote diagnostics with Araneo
  • Industrial temperature range

Specifications

  • ENVIRONMENTAL
    • Operating temperature -40°C to 85°C
    • Storage temperature -40°C to 85°C
    • Humidity 5-85% RH
  • CONNECTIVITY
    • RJ45 connector
  • DISTANCE SUPPORTED
    • 100m
  • DATA RATE (MAX)
    • 1000 Mb/s Full duplex, preferred master mode by default.
  • MECHANICAL
    • Compatible with MSA (SFP Multi Sourcing Agreement)
    • Housing Material -  Metal
    • Dimensions -  2.77 x 0.53 x 0.33 in (70.3 x 13.4 x 8.5 mm)
    • Weight -  24g
