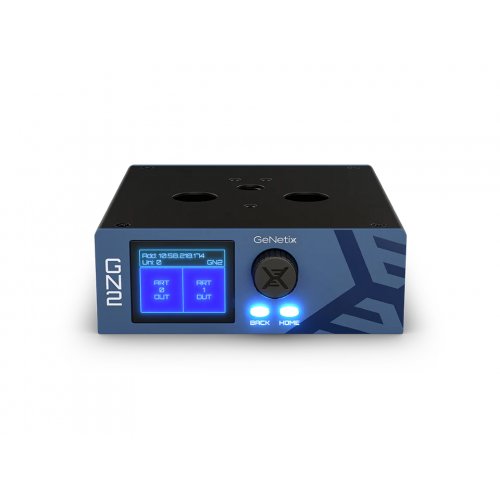

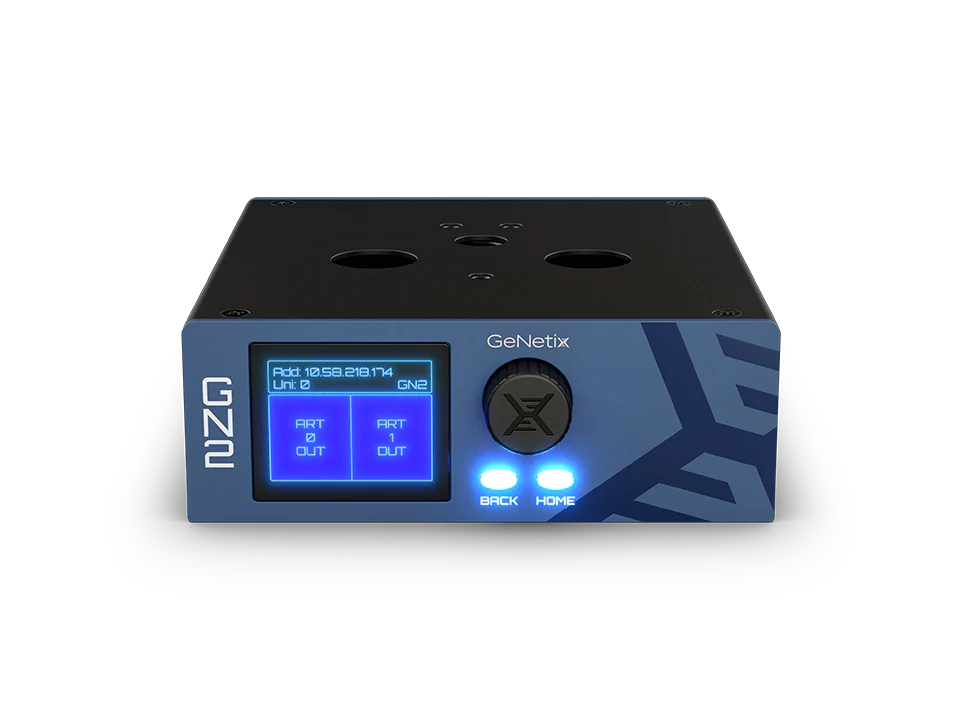

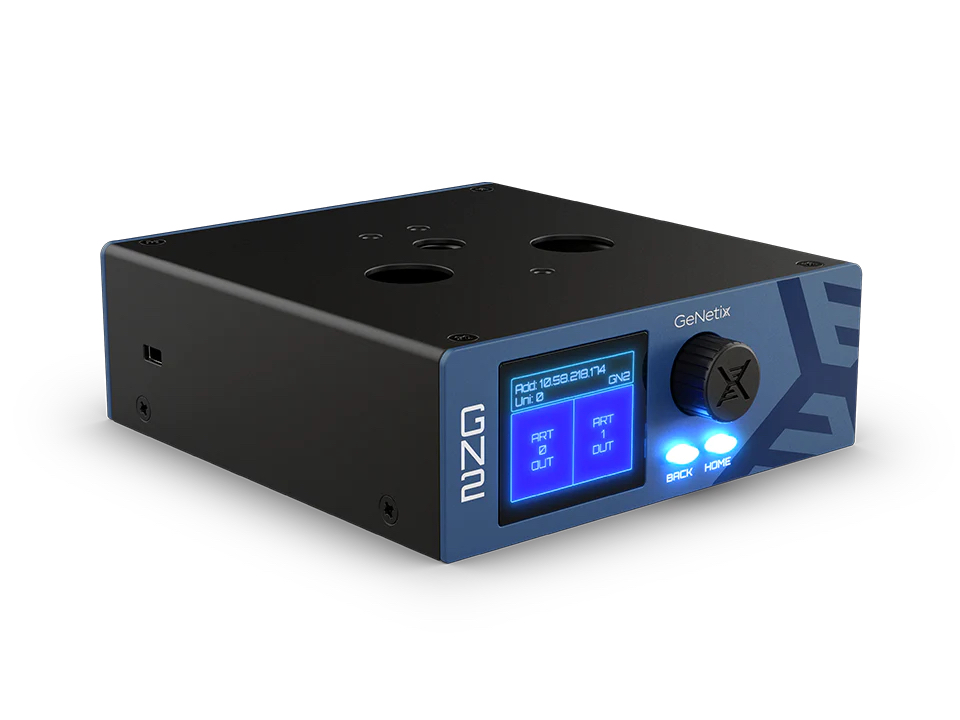

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node
Model: GENETIX-GN2
About: ChamSys GeNetix GN2 2-Port Ethernet-DMX Node
GeNetix Node 2 is a two-port Ethernet-DMX node that is compatible with any console supporting Art-Net and sACN. GeNetix Node 2 can also be used as a USB interface for MagicQ PC systems, unlocking MagicQ into reduced mode when connected via its USB-C or Network port.
Configuration is simple, whether done locally via its in-built display, remotely with its onboard web server or from the console. Powered by either PoE or its USB-C port, this versatile device is at home in many different environments as a standalone interface, truss-mounted in the rig via its M12 receiver or installed via its DIN rail mount.
GeNetix Node 2 supports Art-Net, sACN, RDM and supports both DMX input or output from its two DMX ports.
- 2 RDM DMX Ports supporting Input and Output
- Supports Art-Net & sACN
- Webserver for remote configuration
- In-built display and encoder for local configuration
- Can be USB or PoE powered
- Unlocks MagicQ PC Systems into Reduced Mode via either USB or Network
Specifications
- Hardware
- RDM Direct DMX Ports: 2
- Network Ports: 1
- PoE Input: Yes (Port 1)
- USB Ports: 1 USB-C
- Kensington Security Lock Fixing: Yes
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
- Software
- Art-Net/sACN: Yes
- ChamNet Support: Yes
- Configurable DMX Timings: Yes
- Web Server: Yes
- DMX Redundancy Support: Yes
- User Scene Store: Yes
- Dimensions (HxWxD): 1.73 x 4.92 x 5.23 inch (44 x 125 x 133 mm)
- Weight: 1.87 lb (0.85 kg)
What's Included
- 1x Neutrik powerCON TRUE1 Power Cable
- 1x DIN Rail Mount Clip
- 1x USB A-C Cable
UPC: 781462224356
