Netgear M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch

About: Netgear M4250-16XF 16x1G/10G Fiber SFP+ Managed Switch

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Powerful AV Switches Made Simple

Pre-configured to get you up and running faster

M4250 AV Over IP Simplified

• Groundbreaking AV GUI: A simplified user interface makes it easy to assign configuration profiles to each port.
• Multicast in an Instant: NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
• Sleek, Quiet Design: Less fan noise, and mounting ears included for under-table or wall mounting.
• Automatic Configuration: Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

Fast, Easy Configuration for AV Pros

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus on the Event Not Fan Noise

​Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV Over IP Right Out of the Box

With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Refined Design Provides Mounting Flexibility

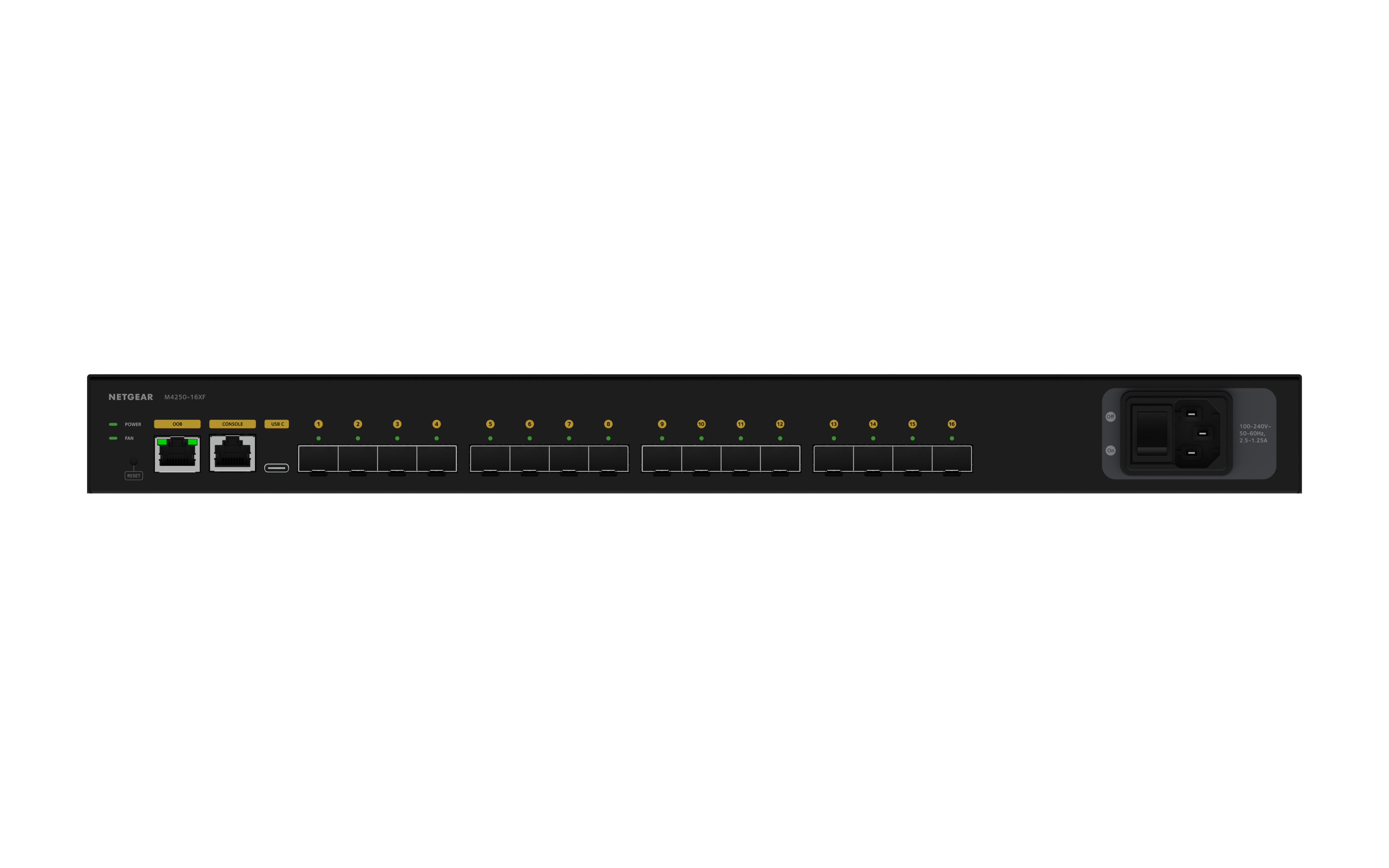

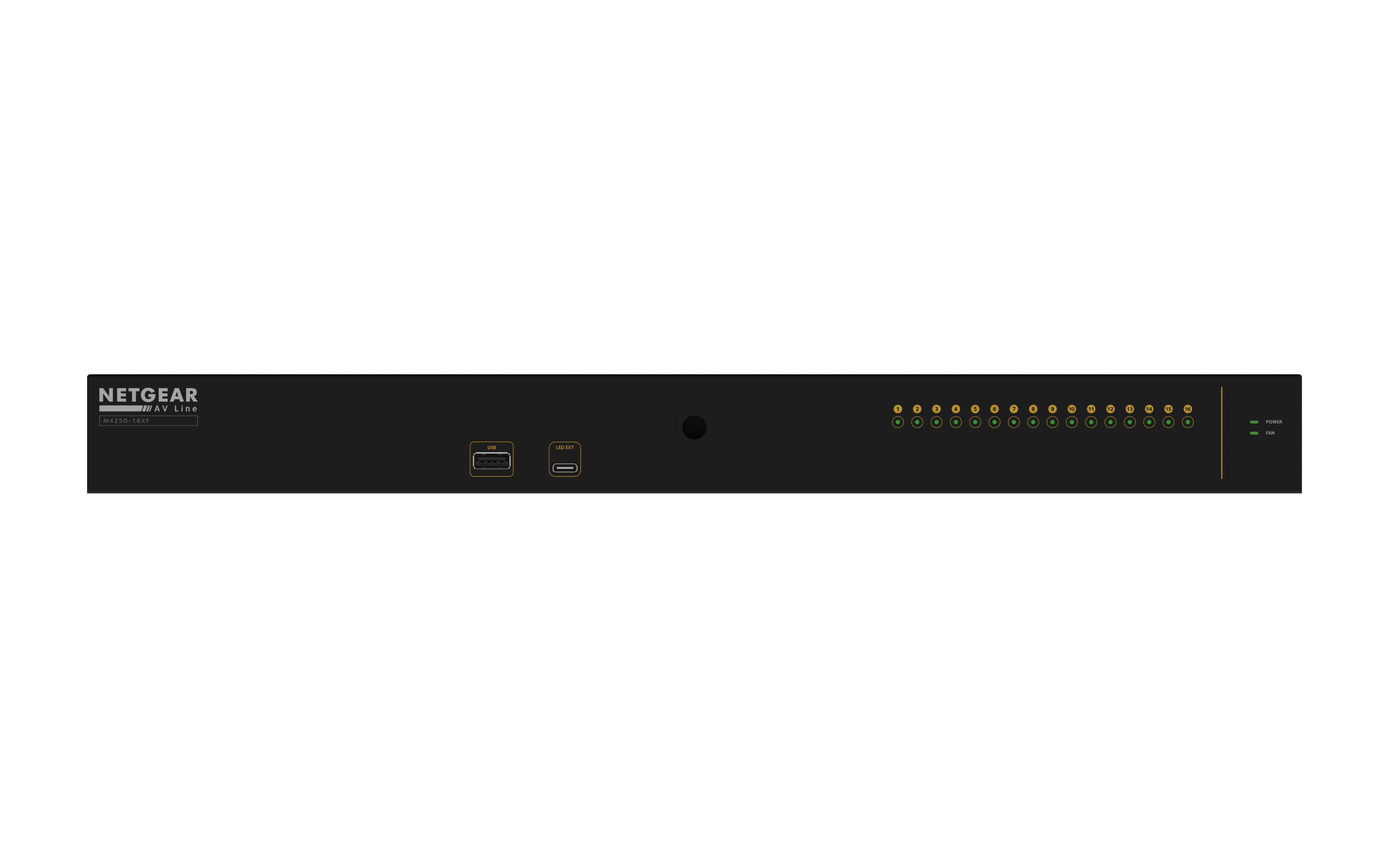

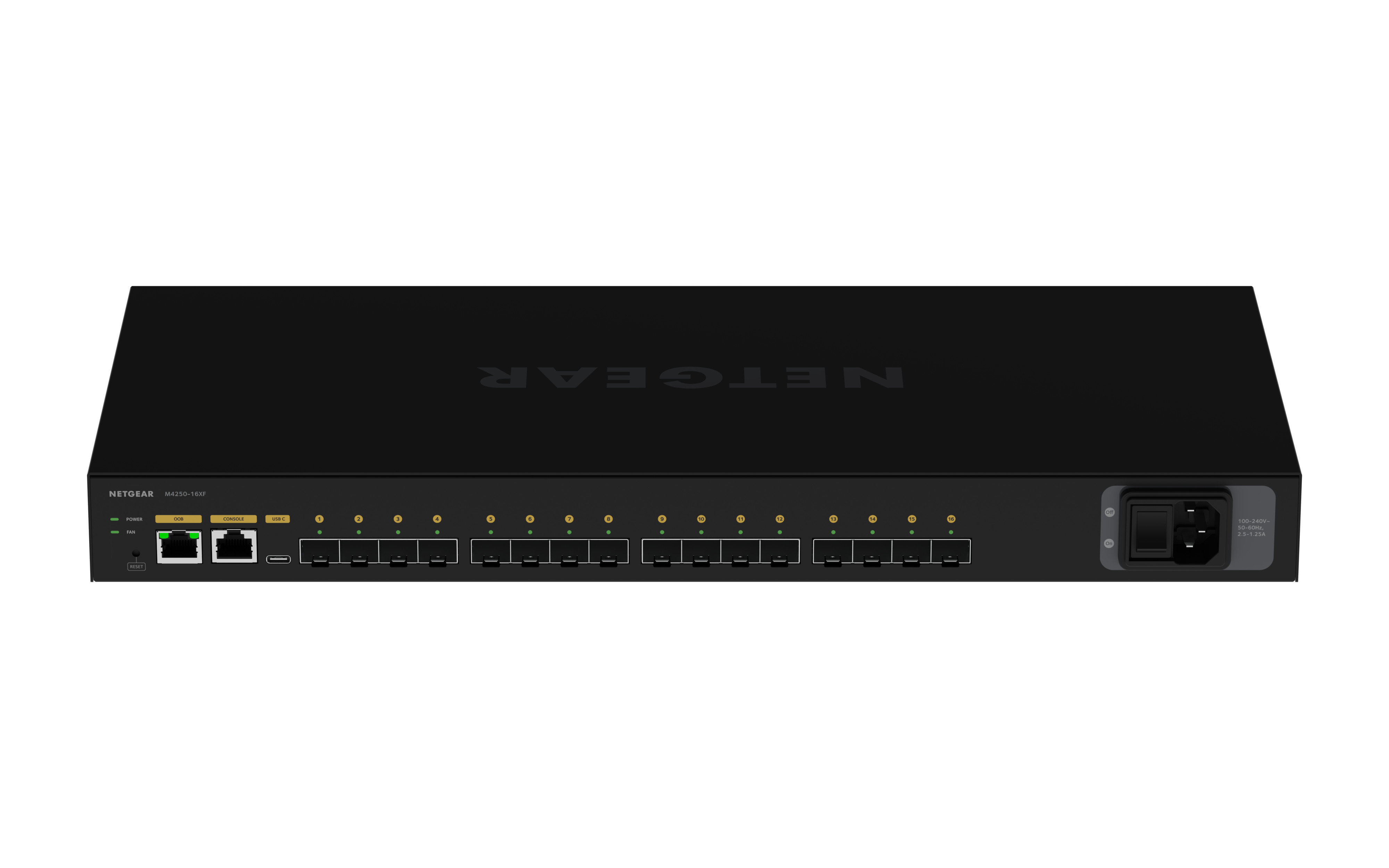

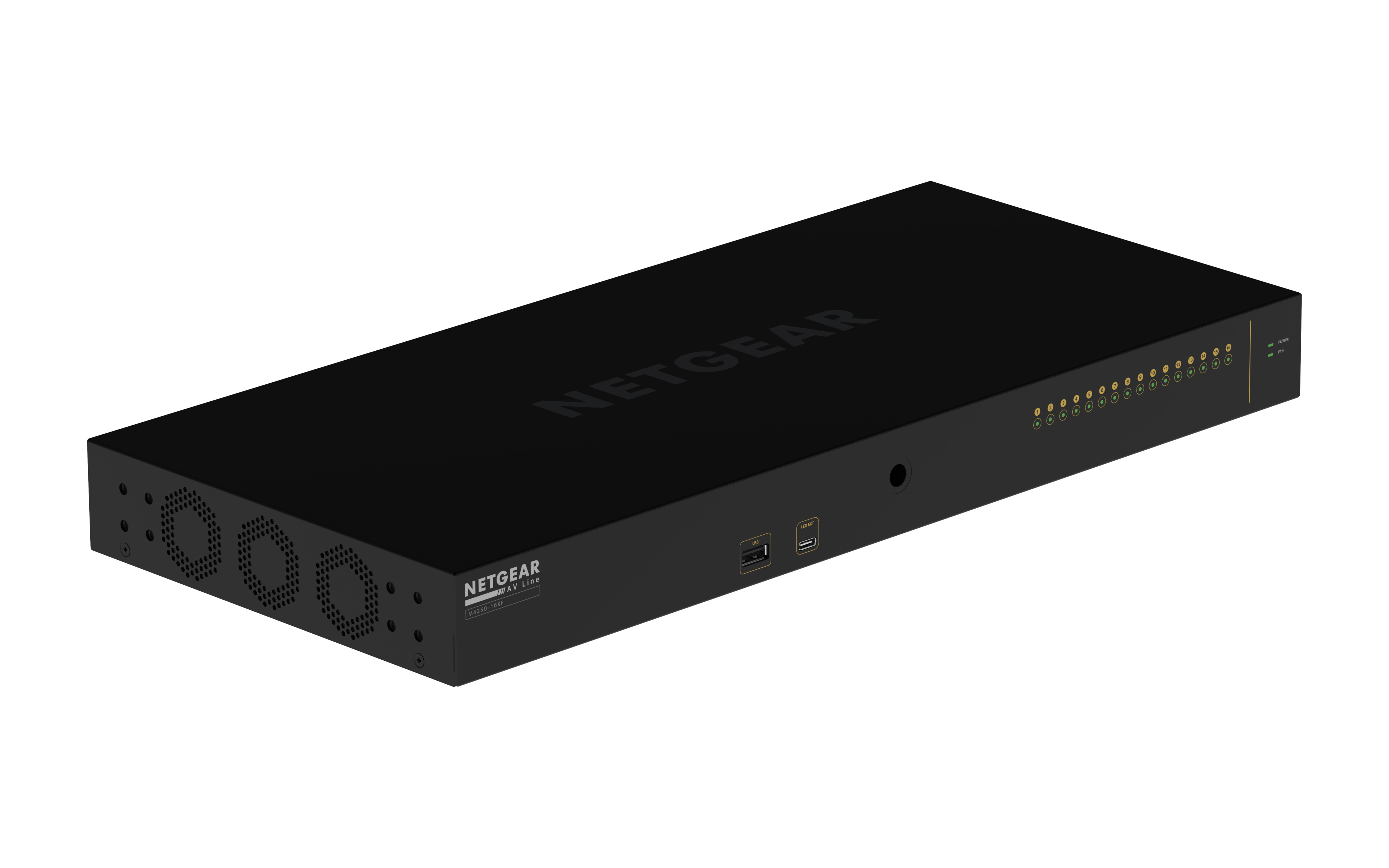

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Maximize Performance With NETGEAR Access Points

Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.

Specifications

• Primary Port Speed: 1 Gigabit
• Number of Ports: 16 (1G/10G Fiber SFP+)
• PoE Ports / Budget: None
• IGMP Support: Enhanced (NETGEAR IGMP Plus)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes. Electronic license required, activation key sent via email (AVB4216F-10000S).
• Acoustics: Fanless or 56.7dB@25ºC
• Power Consumption
  • System Full Load: 47.84W/163.33Btu/hr
  • Standby without any port connection: 19.269W/65.78Btu/hr
• Third party support: Domotz
• Dimensions (WxDxH): 17.32 x 7.87 x 1.7 inch (440 x 200 x 43.2 mm)
• Weight: 6.17lb (2.8kg)

What's in the Box

• M4250-16XF (XSM4216F)
• Power cord
• Console USB Type-C and RJ45-DB9 cables
• Rack-mounting standard brackets
• Longer brackets for recessed mounting
• Rubber footpads for tabletop installation
• Installation guide
