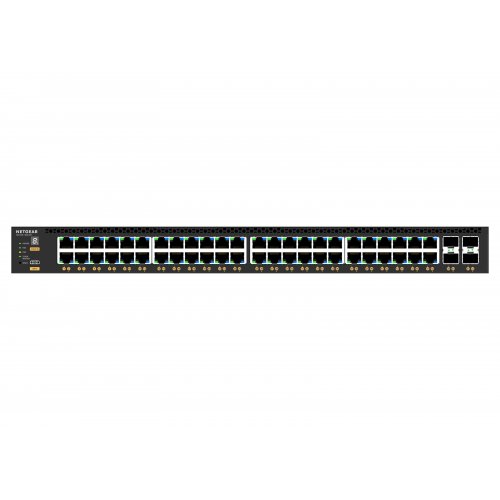

Netgear GSM4352 52 Port 1Gb PoE+ Managed AV Switch w/SFP+
Model: M4350-48G4XF
About: Netgear GSM4352 52 Port 1Gb PoE+ Managed AV Switch w/SFP+
Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
- 48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
- 550W internal power supply providing 236W of PoE budget
- 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
- Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
- The PoE budget can reach 1,440W, the redundant PoE budget can also reach 1,440W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
M4350 AV OVER IP SIMPLIFIED
- Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.
- Multicast in an Instant - NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
- Sleek, Quiet Design - Less fan noise, and mounting ears included for rack mounting.
- Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
Specifications
- Primary Port Speed - 1 Gigabit
- Number of Ports - 52 (48 x 1G PoE+, 4 x 10G SFP+)
- PoE Ports / Budget - 48 PoE+ (30W/port), 236W Base, up to 1,440W Budget
- IGMP Support - Enhanced (NETGEAR IGMP Plus)
- Jumbo Frame Support - Yes, up to 12kb
- AVB Support - Yes, included
- Acoustics - Quiet Mode 33dB@25ºC
- Power Consumption
- With PoE: 348W/1186.68Btu/ hr
- Without PoE: 99W/310.86Btu/ hr
- Standby without any port connection: 48.5W/152.29Btu/ hr
- PSU Compatible Models
- APS350Wv1
- APS600Wv2
- APS920Wv1
- APS2000Wv1
- Rack Mount - 1U
- Dimensions (WxDxH) - 17.32 x 15.75 x 1.7 inches (440 x 400 x 43.2mm)
- Weight - 15.85 lbs (7.19 kg)
What's in the Box
- 1x M4350-48G4XF (GSM4352)
- 1x Power cord
- 1x Console USB Type-C cable
- 1x Rack-mounting standard bracket set
- 1x Set of longer brackets for recessed mounting
- 4x Rubber footpads for tabletop installation
- 1x Installation guide
UPC: 606449161953
