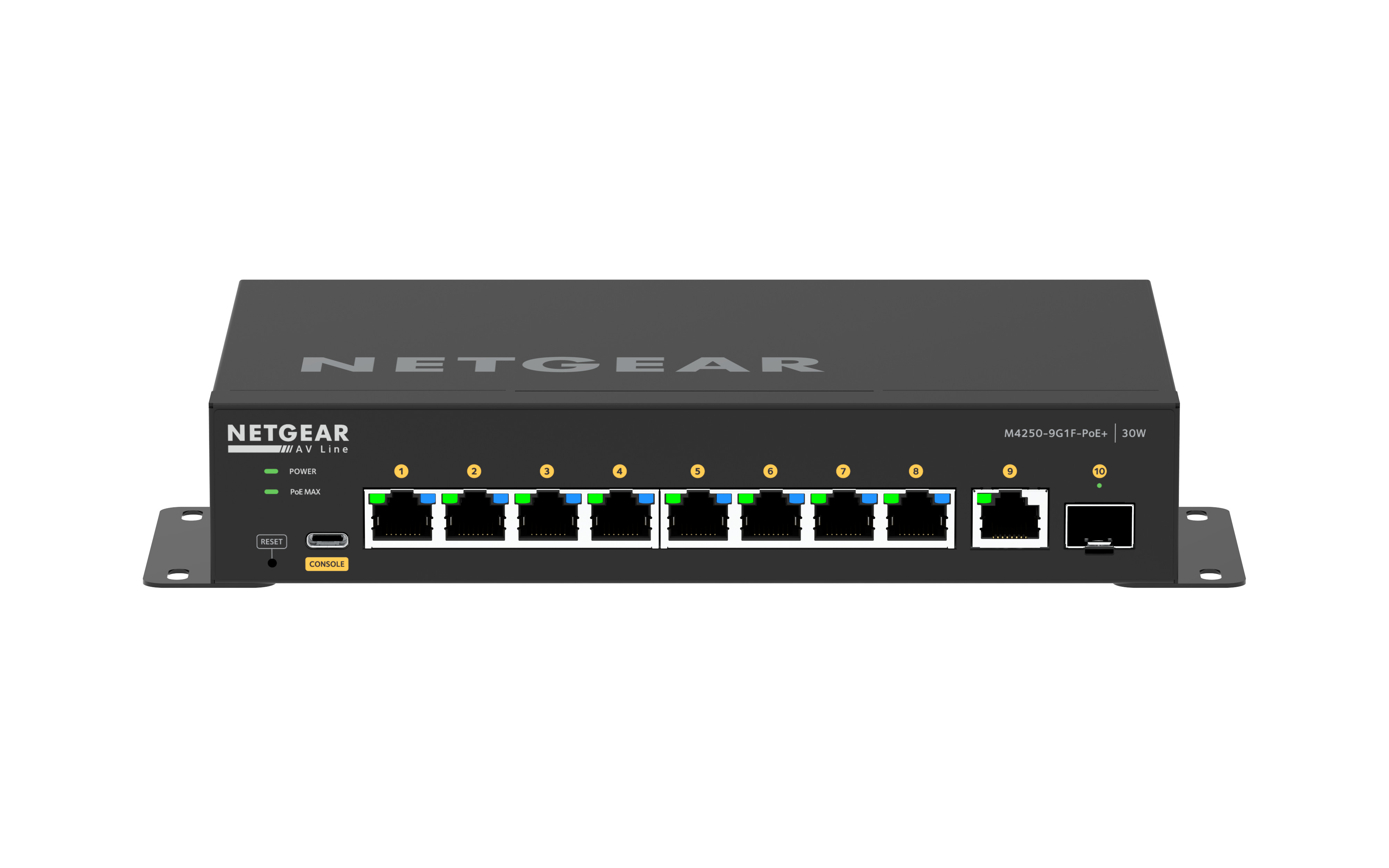

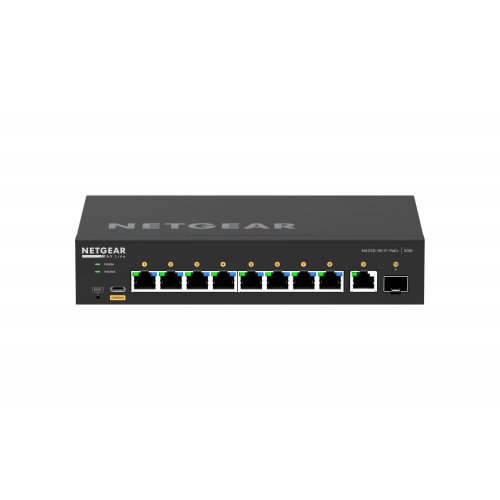

Netgear M4250-9G1F-PoE+ Managed Switch

About: Netgear M4250-9G1F-PoE+ Managed Switch

10 Ports - (8x PoE+) + (1x 1G RJ45) + (1x 1G SFP) (110W)

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

Powerful AV Switches Made Simple

Pre-configured to get you up and running faster

M4250 AV Over IP Simplified

• Groundbreaking AV GUI: A simplified user interface makes it easy to assign configuration profiles to each port.
• Multicast in an Instant: NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
• Sleek, Quiet Design: Less fan noise, and mounting ears included for under-table or wall mounting.
• Automatic Configuration: Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

Fast, Easy Configuration for AV Pros

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus on the Event Not Fan Noise

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV Over II Right Out of the Box

With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximize Performance With NETGEAR Access Points

Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.

Specifications

• Primary Port Speed: 1 Gigabit
• Number of Ports: 10 (8x 1G PoE+, 1x 1G, 1x SFP)
• PoE Ports / Budget: 8 PoE+ (30W/port), 110W Budget
• IGMP Support: Enhanced (NETGEAR IGMP Plus)
• Jumbo Frame Support: Yes, up to 12kb
• AVB Support: Yes. Electronic license required, activation key sent via email (AVB4210PD-10000S)
• Acoustics: Fanless
• Power Consumption
• With PoE: 132.25W/451.5Btu/hr​
• Without PoE: 9.88W/33.73Btu/hr​
• Standby without any port connection: 6.4W/22.02Btu/hr
• Third party support: Domotz
• Dimensions (WxDxH): 8.27 x 5.51 x 1.58 inch (210 x 140 x 40 mm)
• Weight: 2.13lb (965g)

What's in the Box

• M4250-9G1F-PoE+ (GSM4210PD)
• Power Adapter
• Console USB Type-C cable
• Flat brackets for desktop or wall mounting
• Rubber footpads for tabletop installation
• Installation guide
