ChamSys GeNetix GW2O 2-Port Wall Mount PoE Powered Node - DMX Out
Model: GENETIX-GW2OUT
About: ChamSys GeNetix GW2O 2-Port Wall Mount PoE Powered Node - DMX Out

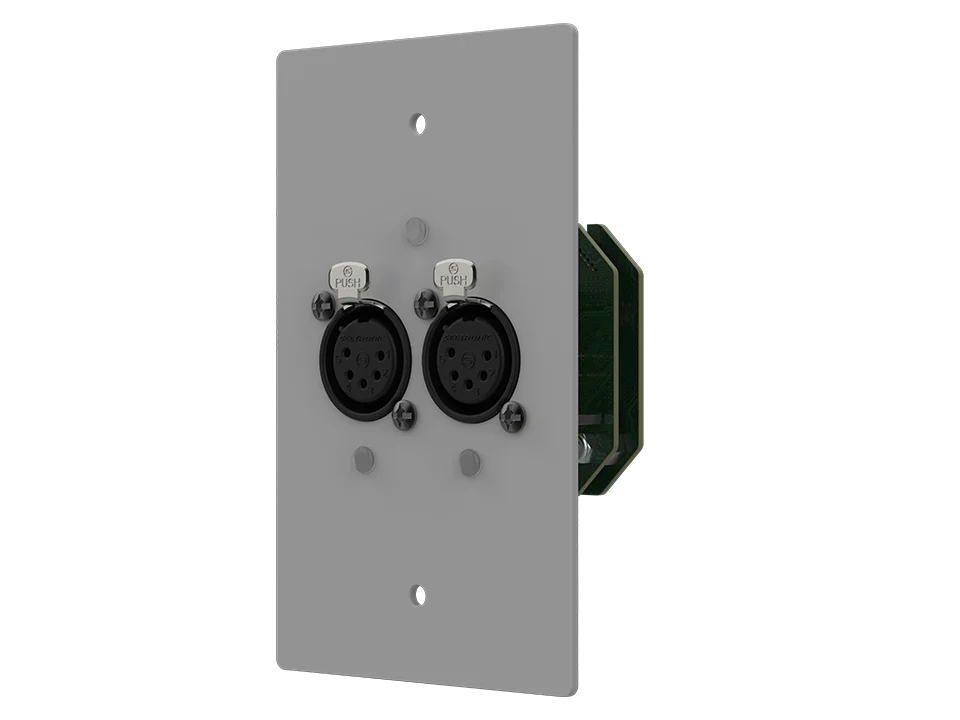

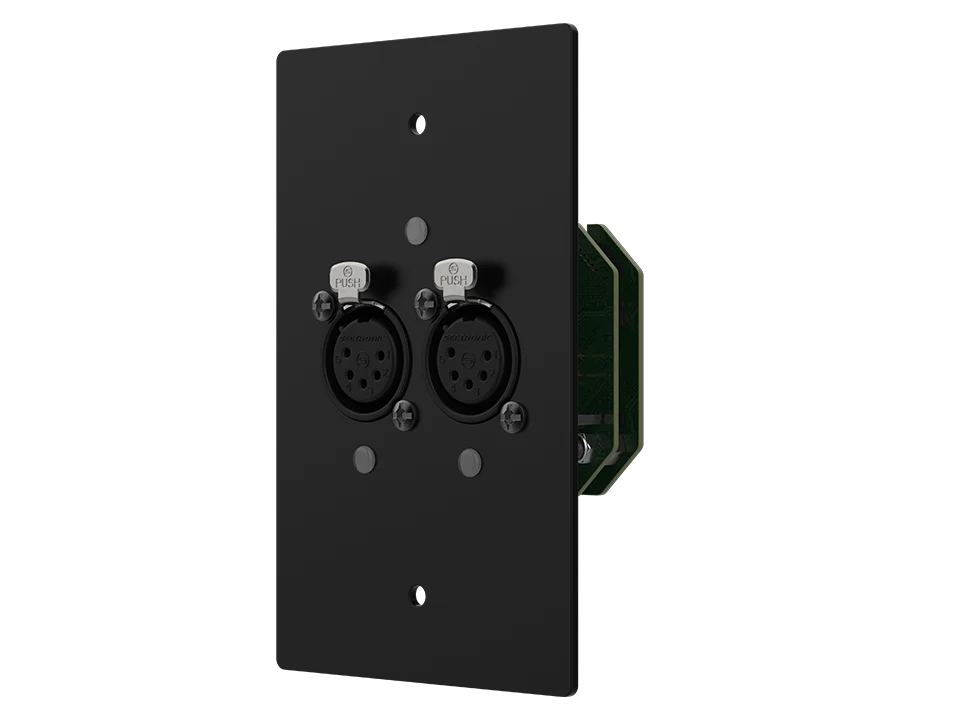

GeNetix Wall Mount Node 2 is a two-port wall mount PoE powered node, available to fit into standard single gang EU/US & UK backboxes. Available with either male or female physical RDM Direct DMX ports, both versions support both DMX Input or Output. GeNetix Wall Mount Node 2 is ideal for any fixed installation, supporting Art-Net and sACN and configurable from ChamSys consoles, via its in-built web server or over Art-Net.
- 2 RDM DMX Ports supporting Input and Output
- Available with either Male or Female DMX Ports
- Supports Art-Net & sACN
- Webserver for remote configuration
- PoE Powered
- Supplied with interchangeable Black or White faceplates
- Available to fit US,UK,EU Standard Single Gang Back Box fit
- Does not unlock ‘demo mode’ on MagicQ PC Systems
Specifications
- Hardware
RDM Direct DMX Ports: 2
Network Ports: 1 (punchdown connector)
PoE Powered: Yes
Available in variants to fit U.K., E.U. & U.S.A single gang box boxes.
Available with either Male or Female DMX Ports
Supplied with interchangeable Black or White faceplates
- Software
Art-Net/sACN: Yes
ChamNet Support: Yes
Configurable DMX Timings: Yes
Web Server: Yes
DMX Redundancy Support: Yes
Unlock's ‘demo mode’ MagicQ PC Systems: No
- Dimensions (HxWxD): 4.53 x 2.76 x 1.48 inch (115 x 70 x 37.5 mm)
- Weight: 0.33 lb (0.15 kg)
What's Included
- Black and White Face Plates
UPC: 781462222871
Reviews: ChamSys GeNetix GW2O 2-Port Wall Mount PoE Powered Node - DMX Out
Warranty: ChamSys GeNetix GW2O 2-Port Wall Mount PoE Powered Node - DMX Out
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
24 months for DMX-controllable lighting fixtures, video displays and DMX-512 controllers;
12 months for non-DMX lighting fixtures, trussing products, VIP gear bags, fog/haze machines and non-programmable controllers;
6 months for laser diodes and batteries
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
