ChamSys MagicQ MQ70 Compact Console

Model: MQ70

ChamSys MagicQ MQ70 Compact Console
ChamSys MagicQ MQ70 Compact Console
ChamSys MagicQ MQ70 Compact Console
ChamSys MagicQ MQ70 Compact Console
  • Free Shipping!
  •  Special Order: Contact us for Lead Time
  • Not yet reviewed

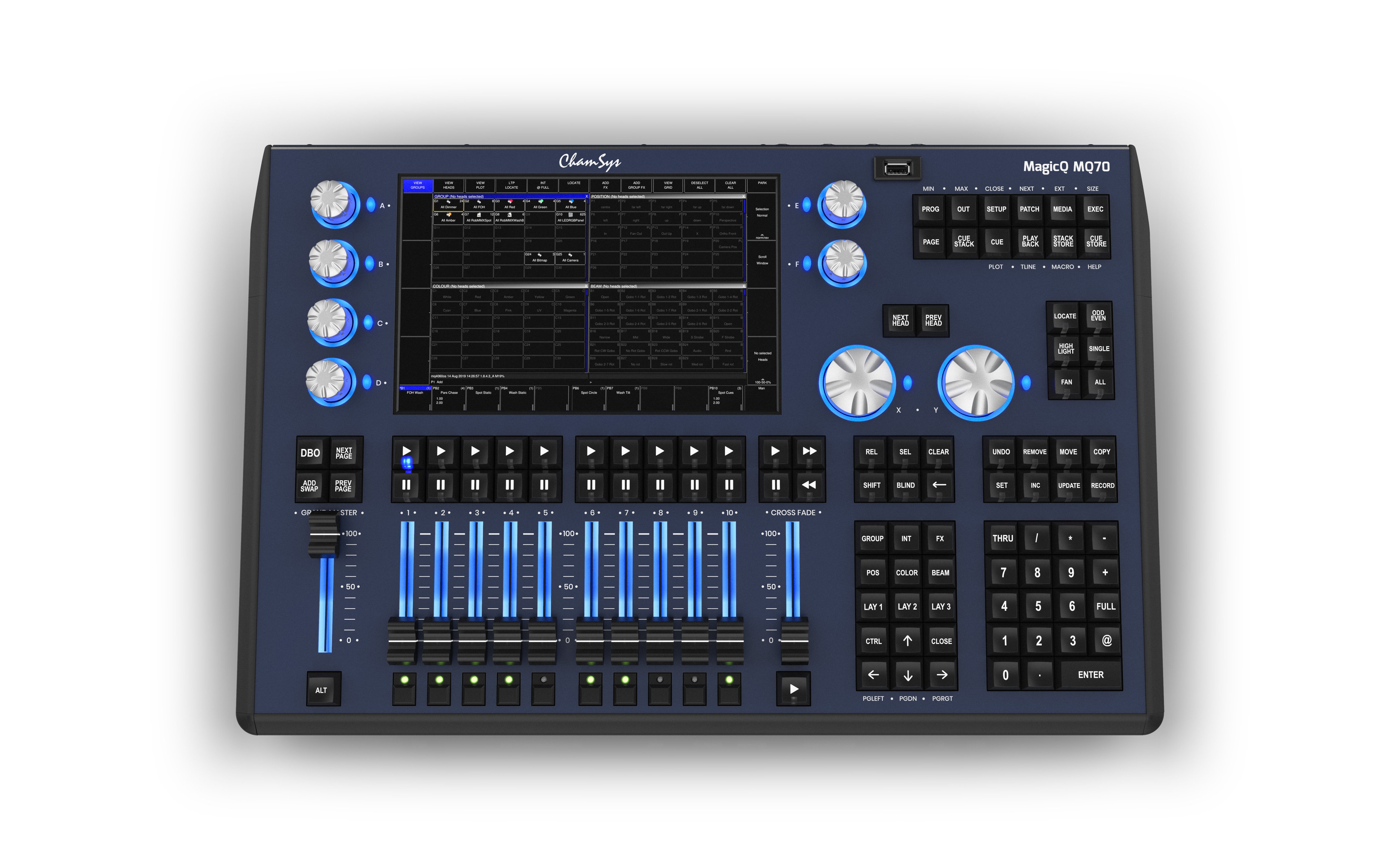

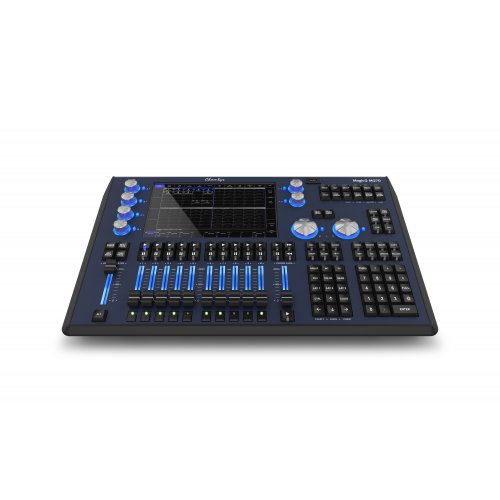

About: ChamSys MagicQ MQ70 Compact Console

MagicQ MQ70 is the latest offering in the Compact Console range of small and lightweight consoles that you can fly with. The MagicQ MQ70 fits within hand luggage carry on restrictions of all the major budget airlines including, Southwest, Easyjet and Ryanair. The console features a 10.1” Multi touch display, with illuminated encoder and fader tracks.

The console supports 24 universes with an option to expand to 48. The console has 3 network ports enabling ArtNet and sACN direct from the console, whilst also having 4 assignable physical DMX ports supporting RDM. This feature packed console also includes WIFI inbuilt to the console for quick connection to ChamSys MagicQ Remote focus application without the need for external networking hardware.

The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan - enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.

With built in MIDI input and output, LTC and audio input for synchronization, the MagicQ MQ70 provides many options for integration with show control and audio systems.

The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).

  • 24 Universes direct from the console, expanable to 48
  • Fits as carry on luggage for all major budget airlines
  • High Resolution 10.1" multi touch display
  • In built WiFi for quick connection to MagicQ Remote App
  • UPS inbuilt to the console
  • RDM Support via direct DMX Ports and Network
  • Silent Operation, ideal for theatres

Specifications:

  • Universes supported: 24 *expandable to 48
  • Channels: 12288 *expandable to 24576
  • Number of fixtures: Up to 12288 *expandable to 24576
  • Cues: 5000
  • Groups: 5000
  • Display: 10.1”
  • Console Display: 10" Multi touch display
  • External Monitor: HDMI - supports touch screens
  • DMX 5-Pin XLR: 4
  • RDM Support: Yes
  • Faders: 12
  • Attribute encoders: 8
  • Network ports: 3
  • Inbuilt WIFI: Yes
  • USB ports: 5
  • Audio in: Yes
  • Audio out: Yes
  • MIDI: Notes, TC, Show Control
  • LTC in: Yes
  • Remote input port: Yes
  • Illuminated faders: Yes
  • Illuminated encoders: Yes
  • Wing Support: Yes
  • Multi console: Yes
  • 1 Dual Colour Dimmable LED
  • Console Lamp
  • UPS: Yes
  • Width: 525mm (20.6”)
  • Depth: 350mm (13.7”)
  • Height: 60mm (2.3”)
  • Weight: 7kg (15.4lb)

Videos: ChamSys MagicQ MQ70 Compact Console

Reviews: ChamSys MagicQ MQ70 Compact Console

There are currently no product reviews.


Warranty: ChamSys MagicQ MQ70 Compact Console

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

24 months for DMX-controllable lighting fixtures, video displays and DMX-512 controllers;
12 months for non-DMX lighting fixtures, trussing products, VIP gear bags, fog/haze machines and non-programmable controllers;
6 months for laser diodes and batteries
