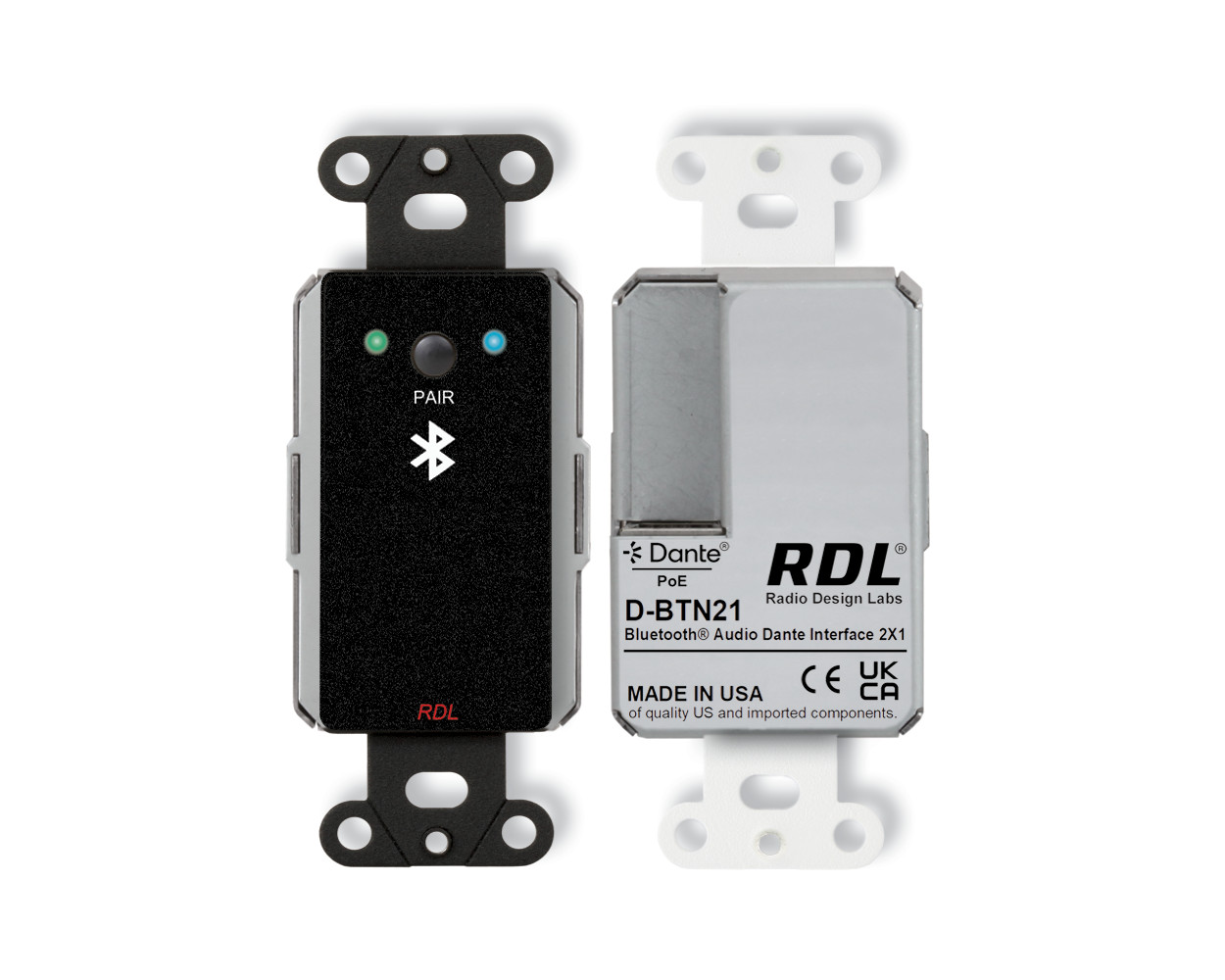

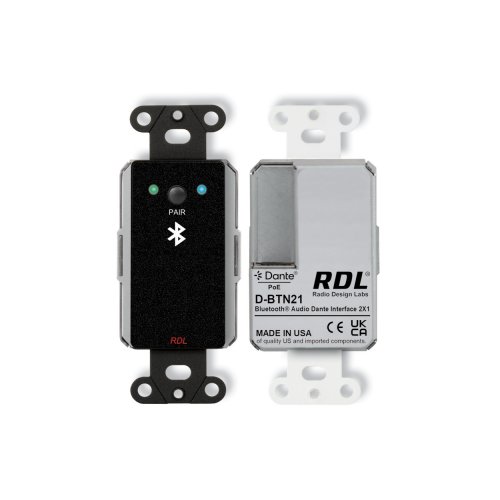

RDL BTN21 Bluetooth Audio Dante Network Interface - Black

Model: RDL DB-BTN21

RDL BTN21 Bluetooth Audio Dante Network Interface - Black
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

White$539.00
Stainless Steel$539.00
Black$539.00


About: RDL BTN21 Bluetooth Audio Dante Network Interface - Black

The D-SERIES BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio. The modules are configurable using RDL CONSOLE software and are controllable by compatible remote controls or software. The module multicasts Bluetooth media data and module function status for use with RDL CONSOLE software, compatible RDL remote controls and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.

  • Bluetooth Audio Input for Dante or AES67 Networked System
  • Bluetooth Stereo or Mono Sum Feeds Two Network Channels
  • Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
  • Intuitive Single Button Bluetooth Pairing with LED Status Indication
  • Bluetooth Functions are Controllable in RDL CONSOLE Software
  • Bluetooth Functions are Controllable using Compatible RDL Remote Controls
  • Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
  • Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
  • Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
  • Module is PoE Powered

Compatible RDL remote controls may be configured to control from one to eight D-SERIES BTN21 modules. Controllable Bluetooth functions include pairing or un-pairing, media source track selection (play, pause, next track, last track) and level adjustment from the originating Bluetooth device. Remote controls equipped with a screen may display the track title and artist.

The installer can customize the module Bluetooth name using RDL CONSOLE software. Additional settings include the LED dim intensity and the timeout to dim the LEDs. The default timeout is 30 seconds.

The BTN21 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The BTN21 is PoE powered and is available in multiple finishes with optional customized graphics.

High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.

Specifications

  • Typical Performance
    • Network Connector: RJ45 with Link and Speed indicators
    • Digital Audio Ethernet Protocol: Dante or AES67
    • Transmission Rate: 100 Mbps
    • Sample Rates Supported: 48 kHz
    • Bit Depth Supported: 24 bits
    • Audio Operating Levels
      • -20 dBFS = +4 dBu (balanced);
      • -20 dBFS = -10 dBV (unbalanced), nominal
  • Common
    • Indicators (Front Panel): Bluetooth, Network Sync
    • Power Connection: PoE (RJ45)
    • Ambient Operating Environment: 0° C to 40° C
    • Power Requirement: PoE
    • PoE: Class 0, IEEE 802.3af
    • Dimensions (WxHxD): 1.71 x 4.11 x 2.09 in (4.34 x 10.44 x 5.31cm)
    • Weight: 0.367 lbs.

Videos: RDL BTN21 Bluetooth Audio Dante Network Interface - Black

Reviews: RDL BTN21 Bluetooth Audio Dante Network Interface - Black

There are currently no product reviews.


Warranty: RDL BTN21 Bluetooth Audio Dante Network Interface - Black

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
