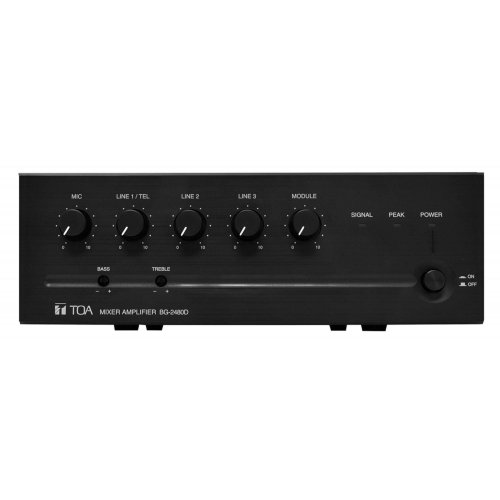

TOA BG-2480D-AM 480W Mixer Amplifier

About: TOA BG-2480D-AM 480W Mixer Amplifier

The BG-2480D is a powerful 480W 5 input mixer amplifier; designed for background music and general announcements. Its lightweight and compact case and high efficiency amplifier output make it a desirable addition to a new or upgraded system. The Amplifier output is 480W @ 4ohm. 70V and 100V. RCA jacks provide for Line 2 and 3 inputs for quick connection. The BG-2480 is an enhances the already dominant BG series of amplifiers.

• Lightweight and compact digital amplifier with high-efficiency amplifier output. Amplifier output: 480W @ 4Ω, 70V, 100V.
• Automatic or manual mute function.
• Easy DIP switch settings;
  • MOH (secondary) output assignment for each input
  • Mute setting
  • LINE 1/TEL level setting
  • Phantom power ON/OFF setting

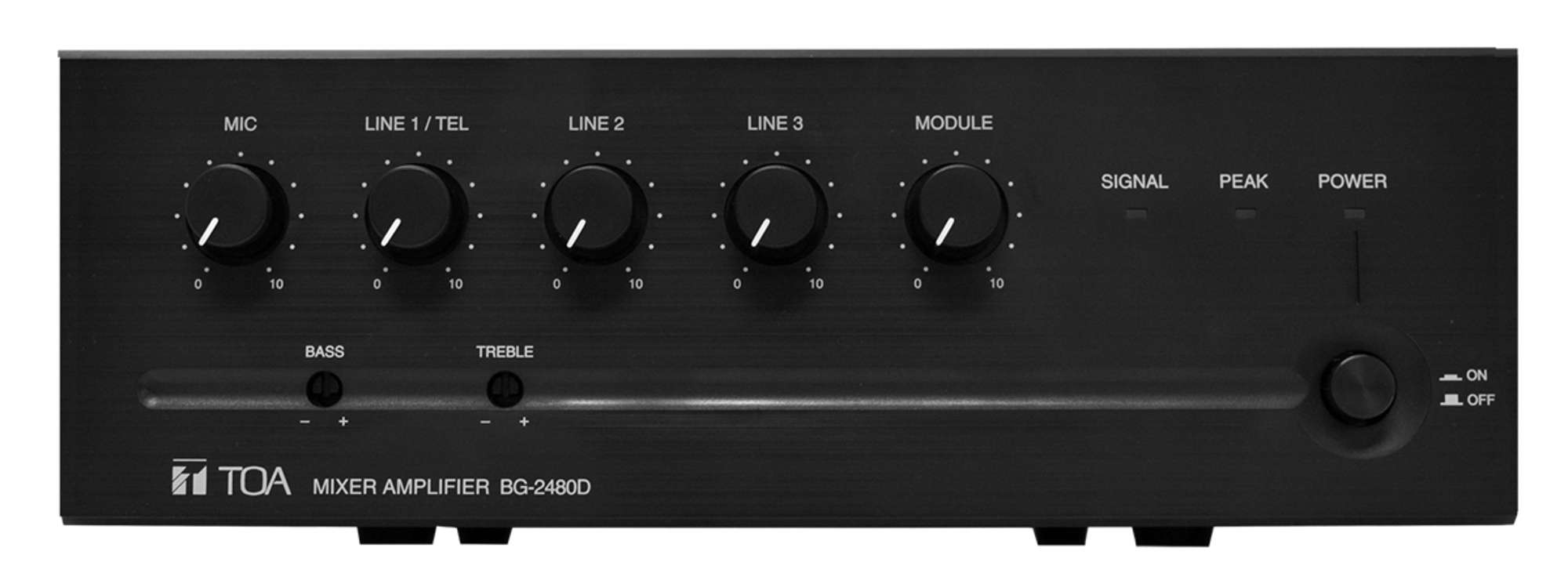

• Bass and treble equalization controls on the front panel.

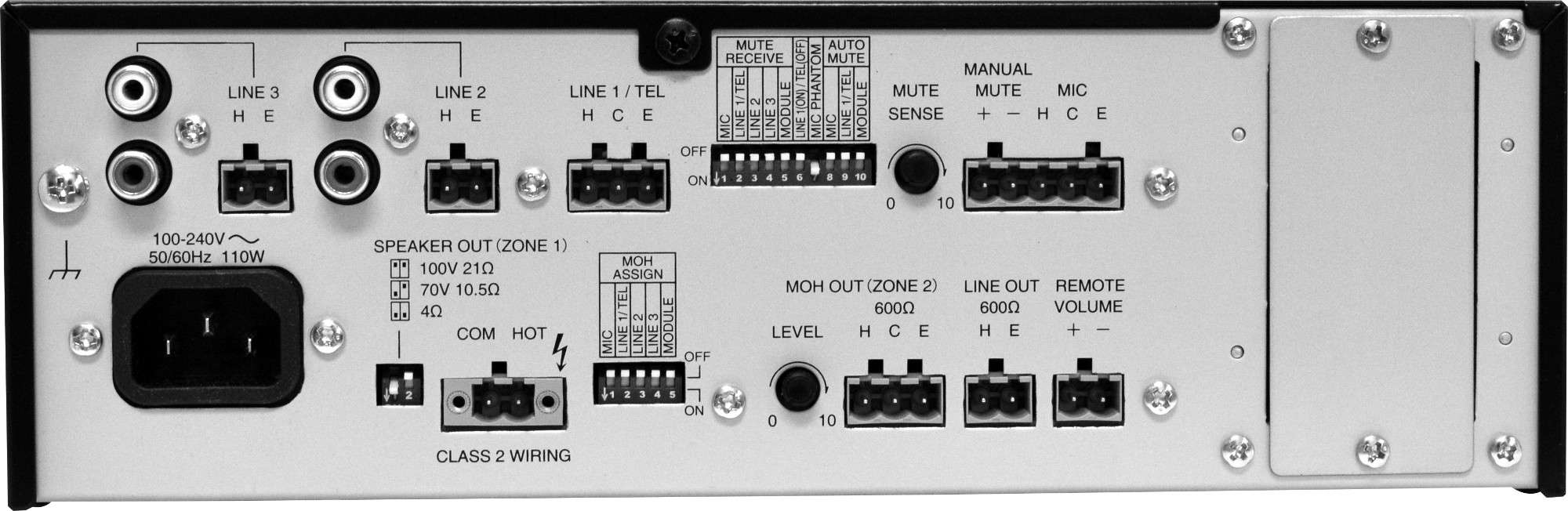

• Removable input/output terminal blocks for easy wiring.
• RCA jacks provided for Line 2 and 3 inputs for quick connection.
• External remote volume control input for localized volume adjustments
• Accessory security covers for front volume control knobs to prevent accidental adjustment

Specifications:

• Power Source 100-240V AC, 50/60Hz
• Rated Output 480W
• Power Consumption 600W (rated output), 110W(based on UL 60065 standards)
• Frequency Response 50Hz- 20kHz(LINE)
• Total Harmonic Distortion 0.8% or less at 1kHz, 1/3 rated output
• Input Mic: -60dB*, 600Ω, electronically balanced, removable terminal block
• Output Speaker: Lo-z(4Ω), 70V(10.5Ω),100V(21Ω), balanced, removable terminal block MOH: 0dB*, 600Ω, balanced, removable terminal block
• Output Regulation 2dB or less, no load to full load (1 kHz)
• Tone Control Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
• Signal to Noise Ratio Mic: Over 60dB , Line 1/ TEL, Line 2, 3, Module: Over 80dB ( A-Weighted);(Tone Controls: Centered )
• Phantom Power On/Off switch for Mic, +24V DC
• Muting Manual mute/Automatic mute
• Control Mic gain control, Line 1/ TEL gain control, Line 2 gain control, Line 3 gain control Module gain control, Bass tone control, Treble tone control, MOH out gain control Mute control (Manual mute), Remote volume control, Mute sensitivity control Line 1/ TEL selector switch, Phantom power switch (Mic)
• Indicator Power LED, Signal level LED, Peak LED
• Cool method Fan cool
• Other Feature Automatic electronic drive limiter
• Operating Temperature 0°C to 40°C (32°F to 104°F)
• Operating Humidity 35% to 80%RH (no condensation)
• Finish Panel: ABS resin, black Case: Steel plate, black, paint
• Dimensions 264(W) X 94.3(H) X 267.3(D) mm (10.39” X 3.71”X 10.52”)
• Weight 3.5kg (7.7 lb)
• Included Accessories Volume control cover: YA-920...5, Removable terminal plug (2 pins)...4 Removable terminal plug (3 pins)...2, Removable terminal plug (screw 2 pins)...1 Removable terminal plug (5 pins)...1
• Optional Accessories Rack mounting bracket: MB-1000
