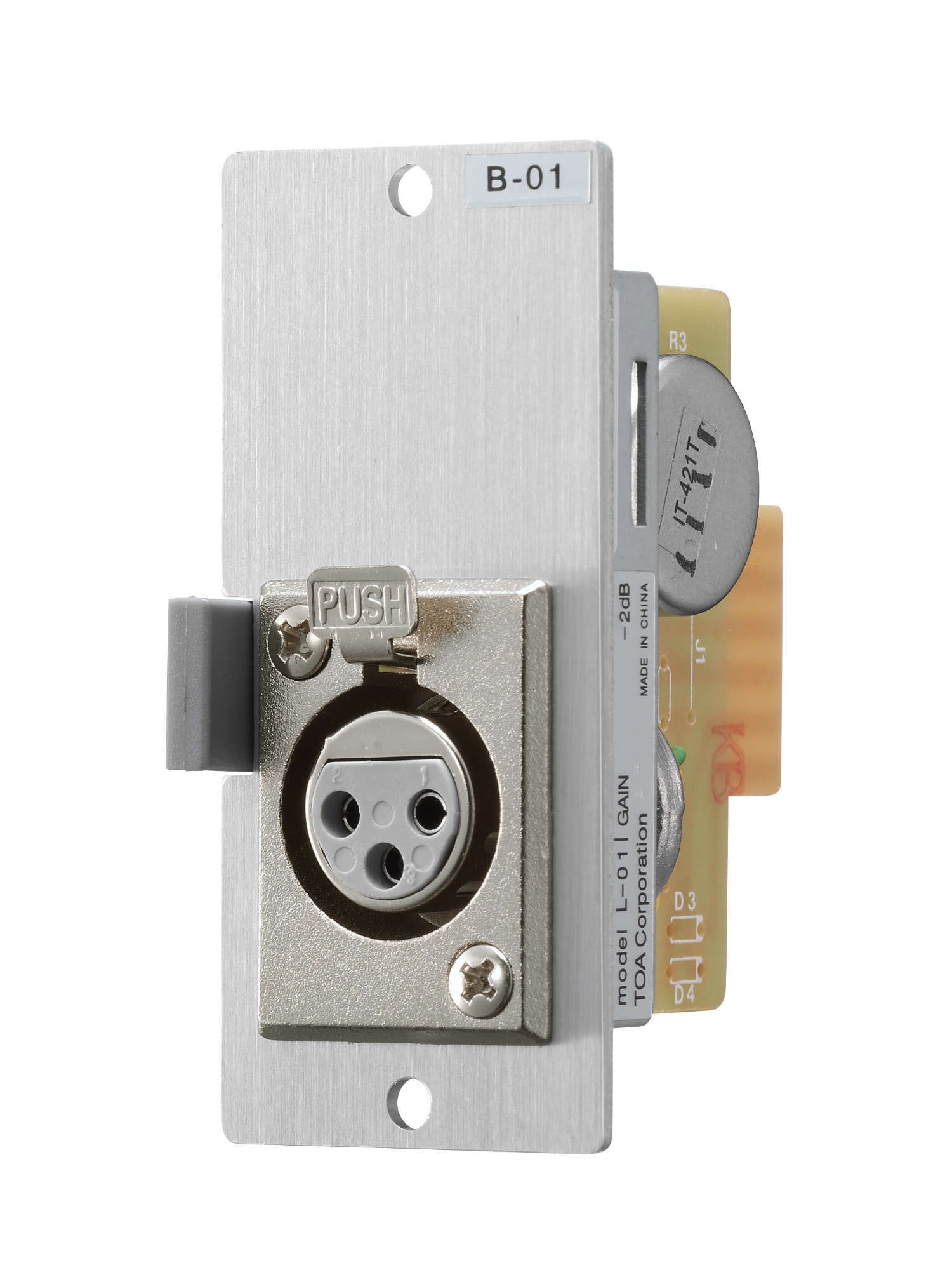

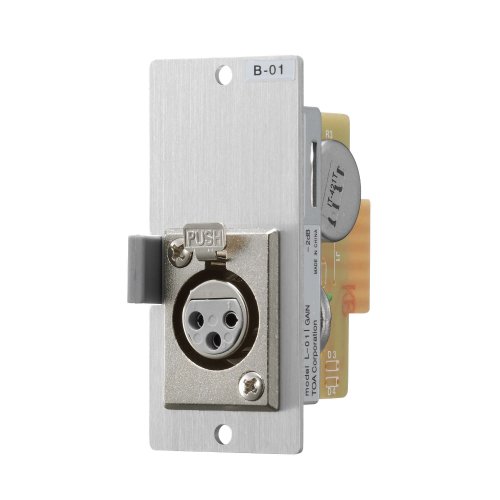

TOA B-01F Balanced Line Input Module
Model: B-01F
About: TOA B-01F Balanced Line Input Module
The B-01F is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced line input with female XLR type connector.
- For balanced or unbalanced line level sources such as mixer outputs, signal processors and wireless microphone receivers
- Transformer isolation (10kΩ)
- Connector: female XLR
Specifications:
- Input Sensitivity -18 dB* (Rated output: -20 dB*)
- Input Impedance 10 kΩ, balanced transformer-isolated
- Frequency Response 20 Hz - 20 kHz ±1.5 dB
- Connector Female XLR connector (XLR-3-31 equivalent)
- Dimensions 35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46")
- Weight Max. 110 g (0.24 lb)
