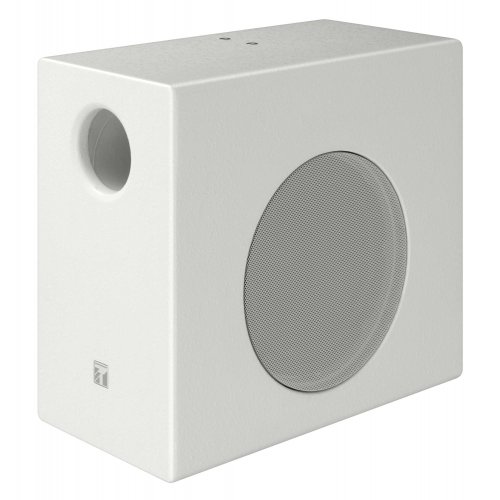

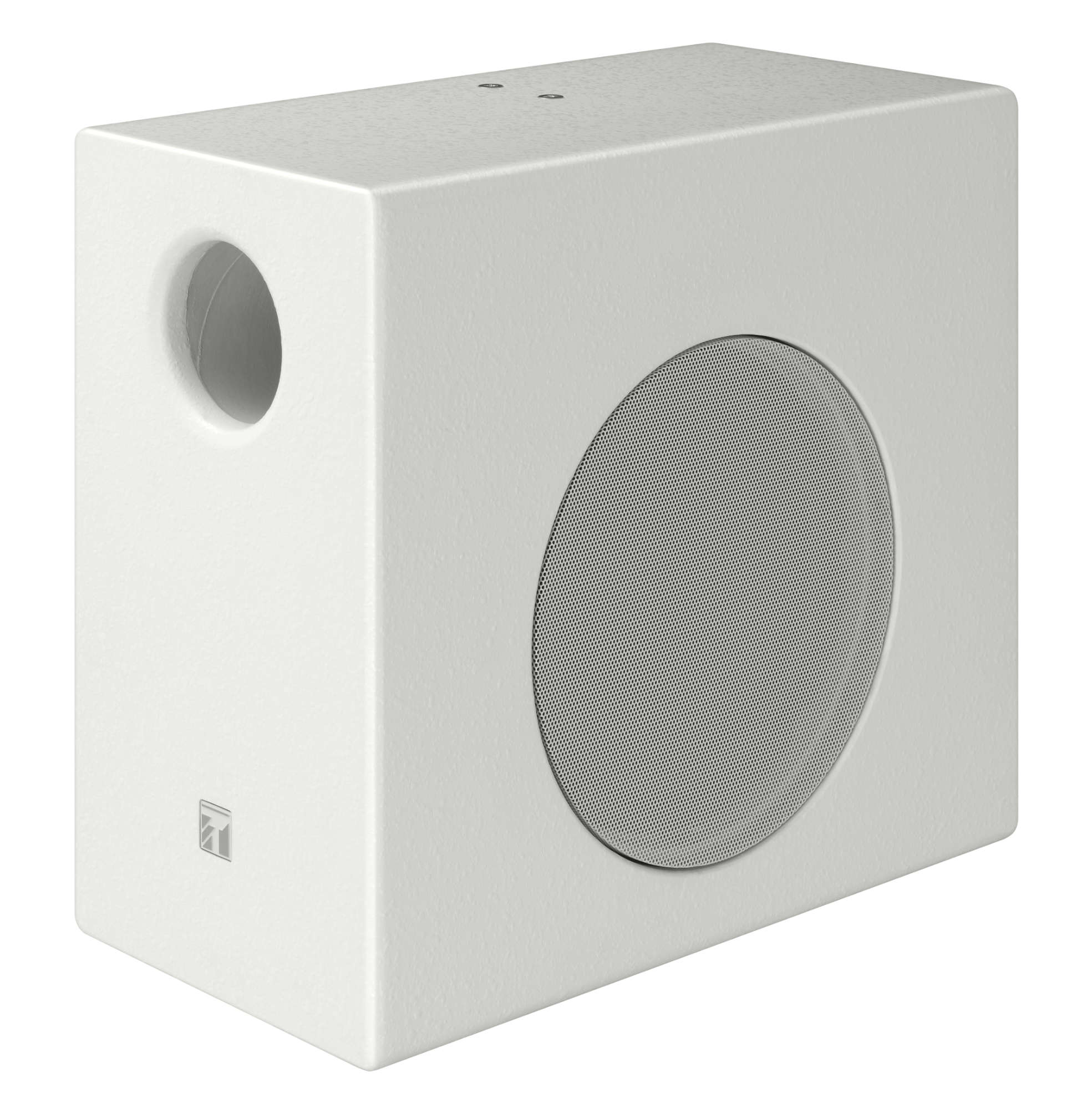

TOA FB-08WT 8in Surface Install Subwoofer 70v / 8ohm - White (Each)
Model: FB-08WT
About: TOA FB-08WT 8in Surface Install Subwoofer 70v / 8ohm - White (Each)
The FB-08WT is an indoor subwoofer system featuring a high-performance 20 cm (8") driver. An integrated crossover network simplifies system configuration, allowing seamless integration with F-03/05 series speakers without the need for additional processors. This delivers powerful bass reproduction for a wide range of applications. The FB-08WT offers flexible installation options, supporting both low and high impedance connections. Optional mounting brackets are available for secure wall or ceiling mounting.
- High-performance 8-inch indoor subwoofer system
- Powerful 20 cm (8") driver for robust bass reproduction
- Built-in crossover network for simplified system setup
- Seamless integration with F-03/05 series speakers without the need for external processors
- Versatile high/low impedance compatibility
- Optional brackets for wall or ceiling mounting
Specifications
- Enclosure - Bass-reflex type
- Rated Input - 120 W (100 V line, 70 V line)
- Power Handling - (*1)Rated noise power: 120 W (8 Ω)
Continuous program: 240 W (8 Ω) - Rated Impedance - 8 Ω
100 V line: 83 Ω (120 W), 167 Ω (60 W)
70 V line: 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W) - Sensitivity - 84 dB (1 W, 1 m) at installation in free sound field
90 dB (1 W, 1 m) at installation in 1/2 free sound field - Frequency Response - 45 - 300 Hz, –10 dB at installation in 1/2 free sound field
- Speaker Component - 20 cm (8") cone-type
- Input Terminal - M4 screw terminal, distance between barriers: 9 mm (0.35")
- Installation Environment - Indoor installation
- Recommended Amplifier - DA-250DH, DA-250FH, DA-500FH, A-5012 (*2)
- Operating Temperature - -10 °C to +50 °C (14 °F to 122 °F)
- Finish - Enclosure: MDF, white (RAL 9016 equivalent), paint
Grille: Surface treated steel plate, white (RAL 9016 equivalent), paint - Dimensions - 200 (W) x 350 (H) x 400 (D) mm (7.87" x 13.78" x 15.75")
- Weight - 16 kg (3.53 lb)
- Optional Accessories - Subwoofer wall mounting bracket: HY-WM-FB08W
Subwoofer ceiling mounting bracket: HY-CM-FB08W
