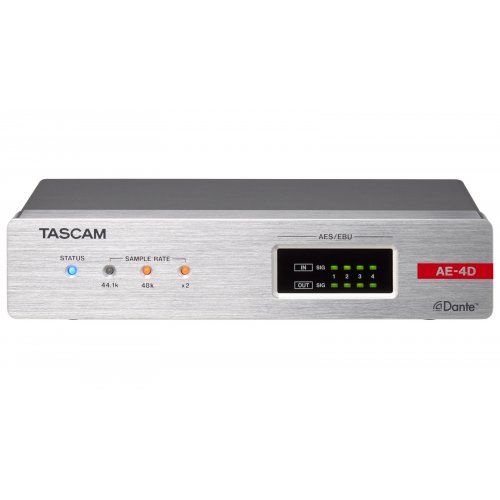

Tascam AE-4D 4-Channel AES/EBU Input/Output Dante Converter

About: Tascam AE-4D 4-Channel AES/EBU Input/Output Dante Converter

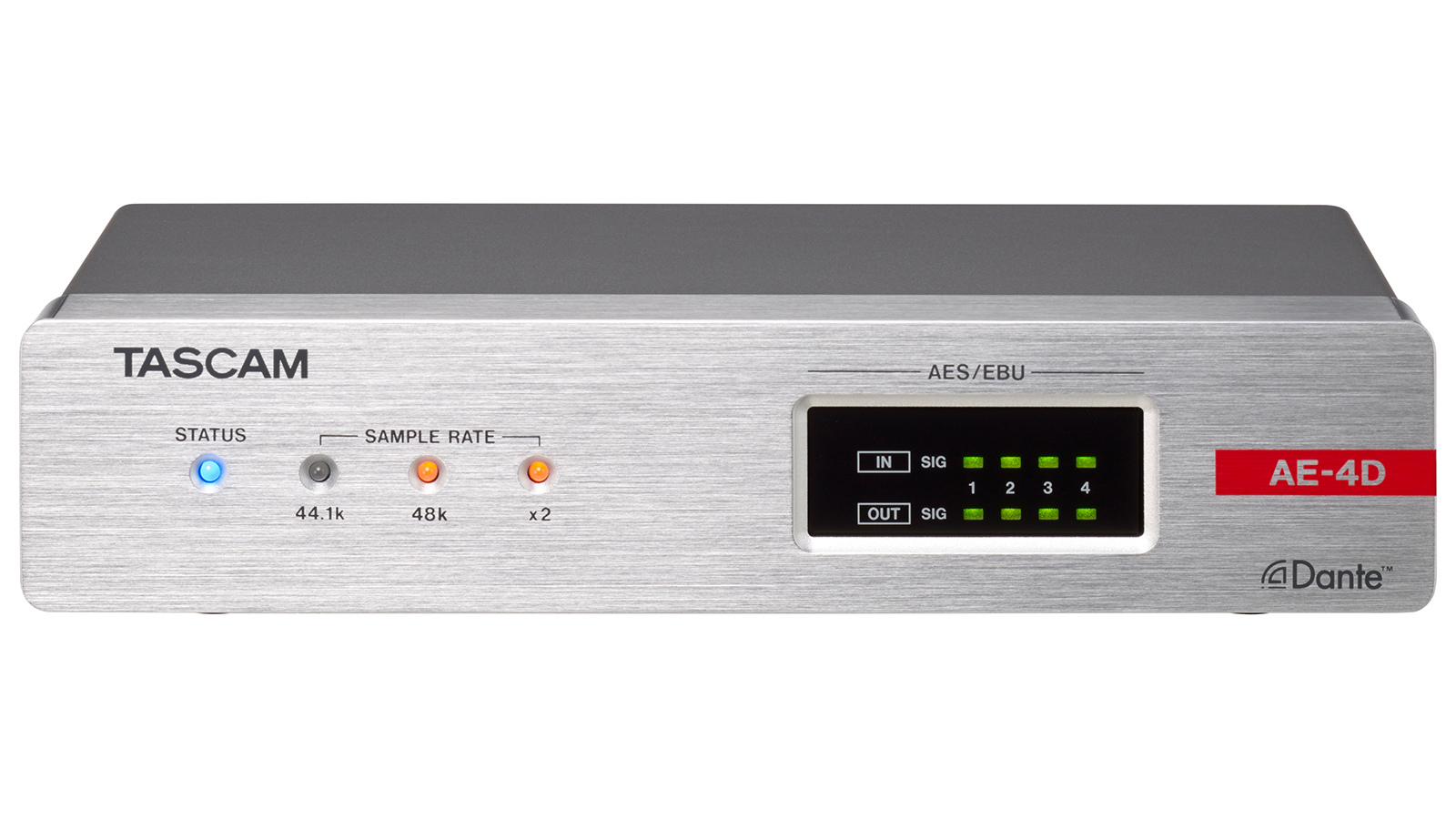

The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.

Introducing a wide range of digital equipment into a Dante system

Often used in PA/SR and pro audio environments, digital equipment compatible with AES/EBU format can be used on Dante systems. The AE-4D also includes a sampling rate converter, which enables different AES/EBU sources to be used on a Dante system.

PoE supported

Power supply can be provided to the unit via PoE (Power over Ethernet).
No need for AC adaptors; power supply construction fees and installation costs can be reduced by using a PoE compatible network switch.

Remote control via control software

Controlling effects or the matrix mixer can be easily done through the dedicated control software; depending on the amount of controls the user needs, there are two types:

• TASCAM DCP CONNECT, designed for system integrators/managers that handle the configuration and settings of an entire system.
• TASCAM EZ CONNECT, designed for end-users and allowing them to use simple controls.

Compatible with Windows / macOS / Android / iOS devices.

Installable according to usage/environment

Units can be easilly installed directly under desks or on walls with the included surface mount adaptors.

With the optional rack-mountable shelf AK-RS1, up to two Dante Compact Processor models can be installed in a 19 inch rack space.

Features at a glance

• 4 AES/EBU input/output
• 4 AES/EBU inputs with sampling rate converter
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz
• Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
• Compatible with Dante Domain Manager and Dante AES67 Mode
• Flexible scene preset function allows to work in different area situations (Up to 50 presets)
• Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:
  • For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  • For end-users: simple app design for only the necessary functions such as area volume settings, etc.
• Remote control via Dante
• Half-rack mountable size
• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor digital input/output signals
• Configurable reference level (via remote control only)
• Surface rack mountable angles for installation under desks included
• Optional accessories:
  • AC adapter PS-P1220E for redundant power supply available
  • Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
