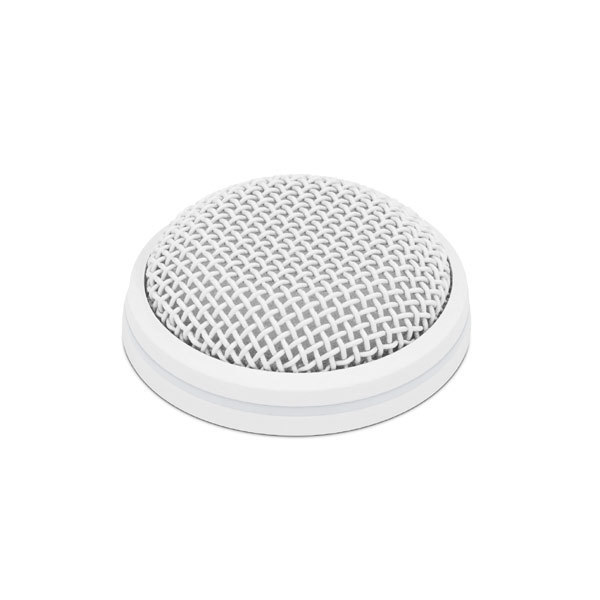

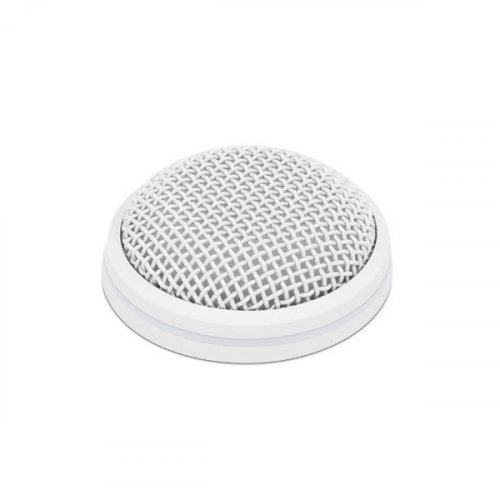

Sennheiser MEB 102 Omni Boundary Mic (White)
Model: 505601
About: Sennheiser MEB 102 Omni Boundary Mic (White)
The MEB 102 is a boundary installation wired microphone for simple installation in tables or ceiling elements. With its compact, discreet design, this model will fit perfectly into any environment. The omni-directional microphone capsule guarantees optimum speech intelligibility, and its robust housing provides the perfect protection. The model is available in black and white color.
Technical Data
- Connector: MEB 102: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
- Current consumption: MEB 102: 3 mA
- Color: white
- Dimensions: Height: 83 mm (12 mm above surface), Diameter 28.5 mm
- Frequency response: 40 Hz – 20 kHz
- Max. sound pressure level: 125 dB
- Transducer principle: pre-polarized condenser microphone
- Weight: 58 g
- Pick-up pattern: omni-directional
- Nominal impedance: 200 Ω
- Phantom powering: P 24 - P 48
- Operating temperature: 0 °C - +40 °C
- Equivalent noise level: 21 dB (A)
- Equivalent noise level weighted as per CCIR 468-3: 31 dB (CCIR)
- Acoustics: Boundary Layer Microphone
- Dynamic range: 104 dB (A)
- Sensitivity: 16 mV/Pa
- Thread: M 20
UPC: 615104230149
