Dynacord VWP V-Series Wall Panel Controller

About: Dynacord VWP V-Series Wall Panel Controller

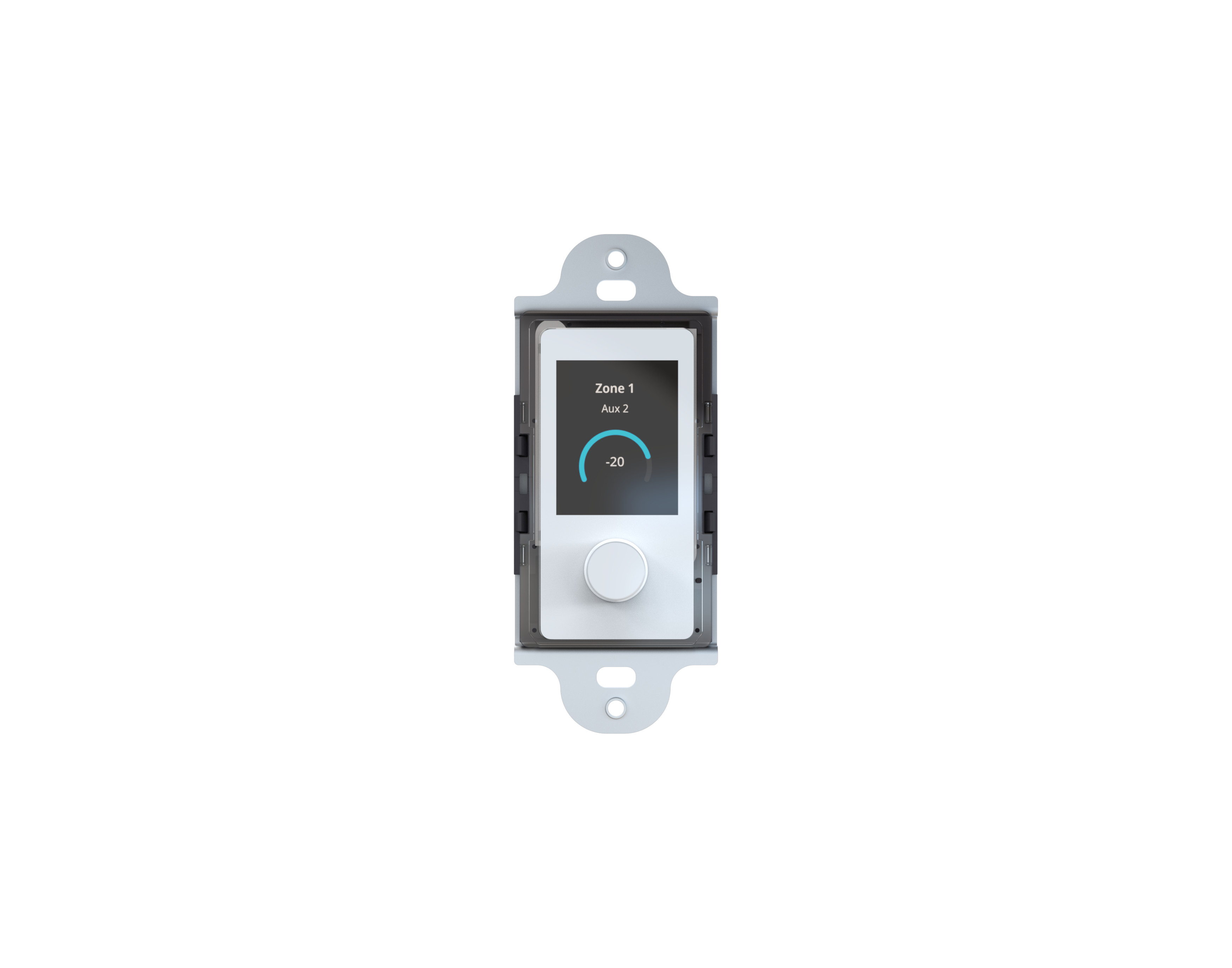

The VWP Wall Panel Controller offers intuitive operation and control for audio systems, enhancing user interaction within commercial environments. Featuring a 1.77-inch color display and a rotary encoder, the VWP allows for seamless management of levels, zones, sources, and media playback. Its daisy-chain capability supports the connection of up to 16 controllers. The interchangeable front panel, available in white or black, ensures aesthetic flexibility to match any decor. Add a 1-gang Decora wall plate available from your local hardware/supply store. With Unicode support for over 150 languages, the VWP provides a user-friendly interface that caters to diverse audiences. Additionally, the VWP can be set with a 4-digit PIN lock and multiple user profiles for different levels of access. Designed for versatility and ease of use, the VWP Wall Panel Controller is an essential component for effective audio system management.

• Clear Color Display: Easy-to-read 1.77" color display with rotary encoder
• Versatile Control: Flexible level, zone, source control, and media player control in VZX Web App
• Daisy-Chainable: Connect up to 16 VWP controllers

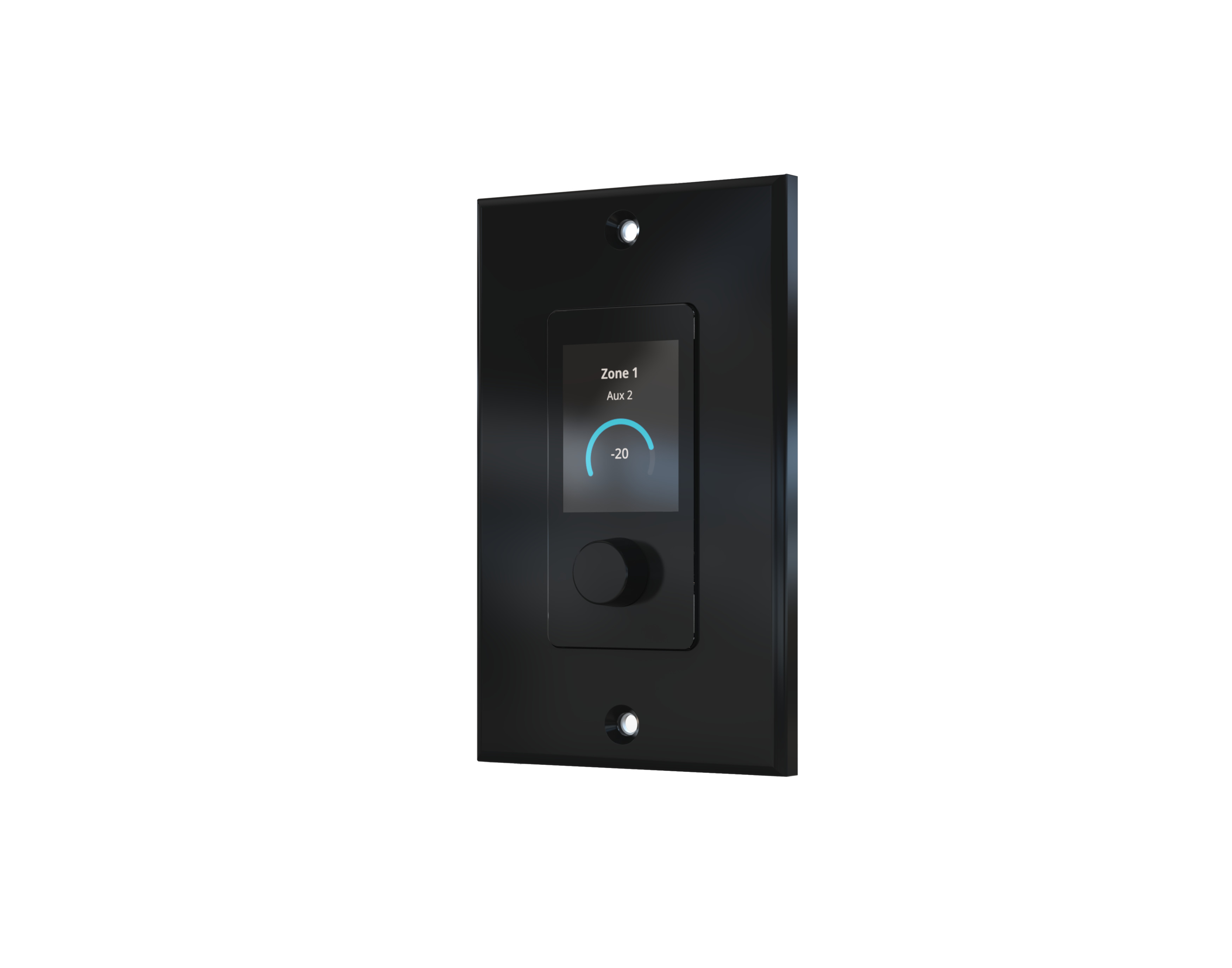

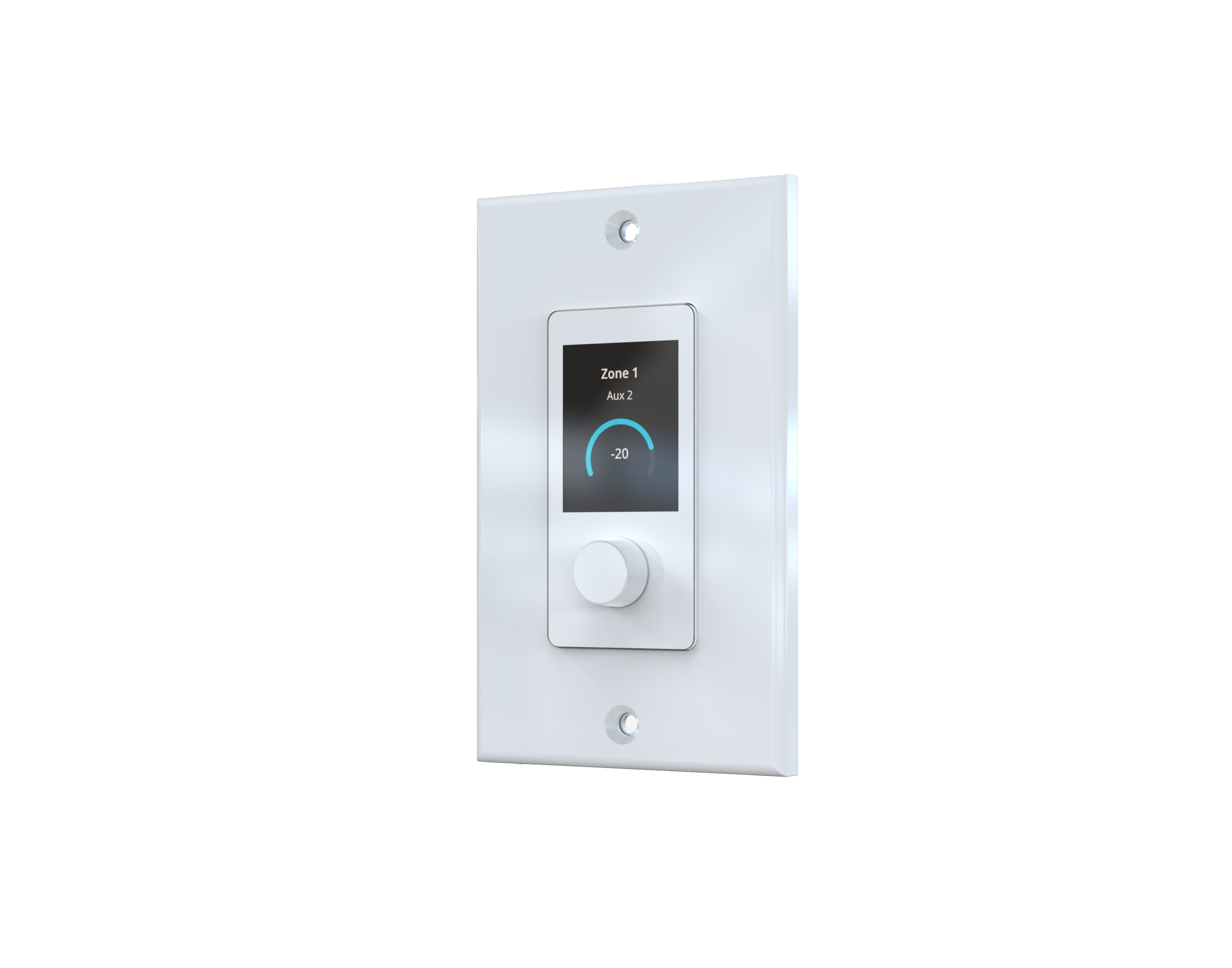

• Interchangeable Panel: White/black front panel options
• Multilingual Support: Unicode for 150+ languages

Specifications

• Electrical
  • System
    • Control type: 24 Detents, 360° Continuous Push Button Encoder
    • User controls: Level, Mute, Zone, Source, Media Player
    • Language support: Unicode, 150+ languages supported
    • Power consumption ≤0.4 W
  • Display
    • Screen: 1.77 in Color TFT
    • Resolution: 160 x 128 pixels
    • Brightness: 480 cd/m2
  • Connections

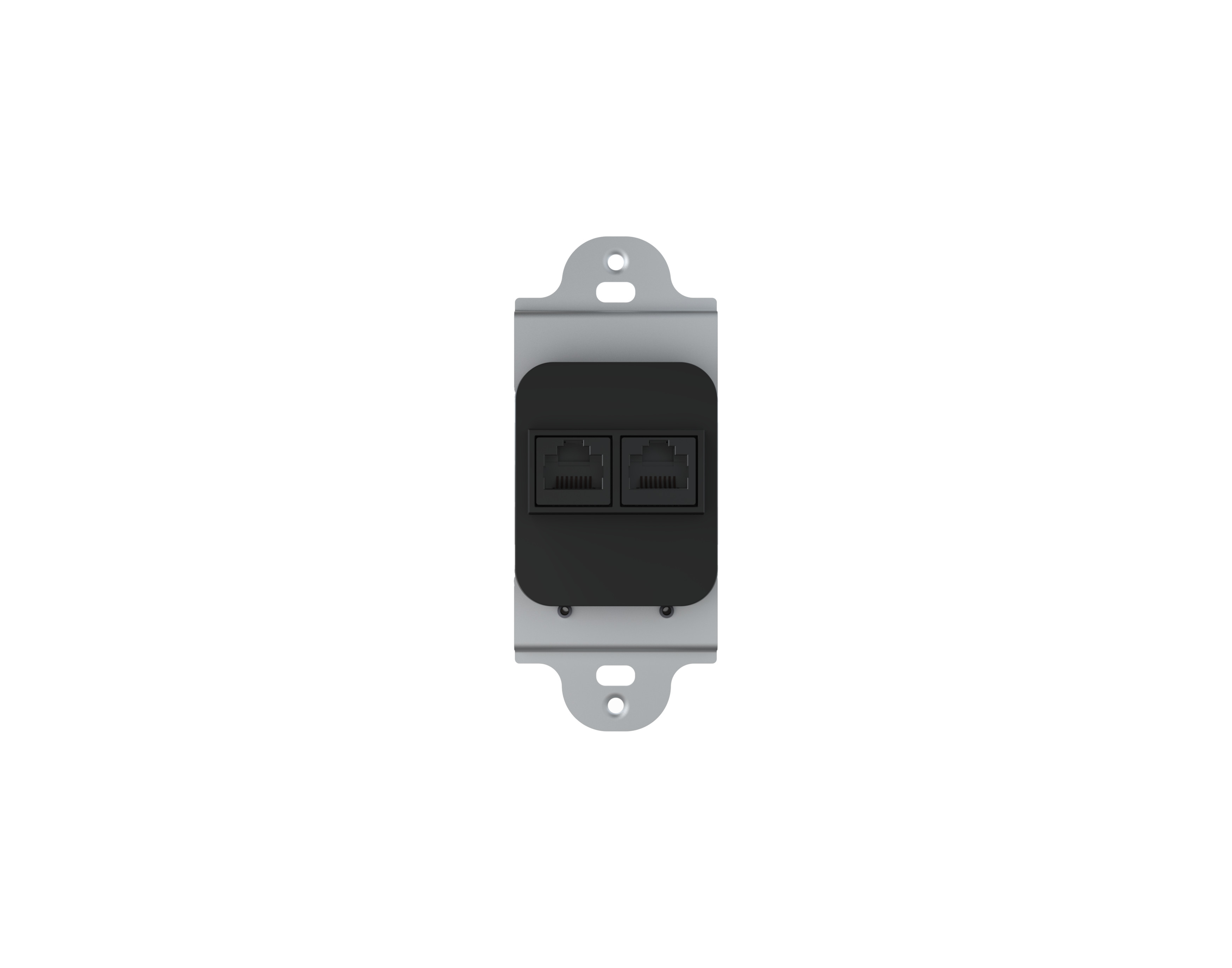

    • Connectors: 2x RJ45 In, Out (for Daisy Chain)
    • Connection & Power Source: Accessory Bus of VZX-8 Zone Audio Processor
    • CAN termination plugs 1 per accessory line (A, B)
      • Place in unused port on last accessory connected to VZX-8 processor
    • CAN termination type: RJ45 termination with a 120 Ω resistor
• Mechanical
  • Environmental
    • Operating temperature: +5 °C to +40 °C (+40 °F to +105 °F)
    • Operating relative humidity, non-condensing (%): 15% - 93%.
  • Enclosure
    • Daisy chain capable: Yes
    • Maximum devices supported: 16 VWP per VZX-8 (8 per port)
    • Mounting type: Wall-mounted
    • Color: White, changeable to black
    • Required electrical box size: 62 mm wide, ≥60 mm deep
    • (2.44 in wide, ≥2.36 mm deep)
    • Dimensions (with front cover, WxHxD): 4.50 x 1.65 x 1.52 in (114 x 44 x 38.7 mm)
    • Weight: 0.22 lb (98 g)

What's in the Box

• 1x VWP
• 1x Interchangeable front panel & encoder knob (Black)
• 1x Quick installation guide
• 1x Safety and Security Information booklet
