AtlasIED WPD-SWCC Wall Plate Push Button Switch (Hard Contact Closure)
Model: WPD-SWCC
About: AtlasIED WPD-SWCC Wall Plate Push Button Switch (Hard Contact Closure)

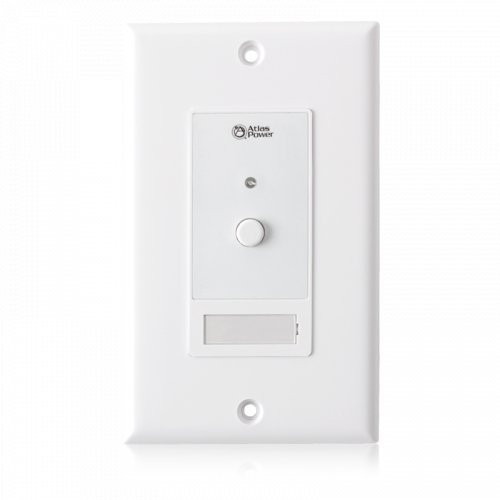

The AtlasIED WPD-SWCC is a decor style wall plate featuring a push button switch that activates/deactivates a hard latch contact closure. This product is designed to be used with compatible Atlas Power products that are designed to be remotely activated such as as the ECS-6RM, TSD-SEQ6, and ECS-3 sequencers. The unit is constructed of durable ABS material and includes a red LED system status indicator as well as a removable label guard for easy and clean designation of key switch function. The unit has a four conductor interface connection designed to work with the included Phoenix style connector. This unit can function in remote activation scenarios up to 200 feet from the controlled unit using 22-gauge wire.
- White Decor Style Plate, ABS Material
- Fits a Single Gang Electrical Outlet
- Red LED System Status Indicator

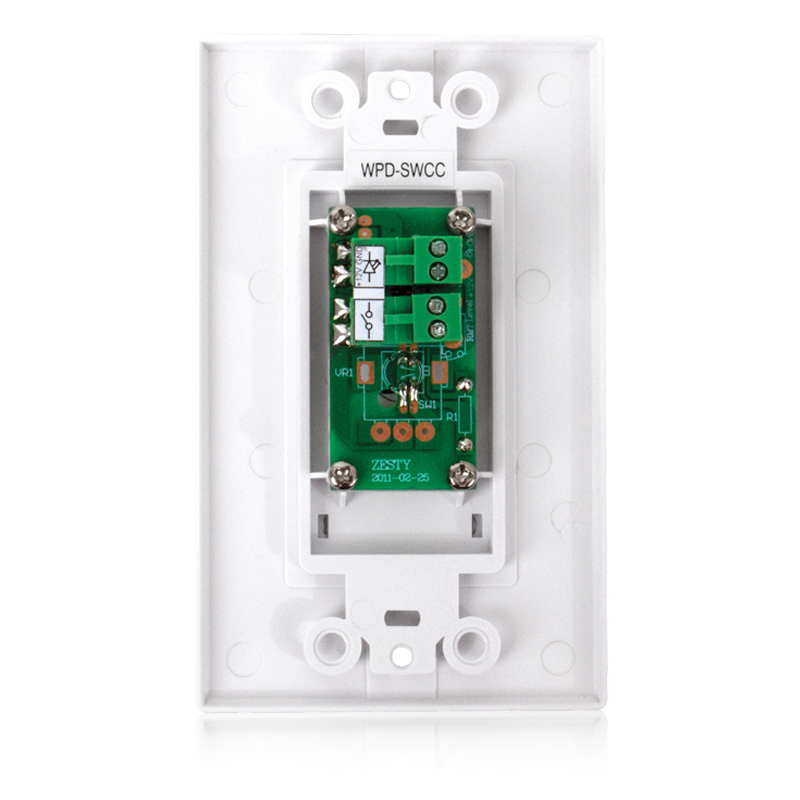

- 4-Conductor Interface Connection
- Removable 4 Position Phoenix Style Connector, 5.08mm Pin Spacing
- Push Button Switch Type
- Removable Label Guard Allows for Clean Identification
UPC: 612079189007
Reviews: AtlasIED WPD-SWCC Wall Plate Push Button Switch (Hard Contact Closure)
Warranty: AtlasIED WPD-SWCC Wall Plate Push Button Switch (Hard Contact Closure)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Passive Loudspeaker Products
| 5-Years | |
| Line Array and Line Column Loudspeakers | 5-Years |
| Loudspeaker Hardware | 5-Years |
| Passive Attenuators & Volume Controls | 5-Years |
| Classroom Security & Sound Reinforcement Systems | 1-Year |
| Classroom Security & Sound Reinforcement Accessory Microphones | 90-Days |
| Amplifiers, Mixer/Amplifiers & TSD Series Amplifiers | 3-Years |
| BlueBridge® Digital Signal Processors | 3-Years |
| BlueBridge® DSP Wall Controllers | 1-Year |
| Sound Masking Electronics | 3-Years |
| MTX Home and Pro Loudspeakers | 1-Year |
| Electronic Accessories, PSUs & Telephony Products | 90-Days |
| Metal Rack & Cabinet Products | 5-Years |
| Active Rack Accessories | 1-Year |
| AC Power Conditioners, Sequencers, & Distribution Units | 1-Year |
| Interconnects & Accessories | 5-Years |
| Microphone Stands (Except Musician Series) | 2-Years |
| Musician Series Microphone Stands | 1-Year |
| Microphone Stand Accessories | 90-Days |
| Replacement Parts | 1-Year |
| VoIP Loudspeakers | 1-Year |
| VoIP Devices | 1-Year |
| Fuses, Lamps, Batteries | No Warranty |
| 5400 Series Controllers, Communication Stations, & Amplifiers (GLOBALCOM®) | 3-Years |
| 1500 Series PoE Compact Power Amplifiers | 3-Years |
| ACS Series Controllers, Communication Stations, & Accessories (GLOBALCOM®) | 3-Years |
| Titan DSP Mainframes & Accessories | 3-Years |
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
