LEA Professional Connect Touch Programmable Controller w/PoE - White

About: LEA Professional Connect Touch Programmable Controller w/PoE - White

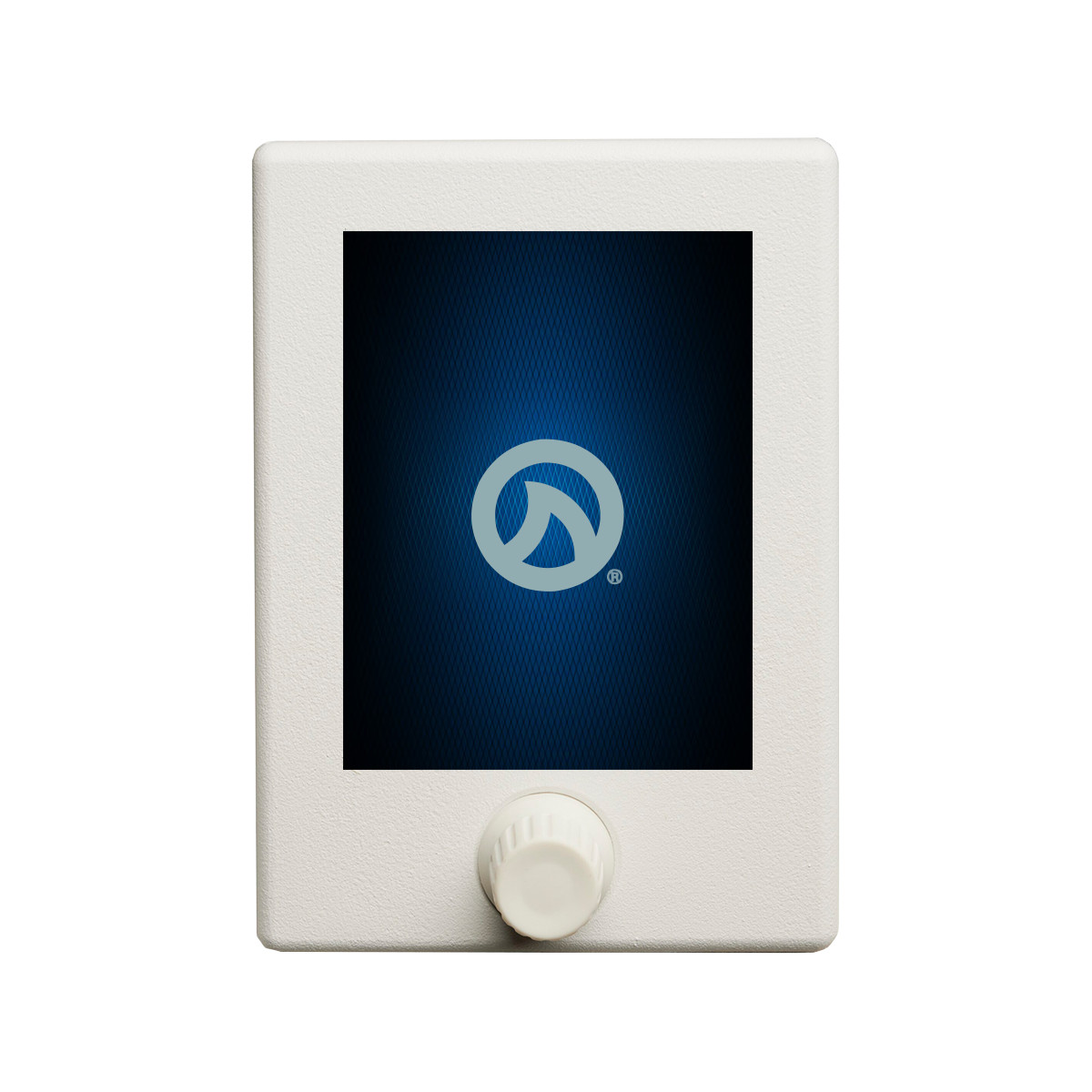

The LEA Connect Series Touch controller is a wall-mounted touch-enabled control panel designed for simple and intuitive control of LEA amplifiers. Offering ultimate flexibility, its features include source selection and volume adjustments.

• Full color touch screen with rotary encoder
• Programmable via the Connect Series WebUI software
• Group volume control up to 100 LEA Connect Series amplifier channels
• Group source select up to 65 LEA Connect Series amplifier channels
• Multiple Connect Series Touch can be used on the same network
• PoE powered for easy one cable installation
• Works with US and UK/EU single gang wall boxes
• Available in white or black

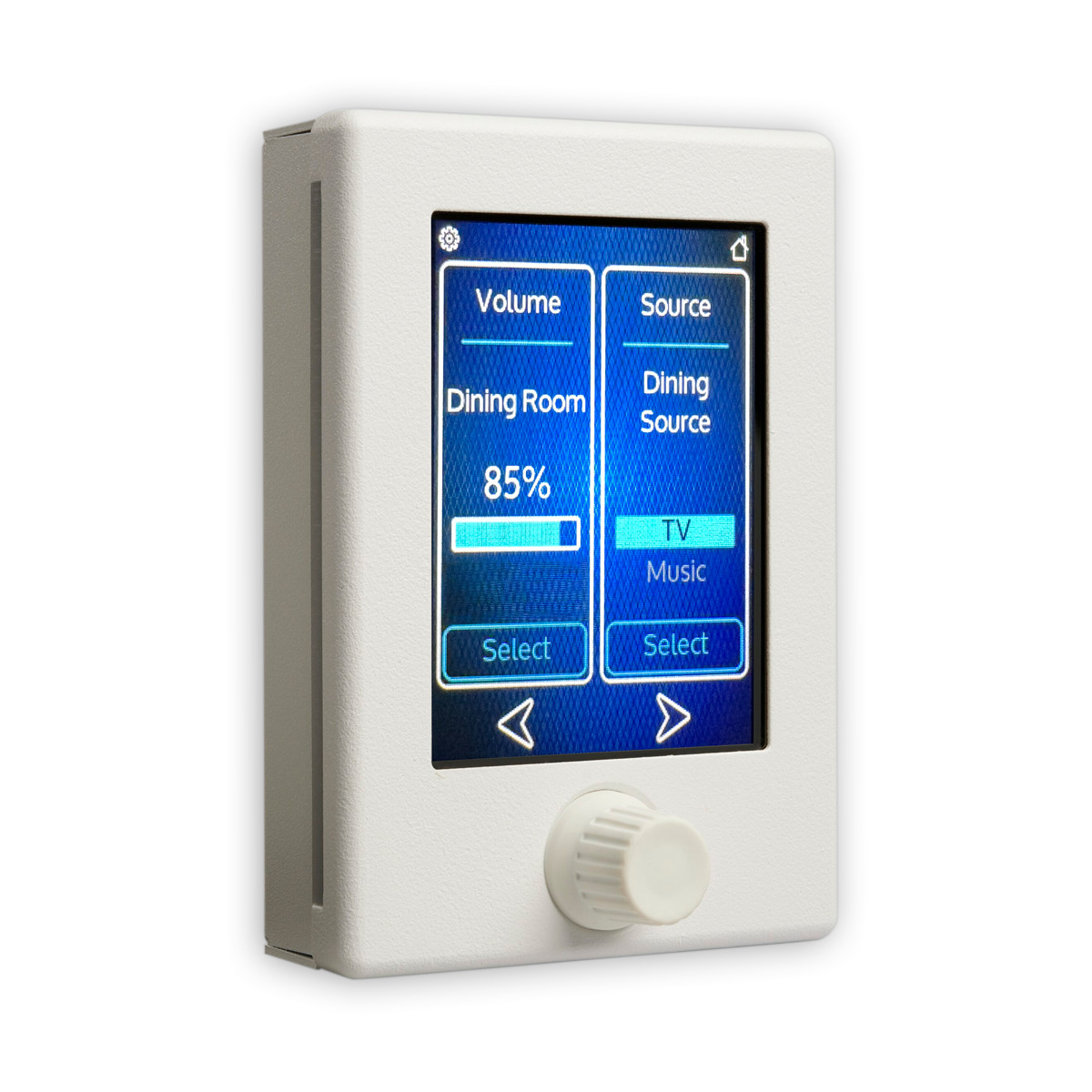

The controller is PoE-powered for easy installation and allows for group control of source and volume. For ease of use, the controller features a color touch screen with a rotary knob and is available in both black and white versions.

Individual Zone Control

• Volume control for a single zone
• Source Select for a single zone
• Control up to 100 single zones from one CS Touch

Group Control

• Group up to 100 amplifier channels into a single group control
• Group volume control and source select
• Make and control multiple groups from a single CS Touch

Specifications

• Control & Network
  • Connect Series Amplifier Control: The Connect Series Touch works in conjunction with all LEA Connect Series amplifiers. To use the Connect Series Touch, you must have an LEA Connect Series amplifier on the same network
  • Multi-Zone Control : Control up to 100 single channel zones across multiple amplifiers from one Connect Series Touch
  • Group Zone Control: Ability to group up to 100 channels on one control from the Connect Series Touch
  • Programmable Functions
    • Group Volume Control - Ability to control up to 100 individual channel zones or one control for 100 channel zones grouped together
    • Volume Subgroup Control - Control the volume level of a specific zone within a group volume control
    • Group Source Select - Recall amplifier input sources on up to 65 channels grouped together
  • Software: WebUI based, SharkWare support coming soon.
    • *Must have an LEA Connect Series amplifier on the network to configure Connect Series Touch
  • Multi-Device: Multiple Connect Series Touch can be used on the same network
  • Physical Controls: Color touch screen with continuous rotary control
  • Display Resolution: 240 x 320px, full RGB
  • Network Connectivity: RJ45. DHCP only. Static IP with firmware update
    • Communicates via UDP on ports 7076 and 7077
  • 3rd Party Control: Not currently supported
  • Cloud: Not currently supported
• Operation
  • Power Requirements: PoE power only. Compatible with PoE, PoE+, and PoE++
  • PoE Voltage Range: Operates from 44V to 57V PoE voltage
  • Temperature
    • Storage: -5°C to 70° C
    • Operating: 0°C to 50° C
  • PoE Power Consumption: 3.5W maximum load
• Physical
  • Exterior Construction: White painted gloss finish aluminum
  • Mounting: Mounts to U.S. single gang box or UK/EU single gang box
  • Mounting Dimensions
    • US Mount: Top and bottom holes: 3.281in spacing
    • UK/EU Mount: Left and right holes: 2.36in / 60mm spacing
  • Dimensions (HxWxD): 4.4 x 3.2 x 1 in (112 x 80 x 25 mm)
  • Weight: 0.5lbs (220g)
