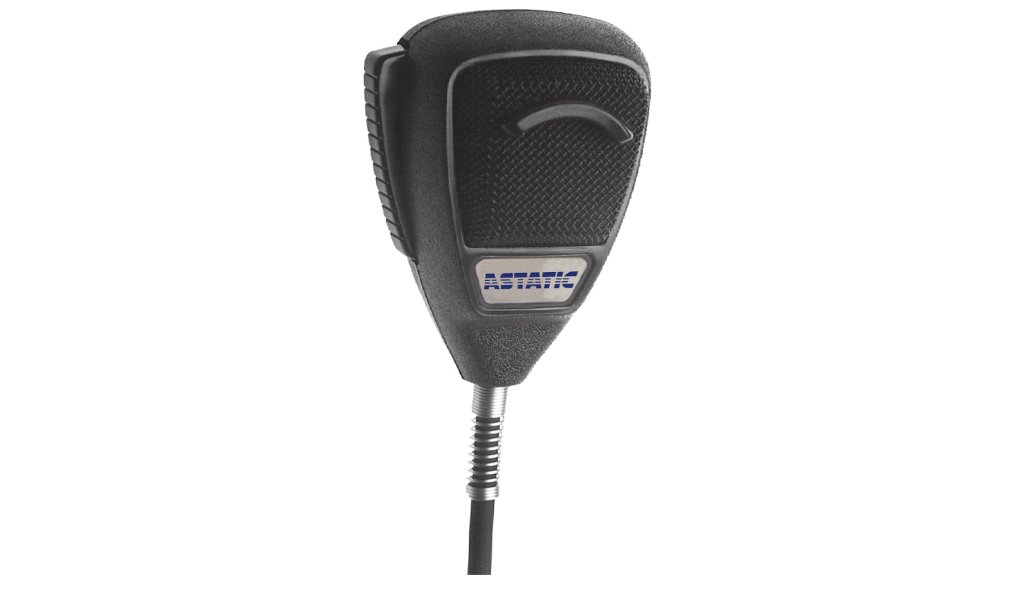

Astatic (By CAD) 631L Noise Cancelling Dynamic Mic with PTT
Model: 631L
About: Astatic (By CAD) 631L Noise Cancelling Dynamic Mic with PTT
The Astatic 631L palmheld microphone series is designed for sound installations. The frequency response, especially tailored for voice communications, provides a crisp, clear, highly intelligible sound. The ergonomic teardrop housing is tough and the transducer resists atmospheric extremes. The palmheld series have low-impedance output and is factory wired normally open. High-cycle DPDT switch mutes the microphone and produces an external contact closure. 6’ heavy-duty coiled cord is stripped and tinned.
Specifications
- Element:Dynamic noise cancelling
- Frequency Response:100 to 5000 Hz
- Output Level: -58 dB (0 dB = 1mw / 10 microbars) -80 dB (0 dB = 1 volt / microbar) 1.0 mV/PA
- Impedance:200 ohms, matches 50 to 1000 ohms
- Cable:Four conductor, two shielded, permanently attached,heavy duty, coil cord that extends to 1.8m (6 ft.)
- Connector: NONE - Pigtail
- Switch:Operated by press-to-talk lever, DPDT long life, trouble free switchwith spring return, has smooth feel. Wired normally open
- Housing:Durable molded black Cycolac
- Dimensions:100mm (3-15/16") high x 75.4mm (2-3/32) wide x 66.7mm (2-5/8")deep
- Weight:284 grams (10 oz.)
UPC: 631922101799
Reviews: Astatic (By CAD) 631L Noise Cancelling Dynamic Mic with PTT
Warranty: Astatic (By CAD) 631L Noise Cancelling Dynamic Mic with PTT
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Commercial Products: 5 Year Warranty
Personal Audio Products: 2 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
