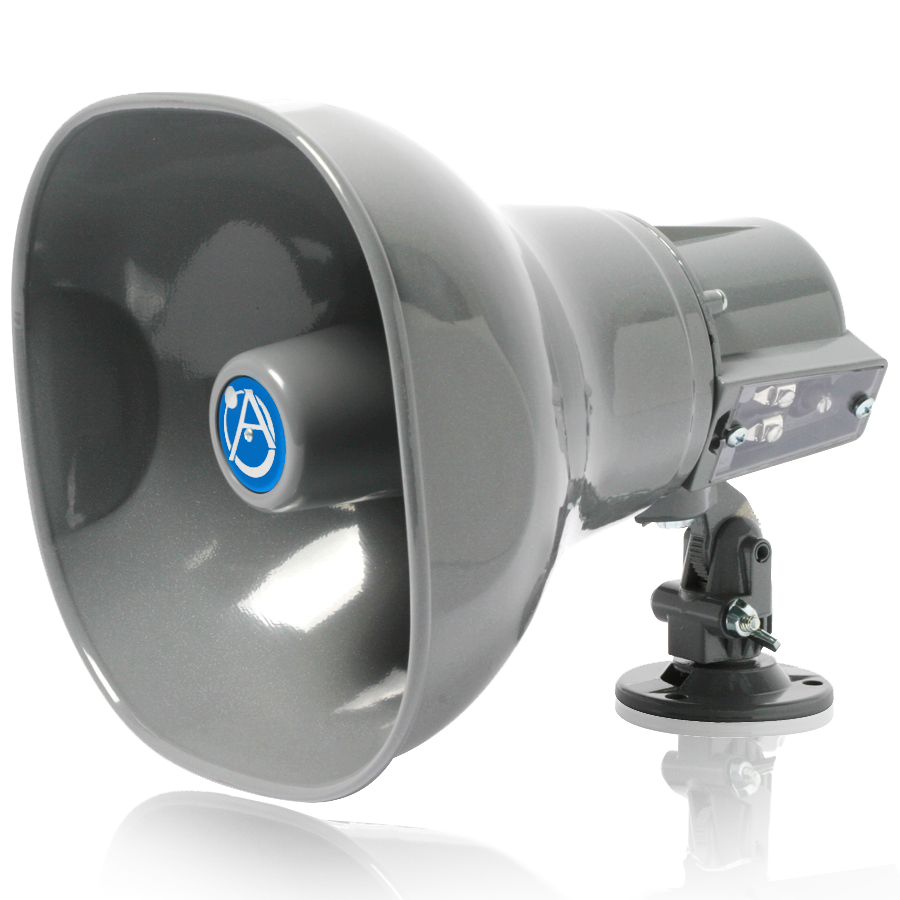

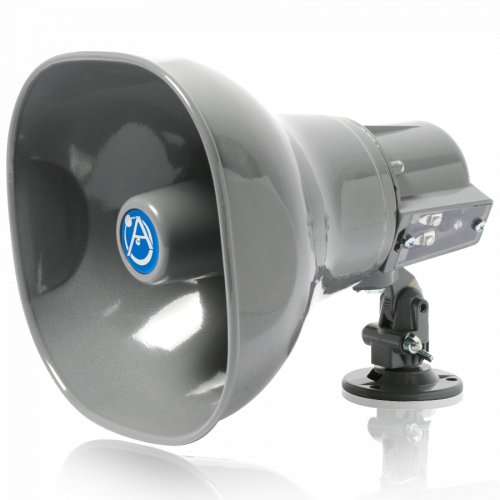

AtlasIED AP15T 15W Paging Horn (25V/70V/100V)
Model: AP-15T
About: AtlasIED AP15T 15W Paging Horn (25V/70V/100V)
Model AP-15T is a double re-entrant loudspeakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
Features
- Grey Finish
- Environment Resistant for Outdoor and Indoor Use
- High-Efficiency Driver with Proven Performance Reliability
- Omni-Purpose™ Bracket for Precise Positioning
- Superior Intelligibility for Voice and Tone Signaling
- Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
- World Recognized for Quality and Dependability
Tech Specs
- Frequency Response 400Hz - 14kHz
- Sensitivity 106dB
- Impedance 1, 2, 3.8, 7.5, 15 @ 70.7V
- Dispersion 70°
- Operating Temperature Range -40 to 70C
- Height 8 3/4" (22.23 cm)
- Width 7 7/8" (20.00 cm)
- Depth 9 5/16" (23.66 cm)
- Shipping Weight 5.00 lbs (2.27 kgs)
- Safety Listed 1480
UPC: 612079110353
Reviews: AtlasIED AP15T 15W Paging Horn (25V/70V/100V)
Warranty: AtlasIED AP15T 15W Paging Horn (25V/70V/100V)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Passive Loudspeaker Products
| 5-Years | |
| Line Array and Line Column Loudspeakers | 5-Years |
| Loudspeaker Hardware | 5-Years |
| Passive Attenuators & Volume Controls | 5-Years |
| Classroom Security & Sound Reinforcement Systems | 1-Year |
| Classroom Security & Sound Reinforcement Accessory Microphones | 90-Days |
| Amplifiers, Mixer/Amplifiers & TSD Series Amplifiers | 3-Years |
| BlueBridge® Digital Signal Processors | 3-Years |
| BlueBridge® DSP Wall Controllers | 1-Year |
| Sound Masking Electronics | 3-Years |
| MTX Home and Pro Loudspeakers | 1-Year |
| Electronic Accessories, PSUs & Telephony Products | 90-Days |
| Metal Rack & Cabinet Products | 5-Years |
| Active Rack Accessories | 1-Year |
| AC Power Conditioners, Sequencers, & Distribution Units | 1-Year |
| Interconnects & Accessories | 5-Years |
| Microphone Stands (Except Musician Series) | 2-Years |
| Musician Series Microphone Stands | 1-Year |
| Microphone Stand Accessories | 90-Days |
| Replacement Parts | 1-Year |
| VoIP Loudspeakers | 1-Year |
| VoIP Devices | 1-Year |
| Fuses, Lamps, Batteries | No Warranty |
| 5400 Series Controllers, Communication Stations, & Amplifiers (GLOBALCOM®) | 3-Years |
| 1500 Series PoE Compact Power Amplifiers | 3-Years |
| ACS Series Controllers, Communication Stations, & Accessories (GLOBALCOM®) | 3-Years |
| Titan DSP Mainframes & Accessories | 3-Years |
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
