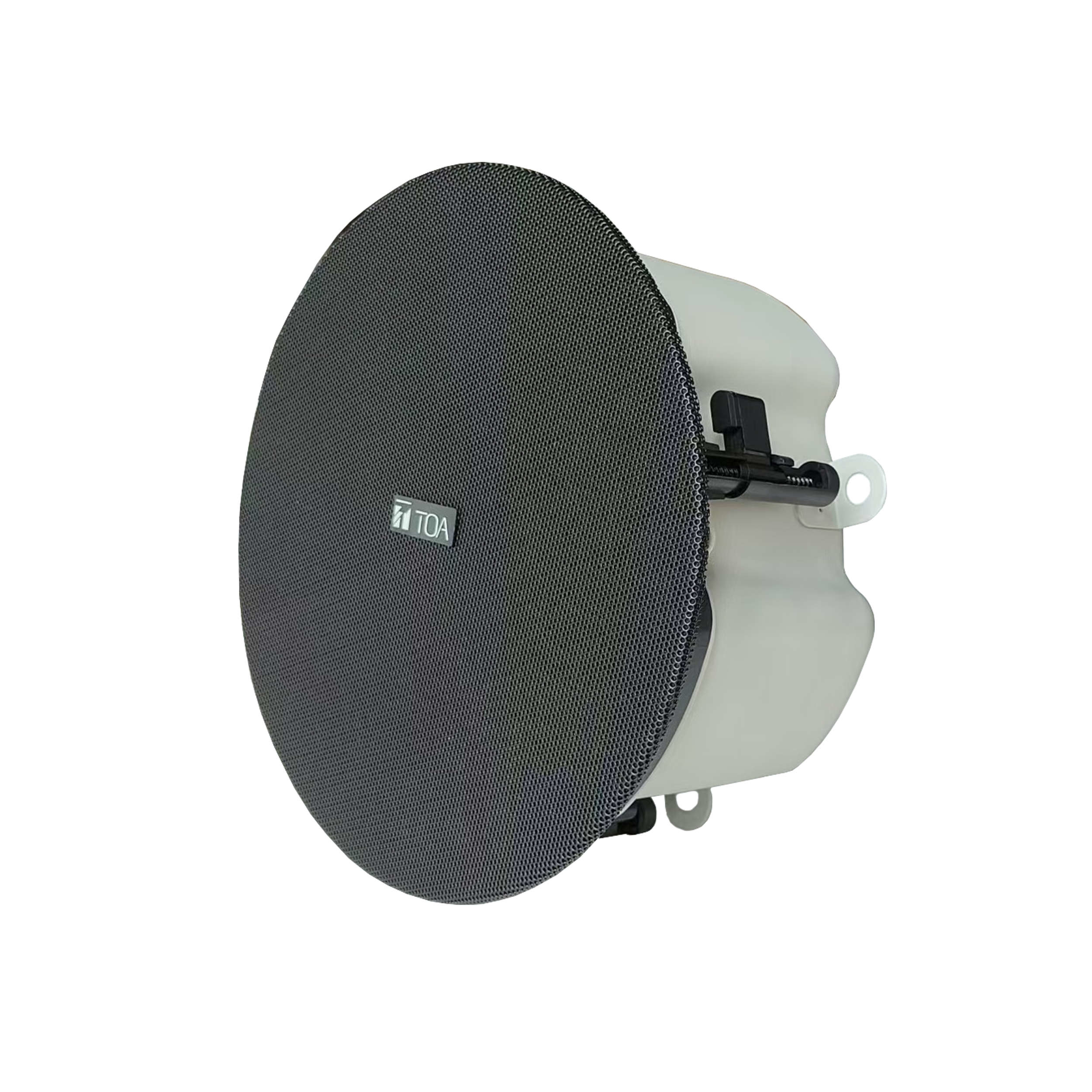

TOA F-3082LU2-AM 8in Low Profile Ceiling Speaker (Pair)

About: TOA F-3082LU2-AM 8in Low Profile Ceiling Speaker (Pair)

The F-3082LU2-AM is a low profile flush-mounted ceiling speaker system that offers a wide frequency range of high-quality sound output. It is specifically designed to be mounted to a drop ceiling with use of the supplied tile bridge.

• Sold in pairs
• Low-Profile

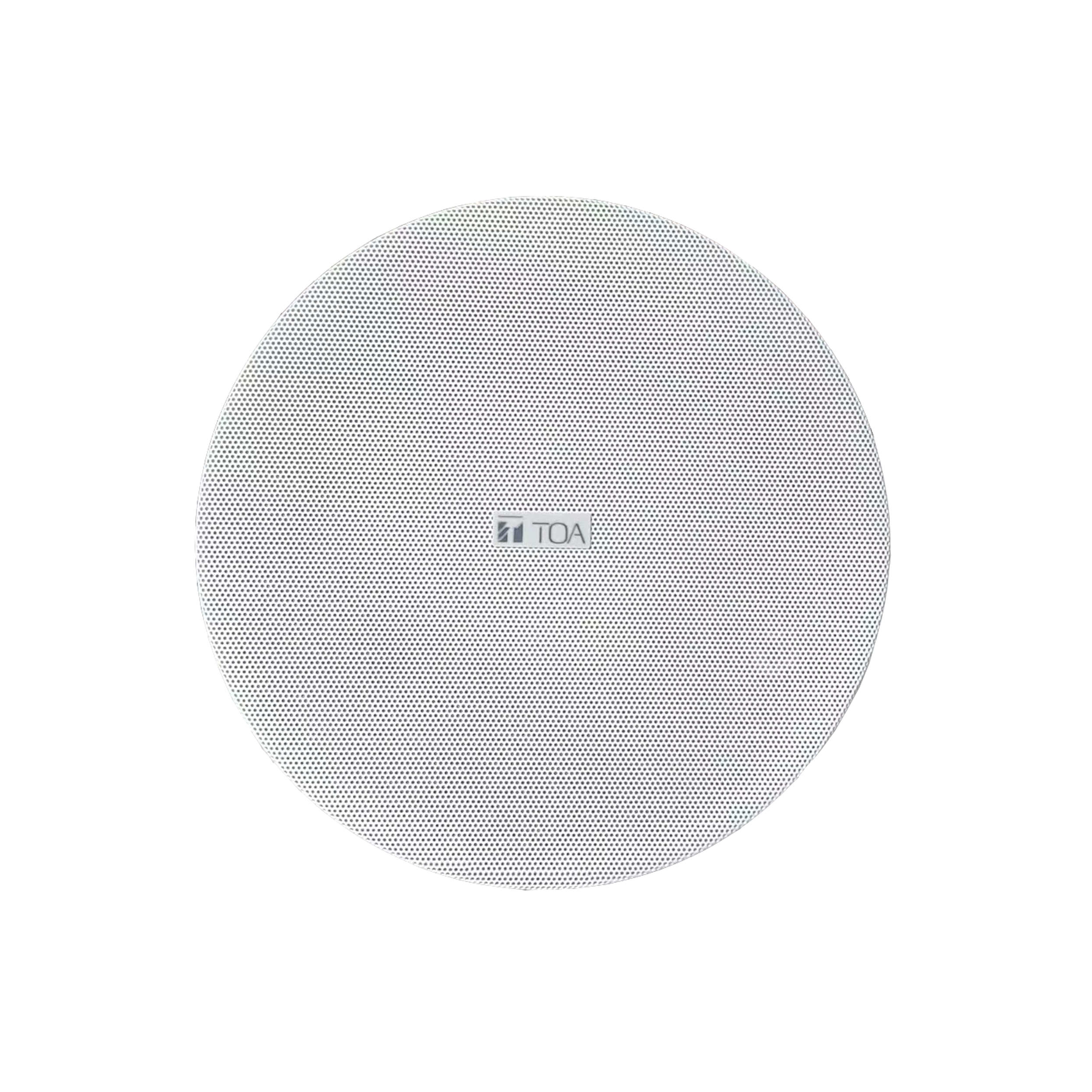

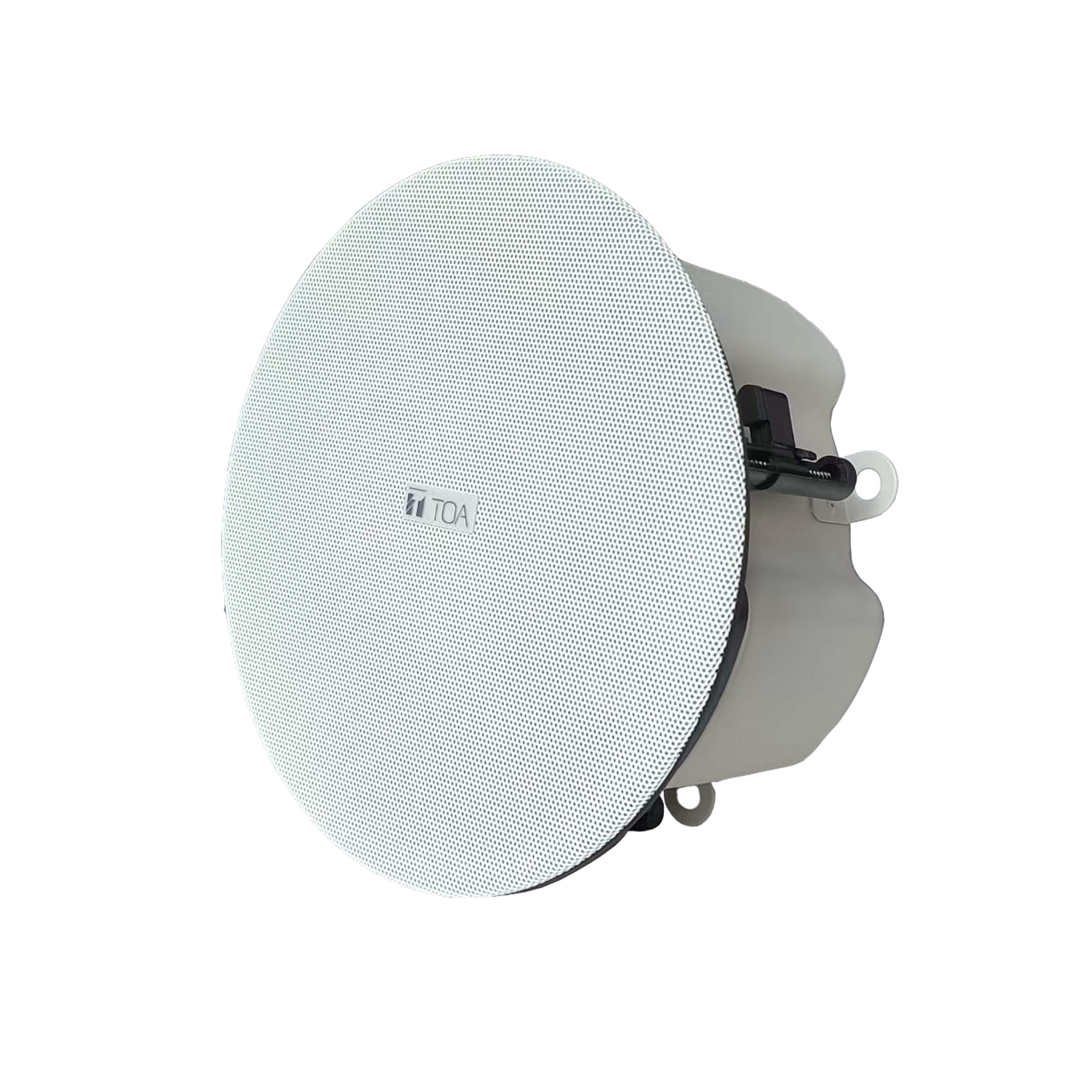

• Comes with black and white magnetic grilles

Built with a bass-reflex design and wide-dispersion acoustic structure, the F-2762LU2-AM (6.5”) and F-3082LU2-AM (8”) models ensure uniform coverage across large spaces, eliminating dead zones and creating a consistent listening experience. Whether installed in boardrooms, classrooms, restaurants, retail spaces, houses of worship, or event venues, these speakers adapt effortlessly to your needs. With the speakers being UL1480A (UEAY), UL2043, and CAN/CSA C22.2 No.205-12 (UEAY7) compliant, they are also ideal for fire rated applications.

Installation is quick and secure thanks to magnetic zero-bezel grilles (available in black and white), tile bridges, and a safety wire system, making them ideal for both new builds and retrofit projects. With dual impedance capability (70V/100V and 8Ω), these speakers integrate easily into distributed audio systems or direct connections, offering unmatched flexibility.

Engineered for durability, these speakers feature a sleek finish that complements any architectural style. Backed by TOA’s reputation for quality, these speakers deliver years of reliable performance in demanding environments.

Specifications

• Rated Input: 60 W (High Impedance)
• Power Handling: Continuous Program: 60 W (8 Ω)
• Impedance
  • 100 V line: 161 Ω (60 W), 311 Ω (30 W), 617 Ω (15 W)
  • 70 V line: 161 Ω (60 W), 311 Ω (30 W), 617 Ω (15 W), 617 Ω (7.5 W) 8 Ω
• Sensitivity: 89 dB (1 W, 1 m)
• Frequency Response: 65 Hz to 20 kHz (-10 dB)
• Crossover Frequency: 2.5 kHz
• Coverage Angle: 95° conical (nominal)
• Speaker Component
  • Woofer: 203 mm (8.0") treated paper with ring mode decoupled cloth surround and steel basket
  • Tweeter: 25 mm (0.98") treated cloth dome, horn-loaded
• Mounting Hole: Ø288 mm (11.35"), Maximum ceiling thickness: 55 mm (2.17")
• Impedance Change: Recessed 5-position screwdriver adjustable rotary switch on baffle; Used to select 70 V/100 V tap settings or 8 Ω (bypass)
• Input Terminal: Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
• Cable Requirements
  • Solid copper wire: Ø1.0 x Ø2.0 mm (Equivalent to AWG 18 x 12)
  • Stranded copper wire: 0.8 x 3.3 mm² (Equivalent to AWG 18 x 12)
• Compliance/Certifications: UL1480A (UEAY), UL2043, CAN/CSA C22.2 No.205-12 (UEAY7)
• Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F)
• Operating Humidity: Under 90 % RH (no condensation)
• Finish

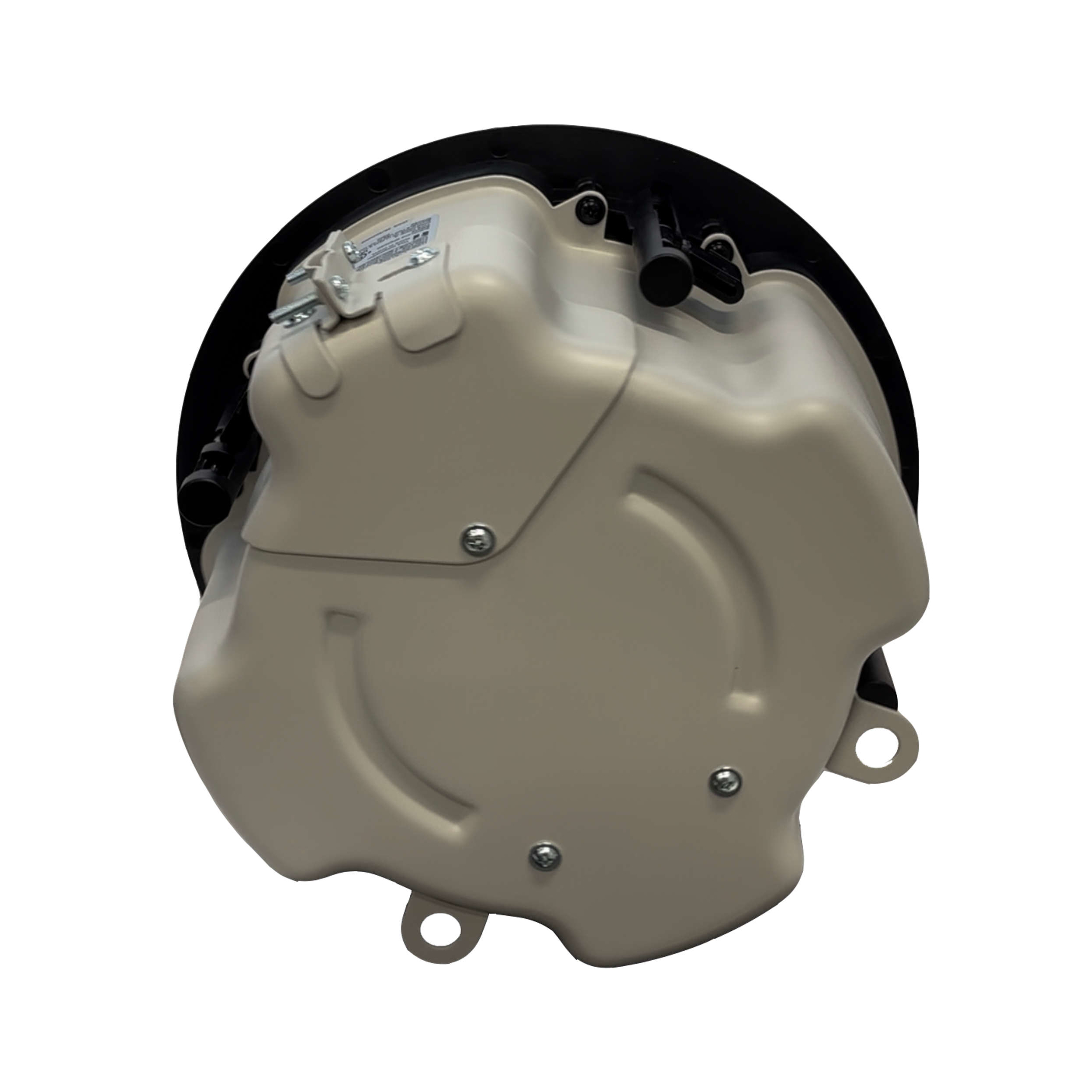

  • Enclosure: Zinc-plated steel, plenum-rated, side-entry cable clamp
  • Baffle: ABS UL94V-0 plastic
  • Grille: Steel with textured finish, paintable
• Dimensions: Ø308 x 135 (D) mm (12.13" 5.32")
• Weight: 4.9 kg (9.8 lbs)

What's Included

• 2x White Grille
• 2x Black Grille
• 2x Template
• 4x Tile bridge
• 2x Support ring
• 8x Mounting screws 4x8
• 2x Mounting screws 3x8
• 2x Rubber cover
• 2x Removable terminal plug (4 pins)
• 2x Safety wire HF2-LG-2M-1B
