Bose Veritas 2160BH 120V Smart Mixer Amplifier

About: Bose Veritas 2160BH 120V Smart Mixer Amplifier

The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efficiently powers multiple zones with premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations, the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.

• Premium amplification with advanced DSP for optimized performance
• Bluetooth connectivity and RCA connectivity—no wire splicing required
• Intuitive front-panel OLED screen for easy setup and control
• Embedded quick-start QR code in the OLED screen simplifies installation
• Supports high-impedance (70/100V) applications
• Multi-zone flexibility—support for up to two independent zones
• Remote level control with Bose Professional or third-party wall controllers
• Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
• Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
• Opti-Voice paging feature ensures clear speech intelligibility

Specifications

• AMPLIFICATION
  • Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
  • Dynamic Range: 88 dB
  • Frequency Response: 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference
  • Rated Power, Symmetrical: 2 x 160 W at 70/100V
  • THD+N: ≤ 0.5% at rated power
• AUDIO INPUTS, ANALOG
  • Adjustment Range: 0 dB to -30 dB (line), 0 dB to +50 dB (page)
  • Input Channels: (2) balanced line, (2) unbalanced line, (1) balanced mic/line
  • Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
  • Input Impedance: 20 kΩ (line), 2 kΩ (page)
  • Input Range: -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
  • Maximum Input Level: 22 dBu (line), 12 dBu (page)
  • Nominal Input Level: 4 dBu (line), -38 dBu (page)
  • Sensitivity: -8 dBu (line), -58 dBV (page)
• AUDIO OUTPUTS, ANALOG
  • Channels: (2) loudspeaker, (1) unbalanced line
  • Connectors: (2) 2-pin inverted Euroblock, (1) RCA stereo pair
  • Nominal Output Level: 2 x 160 W at 70V/100V (loudspeaker), 2 dBu (auxiliary)
• ELECTRICAL
  • Mains Connector: IEC C14 inlet
  • Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
  • Protections: High temperature, output short circuit, excessively low/high AC line voltage
  • AC Power Consumption: 13.6 W standby, 500 W maximum
• INDICATORS AND CONTROLS

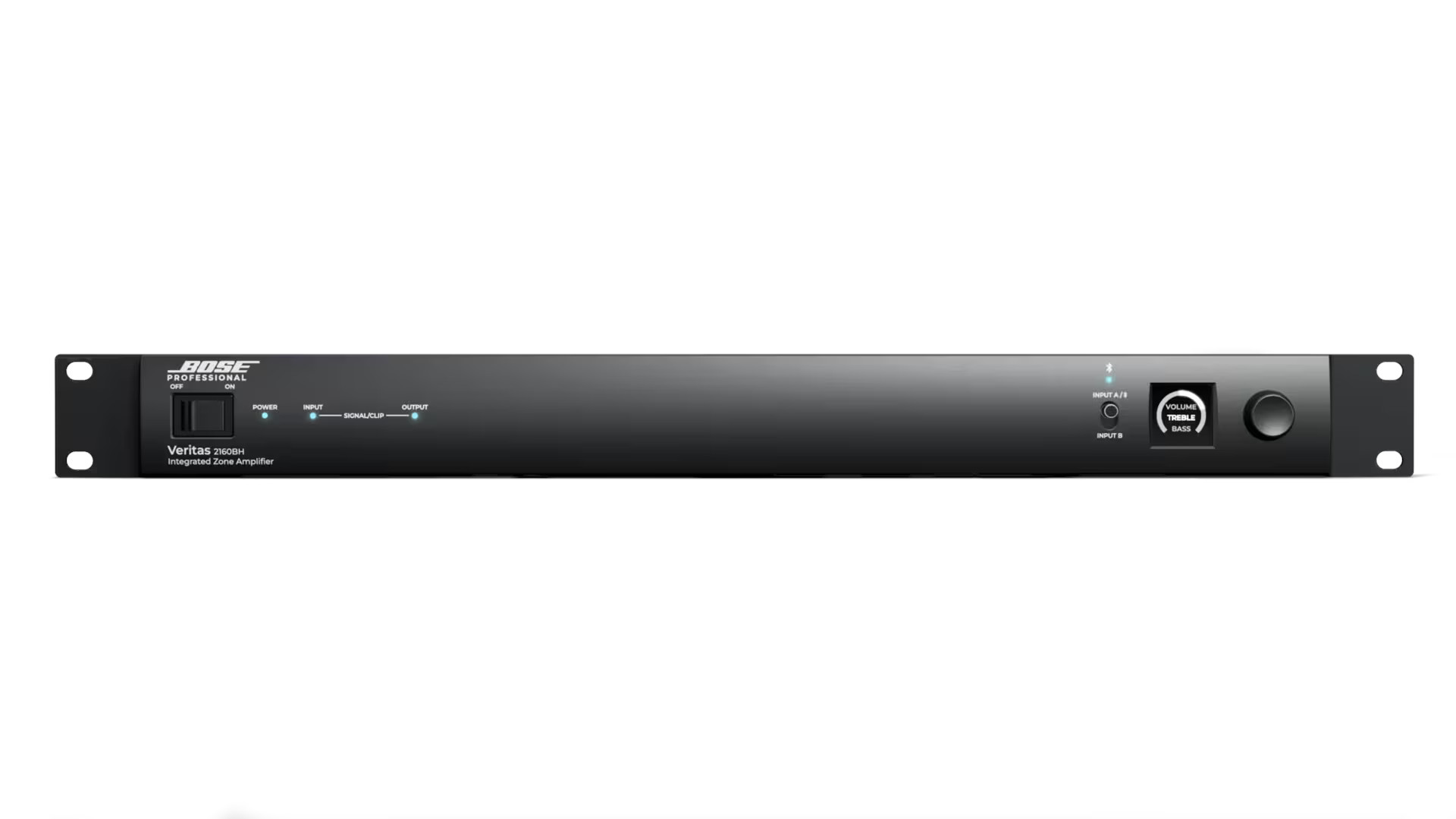

  • Controls, Front Panel: Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

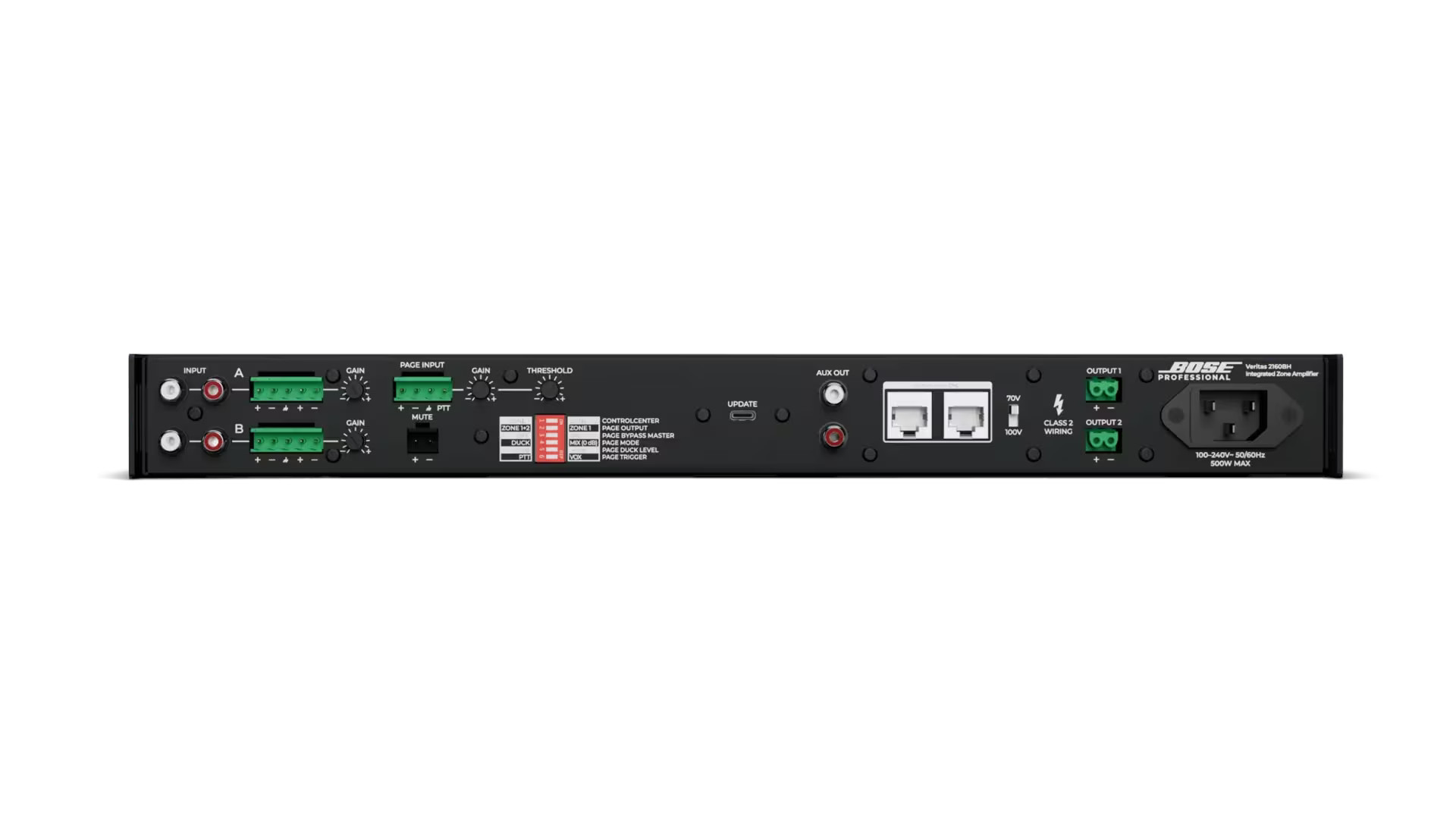

  • Controls, Rear Panel: Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
• INTEGRATED DSP
  • A/D and D/A Converters: 48 kHz / 24-bit
  • Audio Latency: 10.4 ms (any input to speaker output or aux output)
  • Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
  • Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
• PHYSICAL
  • Cooling System: Fan system, left-to-right airflow
  • Product Dimensions (HxWxD): 1.7 x 19 x 12.8 in (44 x 483 x 324 mm)
  • Weight: 9.7 lb (4.4 kg)

What's in the Box

• 1x Veritas 2160BH
• 4x Mounting feet with pins
• 2x 5-pin Euroblock connector
• 1x 4-pin Euroblock connector
• 3x 2-pin Euroblock connector
• 1x Power cord
• 1x Installation guide
