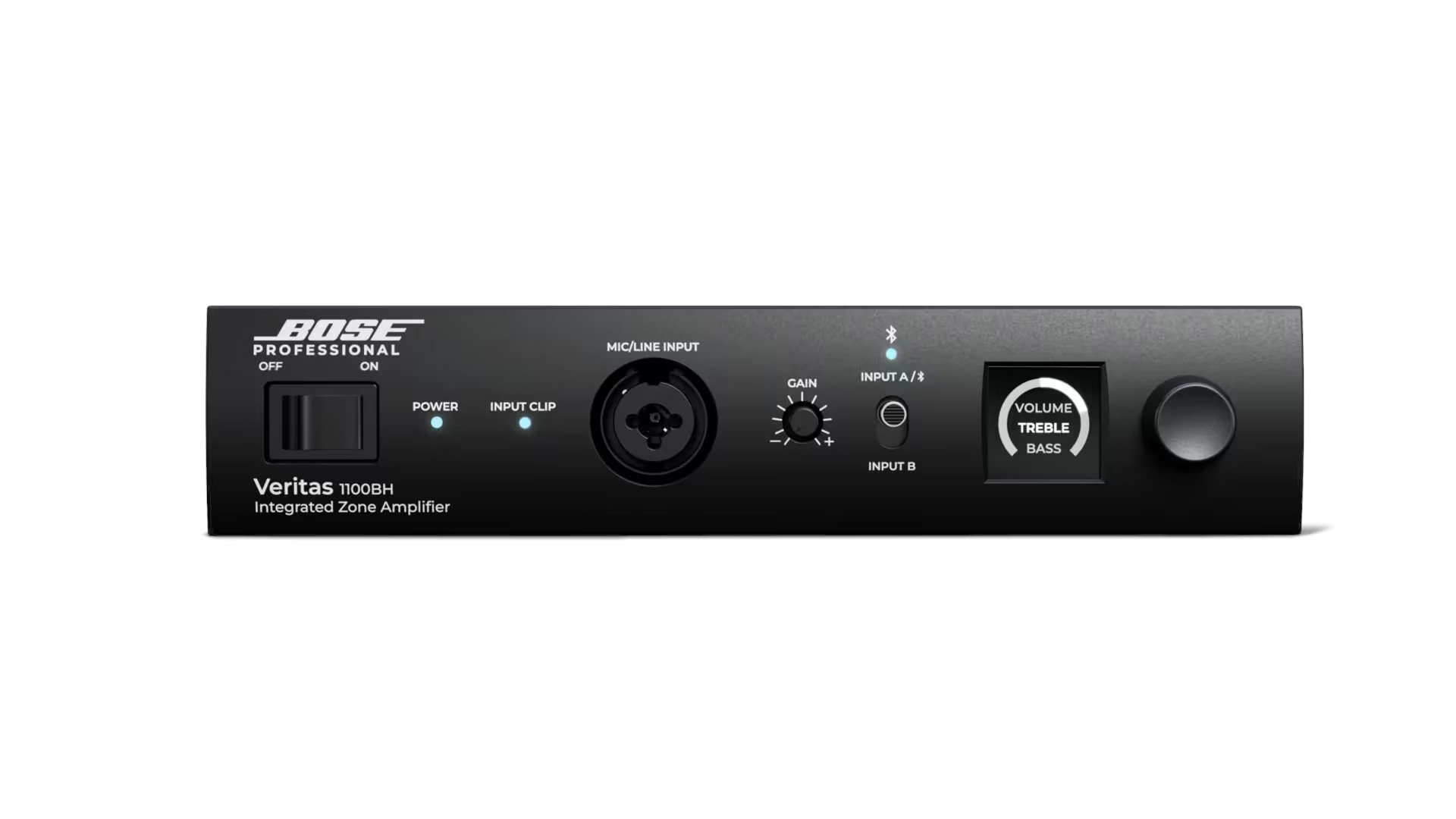

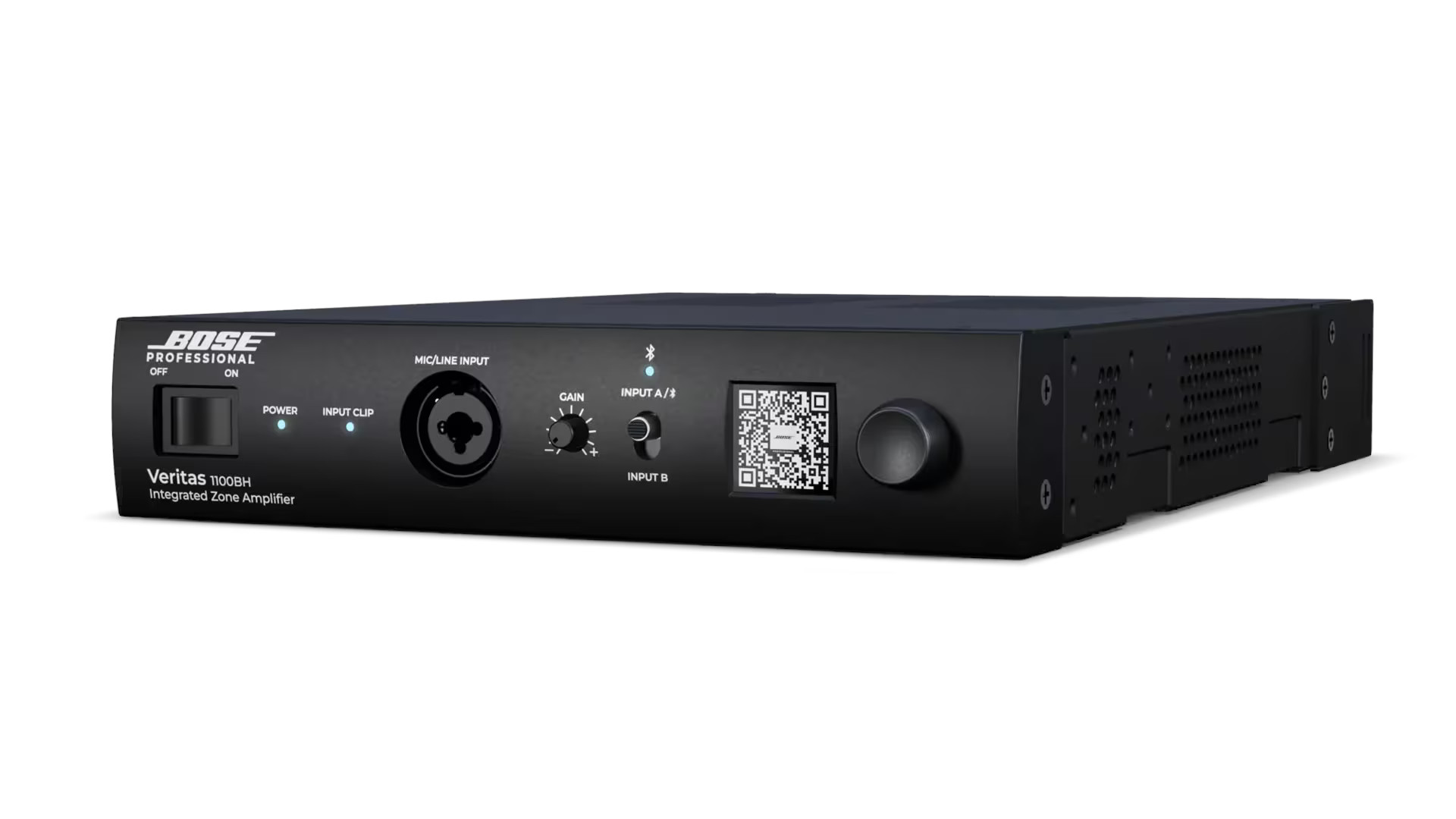

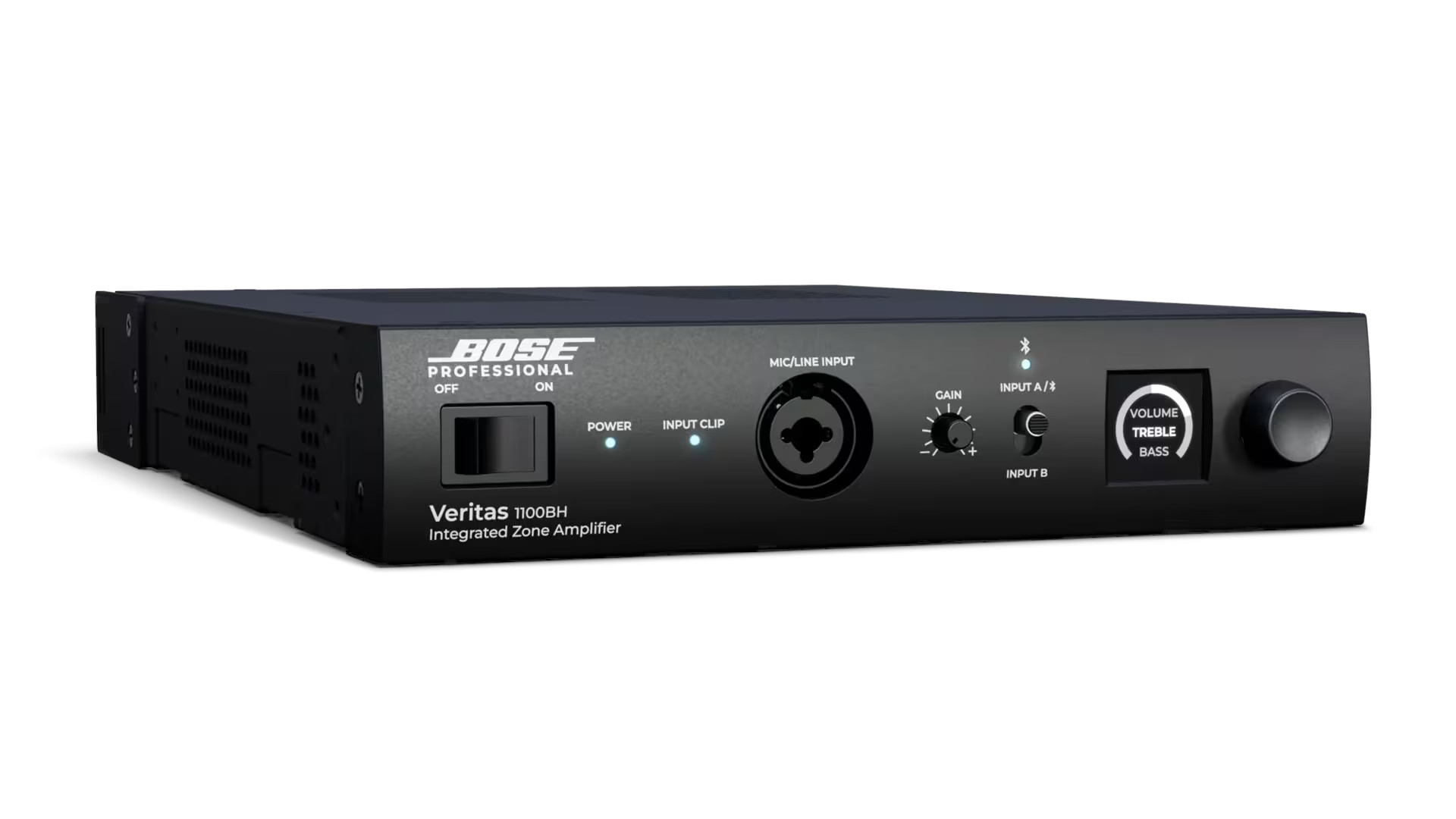

Bose Veritas 1100BH 120V Smart Mixer Amplifier

About: Bose Veritas 1100BH 120V Smart Mixer Amplifier

The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

Compact and powerful, the 1100BH is suited for smaller distributed audio systems, background music, and paging applications. Designed for 70V/100V high-impedance systems, it efficiently powers multiple wall or ceiling loudspeakers to deliver broad coverage. Perfect for smaller venues, offices, and retail spaces, the 1100BH features a smaller half-rack size and front XLR/¼-inch input for convenient mic or audio source connection.

• Premium amplification with advanced DSP for optimized performance
• Bluetooth connectivity and RCA connectivity—no wire splicing required
• Intuitive front-panel OLED screen for easy setup and control
• Included bracket accessory for mount-anywhere flexibility
• Embedded quick-start QR code in the OLED screen simplifies installation
• Supports high-impedance (70/100V) applications
• Remote level control with Bose Professional or third-party wall controllers
• Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
• Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
• Opti-Voice paging feature ensures clear speech intelligibility
• Convection cooling for fanless operation in quiet installs such as offices and conference rooms

Specifications

• AMPLIFICATION
  • Dynamic Range: 88 dB
  • Frequency Response: 70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz)
  • Rated Power, Symmetrical: 1 x 100 W at 70V/100V
  • THD+N: ≤0.3 % (at full rated power)
• AUDIO INPUTS, ANALOG
  • Input Channels: (2) unbalanced line, (2) balanced mic/line
  • Connectors: (2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock
  • Input Impedance: 20 kΩ (line), 2.4 kΩ (page)
  • Input Range: -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
  • Maximum Input Level: +10 dBV (line), +10 dBV (page)
  • Nominal Input Level: 0 dBV (line), -40 dBV (page)
  • Sensitivity: -10 dBV (line), -58 dBV (page)
• AUDIO OUTPUTS, ANALOG
  • Channels: (2) loudspeaker, (1) unbalanced line
  • Connectors: (1) 3-pin inverted Euroblock, (1) RCA stereo pair
  • Nominal Output Level: 1 x 100 W at 70V/100 V (loudspeaker), 0 dBV max (auxiliary)
• ELECTRICAL
  • Mains Connector: IEC C14 inlet
  • Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
  • Protections: High temperature, output short
  • AC Power Consumption: 15 W idle, 200 W maximum
• INDICATORS AND CONTROLS
  • Controls, Front Panel: Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder

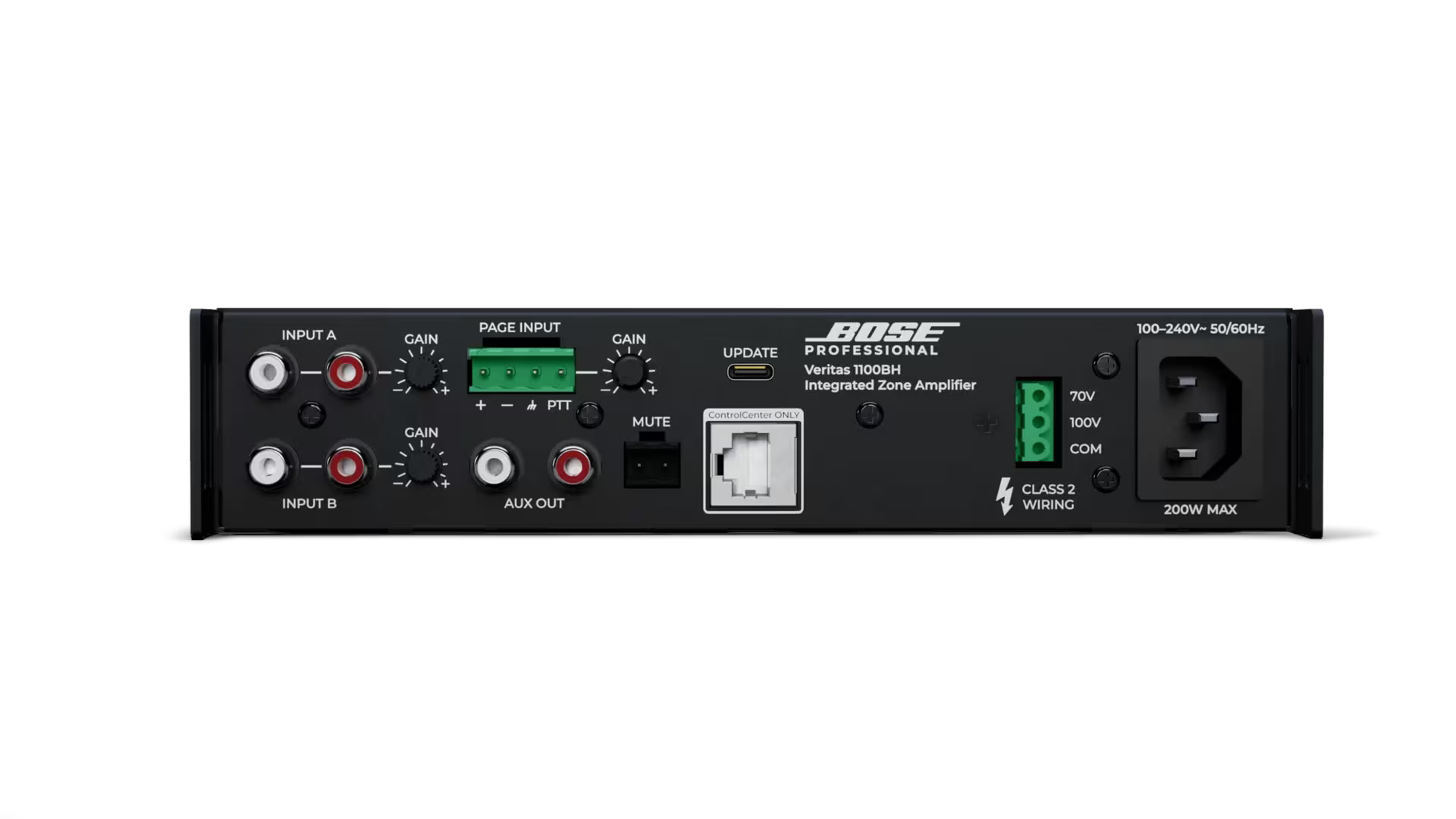

  • Controls, Rear Panel: Input gain knobs (A, B, page), mute connector, ControlCenter port
• INTEGRATED DSP
  • A/D and D/A Converters: 48 kHz / 24-bit
  • Audio Latency: 10.4 ms (any input to speaker output or aux output)
  • Presets: 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
  • Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
• PHYSICAL
  • Cooling System: Natural convection

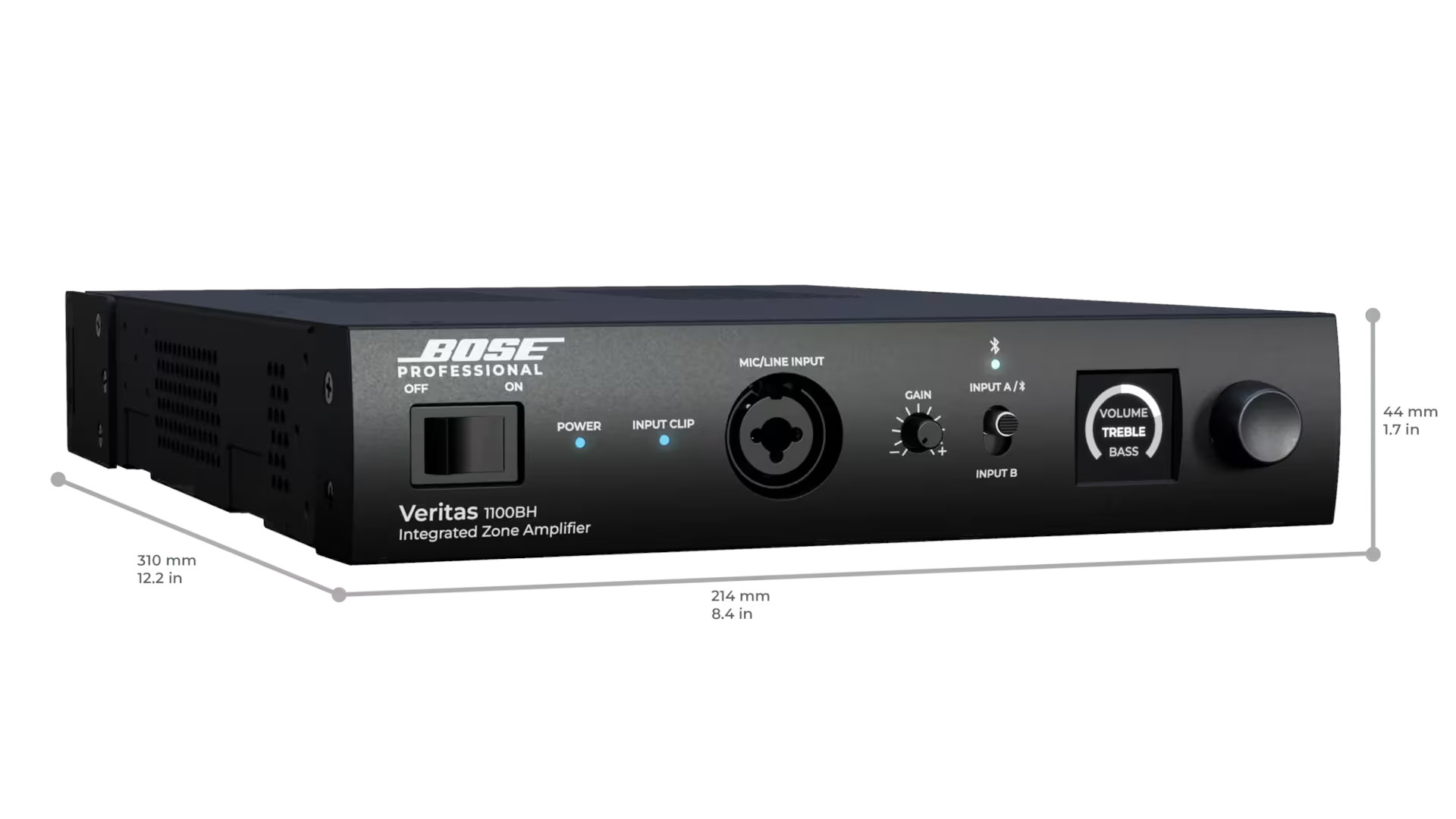

  • Product Dimensions (HxWxD): 1.7 x 8.4 x 12.2 in (44 x 214 x 310 mm)
  • Weight: 7.1 lb (3.2 kg)

What's in the Box

• 1x Veritas 1100BH
• 2x Mounting brackets
• 6x Screws
• 4x Mounting feet with pins
• 1x 4-pin Euroblock connector
• 1x 3-pin Euroblock connector
• 1x 2-pin Euroblock connector
• 1x Power cord
• 1x Installation guide
