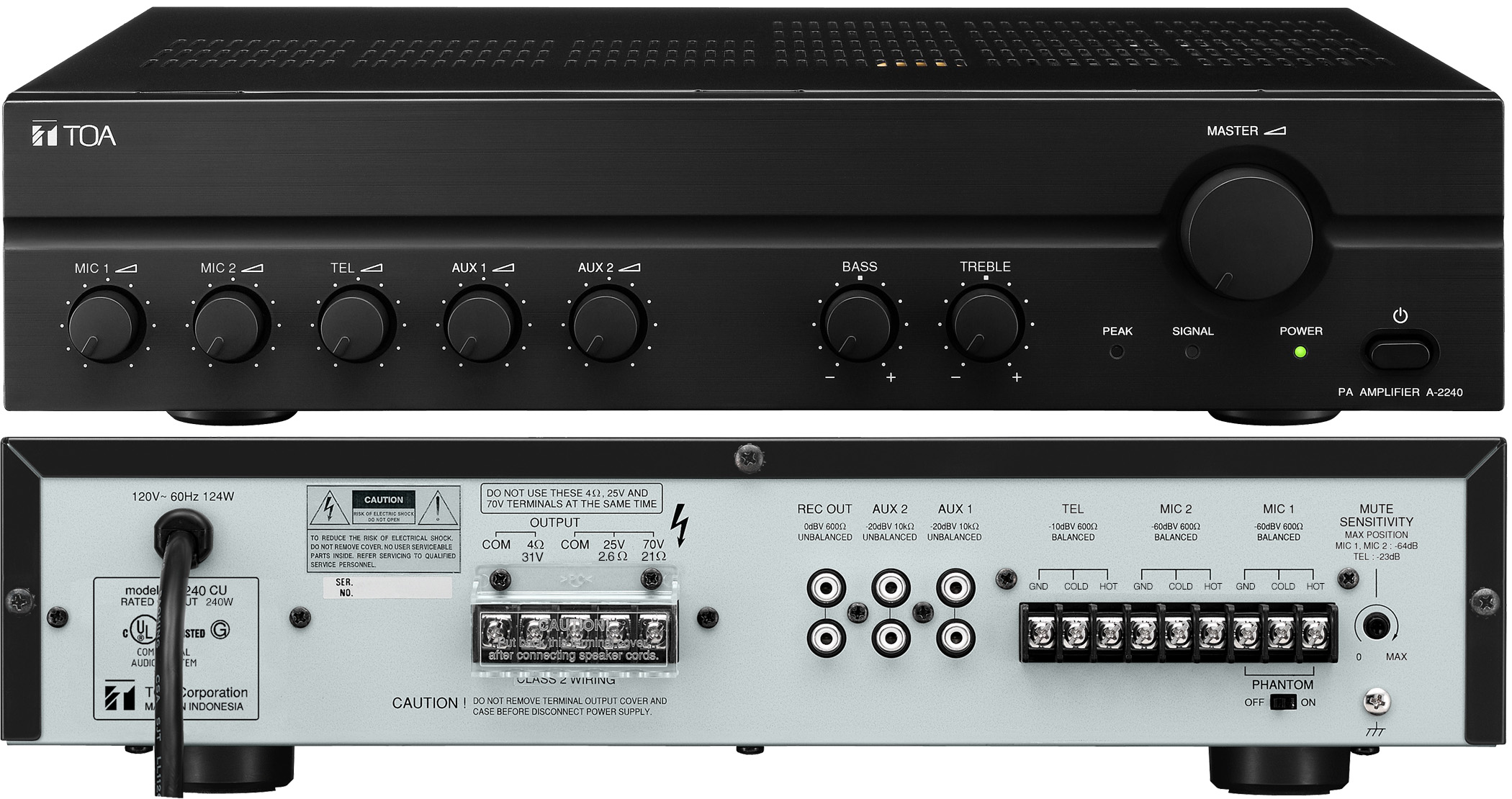

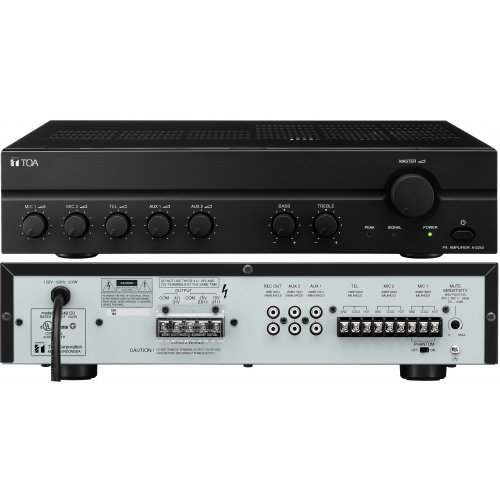

TOA Canada A-2240 240W Mixer/Amplifier w/ Phantom Power and Auto Mute

About: TOA Canada A-2240 240W Mixer/Amplifier w/ Phantom Power and Auto Mute

The A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

A-2000 Series Mixer Power Amplifiers

• High performance
  • Suitable for commercial audio systems in schools, offices, restaurants, shops, factories, houses of worship, and large meeting rooms
  • Engineered for high porformance with wide frequency response, low noise and distortion, and excellent output regulation
  • Equipped with balanced mic. inputs for better isolation from external noise, compared to unbalanced inputs
  • UL/cUL Listed
• Flexibility
  • A wide range of power outputs from 60W to 240W
  • Offers a comfortable acoustic space thanks to tone control at bass and treble
  • Phantom power can be provided to MIC1, for supplying power to a condenser microphone
  • Equipped with Auto-mute function which allows voice- activated paging by Microphone and Telephone paging inputs which override the Auxiliary inputs
• Easy to handle
  • Scratch- and fingerprint-resistant finish
  • Easy and quick volume control with master volume knob

Specifications

• Power Source -  120V AC
• Rated Output -  240W
• Power Consumption -
  • 238W (EN60065)
  • 520W (AC operation at rated output)
• Frequency Response -  50 - 20,000 Hz (±3 dB)
• Distortion -  1% or less at 1 kHz, 1/3 rated power
• Input
  • MIC 1, 2: -60 dB*, 600 Ω, balanced, M3.5 screw terminal, distance between barriers: 8.3 mm (0.33")
  • TEL: -10 dB*, 10 kΩ, balanced, M3.5 screw terminal, distance between barriers: 8.3 mm (0.33")
  • AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
• Output
  • Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33")
    • High impedance: 2.6 Ω (25 V), 21 Ω (70 V)
    • Low impedance: 4 Ω (31 V)
  • Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
• Phantom Power -  DC +21 V (MIC 1)
• S/N Ratio -  60 dB or more
• Tone Control
  • Bass: ±10 dB at 100 Hz
  • Treble: ±10 dB at 10 kHz
• Muting
  • MIC 1, MIC 2, and TEL have a priority function to attenuate AUX1 and AUX 2 input signals by 30 dB.
    • (Sensitivity level for MIC 1, MIC 2, and TEL adjustable)
  • Priority level among MIC 1, MIC 2, and TEL is the same.
• Ventilation -  Fan cooling
• Finish
  • Panel: ABS resin, black
  • Case: Steel plate, black
• Dimensions (W x H x D) -  420 × 100.9 × 360.3 mm (16.54" × 3.97" × 14.19")
• Weight -  13.2 kg (29.1 lb)
