EAW CIS400 40W 6.5in Ceiling Speaker (Pair)
Model: CIS400
About: EAW CIS400 40W 6.5in Ceiling Speaker (Pair)

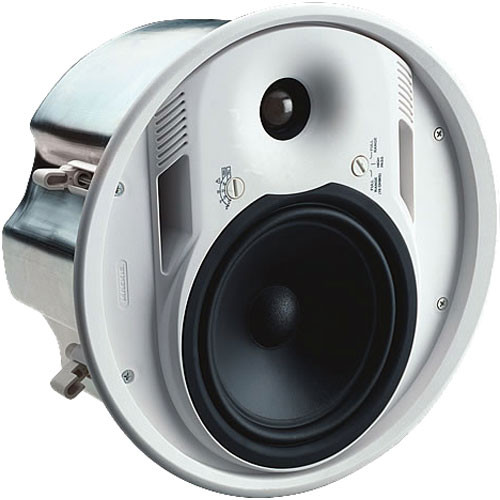

The CIS400 is a complete two-way bass-reflex flush-mount loudspeaker assembly designed for fixed installations into typical ceiling plenum spaces. Employing a unique HF waveguide design based on the Mackie HR824 studio monitors, the CIS400 delivers superior dispersion and pattern control over conventional coaxial designs. The waveguide integrates the HF driver with a 6.5″ LF driver optimized for smooth frequency response and seamless transition through the crossover point. The result is extraordinary acoustic performance not generally associated with a commercial ceiling speaker in this price range.
The CIS400 is supplied fully assembled, complete with a sealed zinc-coated steel backcan and cam-style installation clamps. The metal enclosure includes a recessed Euroblock input connector with detachable mating plug, concealed behind a hinged metal cover plate. A welded tab is provided for seismic restraint. Two steel T-Bar support channels are provided to facilitate installation to a standard tile ceiling. Also supplied is a steel split C-ring, which serves to disperse the clamping pressure of the mounting cams.
The CIS400 is supplied with an integral 70/100V line transformer rated to a maximum of 30 watts. Power is adjustable by means of a recessed rotary switch on the front bezel, and allows selection of 30, 15, 7.5 and 3.7 watt taps. A second recessed rotary switch is provided to engage a 16-Ohm tap for use with low-impedance amplifiers, or a 150 Hz high-pass filter.
The speaker assembly is shipped with a detachable plastic cover fitted over the transducers inside the bezel. This protective cover protects the drivers from damage during installation and also serves as a paint cover, allowing convenient spray painting to match interior décor. A powder-coated perforated steel grille is supplied, and easily installed once the desired Tap Selector and Full-Range/High-Pass switches have been set.
The entire assembly is fully tested at the time of manufacture and is warranted to be free from defects in materials and workmanship for a period of five years from the date of purchase. The speaker is designed for use in ceiling plenum spaces and meets UL 1480 and UL 2043 regulations governing signaling devices and plenum applications.
Features:
- 6.5 inch cast steel basket, high-efficiency carbon fiber woofer
- 110º x 110º constant directivity horn with Ferrofluid® cooled, 1″ Neodymium dome tweeter
- Built-in LICC low-inductance passive crossover with high frequency dynamic protection
- Lightweight, UV/weather resistant, high density polystyrene
- Integrated mounting system and hardware included
- UL/cUL/CE listed
UPC: 663961020700
Reviews: EAW CIS400 40W 6.5in Ceiling Speaker (Pair)
Warranty: EAW CIS400 40W 6.5in Ceiling Speaker (Pair)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Processors: 2-year warranty
Electronics: 2-year warranty
Weather-Protected (WP) Loudspeakers: 5-year warranty
Accessories: 2-year warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
