Electro-Voice EVID-C-G2 8in High-Ceiling Speaker 70/100V (Pair)

About: Electro-Voice EVID-C-G2 8in High-Ceiling Speaker 70/100V (Pair)

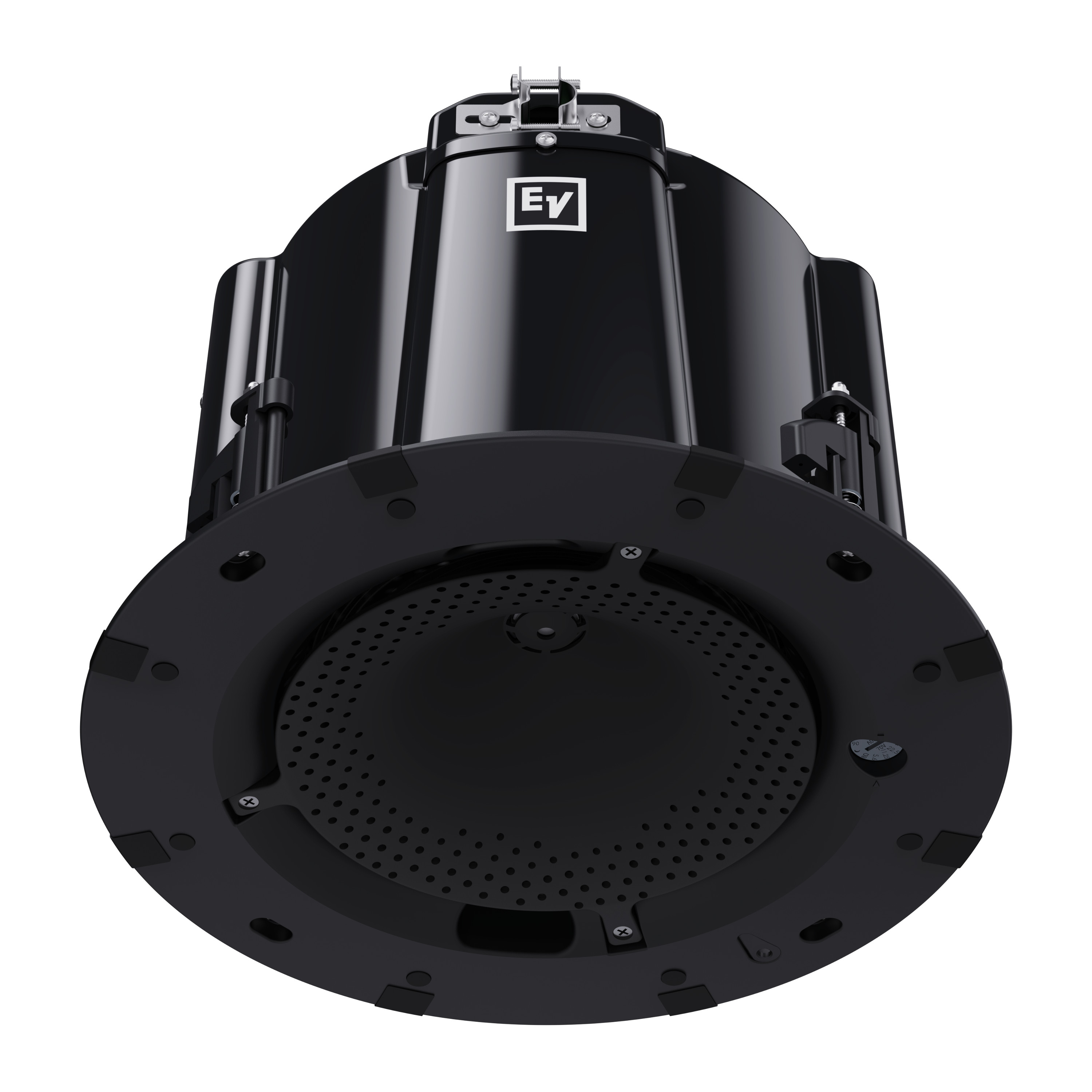

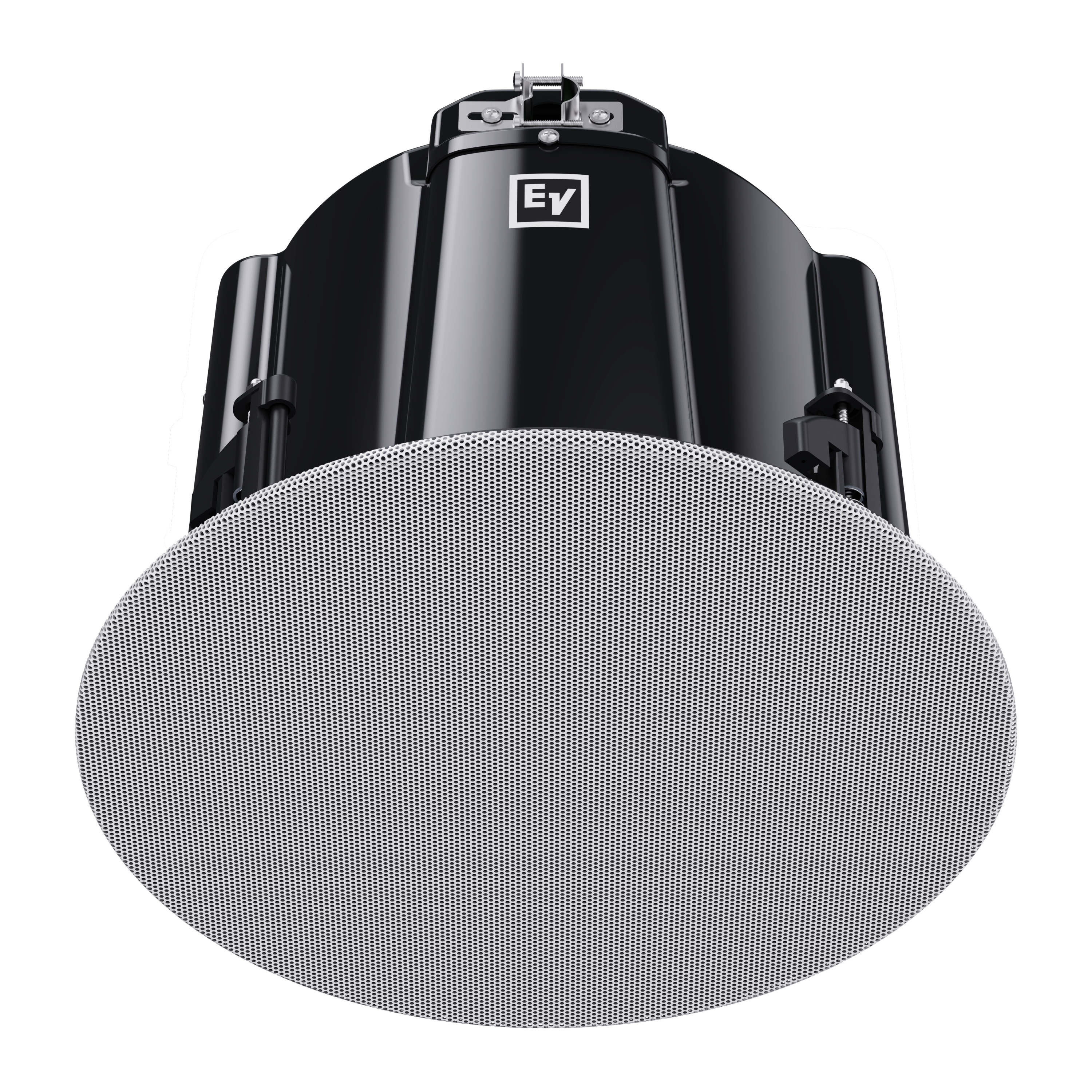

The Electro-Voice EVID-C8.2HC-G2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety.

• EZ-install system for quick, safe, and reliable installation.
• Bezel-less design with easy-attach grille.
• Front baffle wattage tap adjustment.
• Includes tile bridge and mounting ring for easy installation.
• UL 1480A, UL 2043 and CSA 22.2 205 certified.

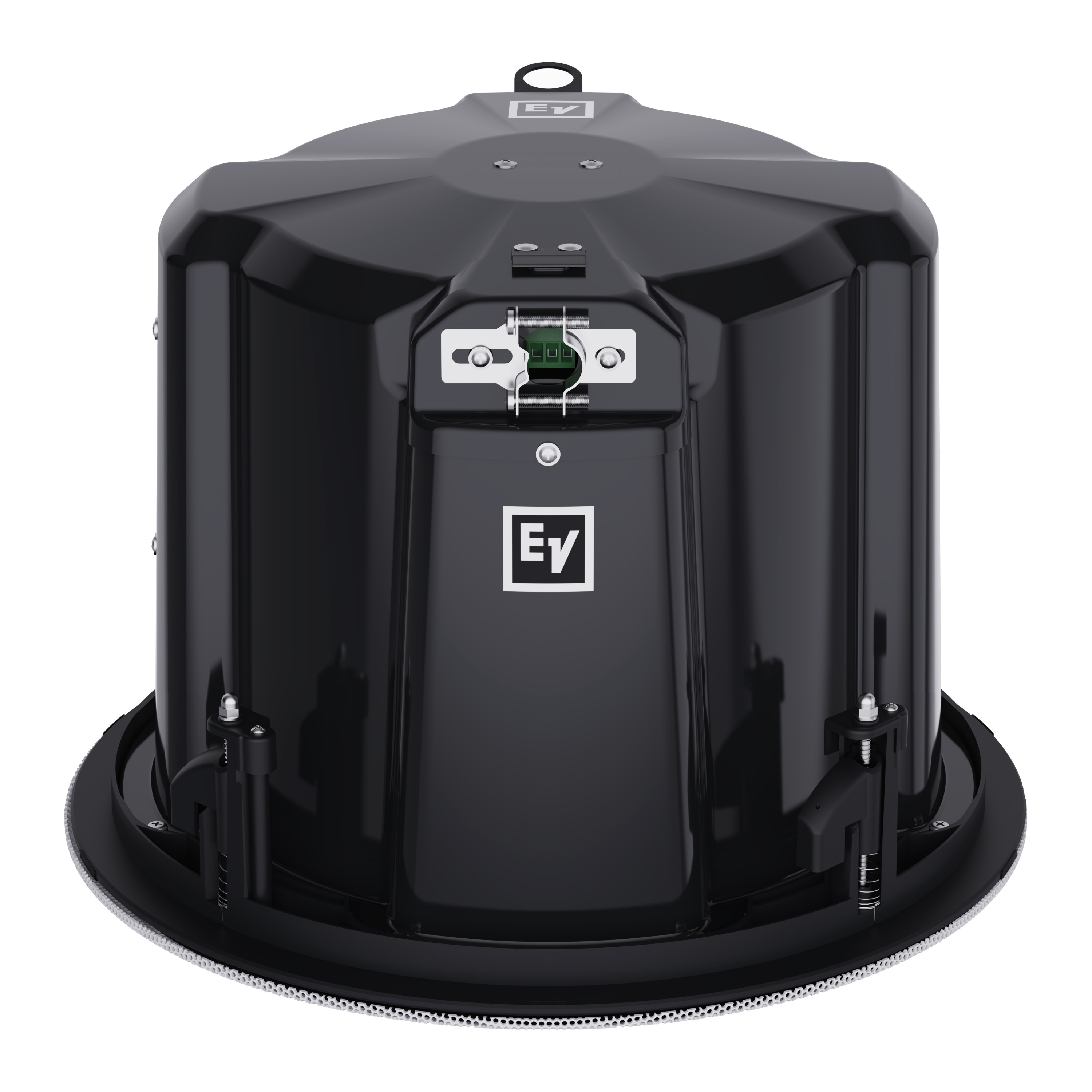

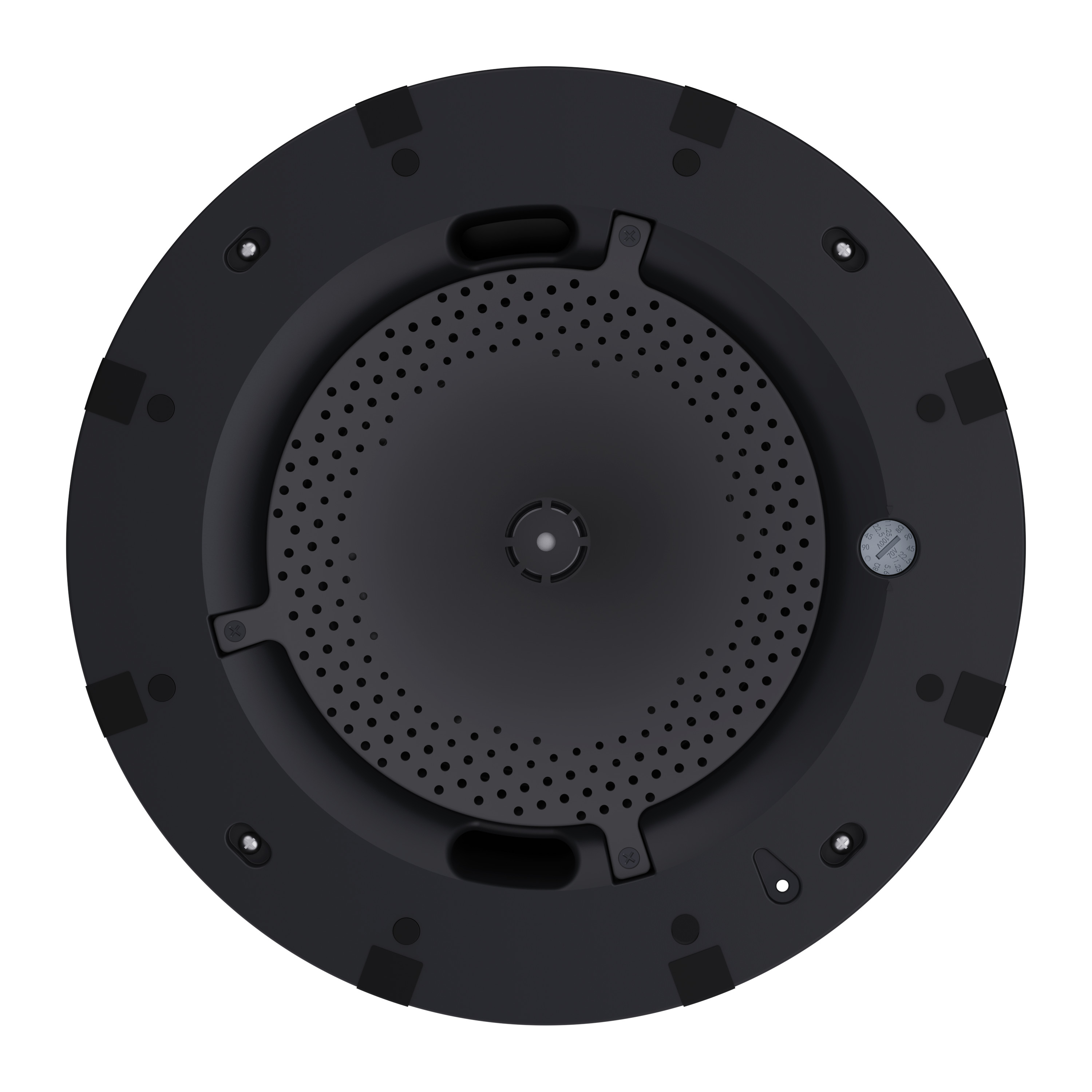

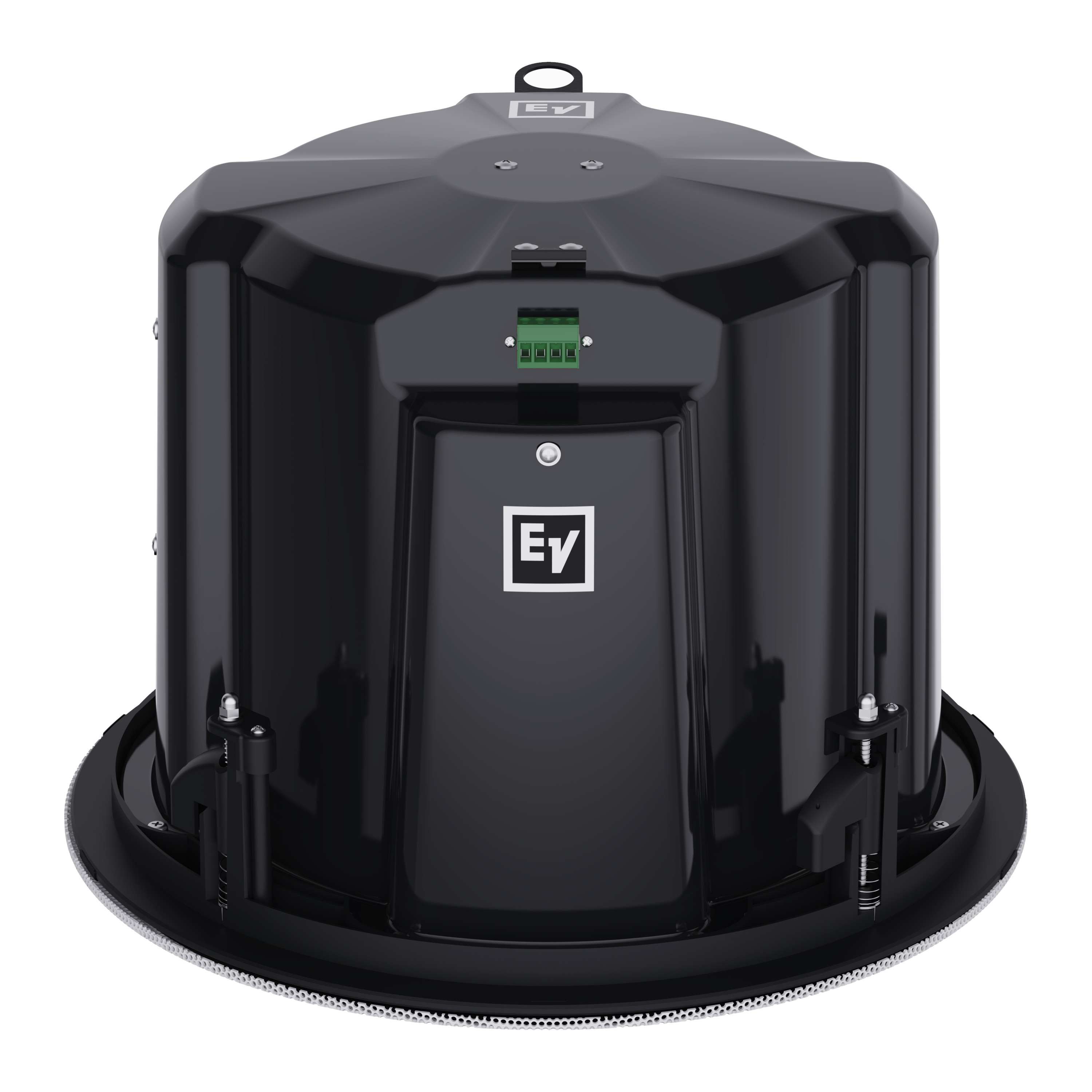

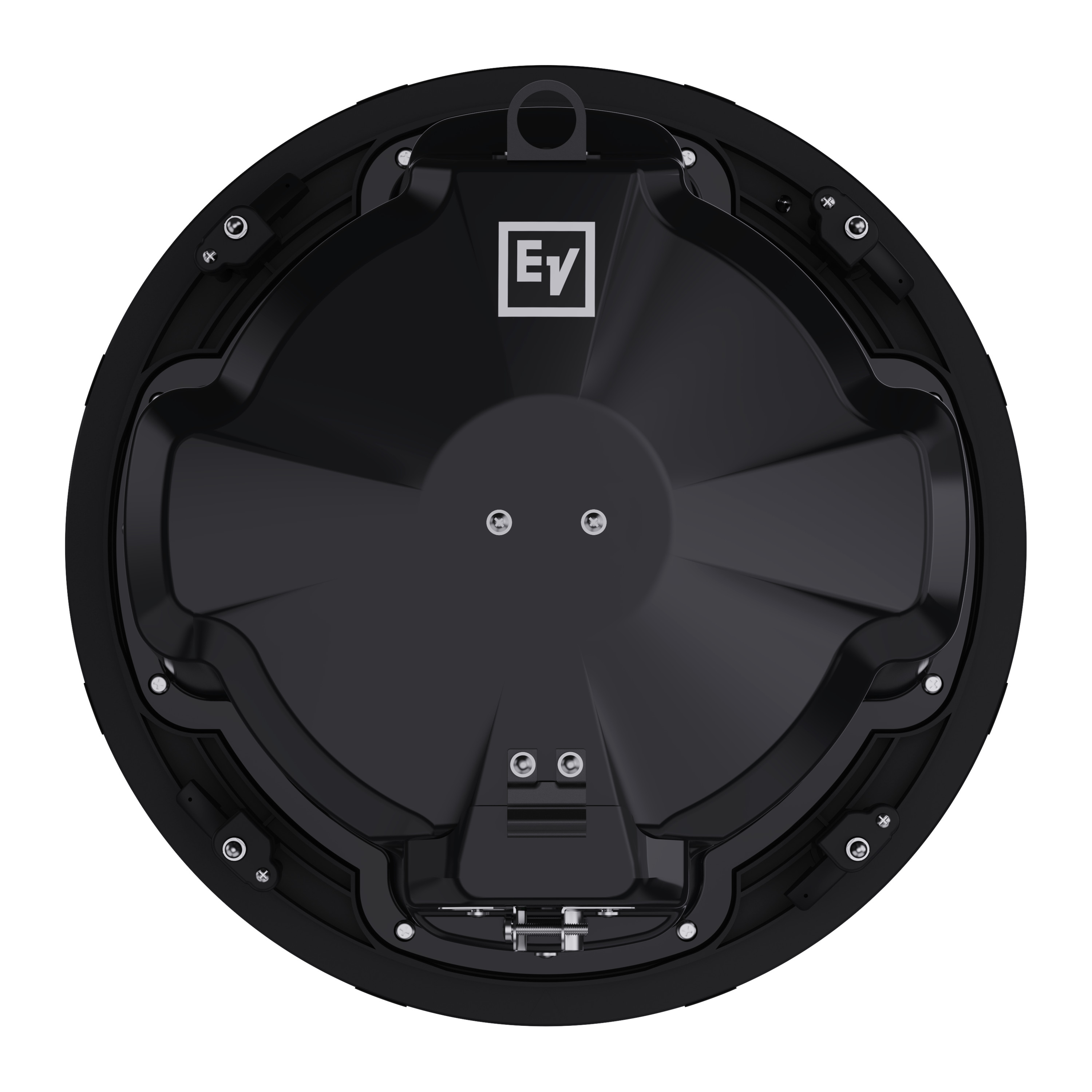

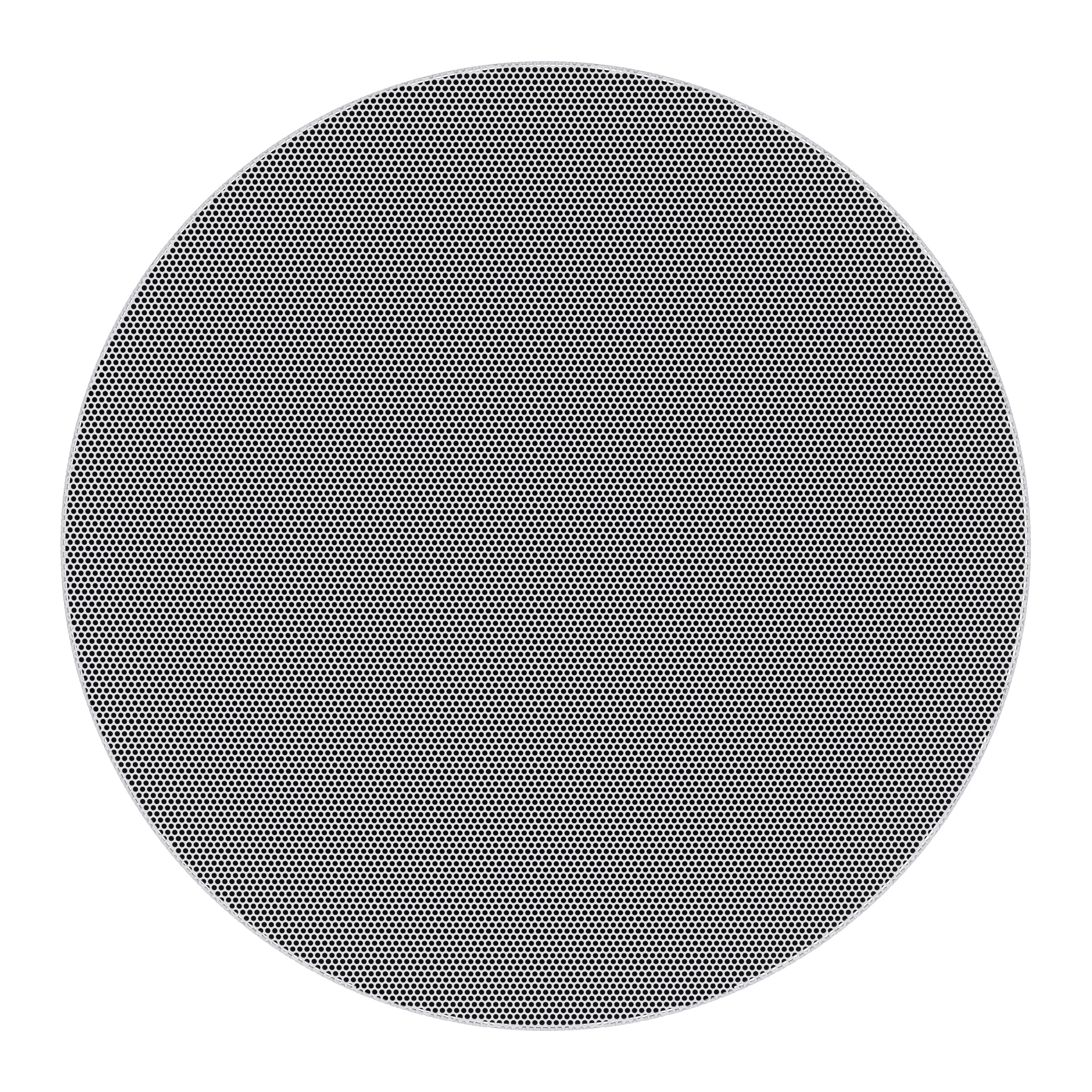

The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C8.2HC-G2 utilizes a transformer that offers a selection of 5.6 (70-V only), 11.3, 22.5, 45 or 90 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm-wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.2HC-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Specifications

• Frequency range (-10 dB) (Hz): 60 Hz – 20,000 Hz
• Maximum SPL
  • Continuous (dB): 118 dB
  • Peak (dB): 124 dB
• Sensitivity (1 W, 1 m): 95 dB SPL 1 W, 1 m
• Coverage angle conical (°): 75°
• Power handling
  • Continuous (W): 180 W
  • Peak (W): 720 W
• Long term power handling
  • Continuous (W): 150 W
  • Peak (W): 600 W
• Nominal impedance (Ω) (Low Z): 8 Ω
• Recommended high pass (Hz): 50 Hz
• Transformer taps
  • 70 V line (W): 90 W; 45 W; 22.5 W; 11.25 W; 5.6 W
  • 100 V line (W): 90 W; 45 W; 22.5 W; 11.25 W
• LF transducer size (in): 8 in
• HF transducer size (in): 1 in
• Material: Steel
• Grille material: Powder coated steel
• Connector type
  • ​4-pin Euroblock
  • Input + Pass through
• Wire size (AWG): 12AWG (maximum)
• Wire diameter (mm): 3.3 mm (maximum)
• Color: White; Customized colors
• Color (RAL): RAL 9003 Signal white
• Mounting cutout: 12.7 in (323 mm)
• Dimensions (Ø x D): 13.9 in x 9.9 in (353 mm x 250.7 mm)
• Mounting depth: 9.5 in (240 mm)
• Ceiling thickness: 0.5 in - 1.5 in (12.5 mm - 38 mm)
• Weight (each): 13.2 lb (6 kg)
• IP rating: IP34
• Weatherization: Indoor
• Operating temperature: 0 °C – 50 °C (32 °F – 122 °F)
• Safety agency ratings: UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638

What's in the Box

• 2x Ceiling loudspeaker
• 2x Loudspeaker connection cover (installed)
• 2x Magnetic grille
• 4x Ceiling tile rail
• 2x C-ring
• 4x Screw
• 1x Cutout template
• 2x Paint cover
• 1x Quick installation guide
