JBL Control 412C/T 3in Full-Range Ceiling Loudspeaker (Pair)

About: JBL Control 412C/T 3in Full-Range Ceiling Loudspeaker (Pair)

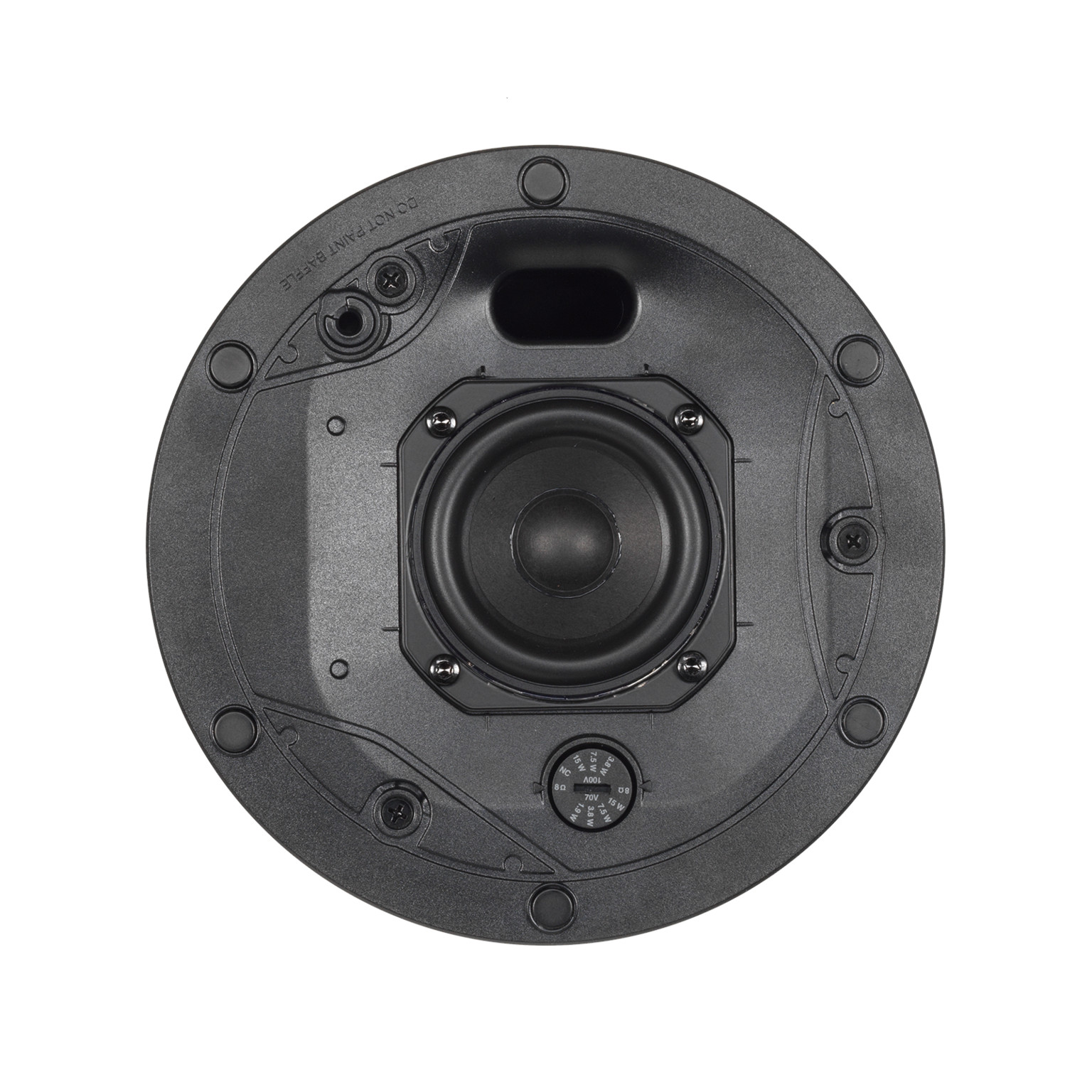

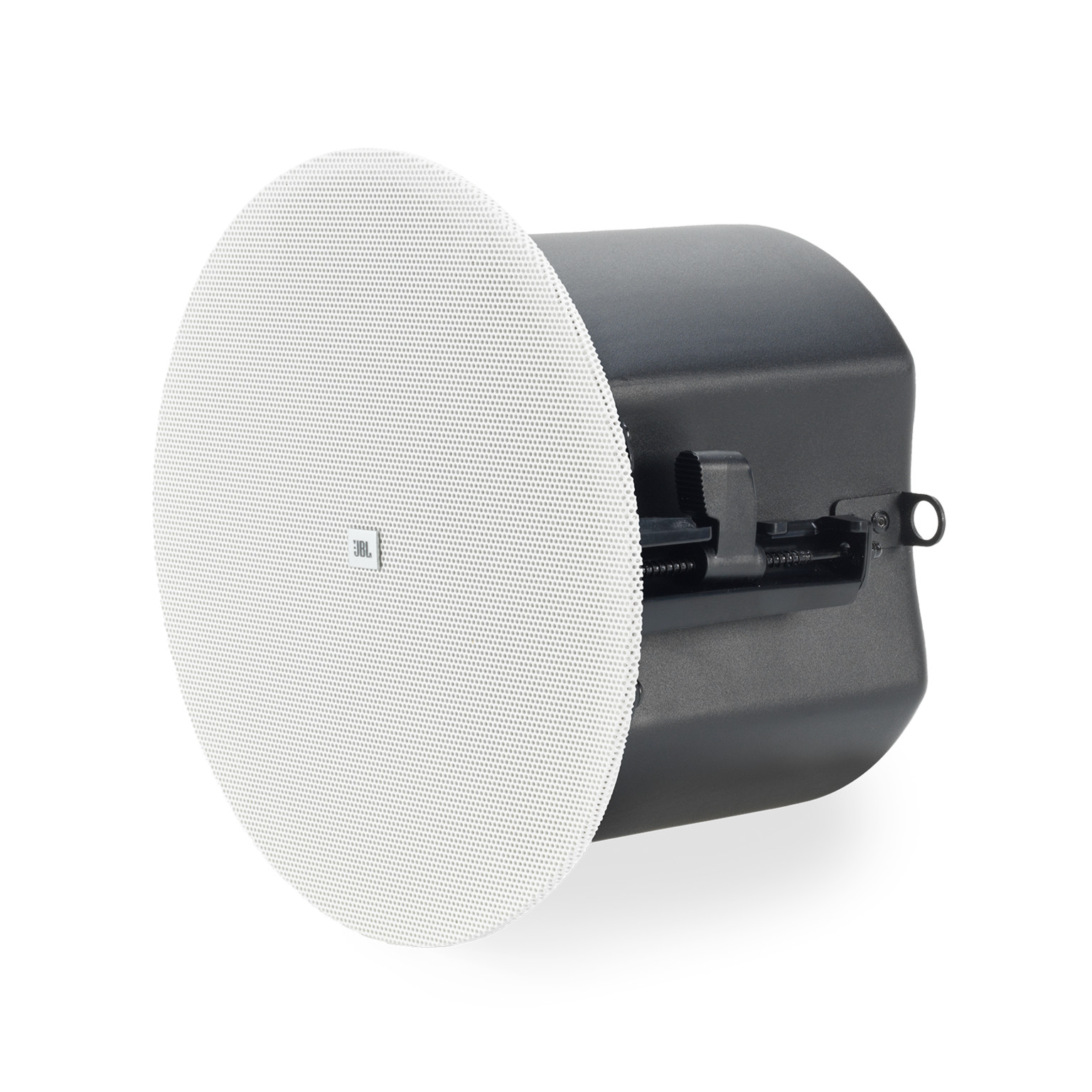

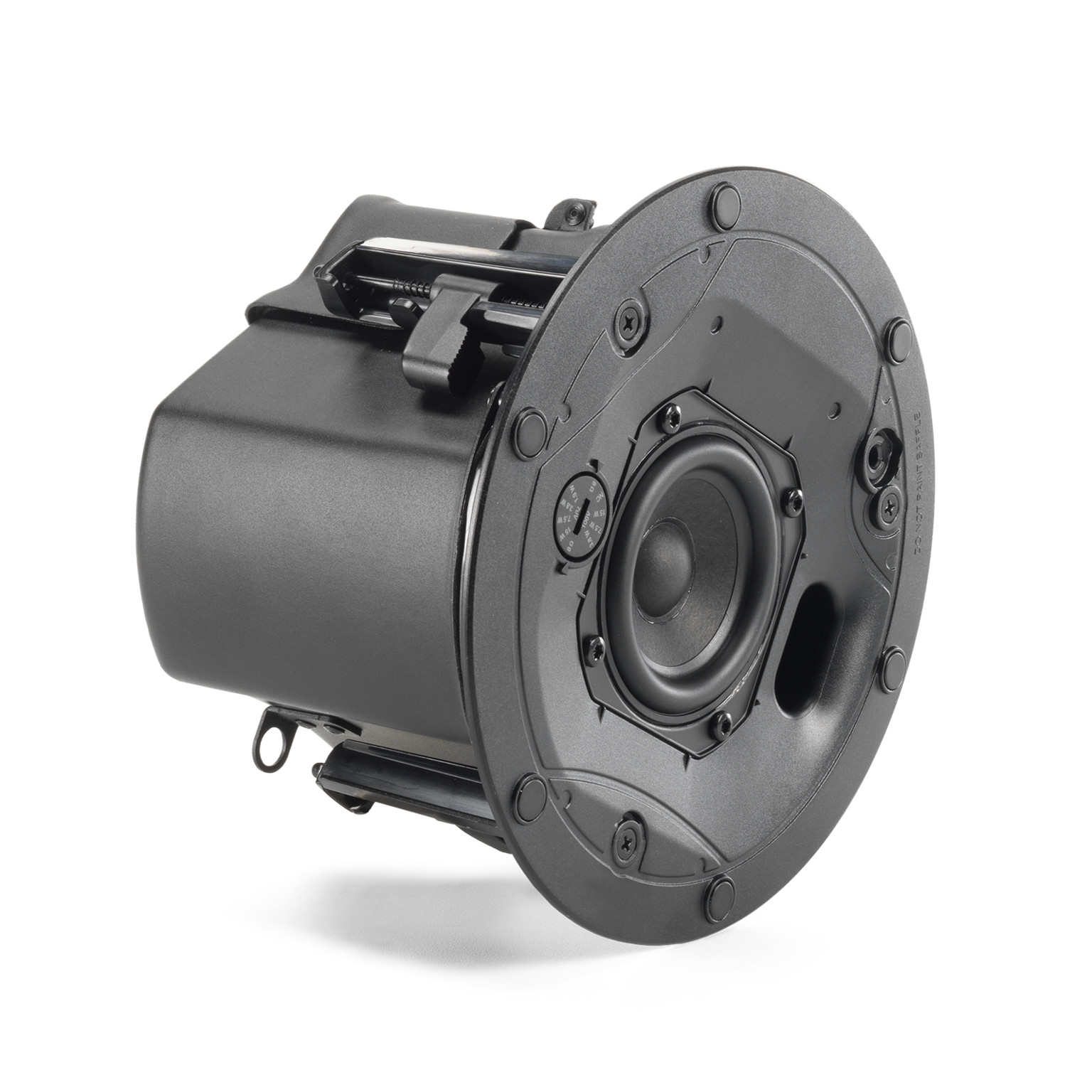

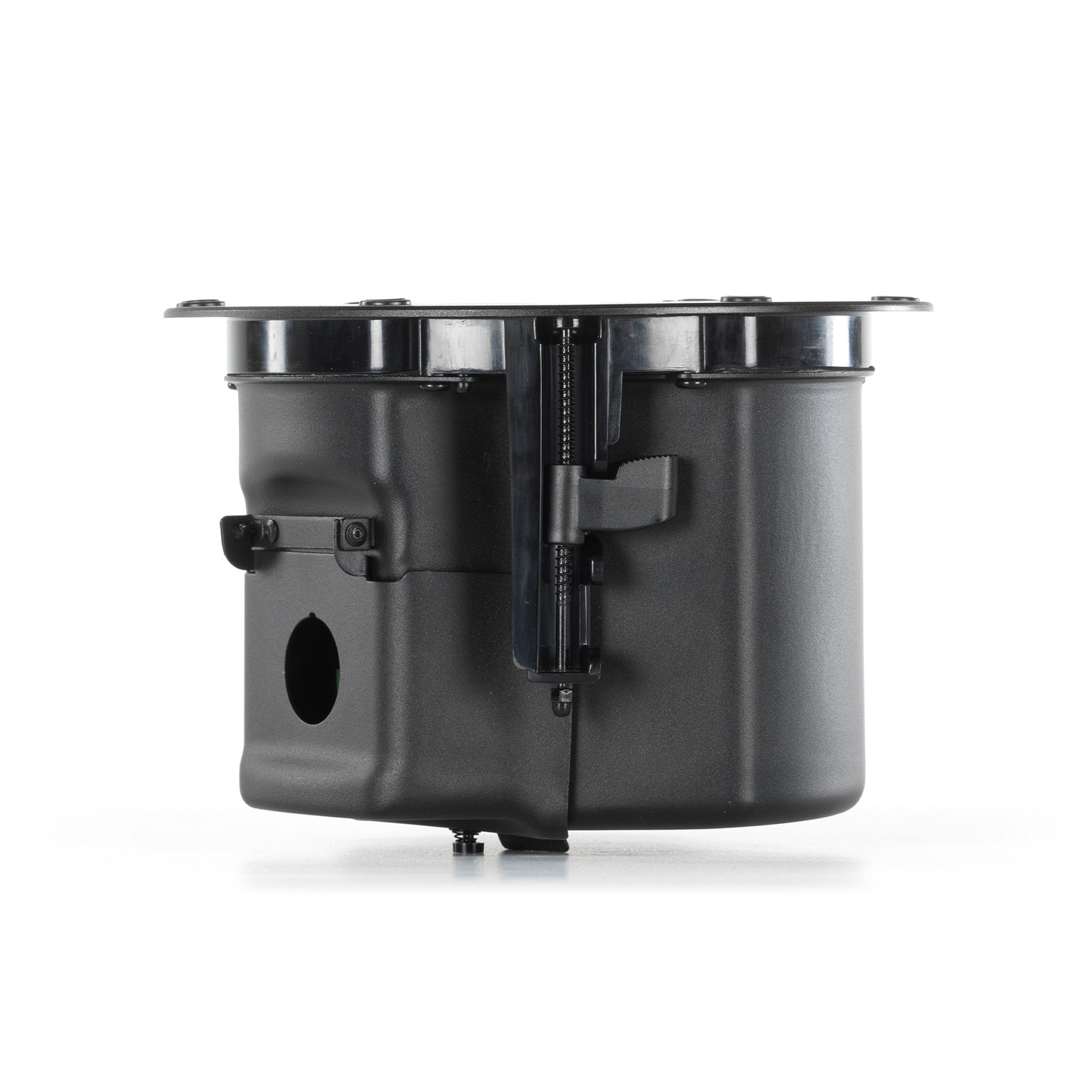

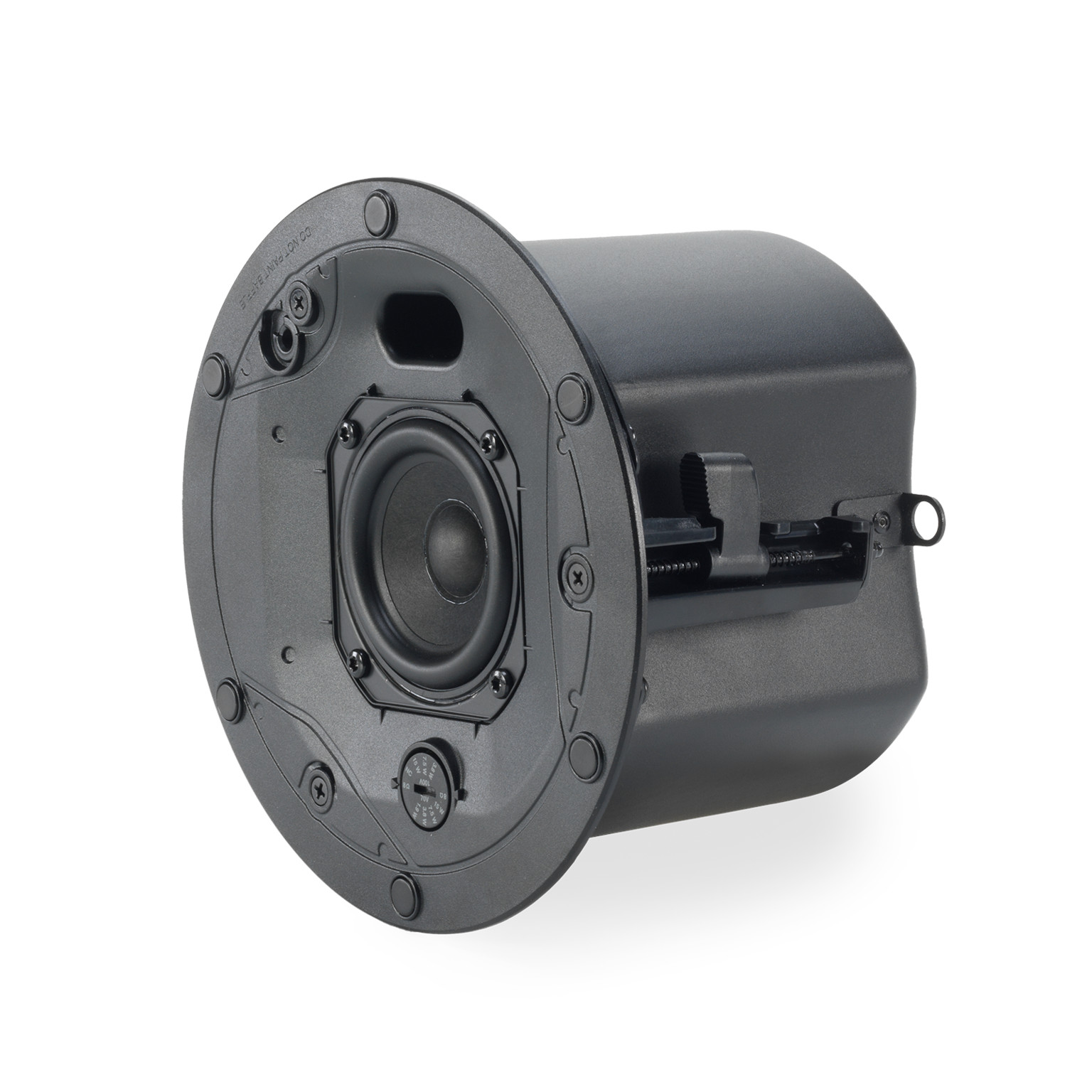

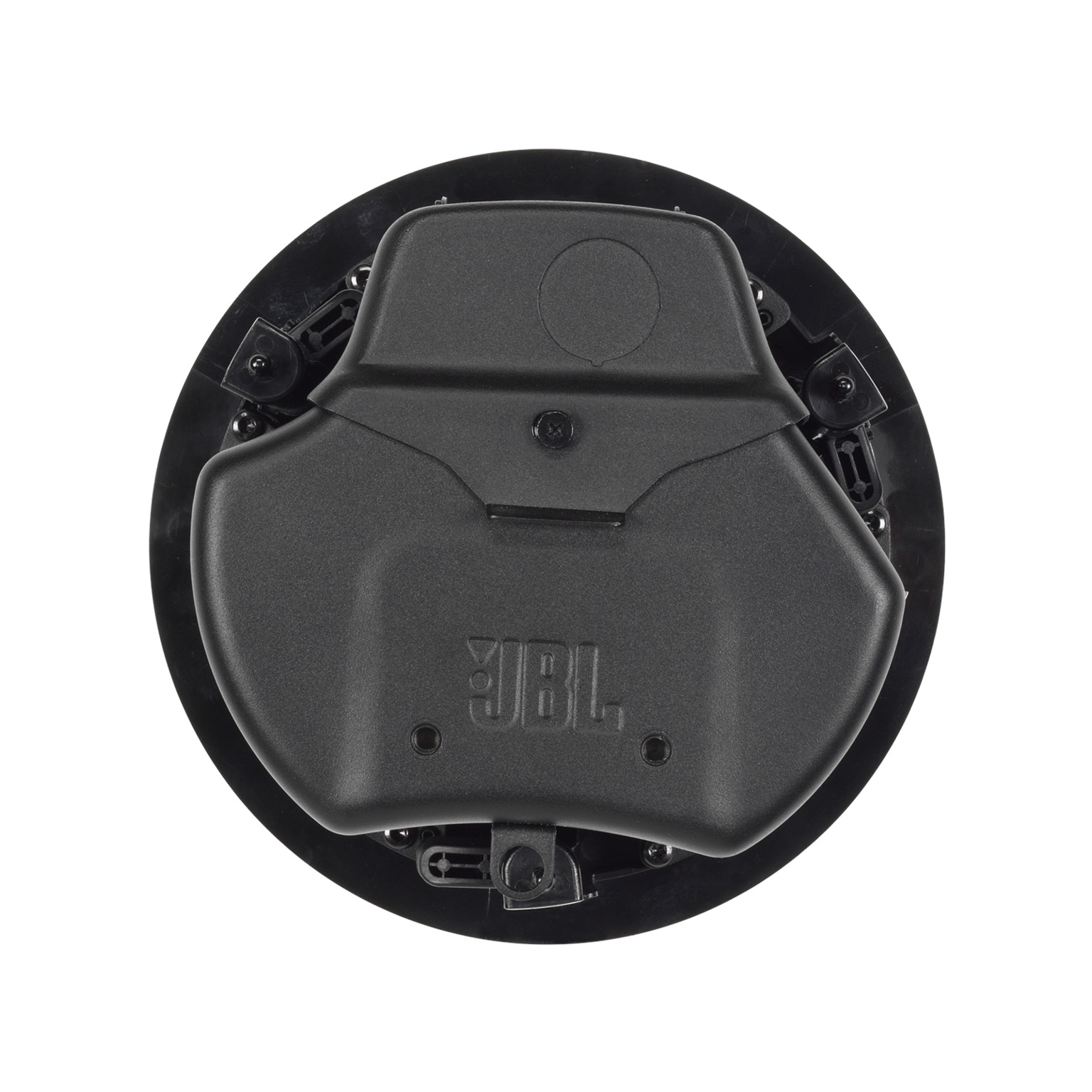

Part of the Control 400 collection’s Standard Coverage Series, the Control 412C/T is a full-range ceiling speaker consisting of a 76 mm (3 inch) wide-bandwidth cone driver mounted in a ported baffle, with a pre-attached backcan for quick and easy installation. The Control 412C/T is designed to provide exceptional sound quality for a wide range of low to medium volume applications such as music café’s, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

• 76 mm (3 in) Full-range driver
• Stylish bezel-less grille blends elegantly into room design
• Combined 70 V/100 V and low impedance direct operation
  • 20 W (80 W peak) at 8Ω nominal setting
  • 15 W multi-tap transformer
• 68 Hz – 17 kHz Frequency Range

The 160° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.

High power handling, wide frequency response and low distortion make the Control 412C/T ideal for sound systems requiring a higher fidelity sound quality. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening space. For applications where more bass is desired, the Control 412C/T is tuned to pair well with the Enhanced Coverage Series Control 419CS/T subwoofer.

The direct input’s 8Ω impedance allows paralleling of up to 2 speakers on a 4Ω rated amplifier channel. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

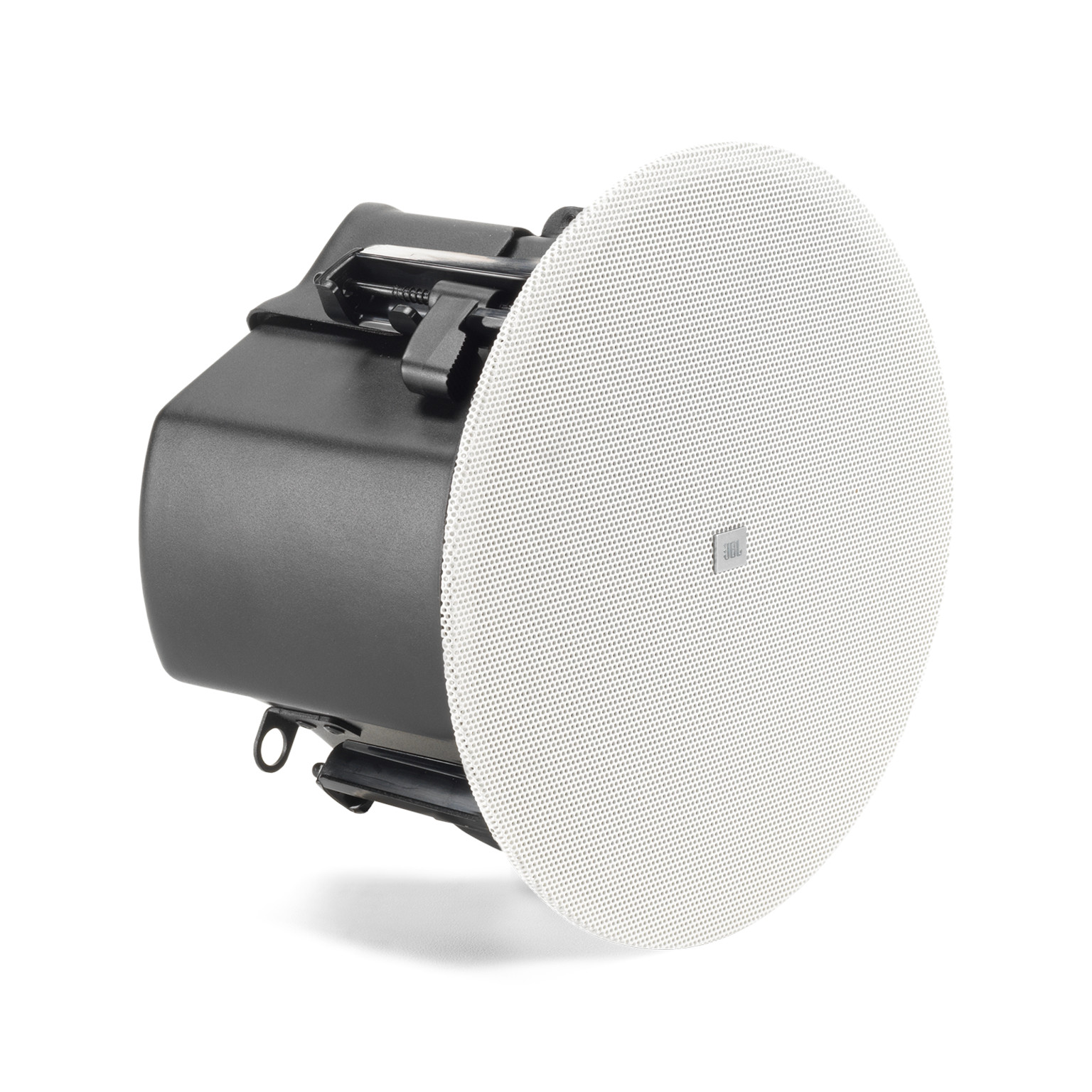

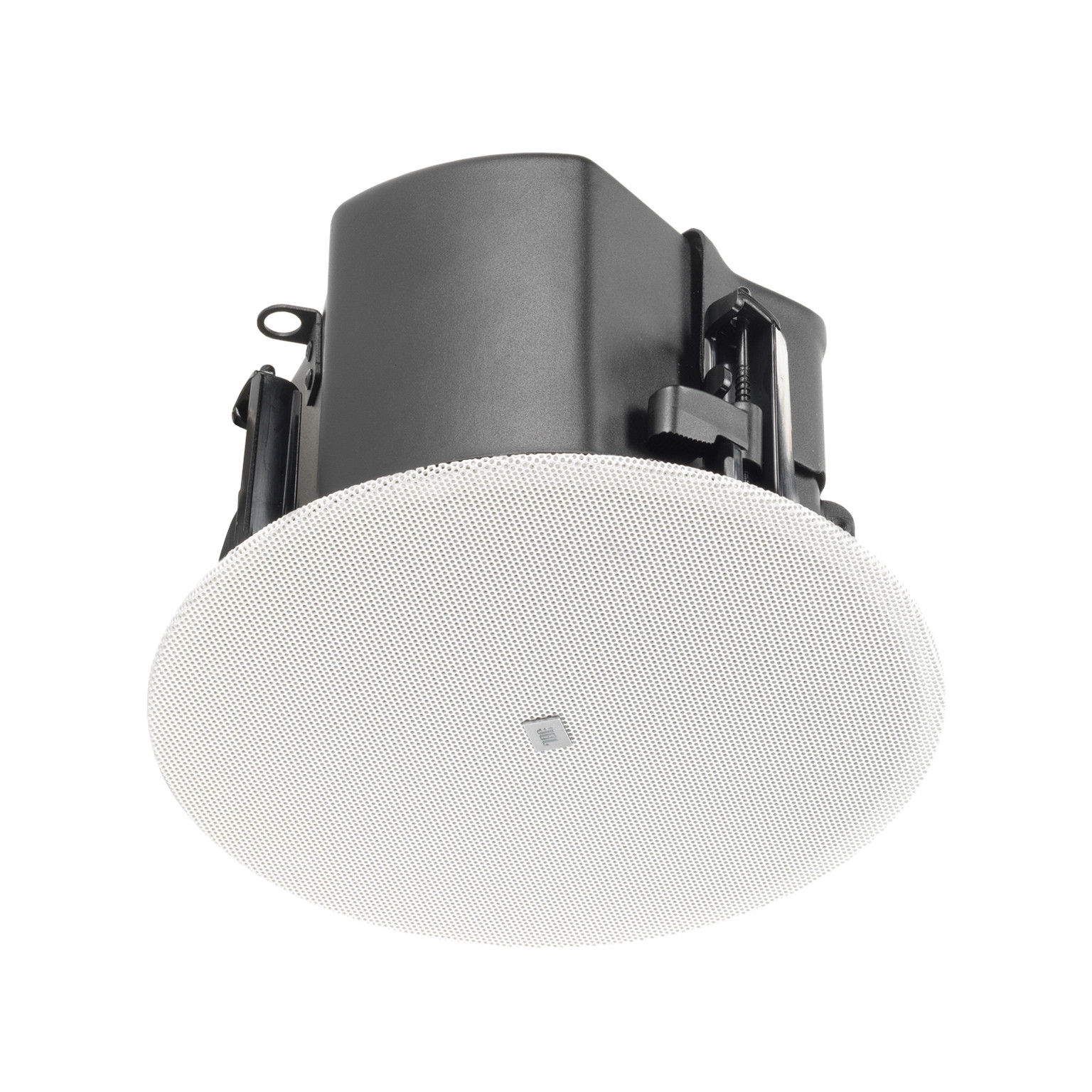

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The speaker is packaged with grille, integral backcan, C-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-414BG) and in square (JBL-MTC-414SG, white only).

Specifications

• Frequency Range (-10 dB): 68Hz - 17kHz
• Frequency Response (±3 dB): 85 Hz – 16 kHz
• Power Capacity
  • 60W Continuous Program (2 hrs)
  • 30W (120W Peak) Cont. Pink Noise (2 hrs)
  • 20W (80W Peak) Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W): 84dB
• Coverage Angle: 160° conical
• Maximum SPL (1m): 99 dB continuous pink noise (105 dB peak)
• Nominal Impedance: 8Ω
• Transformer Taps
  • 70 V: 15 W, 7.5 W, 3.8 W & 1.9 W
  • 100 V: 15 W, 7.5 W, 3.8 W
• Drivers: 76 mm (3 in) full range driver with paper cone and SBR surround
• Ceiling Cutout Size: 168 mm (6.6 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 5.7 x 8.1 in (143 x 203 mm)
  • Bottom of ceiling tile to top of backcan: 5.4 in (134 mm)
• Weight (each): 3.86 lbs (1.75 kg)

What's Included

• 4x 2-pin removable locking euro-block connectors
• 2x Cable strain relief
• 2x White round bezel-less grille (with preattached safety tether and tether clip)
• 2x Cutout template
• 2x C-ring
• 4x Tile rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
• 2x C-ring/tile-rail screws
• 2x Seal cover
• 4x Rubber boots
