Clear-Com FSIC-BP1-X5 FreeSpeak ICON Wireless Beltpack w/5-Pin Connector
Model: FSIC-BP19-X5
About: Clear-Com FSIC-BP1-X5 FreeSpeak ICON Wireless Beltpack w/5-Pin Connector

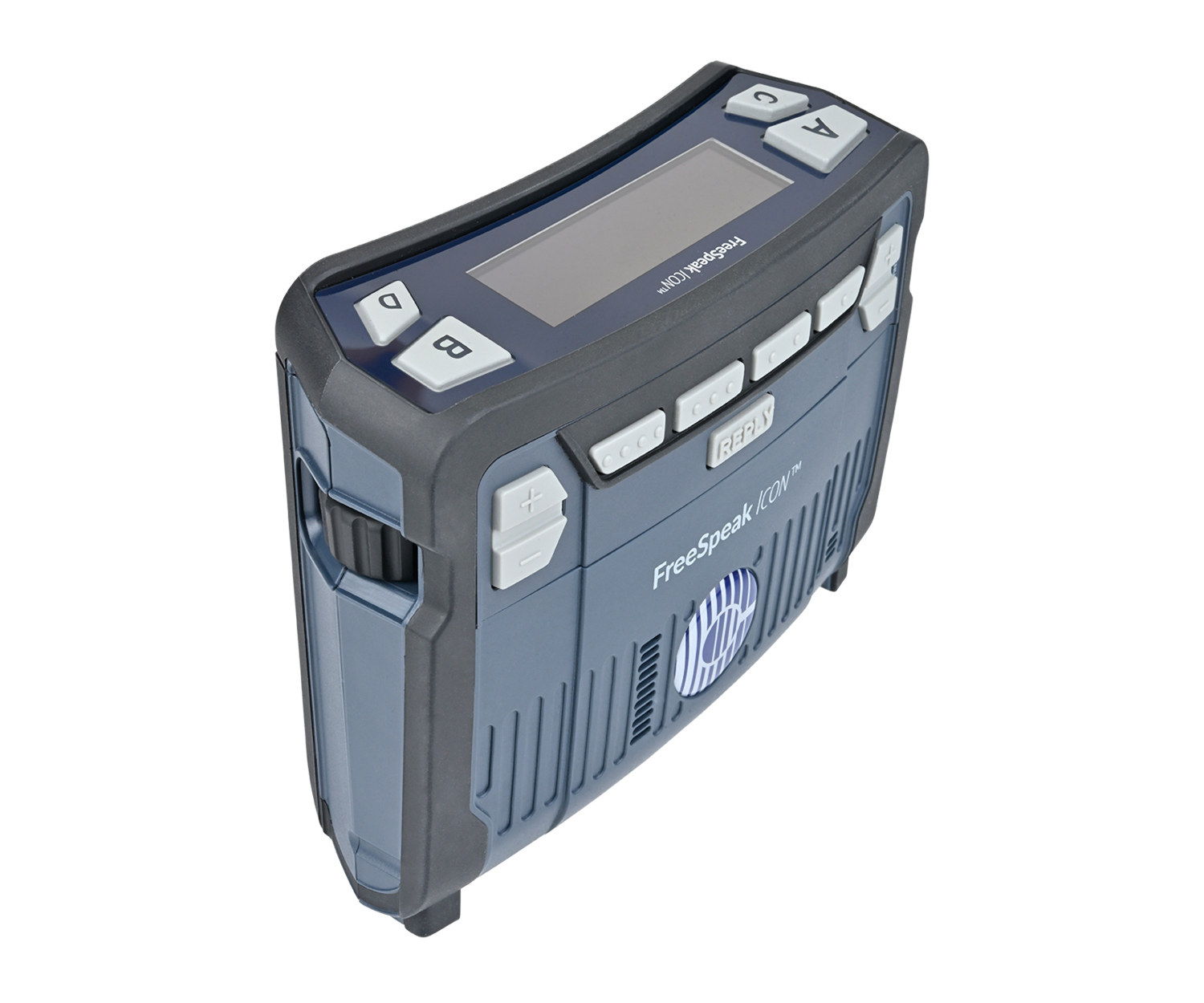

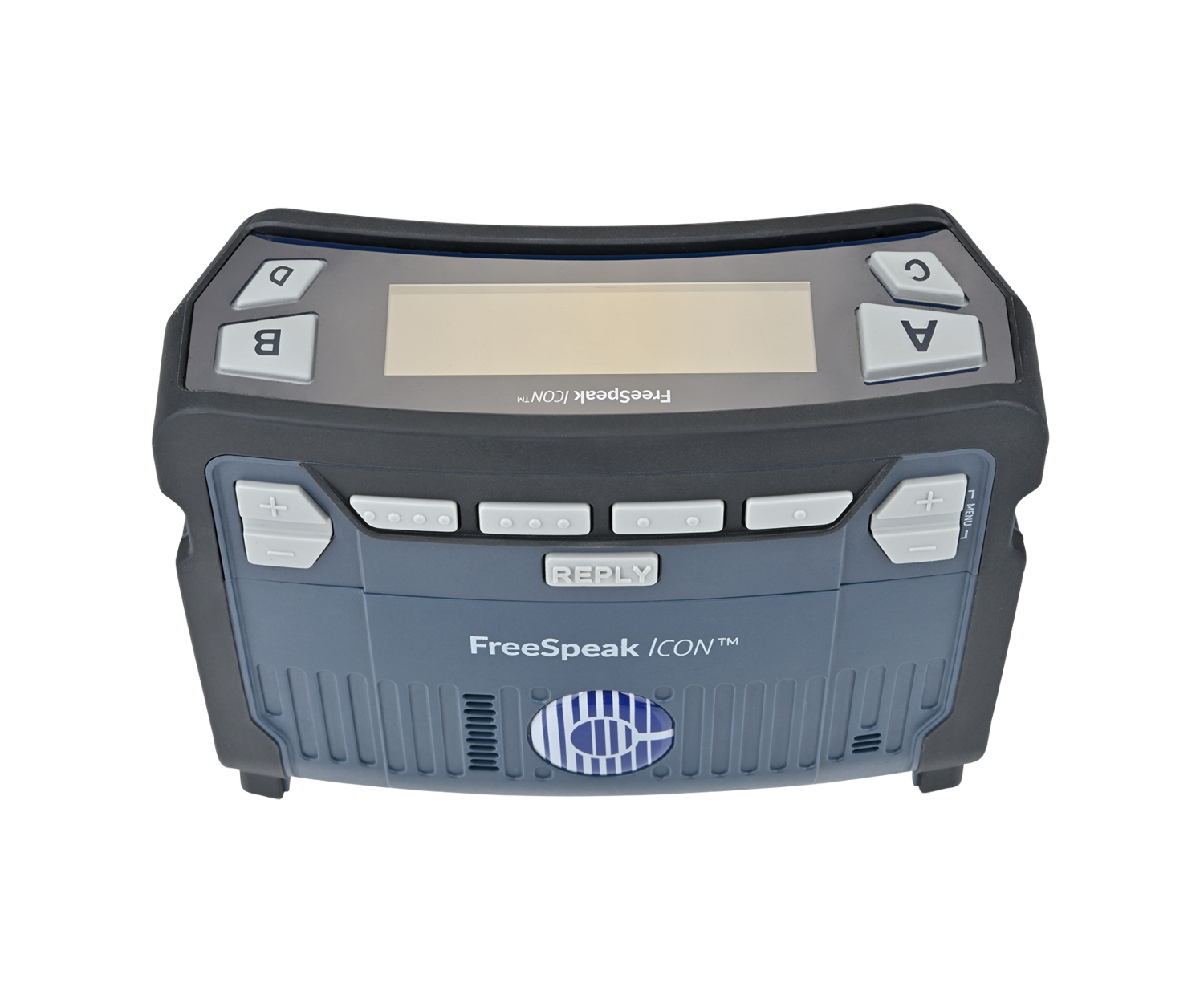

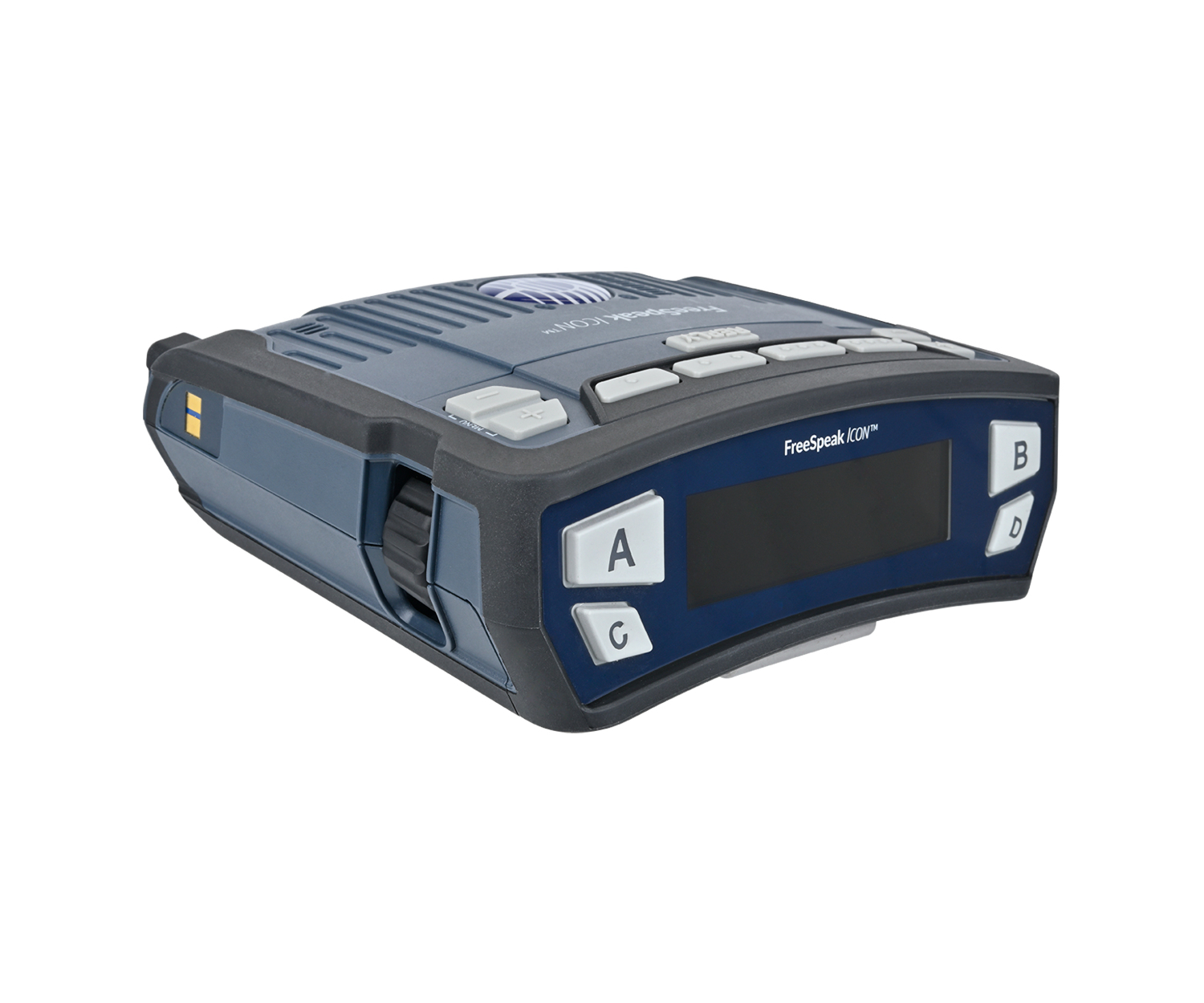

The FSIC-BP19 is a rugged, water-resistant multi-channel beltpack that operates in the 1.9 GHz frequency range, providing minimal latency, full-duplex connectivity, and highly comprehensible audio for usage in the most demanding settings. The beltpack has an ergonomic design with nine programmable keys, large color screen, dedicated A & B encoders, individual level controls for C & D, a dedicated master volume control, and a built-in mic and speaker station mode. The beltpack can be deployed on the same wireless network as the existing FreeSpeak II 1.9 GHz beltpack giving users two devices to utilize.
- Beltpack
- Functions with FreeSpeak Edge Base, Arcadia Central Station and Eclipse HX via E-IPA cards
- Supports up to 200 beltpacks on a single system
- TFT color display (120x480)

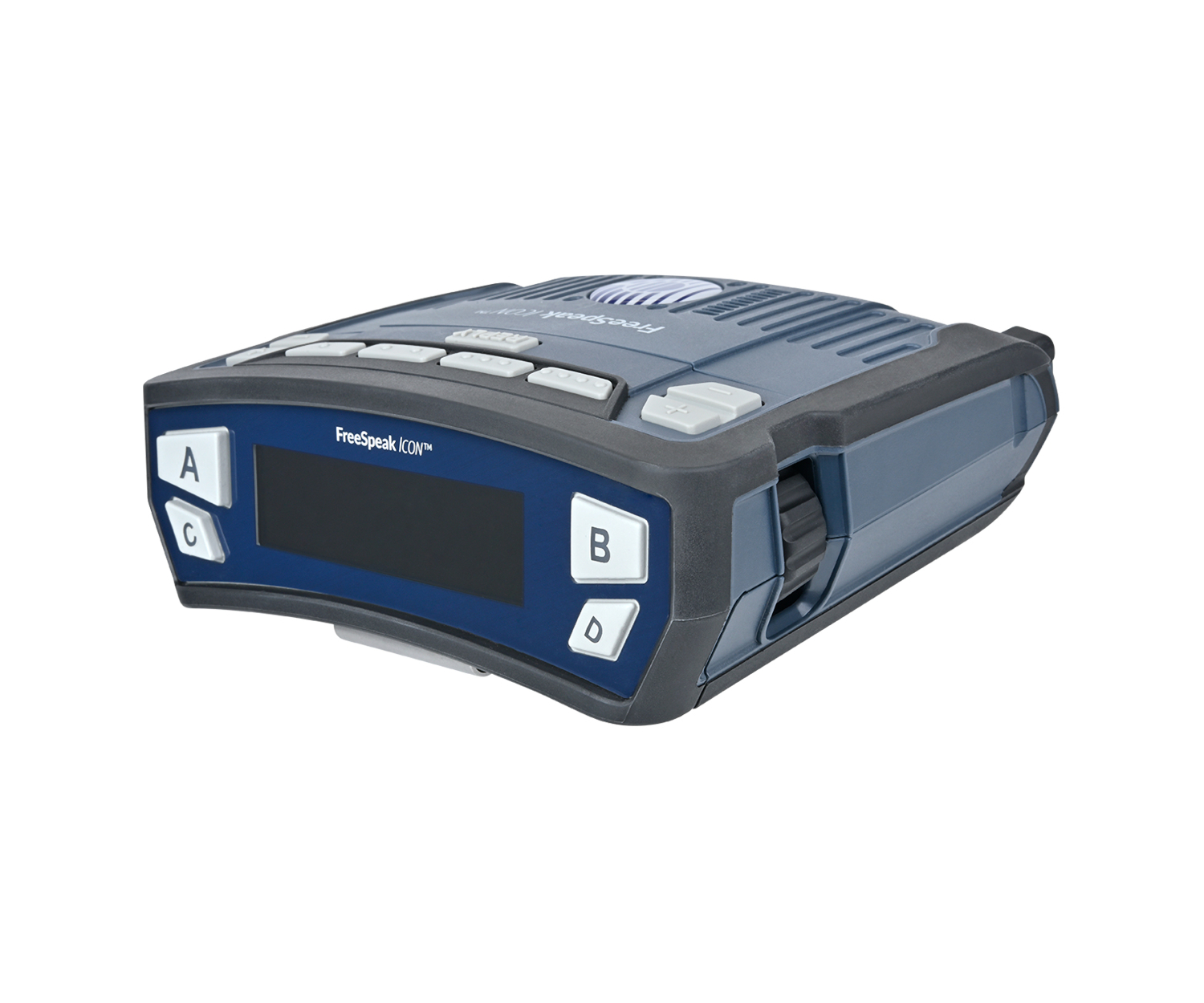

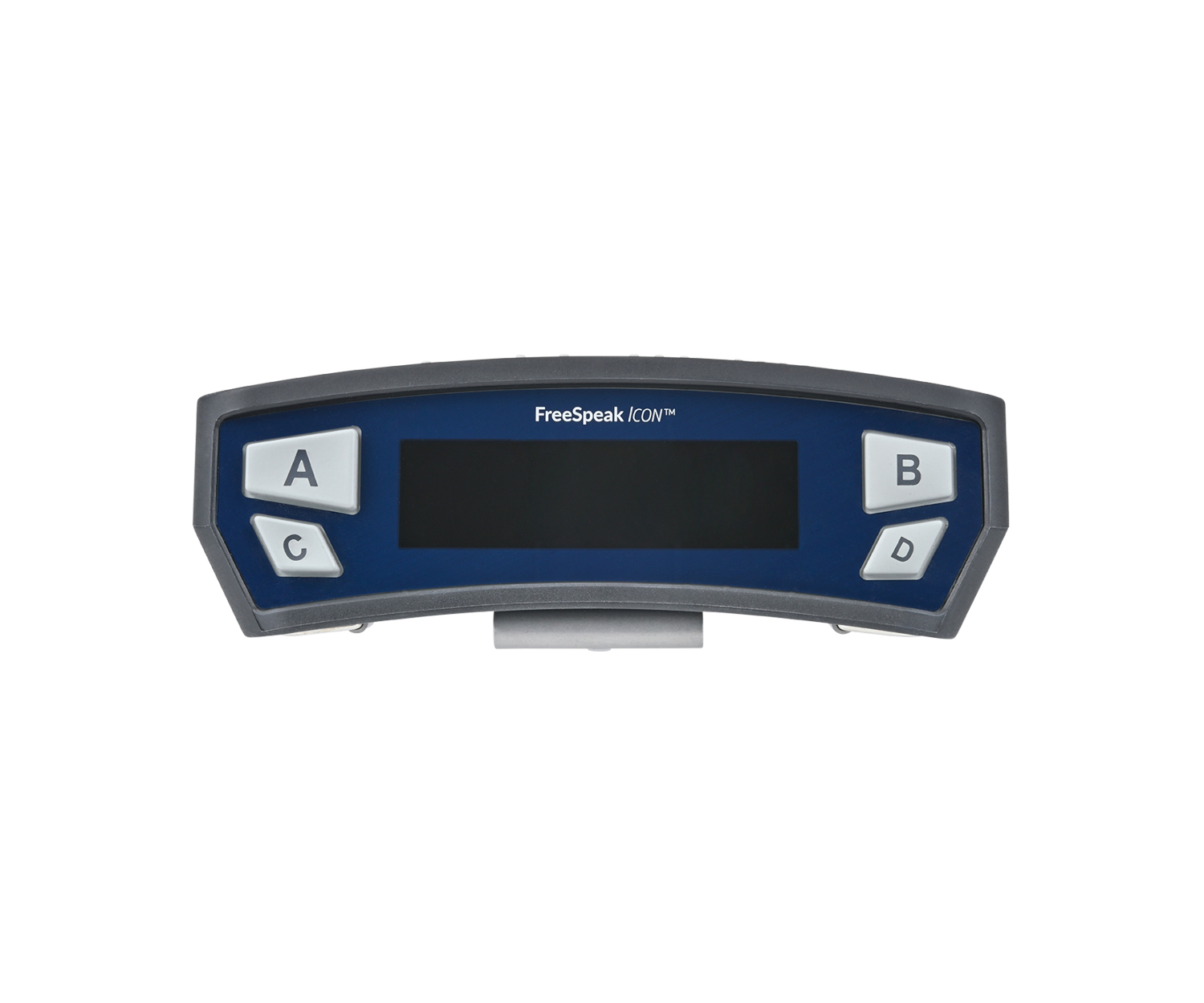

- 4 top buttons with individual level control

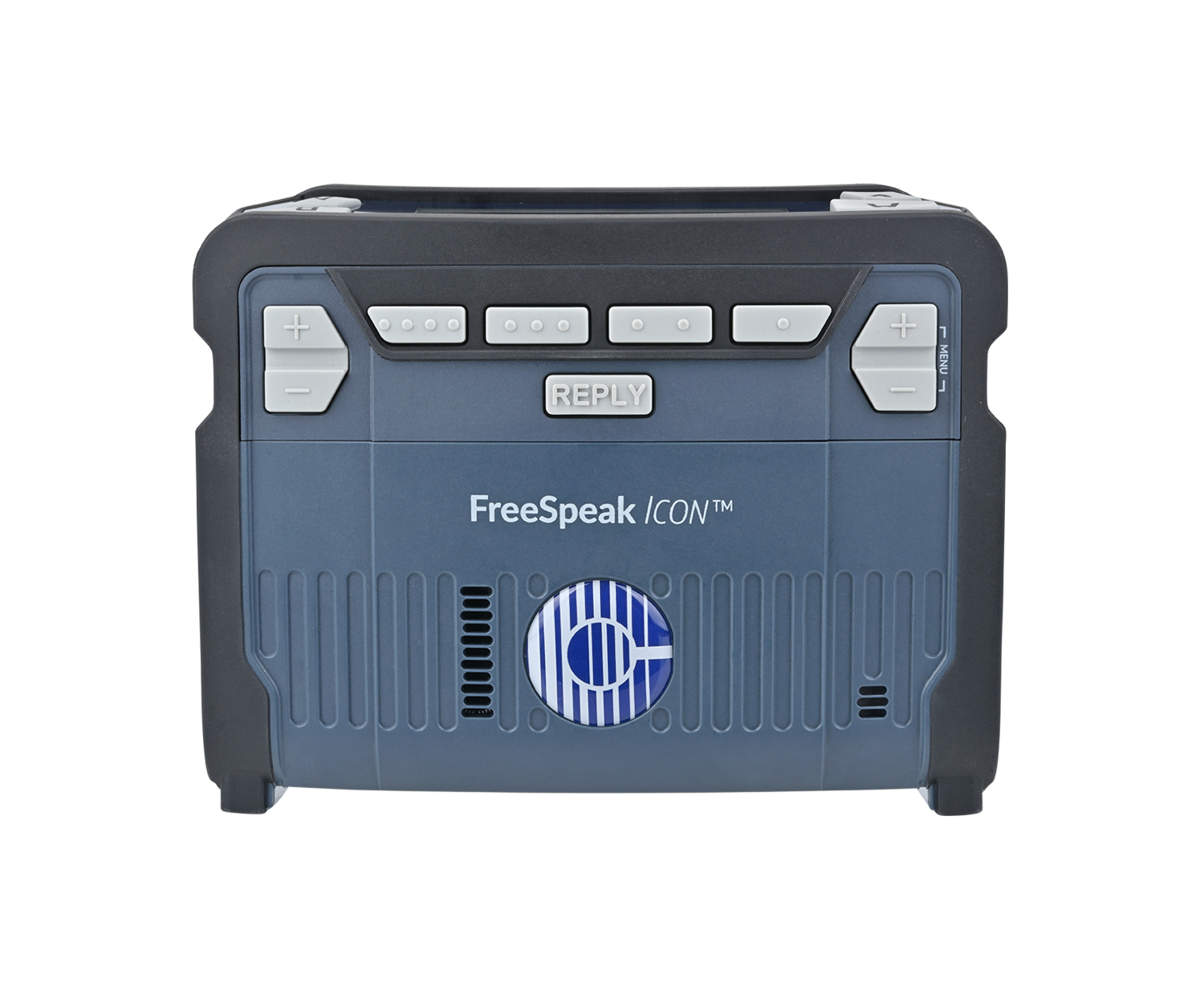

- 5 additional programmable buttons

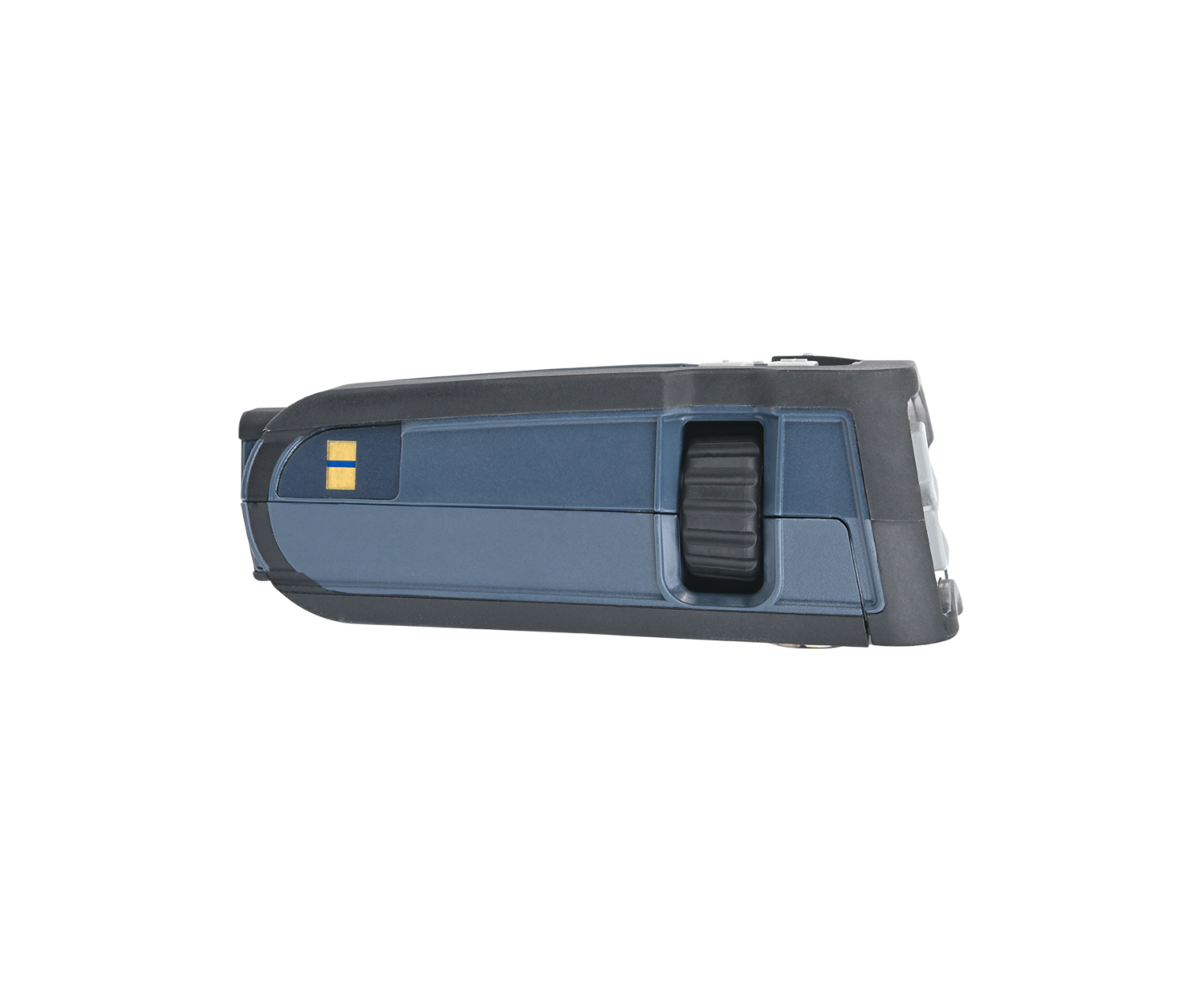

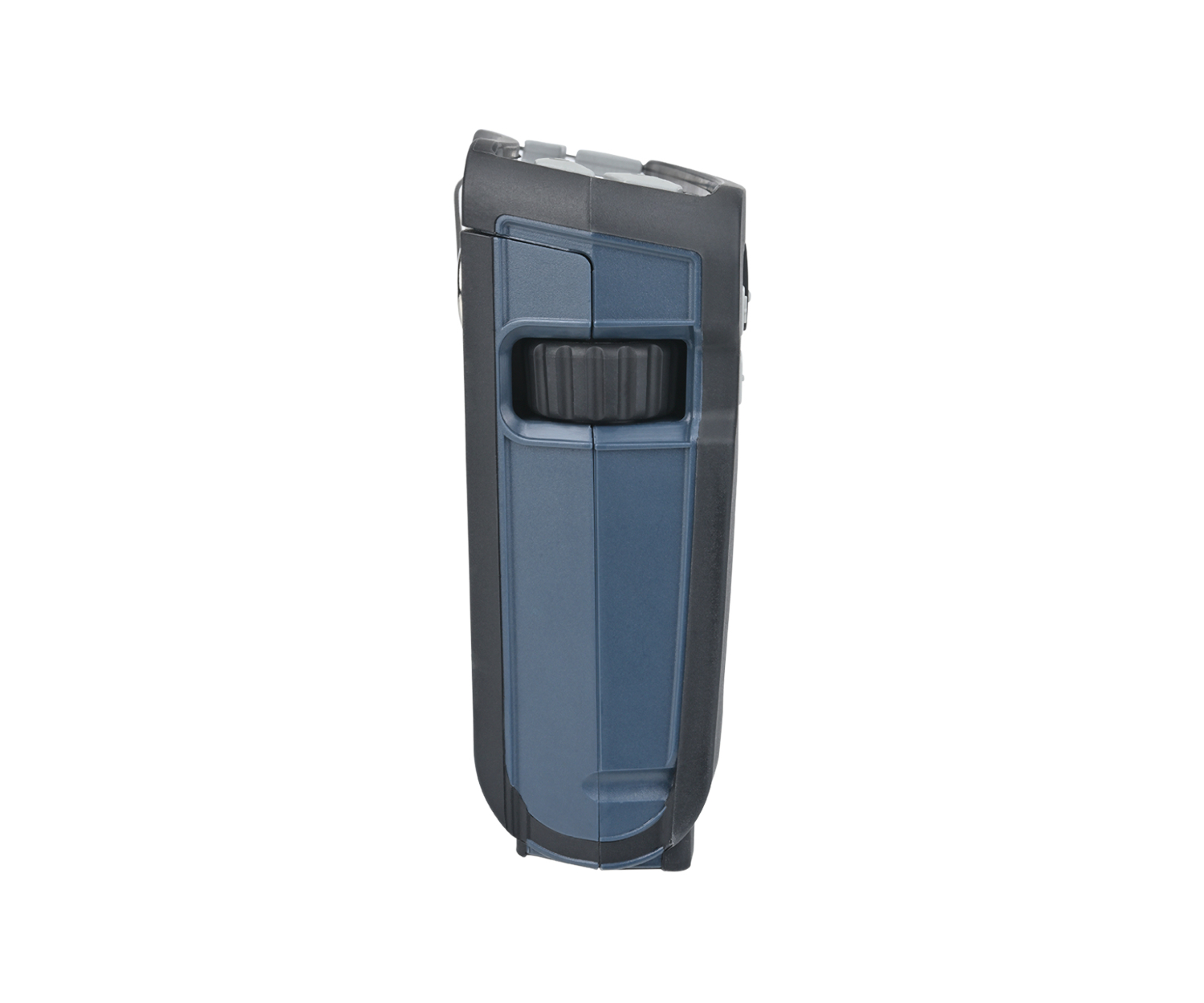

- Rotary controls on both sides and up/down level controls
- Main volume control on bottom
- BLE (Bluetooth Low Energy) Radio
- Supports Bluetooth 5.3
- Built-in mic and speaker
- Built-in flashlight
- Drop-in and USB-C charging
- Connectivity
- 1.9 GHz radio frequency
- Compatible with FSII E1 and IP transceivers
- 10 beltpacks per transceiver with the FSII IPT
- Low latency audio: <35ms (70ms beltpack to beltpack)
- USB-C port for beltpack pairing and firmware updates and charging
- Mechanical
- Curved shape fits to body
- IP54 rating for wet and dusty conditions
Specifications
- Audio
- Audio Bandwidth: 200Hz-7.5KHz
- No. of Full-Duplex Audio Paths: Up to 9 keys
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 8 pushbuttons - A/B/C/D (top buttons) and 1/2/3/4 (front buttons), 1 reply button, 2 rotary encoders, 2 level up/down controls, and 1 (reprogrammable) main level control
- Reply Button: 1
- Bluetooth 5.3 Headset Profile
- Bluetooth Codec: MSBC using HFP (Hands Free Profile)
- Frequency Spectrum
- Frequency: 1920-1930 MHz
- Transceiver Range Output Power: 100mW
- Connectors

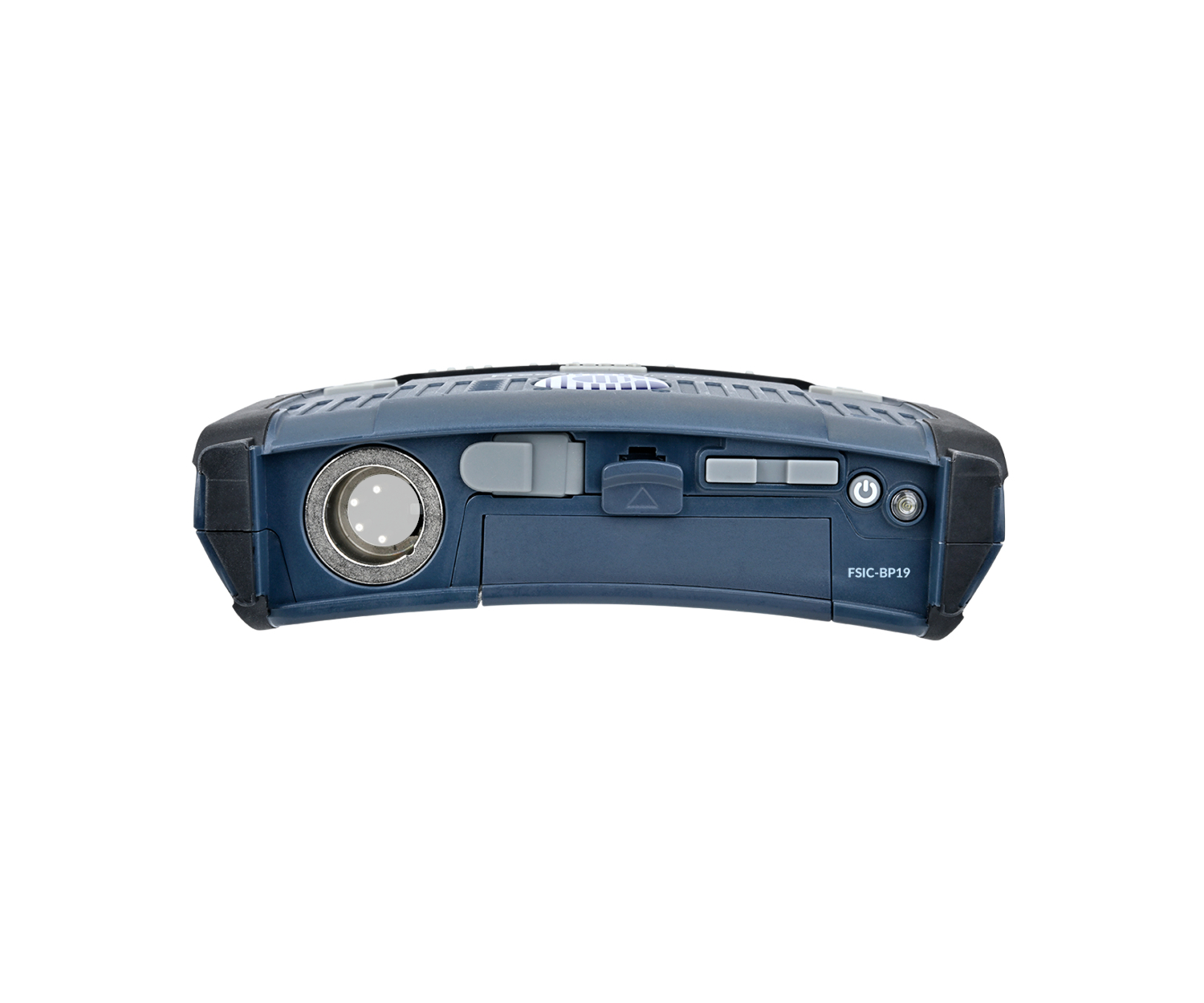

- Headset Connector: 5-pin female
- Headset Voltage: Maximum of ~+8dBu as set by firmware
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Microphone Voltage:
- Electret Mic: -40dBu
- Mic bias for Electret mode is 4.4V
- Dynamic Mic: -55dBu
- Mic bias for Dynamic mode is 1.8V
- Headset Limiter: Selectable from beltpack menu
- Max Distance (Beltpack To Transceiver, Indoor): ~300-400ft (90-122m)
- Max Distance (Beltpack To Transceiver, Outdoor): ~600-800ft (183-450m)
- Power
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output: 18-20dBm
- Battery: Li-Ion
- Battery Charging: Drop-in charger (AC80) or local USB
- Battery Life: 18+ hours
- Environmental
- IP Rating: IP54 water and dust resistance
- Operating: 14º-125ºF (-10º-50ºC)
- Storage: -22 -150ºF (-30º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
- Regulatory
- Regulatory Model: 1414
- Dimensions (WxHxD): 5.31 x 4.27 x 1.92in (134.87 x 108.46 x 48.77mm)
- Weight
- Without Battery: 0.77lbs (349 g)
- With Battery: 1.01lbs (460 g)
