Beatrice Lucia 1 Overview:

The Glensound Beatrice Lucia is a simple and cost effective way of interfacing legacy party-line (two wire) intercoms to modern audio networks.

Each party-line interface supports both single channel Clear-Com/ Tecpro and RTS standards as well as the two channel RTS unbalanced standard. Whilst its network interface utilizes the Broadway chipset from Audinate which supports Dante, AES67 and SMPTE 2110-30*. As such it can also be used as a way of extending RTS Omneo intercom networks to legacy party-lines.

Lucia’s 1RU subrack can house 1 or 2 independent Party-Line interfaces and can be powered by an internal mains supply or PoE. If powered by mains then it can provide ‘wet’ power to the party-line interfaces.

One or Two Party-Line Interfaces:
Each Lucia 1Ru subrack can be fitted with either 1 or 2 completely independent party-line interfaces. This provides great flexibility for example if you’re installing this to interface modern network audio circuits to your theatre’s legacy intercom system then you’re never going to need two party-line interfaces so why pay for them? Of course if your circumstances change and in the future need a second party-line interface then this can be fitted by your local dealer.

Party-Line Interface Standards:
For easy integration to existing party-line systems each Lucia party-line interface supports the Clear-Com and RTS single channel party-line standards (which are also used by many other intercom manufacturers (eg Tecpro)). Each Lucia party-line interface also supports the two channel RTS unbalanced standard.

Auto Nulling Hybrid Circuit:
To achieve best possible party-line audio performance the Lucia incorporates a sophisticated digitally controlled analogue hybrid. The hybrid’s job is to separate the go and return audio channels from the party-line as cleanly as possible and provide as much separation between the channels as possible to help with overall system audio intelligibility. To do this we use digitally controlled analogue circuits that when operated process in excess of 65,000 different phase and amplitude settings in less than 60 seconds before settling on the best possible attributes for your specific setup.

Impedance matching:
To interface with party-lines it is important that the attached equipment’s termination impedance is correct for the line that it is attached to. The Lucia automatically sets its termination impedance to interface with RTS or Clear-Com standards in both dry or wet (when the Lucia is powering the party-line) scenarios. It even allows a specific RTS functionality of doubling the wet impedance to allow two power supplies on one RTS party-line.

Wet or Dry Modes:
Many party-line devices such as beltpacks are traditionally powered by the party line that they are attached to. If the Lucia is just being used to interface an audio network to an existing party-line system then it is likely that the party-line will already have its own power supply and therefore the Lucia would be set to dry mode (i.e. it would not supply power to the party-line). However if the Lucia is being used to interface a new party-line with an audio network then it can be set to wet mode and supply power to the party-line. Please note however that the Lucia can only provide power to a party-line if itself is running from a mains power supply.

Party-Line Send and Receive Gain Controls:
Our experience of party-lines is that although they should all in theory provide similar audio levels in practice they don’t. Therefore to enable a meaningful audio level to be sent between the party-line and the audio network we provide simple to use front panel audio level controls to adjust the send and receive audio levels on both single and two channel party-line circuits.

Send & Receive Level Meters:
Being able to adjust your send and receive audio levels is great, but to be really useful you need to know what your send and receive audio levels actually are. Therefore the Lucia is fitted with individual LED PPM style meters for each send and receive circuit showing the audio level after the gain controls.

Call Signals:
As well as converting between network audio and party-line audio Lucia also handles and converts call signals between the systems.
Typically RTS and Clear-Com both use different party-line calling techniques, (RTS use a 20kHz signal and Clear-Com a DC voltage). Lucia however recognises both standards and when she receives a call signal from the party-line she converts it into the network audio standard used by our own Beatrice intercom system (and other manufacturers).
Lucia can also receive call signals from the audio network and convert these into Clear-Com and RTS call signals that te party-lines will respond to.

Party-Line XLRs:

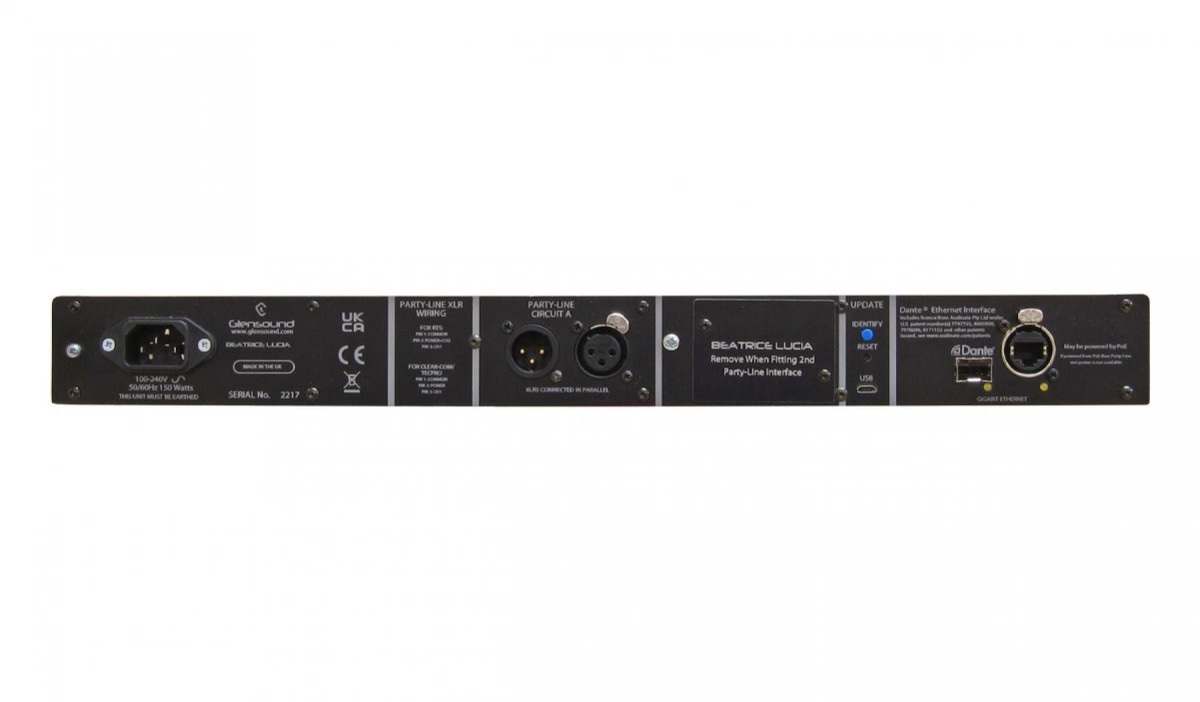

For each party-line interface fitted two XLRs are provided on the rear panel for providing the physical party-line interface. One female and one male standard 3 pin XLR is provided to allow easy connection to your party-line setup.

Mic Kill:
To enable the autonull process to work well it is important that all microphones attached to the party-line circuits are turned off (this is to stop both acoustical feedback and extraneous audio from open microphones). To do tis Lucia sends ‘mic kill’ signals to the attached party-lines to tell the party-line equipment to turn off their mics. The Clear-com and RTS standards use different techniques for this so Lucia automatically sends the correct mic kill signal standard for the attached party-line.

Protected Front Panel Controls:

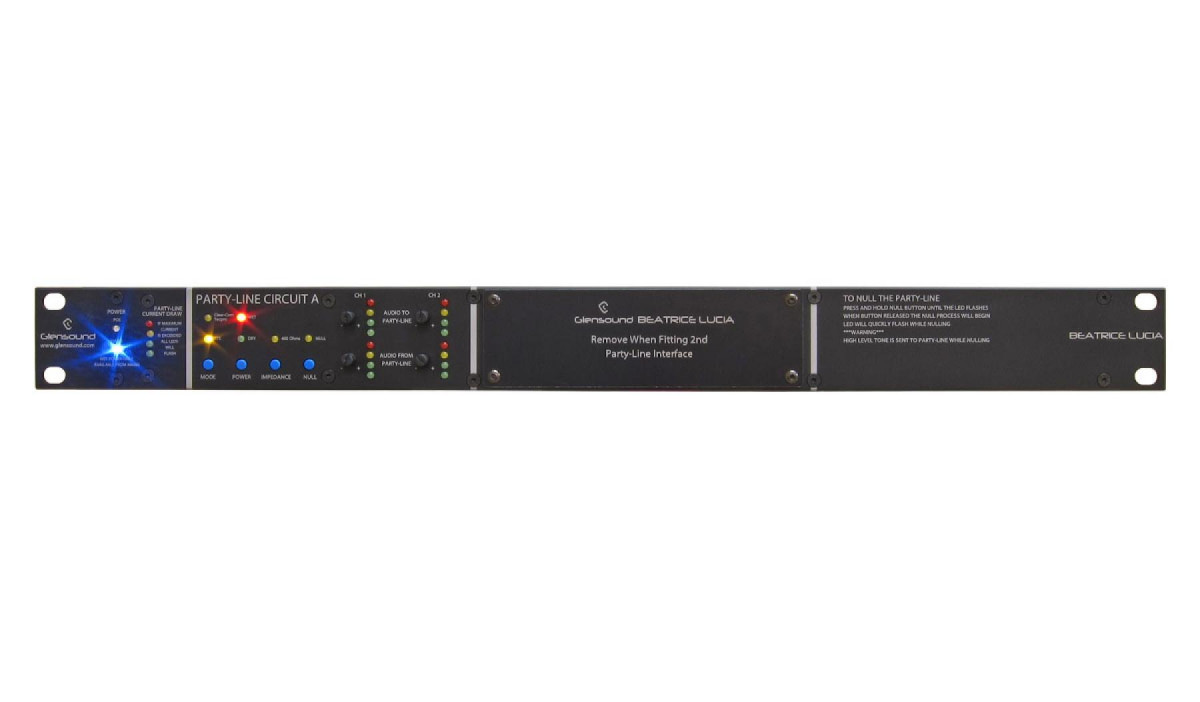

Simple, easy to use push buttons are provided on the front panel of the Lucia for setting its party-line interfaces. The controls that switch between Clear-Com and RTS modes, turn on wet power and auto null the circuits are all protected by requiring a long button press of at least 3 seconds, preventing accidental use. Plus the 400 Ohm impedance mode can only be set if the Lucia is set to RTS mode and Wet power is turned on.

Mains and/ or PoE Powering:
The Lucia features an internal wide range mains power supply fitted with an industry standard IEC power inlet. It also has a Power Over Ethernet (PoE) circuit allowing it to be powered by PoE from the Ethernet network. Front panel LEDs clearly indicate when each of these power sources are attached.
Due to the power limitations of a PoE supply if the Lucia is being powered by PoE then it cannot supply wet power to the party-line interfaces.
If both mains and PoE are present then either can act as a redundant supply for the other. If wet power is turned on and the unit is powered from a mains supply which fails, then when switching over to being powered by PoE the Lucia has to automatically turn wet power off to the party-lines.
