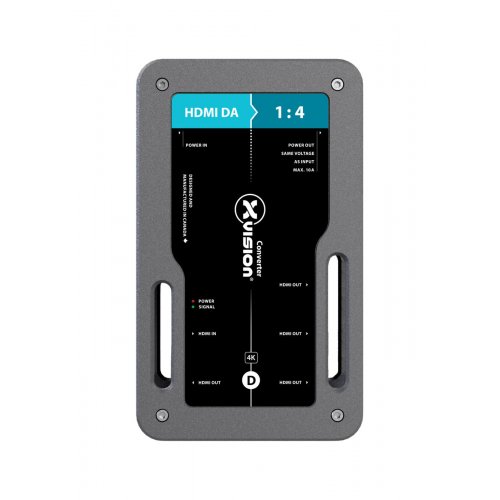

xVision Theatrixx HDMI Distribution Amplifier 1:4 Converter

About: xVision Theatrixx HDMI Distribution Amplifier 1:4 Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Features

• Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
• Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.
• Magnetic stacking system and non-skid rubber pad for table top. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
• Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• HDMI input tested and compatible with Apple computers and iPad.
• Easy on-the-field identification with unique color and alphabetic coding system.
• Locking HDMI port prevents accidental disconnection.
• Automatic downscaling per output – Effortlessly send the same signal to 4K and FullHD displays with a single signal source.
• Proudly designed and assembled in Canada.

Specifications

• Connections
  • Video Input - 1 x HDMI 2.0 type A with locking system
  • Video Ouput - 4 x HDMI 2.0 type A with locking system
    • (Individual downscaling per port)
• Supported Signals
  • Video Format Support
    • HDR 4K/2K @ 60 fps (4:2:0 10 bits)
    • 4K/2K @ 60 fps (4:4:4 8 bits)
  • HDCP Compliance - HDCP 2.2/1.4
  • Video Bandwidth - Single-link 600MHz (18 Gbps)
  • Embedded Audio Support
    • DTS-HD Master Audio, Dolby
    • TrueHD Dolby Digital, DTS, LPCM
• ​Environmental
  • Relative Humidity - 0% to 90% non-condensing
  • Operating Temperature - 0-40° C
• Power Requirements
  • Power Supply
    • Built-in power supply
    • PowerCON input
    • Edison Nema 5-15 output (loop-thru)
  • Power Consumption - 15W
  • Voltage Range - 100-120V, 50-60Hz
    • (100-240V, 50-60Hz available with PowerCON True1)
  • Courtesy Outlet - Max 10A, same voltage as input
• Physical
  • Height - 50 mm (1.97 in)
  • Depth - 180 mm (7.08 in)
  • Width - 107 mm (4.21 in)
  • Weight - 1 kg (2.2 lbs)
  • Alternate Form Factor - Also available as a Reversible Module

What's In the Box

• xVision Converter HDMI Distribution Amplifier 1:4
• AC Mains to PowerCON cable (1.5m, specify plug type at ordering)
