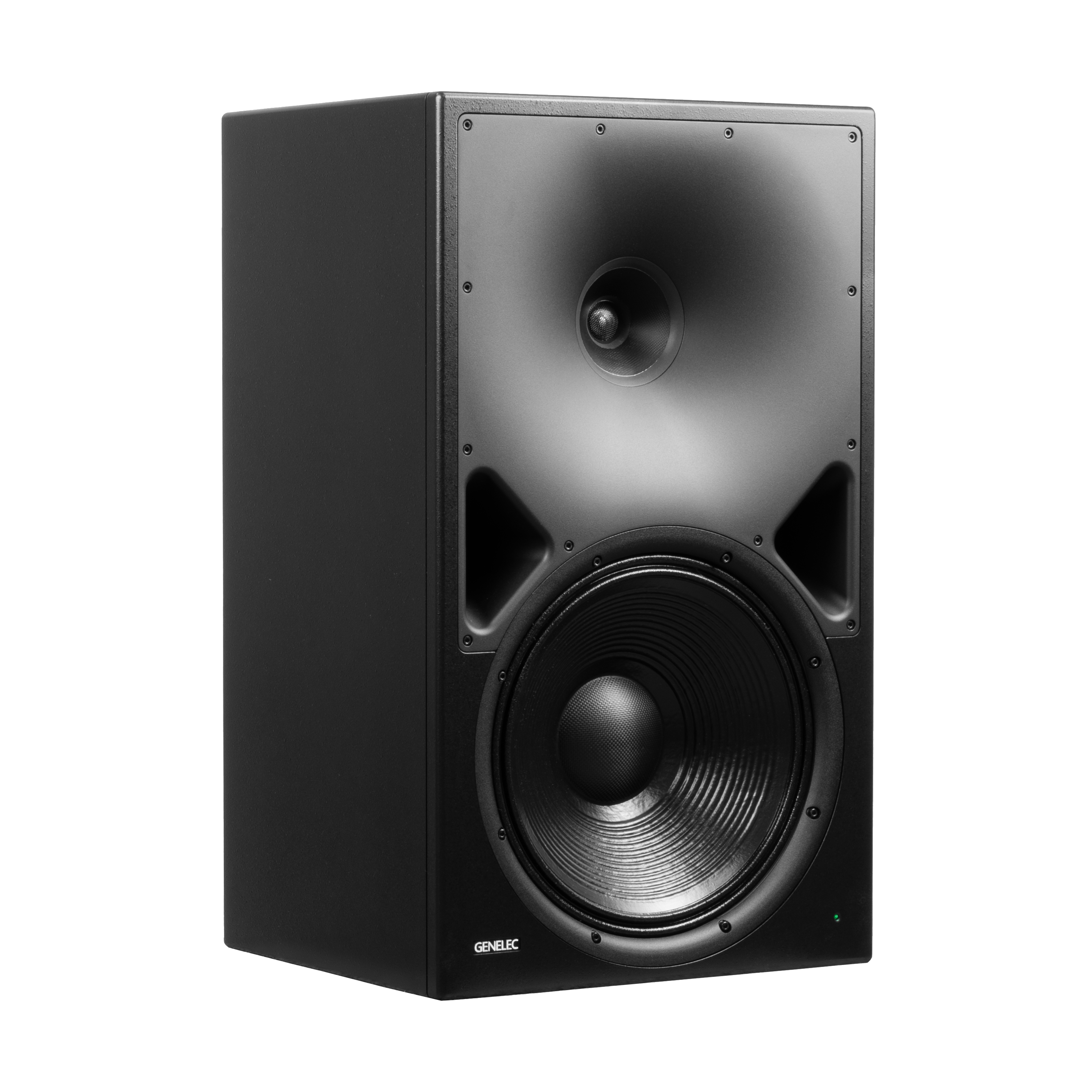

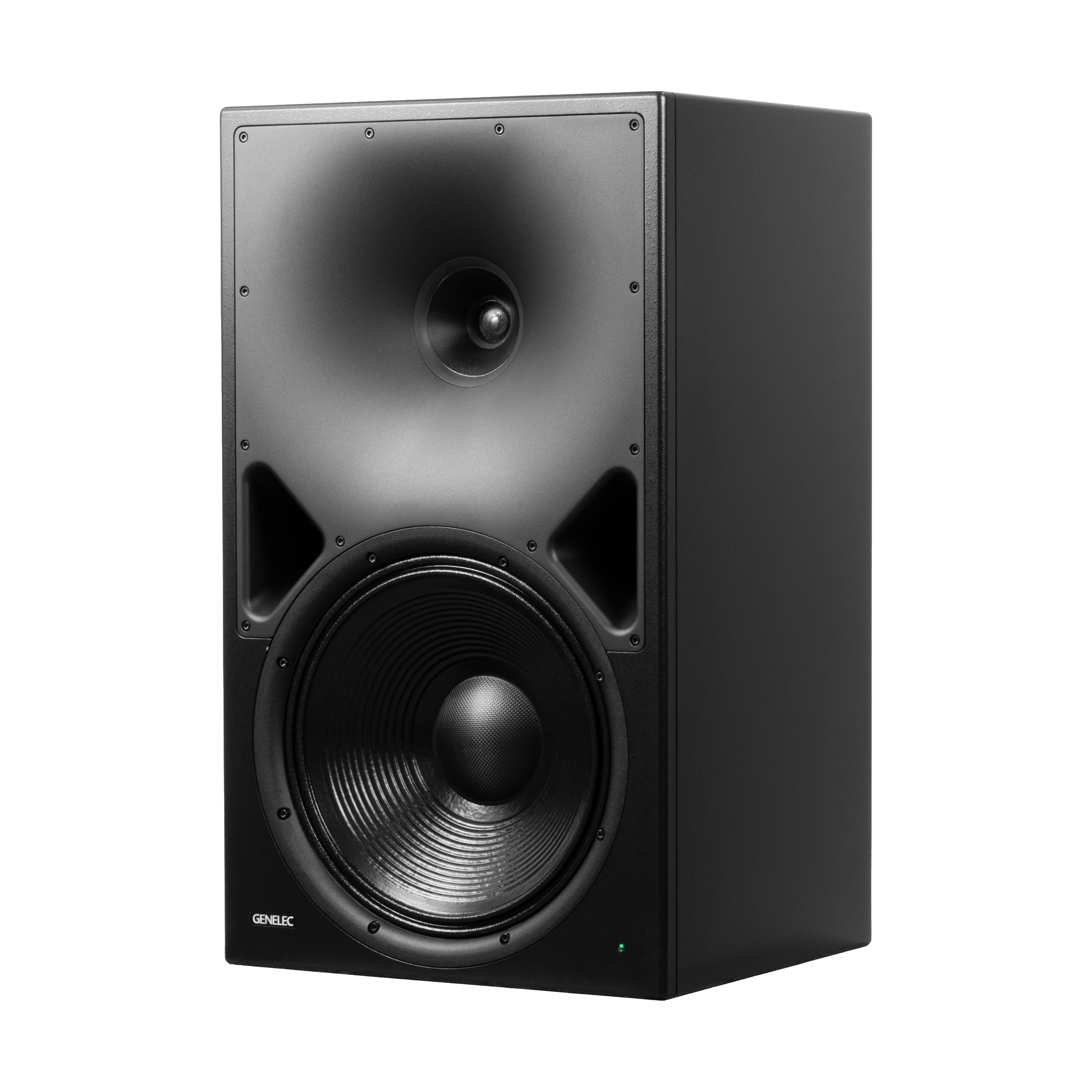

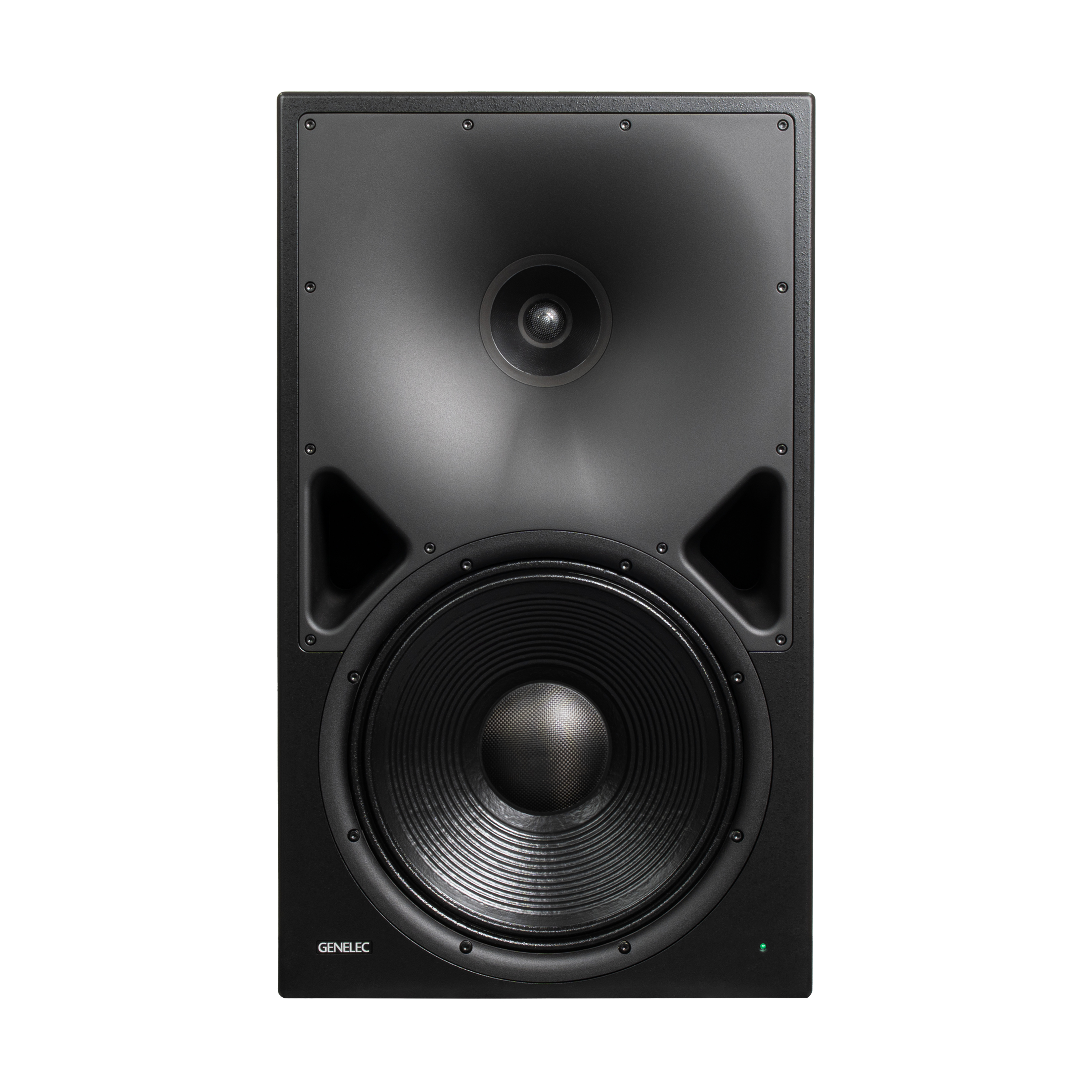

Genelec 8380A SAM Main Monitor (Each) - Black

About: Genelec 8380A SAM Main Monitor (Each) - Black

With its pinpoint-precise coaxial driver, powerful 15-inch woofer and high SPL capability, the 8380A delivers exceptionally accurate imaging and neutral sound reproduction for professional studios and demanding high-fidelity listening environments.

• Smart Active Monitoring (SAM) and GLM calibration technology
• Minimum Diffraction Coaxial (MDC) Driver Technology
• Intelligent Signal Sensing (ISS) Technology
• Directivity Control Waveguide (DCW) Technology
• Protection Circuitry
• Room Response Compensation
• Active Crossovers

Enhance Your Main Monitoring

Joining our flagship 8381A in The Main Ones Monitor Series, the adaptive three-way 8380A SAM Main Monitor is here to ensure every detail of audio can be perceived truthfully in any medium or large sized studio or listening room.

Like the 8381A, the 8380A advances the main monitoring experience with its unique blend of coaxial technology, meticulous acoustical design and intelligent room adaption, offering you easier access to maximal accuracy across the full audible spectrum.

Sense Every Detail of Audio

Dive deep into the texture of your sound in high resolution – and flexibly decide your listening position – with time-aligned, level-calibrated playback over a wide sweet spot, and a full-body, enveloping sonic experience driven by the monitor's large 15-inch woofer.

Mix with absolute confidence, taking advantage of pristine, stable imaging, phase coherence and exceptional dynamics – all without listening fatigue. Whether mounted vertically or horizontally, you get consistent, uncoloured clarity you can rely on to help you make the right choices, even at the minimum recommended listening distance of 1.3 metres (4.25 ft). And with self-generated noise completely silent at the listening position, every nuance of audio is unmasked.

Easily Create Your Ideal System

Excellent directivity and phase matching with our entire Smart Active Monitoring (SAM) range – and compatibility with the wider UNIO Ecosystem – is assured. This allows you to flexibly build and scale-up your monitoring system to suit any professional audio application, from stereo to immersive, with the benefit of intelligent room adaption and flexible personalisation.

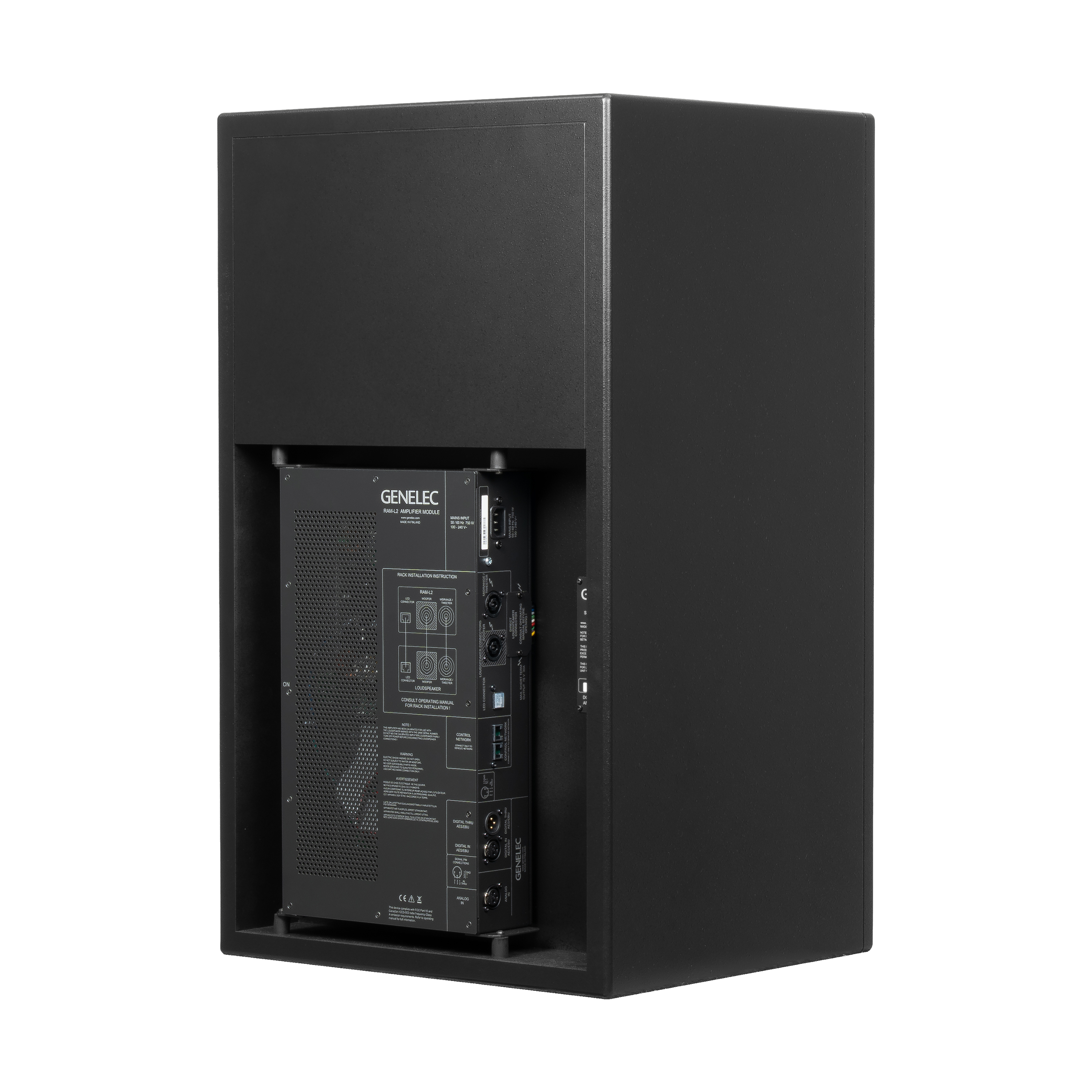

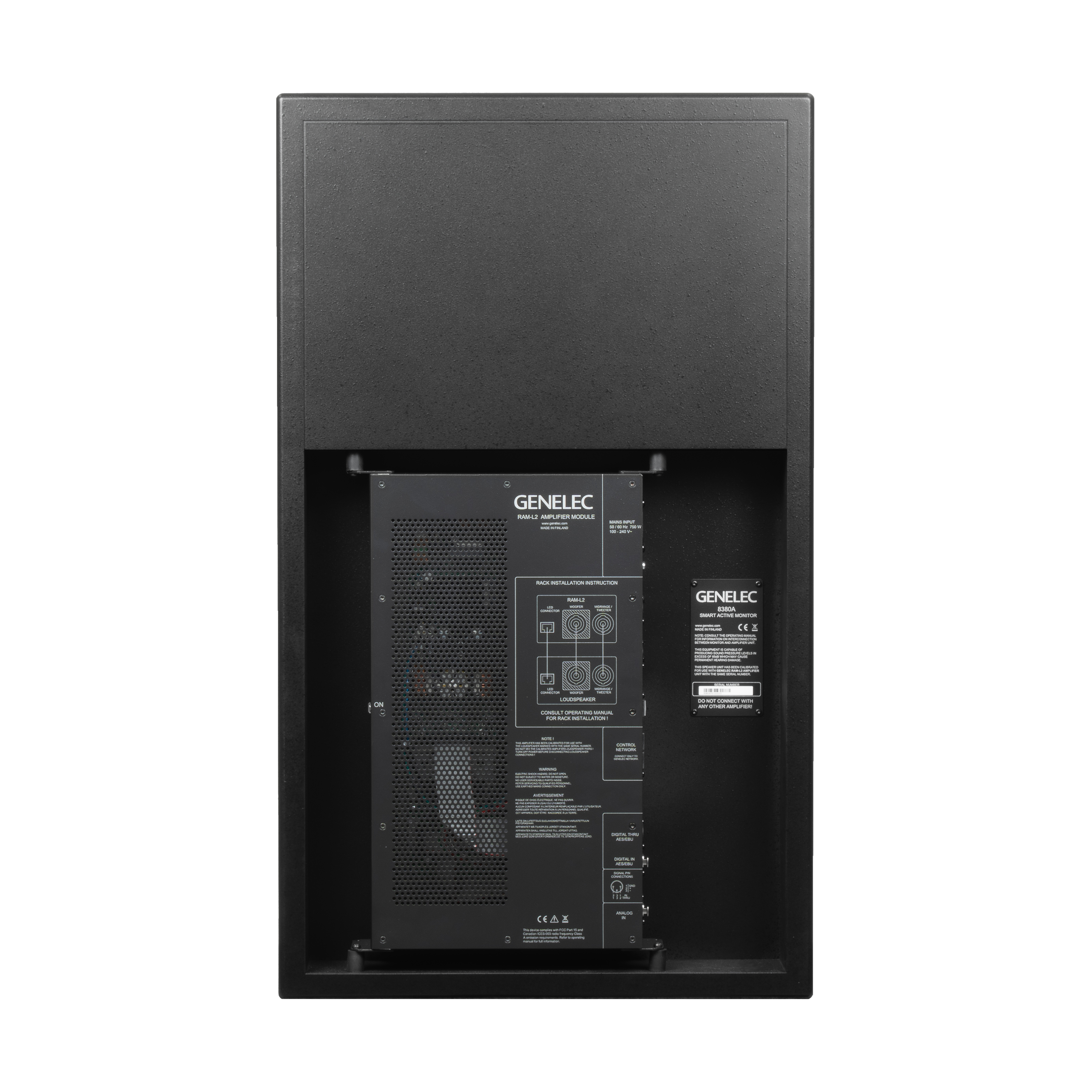

The dimensions of the 8380A and its updated, silently cooled RAM-L2 amplifier are identical to those of our 1038A, 1038B and 1238A monitors and RAM-L amplifier, making direct upgrade easy, including in flush-mounted applications where the amplifier is mounted remotely.

As with all Genelec monitors, the 8380A is manufactured to the highest sustainability standards at our factory in Iisalmi, Finland – with maximal repairability and a decades-long lifespan built in.

Specifications

• System
  • Frequency Response: 38 Hz - 20 kHz (± 1.5 dB)
    • Low cutoff -6dB: 29 Hz
    • High cutoff -6dB: 43 kHz
  • SPL
    • Peak SPL: ≥124 dB
      • Maximum peak acoustic output per pair in a listening room with musical material @ 2 m.
    • Short term max SPL: ≥122 dB
      • Maximum short term sine wave acoustic output on axis in half space, averaged from 100Hz to 3 kHz @ 1 m.
    • Long term max SPL: ≥115 dB
      • Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) @ 1 m.
  • Self-generated noise
    • Self-generated noise: ≤0 dB SPL
      • Self generated noise level in free space at 1 m on axis (A-weighted).
  • Enclosure
    • Enclosure material: MDF
    • Enclosure type: Reflex port
  • Drivers
    • Bass
      • Driver type: Cone
        • 8380A bass driver cone
      • Diameter: 380 mm (15 in)
    • Midrange
      • Driver type: Coaxial
        • 8380A Midrange Driver (coaxial cone)
      • Diameter: 125 mm (4 7/8 in)
    • Treble
      • Driver type: Coaxial
        • 8380A Treble Driver (coaxial metal dome)
      • Diameter: 25 mm (1 in)
  • Harmonic distortion
    • 50 Hz ≤0.5 %
    • 50...200 Hz ≤1 %
    • > 200 Hz ≤0.5 %
• Amplifier Section
  • Amplifiers
    • 8380A bass amplifier: 500 W Class D
    • 8380A midrange amplifier: 250 W Class D
    • 8380A treble amplifier: 200 W Class AB
  • Mains voltage: 100-240 VAC 50/60Hz
  • Power consumption
    • ISS Active: ≤0.5 W
    • Idle: ≤21 W
    • Full output: 750 W
• Signal processing section
  • Connectors
    • Input: Analog signal input connector XLR female, balanced 10 kOhm.
    • Input: Digital signal input connector XLR female 110 Ohm
    • Output: Digital signal output / Thru connector XLR male 110 Ohm
    • 2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
  • Crossover
    • Bass/Mid: 470 Hz
    • Mid/Treble: 2500 Hz
• Dimensions (HxWxD): 31.89 x 18.9 x 16.54 inch (810 x 480 x 420mm)
• Weight: 119.0 lb (54 kg)
• Warranty: 2 years parts-and-labour (extended to 5 years with free registration)

What's in the Box

• 1x 8380A main monitor
• 1x Mains cable 1,8 m
• 1x RJ45 cable 5 m
• 1x Front plate
• 2x Rack mount ears
• 1x Operating manual

NOTE: GLM Calibration requires free GLM software and either the 9320A SAM Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
