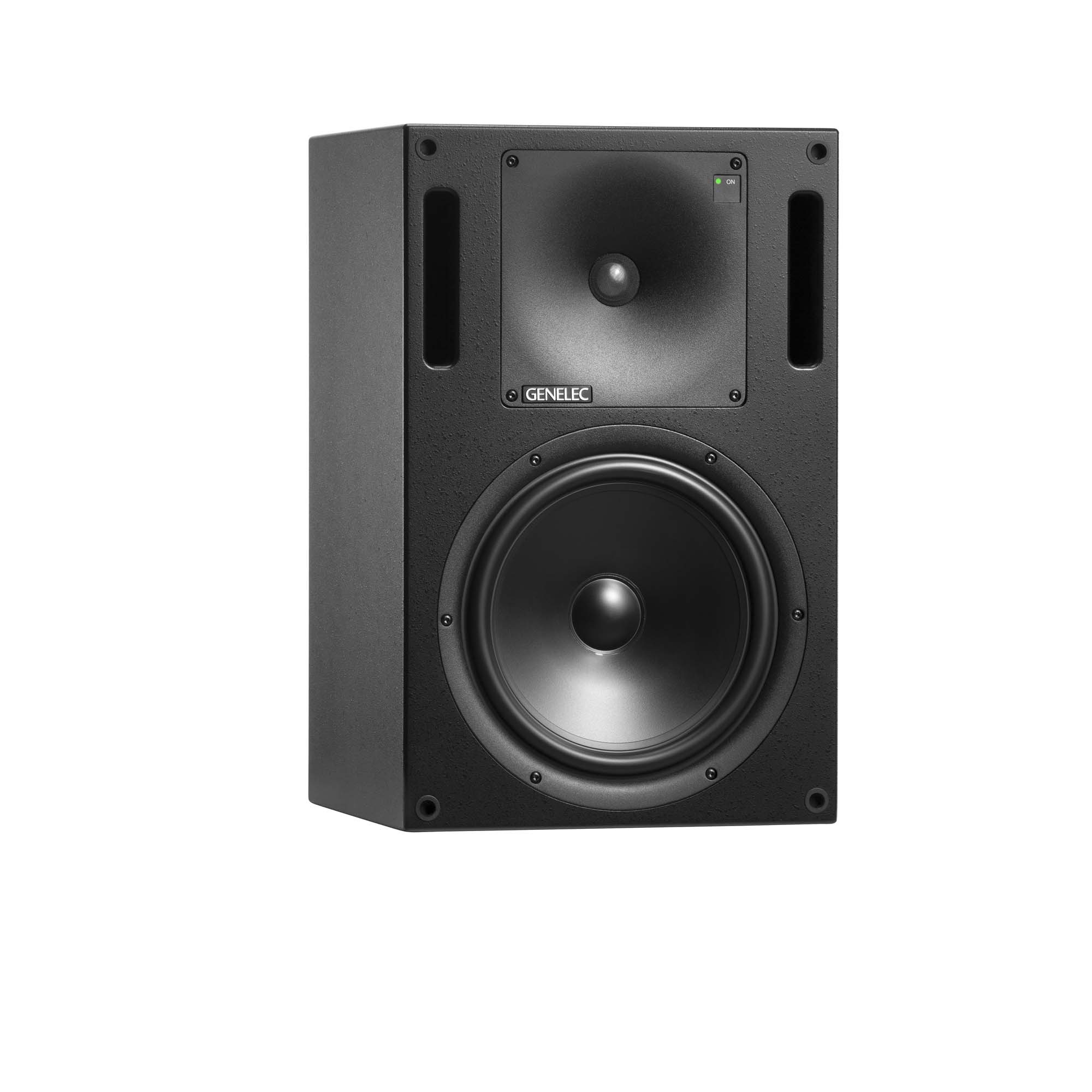

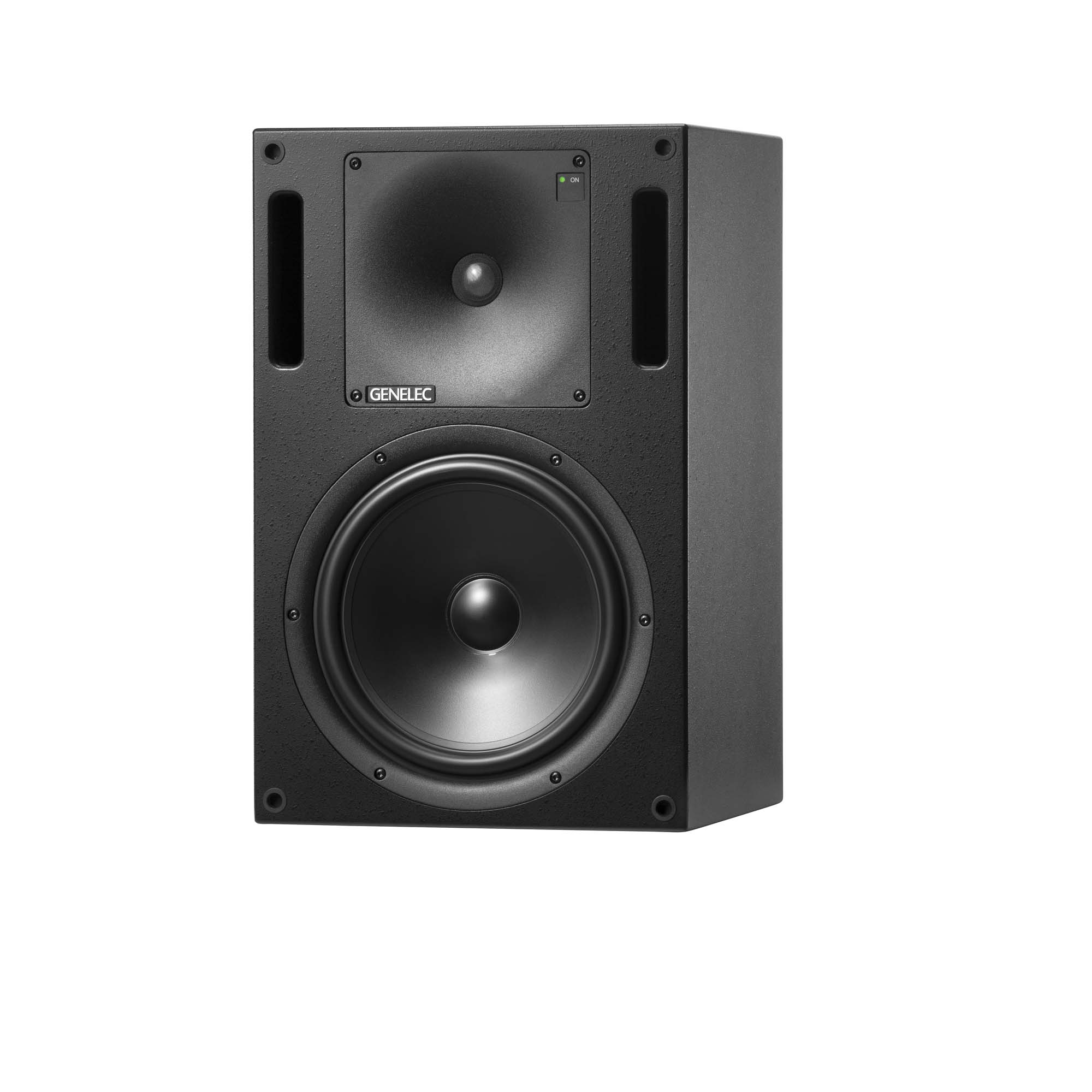

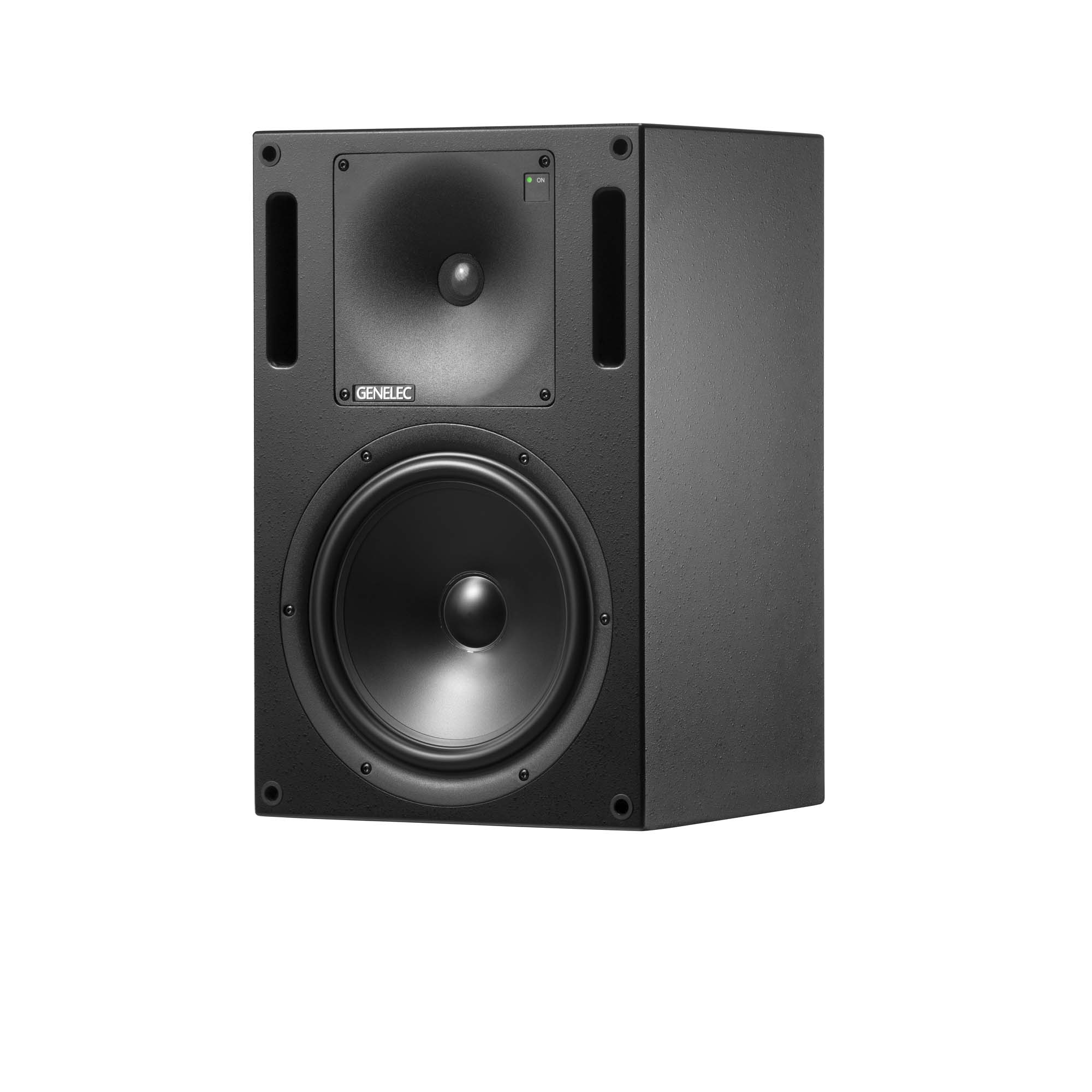

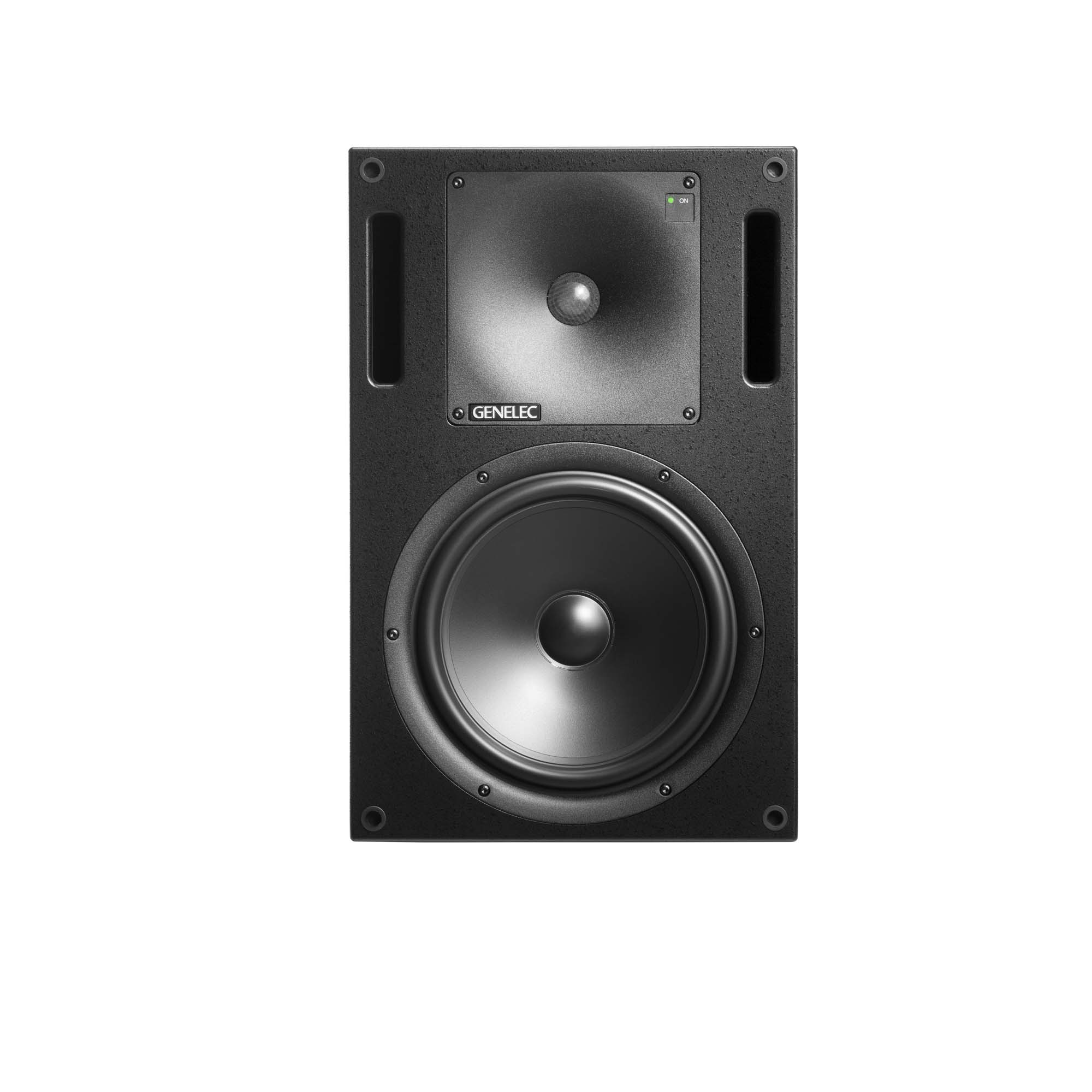

Genelec 1032C SAM Studio Monitor (Single)

About: Genelec 1032C SAM Studio Monitor (Single)

The 1032C is a high-SPL nearfield monitor that fuses the much-loved soffit-mountable styling of the iconic 1000 series with our latest Smart Active Monitoring technology

• Active crossover operating at low signal levels.
• Directivity Control Waveguide (DCW) for flat on and off-axis response.
• Each transducer is driven by its own optimised amplifier.
• Sophisticated drive unit protection circuitry for safe operation.
• Precise room response compensation for optimizing in-room performance.
• Networked Smart Active Monitor (SAM) Systems feature automatic calibration to the environment.
• Intelligent Signal Sensing (ISS) for power consumption reduction in stand-by mode.

Even higher performance

Retaining all the revered audio characteristics of the previous A and B versions, the 1032C now features digital connectivity, a universal power supply and powerful Class D amplification; enabling it to produce higher SPL and greater low frequency extension than its already powerful predecessors.

A smart classic

In addition to its trademark out-of-the-box neutrality, the 1032C now integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. This makes the 1032C is the perfect choice for professionals in high-end music production, post production and broadcast whose mixes need to translate perfectly to other rooms and systems.

Specifications

• Frequency Response
  • 40 Hz - 20 kHz (± 2.5 dB)
  • Low cutoff -6dB - 33 Hz
  • High cutoff -6dB - 23 kHz
• SPL
  • Peak SPL - ≥124 dB
    • Maximum peak acoustic output per pair in a listening room with music material at 1 m.
  • Short term max SPL - ≥114 dB
    • Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
  • Long term max SPL - ≥104 dB
    • Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
• Self-generated noise
  • Self-generated noise - ≤5 dB SPL
    • Self generated noise level in free space at 1 m on axis (A-weighted).
• Drivers
  • Bass
    • Driver type - Cone
    • Magnetically shielded bass driver.
    • Diameter - 250 mm (9 7/8 in)
  • Treble
    • Driver type - Metal dome
    • Magnetically shielded treble driver.
    • Diameter - 25 mm (1 in)
• ​Harmonic distortion
  • 50…100 Hz ≤1 %
  • > 100 Hz ≤0.5 %
• Amplifiers
  • 1032C bass amplifier - 250 W Class D
  • 1032C treble amplifier - 150 W Class D
• Mains voltage
  • 100-240 VAC 50/60Hz
• Power consumption
  • ISS Active - ≤1 W
  • Idle - ≤11 W
  • Full output - 200 W

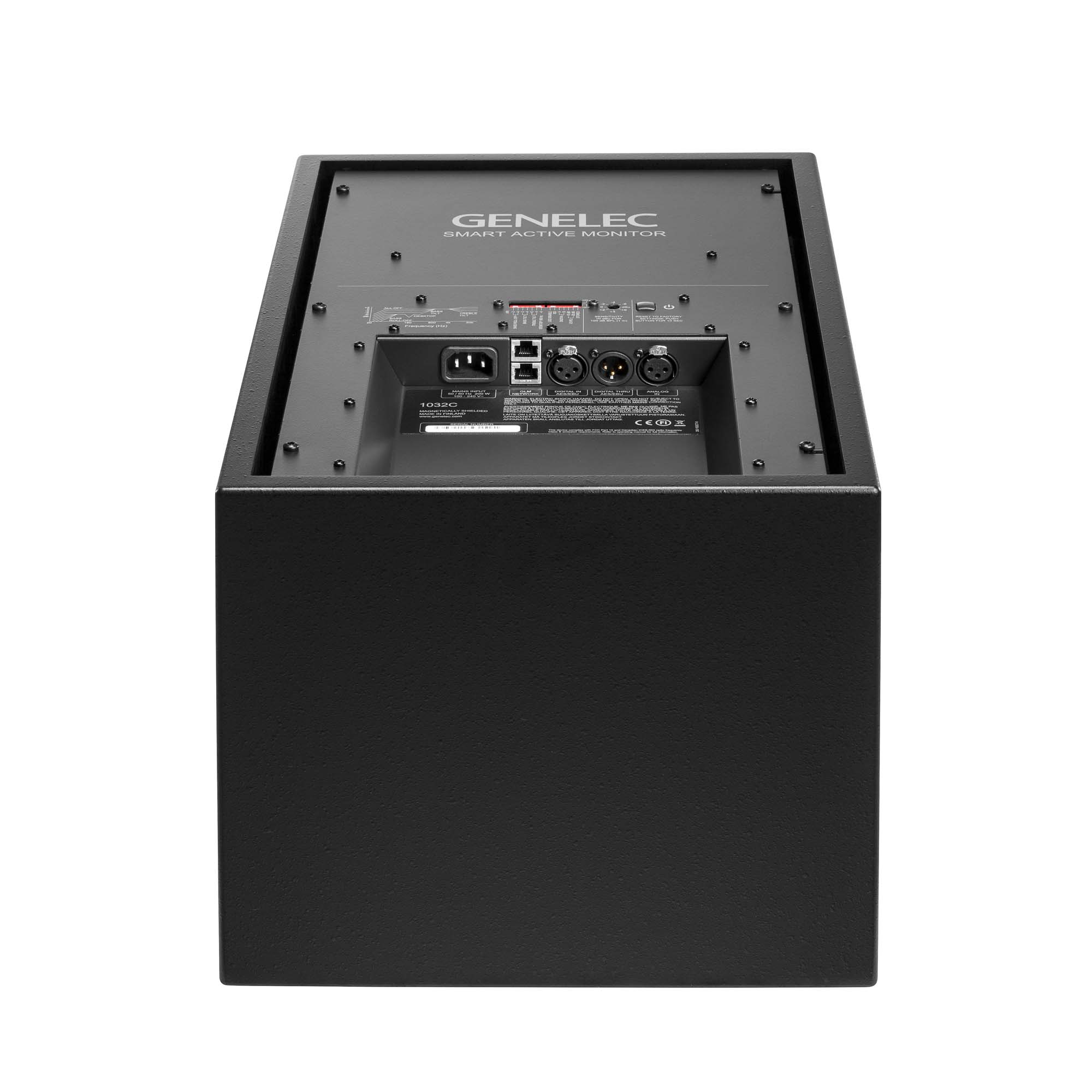

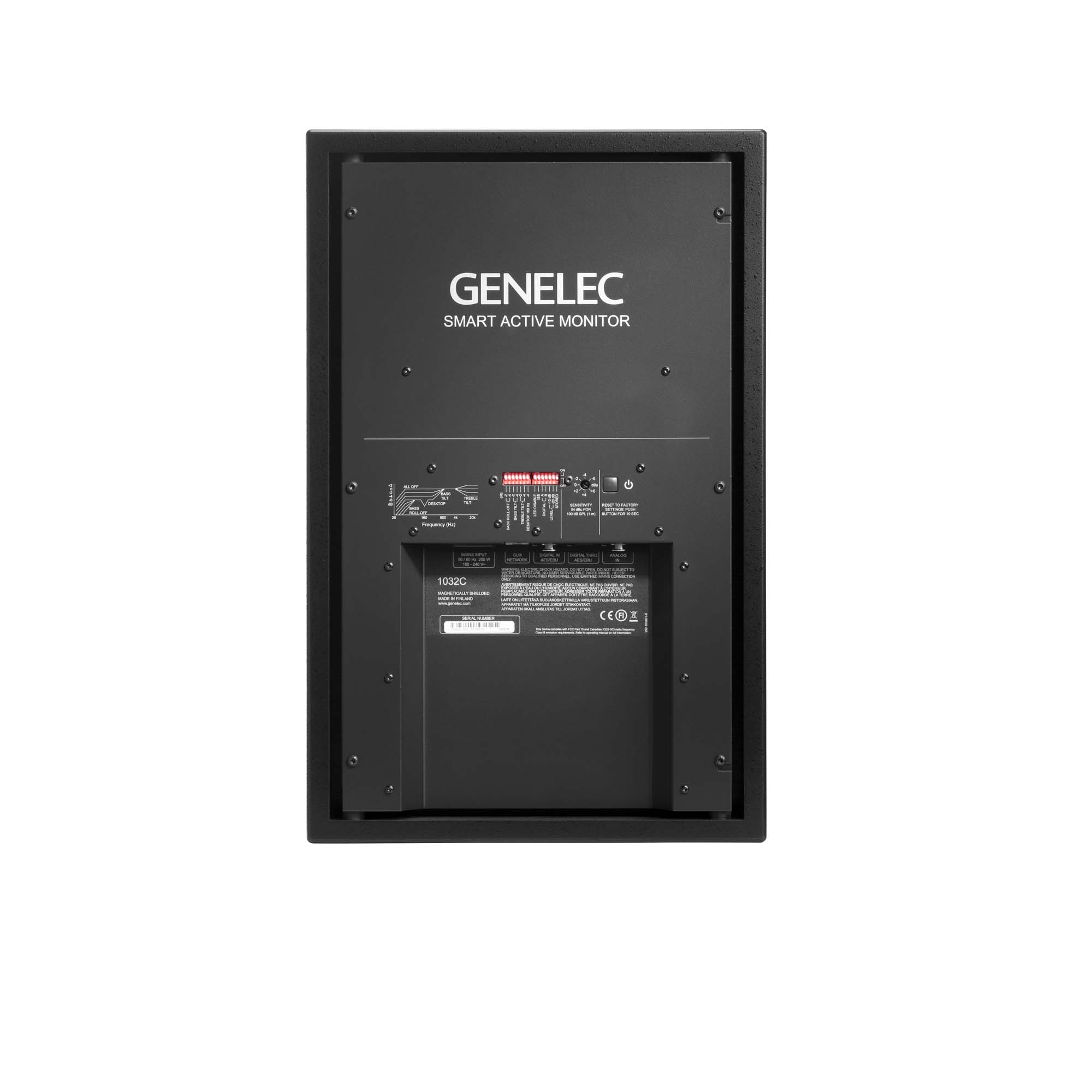

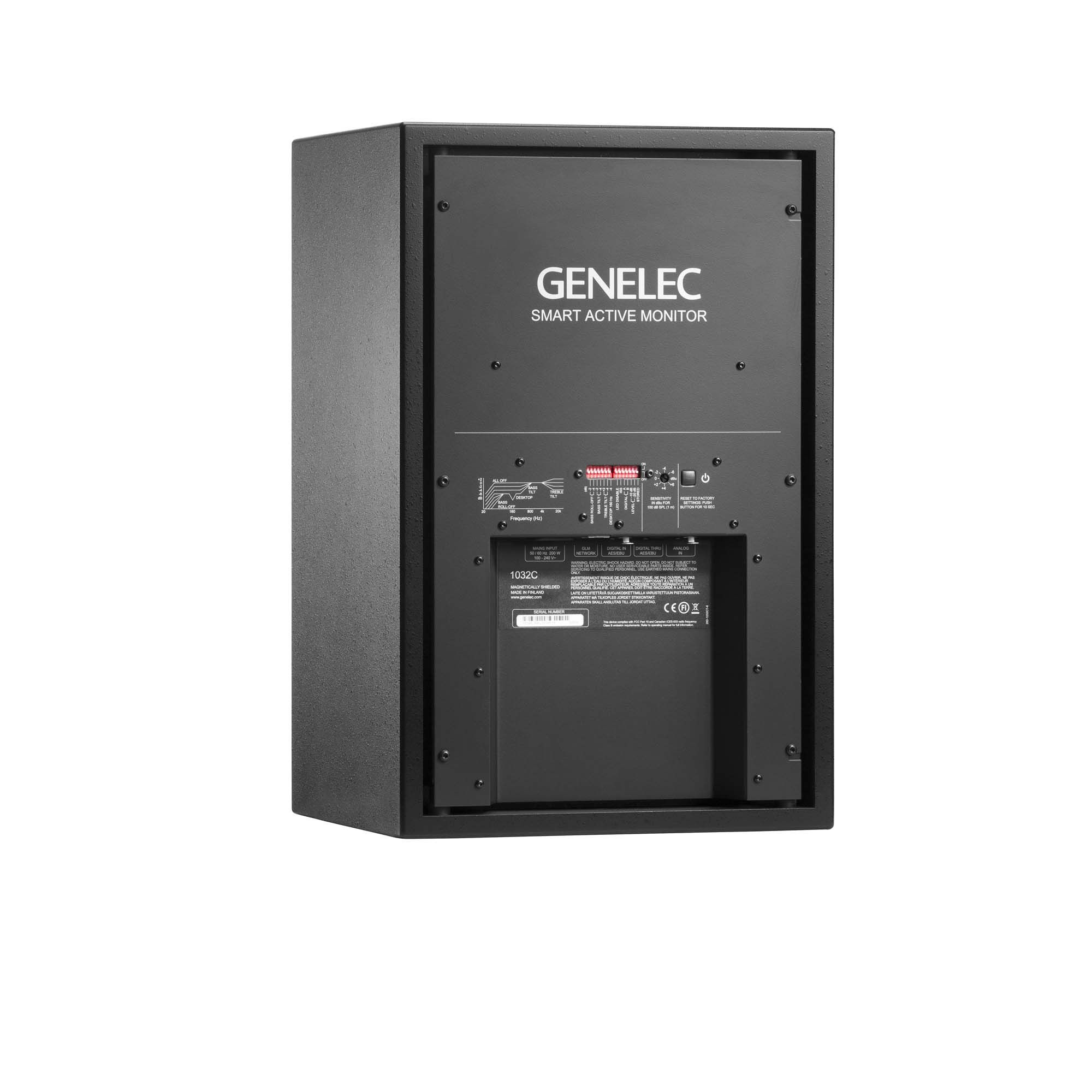

• Connectors
  • Input - Analog signal input connector XLR female, balanced 10 kOhm.
  • Input - Digital signal input connector XLR female 110 Ohm.
  • Output - Digital signal output / Thru connector XLR male 110 Ohm.
  • 2 x Control - Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
• Enclosure
  • Enclosure material - MDF
• Size & Weight
  • Dimensions (HxWxD) - 19.49 x 12.6 x 11.42 inch (495 x 320 x 290 mm)
  • Weight - 37.5 lb (17 kg)

What's in the Box

• 1x 1032C monitor
• 1x Mains cable 1,8 m
• 1x RJ45 cable 5 m
• 1x Operating manual
