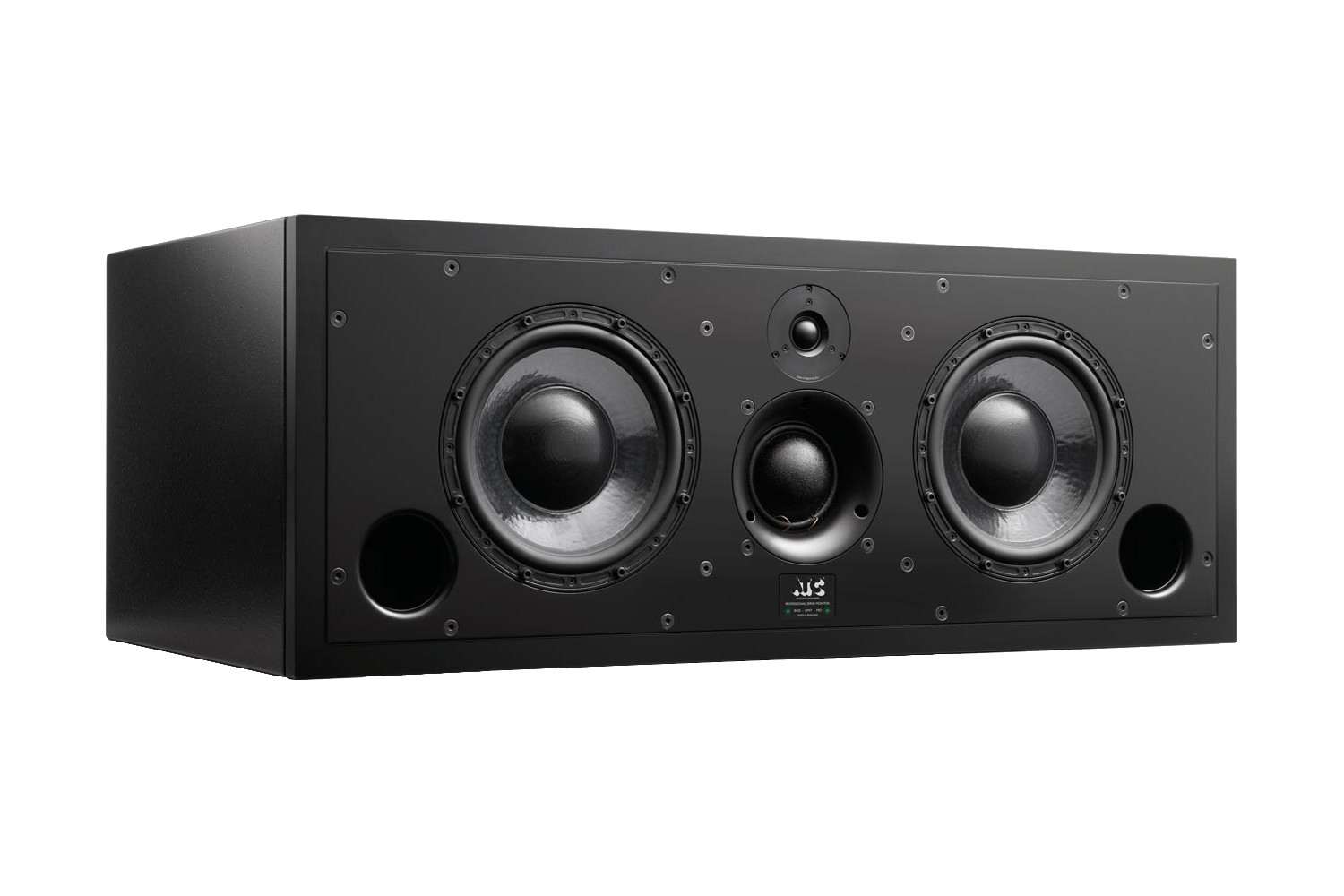

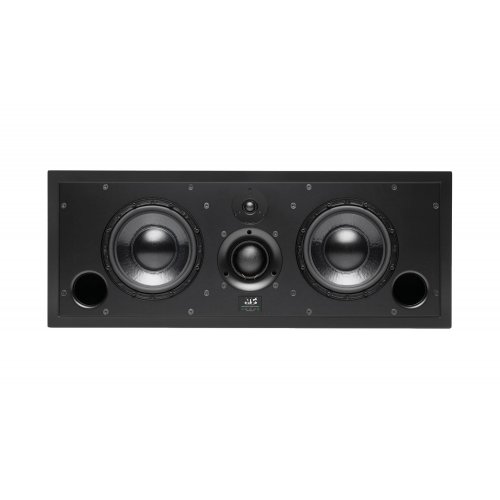

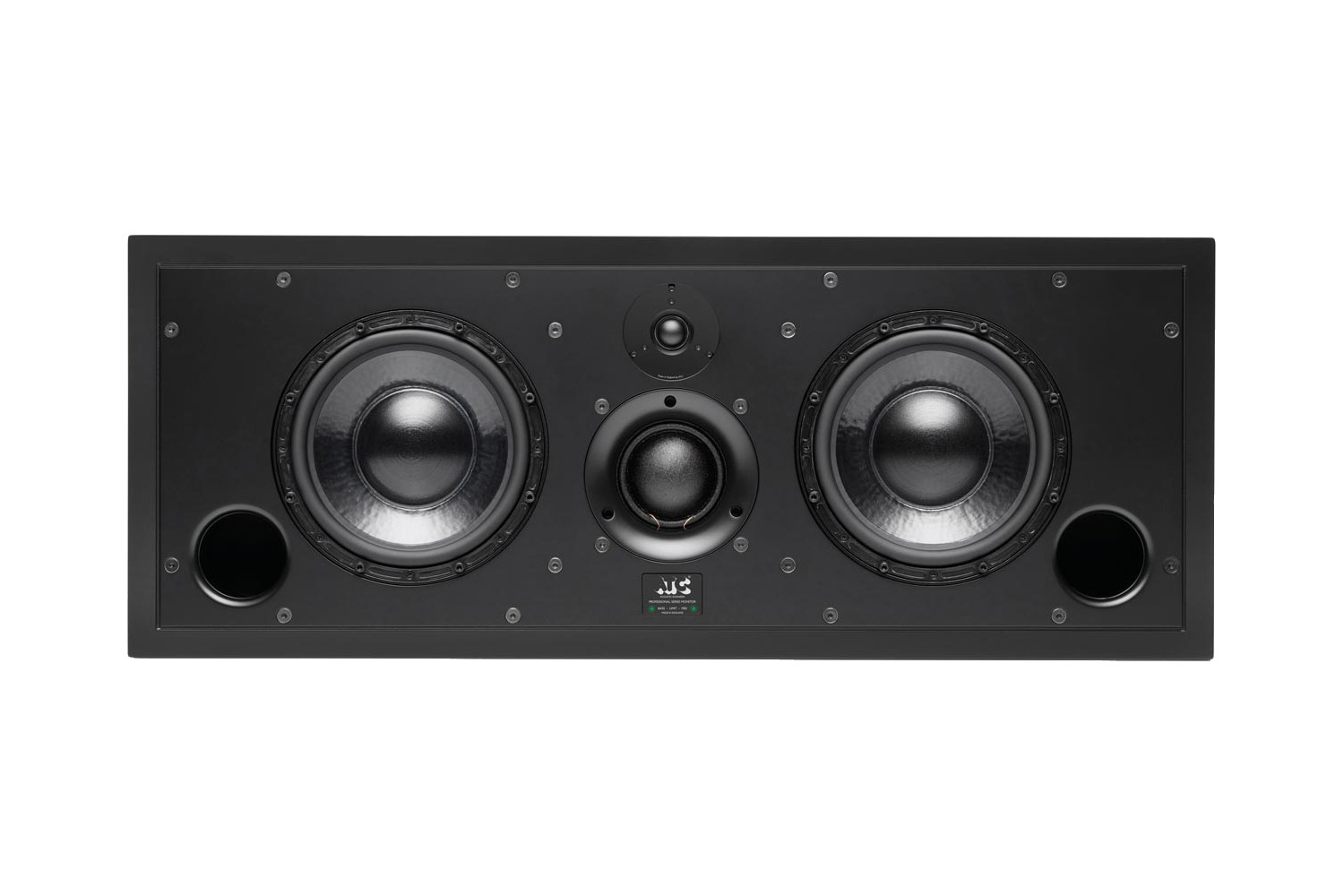

ATC SCM105AIWPR Pro 3-Way Active Mid-Field Centre Channel In-Wall Monitor
Model: ATC-SCM105AIWPR
About: ATC SCM105AIWPR Pro 3-Way Active Mid-Field Centre Channel In-Wall Monitor
The SCM105AiWC has been designed specifically as an in-wall centre channel monitor with reduced cabinet height, to ease fitment in crowded control room front walls.
It is based upon the SCM110AiW Pro mid-field monitor and can partner a range of ATC 3-way mid-field monitors in 5.1, 7.1 surround or immersive audio formats such as Dolby Atmos.
- Low height in-wall cabinet design to simplify install in control room front walls.
- Symmetrical driver layout.
- Ideal partner for the SCM50/100/110AiW Pro stereo monitor loudspeakers*.
- *Can also partner SCM150AiW Pro but max SPL capability must be considered
- Dual 9”/234mm SL bass drivers, 3”/75mm soft-dome mid, 1”/25mm soft-dome tweeter.
- Driven by 19”/6U remote rack mount amplifier, the R1-350 Pro (sold separately).
- Recessed rear panel mounted inputs.
- Audio connection via multi-core speaker cable terminated with NL8 (sold separately).
- Power/limit LED connection via 5-pin XLR (sold separately).
- Stand-mount variant also available – the SCM105AC Pro.
Specifications
- Acoustic
- Drive Units
- Bass: 2 x SB75-234SL 16Ω.
- Mid: 1 x SM75-150S 16Ω.
- HF: 1 x SH25-76S 6Ω.
- Low Frequency Cut-off: 30Hz (-6dB, anechoic).
- High Frequency Cut-off: 25kHz (-6dB).
- Amplitude Linearity: 50Hz - 17kHz (+/- 2dB).
- Matched Response: +/-0.5dB.
- Crossover Points: 380Hz & 3.5kHz.
- Max SPL: 115dB continuous, 121dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).
- System Sensitivity: 85dBC ref. -20dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V).
- Drive Units
- Physical
- Dimensions (WxHxD): 37.4 x 14.57 x 20.67 in (950 x 370 x 525mm)
- Weight: 120.59 lbs (54.7 kg)
